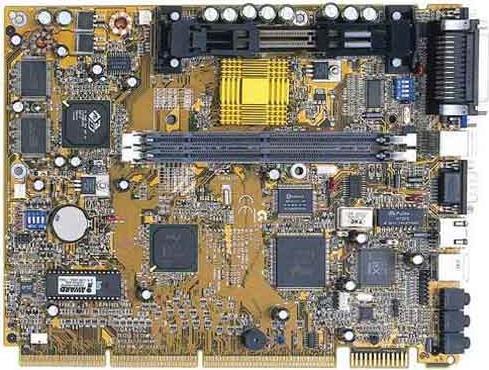

GA-6ZOZ

SpecificationsSupportWhere to Buy

Specifications

  • Processador
    1. Intel Pentium II Processor 233~550 MHz
    2. Slot 1 for future Processor support
    3. 66/75*/83*/100/112*/124*/133* MHz System Bus
    4. AUTO Detect CPU Voltage
    5. Clock multiplier 3.0/3.5 ...... / 6.5
  • Chipset
    1. Intel 440ZX AGPset
    2. Winbond 83977 I/Oset
    3. ATi RAGE Pro 2X AGP chip
    4. YAMAHA 740 PCI Sound chip
    5. Intel 82558 LAN chip
    6. Winbond 83782 Health chip
  • Memória
    1. 8MB to 256MB DRAM size
    2. 2 x 3.3V DIMM Socket
    3. Supports 8/16/32/64/128/256 MB SDRAM DIMM Module
    4. Supports ECC Type DIMM Module (72 bits)
  • Controlador I/O
    1. 1 x FDD, 2 x COM, 1 x LPT, PS/2 Keyboard, PS/2 Mouse on board
    2. 1 x VGA(DB15), 1 x Joystic, 1 x Line-in, 1 x Line-out, 1 x MIC on board
    3. 1 x RJ-45 & 2 x USB ports on board
    4. IrDA TX / RX Header (optional)
  • BIOS
    1. 2Mbit Flash RAM
    2. AWARD BIOS with Enhanced ACPI Feature for PC98/Win98 Compliance, Green, PnP, DMI, INT 13 (>8.4GB) & Anti-Virus functions
    3. IDE#1~#4, SCSI, LS 120, ZIP & CD-ROM bootable
    4. Auto-detect & report system health status
  • Form Factor
    1. Mini NLX, 4 layer PCB (20.6*25.8 cm)
  • Driver
    1. Intel LDCM utility
    2. Ultra DMA 33 Bus Master IDE Driver (XStore Pro, Triones, Intel)
    3. SIV utility, Intel PIIX4 Patch Utility for Windows 95
    4. ATi Rage Pro Driver
    5. YAMAHA PCI Sound Driver
    6. TREND MICRO PC-cillin 98 Anti-Virus Utility (scan only)
  • Other Features
    1. Includes Wake On LAN Header (WOL)
    2. Includes SB-LINK connector
    3. Supports Internal/External modem Wake On
    4. 3 Fan Power & Speed Detection Connectors
    5. Case Open Detection
    6. Poly fuse for keyboard overcurrent protection
  • Power
    1. ATX Power connector
    2. Power-on by K/B, PS/2 Mouse, LAN, RTC, Modem (COM A or B) & Switch
    3. Power-off by Windows 98 Shut down & Switch
    4. 3 Level ACPI LED Support
    5. Stop CPU Fan when entering suspend mode
  • Processador
    1. Intel Pentium II Processor 233~550 MHz
    2. Slot 1 for future Processor support
    3. 66/75*/83*/100/112*/124*/133* MHz System Bus
    4. AUTO Detect CPU Voltage
    5. Clock multiplier 3.0/3.5 ...... / 6.5
  • Chipset
    1. Intel 440ZX AGPset
    2. Winbond 83977 I/Oset
    3. ATi RAGE Pro 2X AGP chip
    4. YAMAHA 740 PCI Sound chip
    5. Intel 82558 LAN chip
    6. Winbond 83782 Health chip
  • Memória
    1. 8MB to 256MB DRAM size
    2. 2 x 3.3V DIMM Socket
    3. Supports 8/16/32/64/128/256 MB SDRAM DIMM Module
    4. Supports ECC Type DIMM Module (72 bits)
  • Controlador I/O
    1. 1 x FDD, 2 x COM, 1 x LPT, PS/2 Keyboard, PS/2 Mouse on board
    2. 1 x VGA(DB15), 1 x Joystic, 1 x Line-in, 1 x Line-out, 1 x MIC on board
    3. 1 x RJ-45 & 2 x USB ports on board
    4. IrDA TX / RX Header (optional)
  • BIOS
    1. 2Mbit Flash RAM
    2. AWARD BIOS with Enhanced ACPI Feature for PC98/Win98 Compliance, Green, PnP, DMI, INT 13 (>8.4GB) & Anti-Virus functions
    3. IDE#1~#4, SCSI, LS 120, ZIP & CD-ROM bootable
    4. Auto-detect & report system health status
  • Form Factor
    1. Mini NLX, 4 layer PCB (20.6*25.8 cm)
  • Driver
    1. Intel LDCM utility
    2. Ultra DMA 33 Bus Master IDE Driver (XStore Pro, Triones, Intel)
    3. SIV utility, Intel PIIX4 Patch Utility for Windows 95
    4. ATi Rage Pro Driver
    5. YAMAHA PCI Sound Driver
    6. TREND MICRO PC-cillin 98 Anti-Virus Utility (scan only)
  • Other Features
    1. Includes Wake On LAN Header (WOL)
    2. Includes SB-LINK connector
    3. Supports Internal/External modem Wake On
    4. 3 Fan Power & Speed Detection Connectors
    5. Case Open Detection
    6. Poly fuse for keyboard overcurrent protection
  • Power
    1. ATX Power connector
    2. Power-on by K/B, PS/2 Mouse, LAN, RTC, Modem (COM A or B) & Switch
    3. Power-off by Windows 98 Shut down & Switch
    4. 3 Level ACPI LED Support
    5. Stop CPU Fan when entering suspend mode

* Os termos HDMI, HDMI High-Definition Multimedia Interface (interface multimédia de alta-definição), a apresentação comercial HDMI e os Logótipos HDMI são marcas comerciais ou marcas registadas da HDMI Licensing Administrator, Inc.
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
