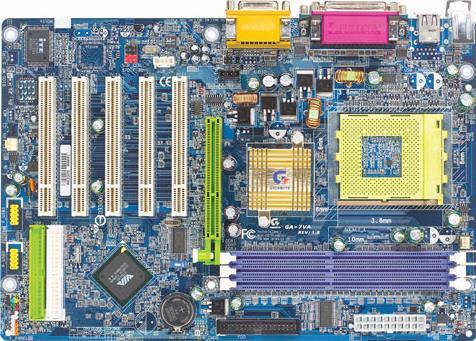

GA-7VA (Rev. 1.x)

Rev. 1.xRev. 2.x
SpecificationsSupportNews & AwardsWhere to Buy

Specifications

  • Processador
    1. Socket A for AMD Athlon™ XP / Athlon™ / Duron™ processor
  • Front Side Bus
    1. 333/266/200 MHz FSB
  • Chipset
    1. Northbridge : VIA KT400
    2. Southbridge : VIA 8235
    3. Super I/O : ITE IT8705F
    4. AC97 Realtek ALC650 6-channel sound Chip
  • Memória
    1. Type : DDR400(PC3200)*/ DDR333 (PC2700) / DDR266 (PC2100) / DDR200 (PC1600) -184pin
    2. Max capacity : Up to 3GB by 3 DIMM slots
    DDR400 (PC3200) support list
  • Slots de Expansão
    1. 1 x AGP slot (8x/4x, AGP 3.0 compliant), supports 1.5v display card only.
    2. 5 x PCI slots (PCI 2.2 compliant)
  • Conectores I/O internos
  • 1 x FDD port
  • 2 x UDMA ATA133/100/66 Bus Master IDE ports
  • 2 x USB 2.0 connectors (support 4 ports by cable )
  • 2 x cooling fan pin header
  • Painel I/O Traseiro
    1. PS/2 Keyboard / Mouse
    2. 2 x USB 2.0 ports
    3. 2 x COM ports
    4. Audio (1 x Line-in / 1 x Line-out / 1 x Mic) connector
    5. 1 x Game/Midi port
    6. 1 x LPT
  • Monitorização H/W
    1. System health status auto-detect and report by BIOS
    2. H/W detect and report power-in voltage, CPU voltage, and Fan Speed Support auto detect temperature thermal shutdown function
  • BIOS
    1. 2Mbit flash RAM
    2. Award BIOS with enhanced ACPI feature for PC98/Win98/Win2000/WinMe/XP compliance, Green, PnP, DMI, INT13 (>8.4GB) and Anti-Virus functions
    3. IDE#1~#4, SCSI, LS120, ZIP and CD-ROM bootable
    4. AC recovery ON/OFF control
  • Bundled Software
    1. Norton Internet Security
    2. Adobe Acrobat Reader
    3. Adobe Acrobat e-Book Reader
  • Form Factor
    1. ATX, Dimension : ( 29.5 x 20.0 cm )
  • CPU/AGP/DIMM setting
    1. CPU FSB adjustable via BIOS (1MHz-linear)
    2. CPU Vcore Voltage adjustable via BIOS
    3. AGP Voltage : N/A
    4. Memory Voltage : N/A
  • Driver
    1. VIA 4 in 1 service pack utility
    2. Realtek sound driver
    3. VIA USB 2.0 driver
    4. Winbond Smart IO driver
    5. Free software
  • Other Features
    1. Suspend-To-RAM (STR)
    2. Supports USB KB/MS Wake up from S3
    3. Poly fuse for keyboard over-current protection
  • Power
    1. ATX power connector
    2. Power-off by Windows 95/ 98/ Me/ 2000/ NT/ XP shut down and Switch
  • Processador
    1. Socket A for AMD Athlon™ XP / Athlon™ / Duron™ processor
  • Front Side Bus
    1. 333/266/200 MHz FSB
  • Chipset
    1. Northbridge : VIA KT400
    2. Southbridge : VIA 8235
    3. Super I/O : ITE IT8705F
    4. AC97 Realtek ALC650 6-channel sound Chip
  • Memória
    1. Type : DDR400(PC3200)*/ DDR333 (PC2700) / DDR266 (PC2100) / DDR200 (PC1600) -184pin
    2. Max capacity : Up to 3GB by 3 DIMM slots
    DDR400 (PC3200) support list
  • Slots de Expansão
    1. 1 x AGP slot (8x/4x, AGP 3.0 compliant), supports 1.5v display card only.
    2. 5 x PCI slots (PCI 2.2 compliant)
  • Conectores I/O internos
  • 1 x FDD port
  • 2 x UDMA ATA133/100/66 Bus Master IDE ports
  • 2 x USB 2.0 connectors (support 4 ports by cable )
  • 2 x cooling fan pin header
  • Painel I/O Traseiro
    1. PS/2 Keyboard / Mouse
    2. 2 x USB 2.0 ports
    3. 2 x COM ports
    4. Audio (1 x Line-in / 1 x Line-out / 1 x Mic) connector
    5. 1 x Game/Midi port
    6. 1 x LPT
  • Monitorização H/W
    1. System health status auto-detect and report by BIOS
    2. H/W detect and report power-in voltage, CPU voltage, and Fan Speed Support auto detect temperature thermal shutdown function
  • BIOS
    1. 2Mbit flash RAM
    2. Award BIOS with enhanced ACPI feature for PC98/Win98/Win2000/WinMe/XP compliance, Green, PnP, DMI, INT13 (>8.4GB) and Anti-Virus functions
    3. IDE#1~#4, SCSI, LS120, ZIP and CD-ROM bootable
    4. AC recovery ON/OFF control
  • Bundled Software
    1. Norton Internet Security
    2. Adobe Acrobat Reader
    3. Adobe Acrobat e-Book Reader
  • Form Factor
    1. ATX, Dimension : ( 29.5 x 20.0 cm )
  • CPU/AGP/DIMM setting
    1. CPU FSB adjustable via BIOS (1MHz-linear)
    2. CPU Vcore Voltage adjustable via BIOS
    3. AGP Voltage : N/A
    4. Memory Voltage : N/A
  • Driver
    1. VIA 4 in 1 service pack utility
    2. Realtek sound driver
    3. VIA USB 2.0 driver
    4. Winbond Smart IO driver
    5. Free software
  • Other Features
    1. Suspend-To-RAM (STR)
    2. Supports USB KB/MS Wake up from S3
    3. Poly fuse for keyboard over-current protection
  • Power
    1. ATX power connector
    2. Power-off by Windows 95/ 98/ Me/ 2000/ NT/ XP shut down and Switch

* Os termos HDMI, HDMI High-Definition Multimedia Interface (interface multimédia de alta-definição), a apresentação comercial HDMI e os Logótipos HDMI são marcas comerciais ou marcas registadas da HDMI Licensing Administrator, Inc.
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
