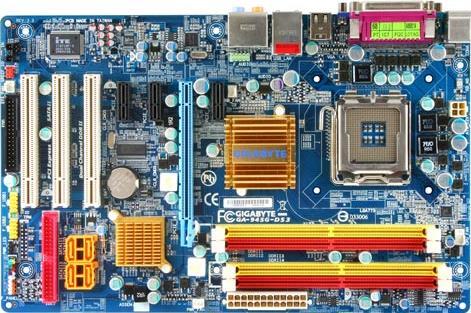

GA-945G-DS3 (Rev. 3.3)

Rev. 3.3Rev. 2.0
Intel 945G+ ICH7 chipset
OverviewSpecificationsSupportWhere to Buy

Specifications

  • Processador
    1. LGA775
    2. Intel® Core™2 Extreme/ Core™2 Duo Processor
    3. Intel® Pentium® D/ Pentium® 4 Processor
    4. Supports 1066/800/533MHz FSB
  • Chipset
    1. Northbridge: Intel® 945G Express Chipset
    2. Southbridge: Intel® ICH7
    3. Realtek RTL8111B Gigabit Ethernet controller
    4. Realtek ALC888 audio codec
  • Memória
    1. 4 DDR II DIMM memory slots (supports up to 4GB memory)
    2. Supports 1.8V DDR II DIMM
    3. Supports dual channel DDR II 667/533/400 DIMM
    * Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
  • Slots de Expansão
    1. 1 PCI Express x 16 slot
    2. 3 PCI Express x 1 slot
    3. 3 PCI slots
  • Conectores I/O internos
    1. 1 24-pin ATX power connector
    2. 1 4-pin ATX 12V power connector
    3. 1 floppy connector
    4. 1 IDE connector
    5. 4 SATA 3Gb/s connectors
    6. 1 CPU fan connector
    7. 1 system fan connector
    8. 1 power fan connector
    9. 1 Northbridge fan connector
    10. 1 front panel connector
    11. 1 front audio connector
    12. 1 CD In connector
    13. 2 USB 2.0/1.1 connectors for additional 4 ports by cables
    14. 1 SPDIF In/Out connector
    15. 1 Chassis Intrusion connector
    16. 1 power LED connector
  • Painel I/O Traseiro
    1. 1 PS/2 keyboard port
    2. 1 PS/2 mouse port
    3. 1 serial port (COMA)
    4. 1 VGA port
    5. 1 parallel port
    6. 4 USB 2.0/1.1 ports
    7. 1 RJ-45 port
    8. 6 audio jacks (Line In / Line Out / MIC In / Surround Speaker Out (Rear Speaker Out) / Center/Subwoofer Speaker Out / Side Speaker Out)
  • Monitorização H/W
    1. System voltage detection
    2. CPU temperature detection
    3. CPU / System/ Power fan speed detection
    4. CPU warning temperature
    5. CPU / System/ Power fan failure warning
    6. CPU smart fan control
  • BIOS
    1. 1 4 Mbit flash ROM
    2. Use of licensed AWARD BIOS
    3. Supports Virtual Dual BIOS
    4. PnP 1.0a, DMI 2.0, SM BIOS 2.3, ACPI 1.0b.
  • Form Factor
    1. ATX
    2. 30.5.cm x 19.3 cm
  • Other Features
    1. Supports @BIOS
    2. Supports Download Center
    3. Supports Q-Flash
    4. Supports EasyTune 5
    5. Supports Xpress Install
    6. Supports Xpress Recovery2
    7. Supports Virtual Dual BIOS (Xpress BIOS Rescue)
  • Observação
    1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
    2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP SP1/SP2. If drivers are available from the vendors, we will update them on the GIGABYTE website.
    • Processador
      1. LGA775
      2. Intel® Core™2 Extreme/ Core™2 Duo Processor
      3. Intel® Pentium® D/ Pentium® 4 Processor
      4. Supports 1066/800/533MHz FSB
    • Chipset
      1. Northbridge: Intel® 945G Express Chipset
      2. Southbridge: Intel® ICH7
      3. Realtek RTL8111B Gigabit Ethernet controller
      4. Realtek ALC888 audio codec
    • Memória
      1. 4 DDR II DIMM memory slots (supports up to 4GB memory)
      2. Supports 1.8V DDR II DIMM
      3. Supports dual channel DDR II 667/533/400 DIMM
      * Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
    • Slots de Expansão
      1. 1 PCI Express x 16 slot
      2. 3 PCI Express x 1 slot
      3. 3 PCI slots
    • Conectores I/O internos
      1. 1 24-pin ATX power connector
      2. 1 4-pin ATX 12V power connector
      3. 1 floppy connector
      4. 1 IDE connector
      5. 4 SATA 3Gb/s connectors
      6. 1 CPU fan connector
      7. 1 system fan connector
      8. 1 power fan connector
      9. 1 Northbridge fan connector
      10. 1 front panel connector
      11. 1 front audio connector
      12. 1 CD In connector
      13. 2 USB 2.0/1.1 connectors for additional 4 ports by cables
      14. 1 SPDIF In/Out connector
      15. 1 Chassis Intrusion connector
      16. 1 power LED connector
    • Painel I/O Traseiro
      1. 1 PS/2 keyboard port
      2. 1 PS/2 mouse port
      3. 1 serial port (COMA)
      4. 1 VGA port
      5. 1 parallel port
      6. 4 USB 2.0/1.1 ports
      7. 1 RJ-45 port
      8. 6 audio jacks (Line In / Line Out / MIC In / Surround Speaker Out (Rear Speaker Out) / Center/Subwoofer Speaker Out / Side Speaker Out)
    • Monitorização H/W
      1. System voltage detection
      2. CPU temperature detection
      3. CPU / System/ Power fan speed detection
      4. CPU warning temperature
      5. CPU / System/ Power fan failure warning
      6. CPU smart fan control
    • BIOS
      1. 1 4 Mbit flash ROM
      2. Use of licensed AWARD BIOS
      3. Supports Virtual Dual BIOS
      4. PnP 1.0a, DMI 2.0, SM BIOS 2.3, ACPI 1.0b.
    • Form Factor
      1. ATX
      2. 30.5.cm x 19.3 cm
    • Other Features
      1. Supports @BIOS
      2. Supports Download Center
      3. Supports Q-Flash
      4. Supports EasyTune 5
      5. Supports Xpress Install
      6. Supports Xpress Recovery2
      7. Supports Virtual Dual BIOS (Xpress BIOS Rescue)
    • Observação
      1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
      2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP SP1/SP2. If drivers are available from the vendors, we will update them on the GIGABYTE website.

      * Os termos HDMI, HDMI High-Definition Multimedia Interface (interface multimédia de alta-definição), a apresentação comercial HDMI e os Logótipos HDMI são marcas comerciais ou marcas registadas da HDMI Licensing Administrator, Inc.
      * The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
      * Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
      * All trademarks and logos are the properties of their respective holders.
      * Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
