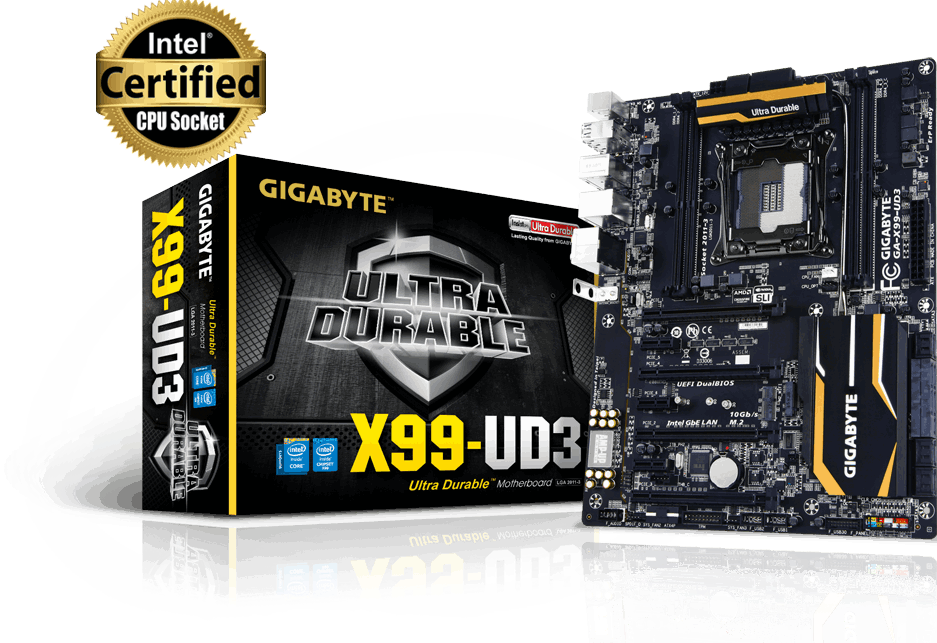

GA-X99-UD3 (Rev. 1.0)

Intel® X99 Chipset
OverviewSpecificationsSupportNews & AwardsLearn MoreWhere to Buy

Specifications

  • Processador
    1. Support for Intel® Core™ i7 processors in the LGA2011-3 package
    2. Support for Intel® Xeon® E5-1600 / E5-2600 / E5-4600 v3 / v4 processors in the LGA2011-3 package
    3. L3 cache varies with CPU
    (Please refer "CPU Support List" for more information.)
  • Chipset
    1. Intel® X99 Express Chipset
  • Memória
    1. 4 x DDR4 DIMM sockets supporting up to 64 GB of system memory
      * Support for up to 256 GB of system memory when using Registered DIMMs.
      * Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
    2. 4 channel memory architecture
    3. Support for DDR4 2800(O.C.) / 2666(O.C.) / 2400(O.C.) / 2133 MHz memory modules
    4. Support for non-ECC memory modules
    5. Support for Extreme Memory Profile (XMP) memory modules
    6. Support for RDIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
    (Please refer "Memory Support List" for more information.)
  • Áudio
    1. Realtek® ALC1150 codec
    2. High Definition Audio
    3. 2/4/5.1/7.1-channel
    4. Support for S/PDIF Out
  • LAN
    1. Intel® GbE LAN chips (10/100/1000 Mbit)
  • Slots de Expansão
    1. 2 x PCI Express x16 slots, running at x16 (PCIE_1, PCIE_2)
      * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIE_1 slot; if you are installing two PCI Express graphics cards, it is recommended that you install them in the PCIE_1 and PCIE_2 slots.

    2. 2 x PCI Express x16 slots, running at x8 (PCIE_3, PCIE_4)
      * The PCIE_4 slot shares bandwidth with the PCIE_1 slot. When the PCIE_4 slot is populated, the PCIE_1 slot will operate at up to x8 mode.
      * When an 28 lane CPU is installed, the PCIE_2 slot operates at up to x8 mode and the PCIE_3 operates at up to x4 mode.
      (All PCI Express x16 slots conform to PCI Express 3.0 standard.)
      3. Š
    3. 3 x PCI Express x1 slots
      (The PCI Express x1 slots conform to PCI Express 2.0 standard.)

    4. 1 x M.2 Socket 1 connector for the wireless communication module (M2_WIFI)
  • Tecnologias de Múltiplas Gráficas
    1. Support for NVIDIA® Quad-GPU SLI™ and 4-Way/3-Way/2-Way NVIDIA® SLI™ technologies
    2. Support for AMD Quad-GPU CrossFireX™ and 4-Way/3-Way/2-Way AMD CrossFire™ technologies
    * The 4-Way NVIDIA® SLI™ configuration is not supported when an i7-5820K CPU is installed. To set up a 3-Way SLI configuration, refer to "1-6 Setting up AMD CrossFire™/NVIDIA® SLI™ Configuration."
  • Interface de Armazenamento
  • Chipset:
    1. 1 x M.2 PCIe connector
      (Socket 3, M key, type 2260/2280 SATA & PCIe x2/x1 SSD support)
    2. 1 x SATA Express connector
    3. 6 x SATA 6Gb/s connectors (SATA3 0~5)
    4. Support for RAID 0, RAID 1, RAID 5, and RAID 10
      * Only AHCI mode is supported when an M.2 PCIe SSD or a SATA Express device is installed.
      (M2_10G, SATA Express, and SATA3 4/5 connectors can only be used one at a time. The SATA3 4/5 connectors will become unavailable when an M.2 SSD is installed in the M2_10G connector.)
    Chipset:
    1. 4 x SATA 6Gb/s connectors (sSATA3 0~3), supporting IDE and AHCI modes only
      2. (An operating system installed on the SATA3 0~5 connectors cannot be used on the sSATA3 0~3 connectors.)
  • USB
  • Chipset:
    1. 4 x USB 3.0/2.0 ports (2 ports on the back panel, 2 ports available through the internal USB header)
    2. 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
    Chipset + Renesas® uPD720210 USB 3.0 Hub:
    1. 4 x USB 3.0/2.0 ports on the back panel
  • Conectores I/O internos
    1. 1 x 24-pin ATX main power connector
    2. 1 x 8-pin ATX 12V power connector
    3. 1 x PCIe power connector
    4. 1 x M.2 Socket 3 connector
    5. 1 x SATA Express connector
    6. 10 x SATA 6Gb/s connectors
    7. 1 x CPU fan header
    8. 1 x water cooling fan header (CPU_OPT)
    9. 3 x system fan headers
    10. 1 x front panel header
    11. 1 x front panel audio header
    12. 1 x USB 3.0/2.0 header
    13. 2 x USB 2.0/1.1 headers
    14. 1 x Trusted Platform Module (TPM) header
    15. 1 x Thunderbolt add-in card connector
    16. 1 x Clear CMOS jumper
  • Painel I/O Traseiro
    1. 1 x PS/2 keyboard port
    2. 1 x PS/2 mouse port
    3. 6 x USB 3.0/2.0 ports
    4. 4 x USB 2.0/1.1 ports
    5. 1 x RJ-45 port
    6. 1 x optical S/PDIF Out connector
    7. 5 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Line In, Line Out, Mic In)
    8. 2 x Wi-Fi antenna connector holes
  • Controlador I/O
    1. iTE® I/O Controller Chip
  • Monitorização H/W
    1. System voltage detection
    2. CPU/System/Chipset temperature detection
    3. CPU/CPU OPT/System fan speed detection
    4. CPU/System/Chipset overheating warning
    5. CPU/CPU OPT/System fan fail warning
    6. CPU/CPU OPT/System fan speed control
      * Whether the fan speed control function is supported will depend on the cooler you install.
  • BIOS
    1. 2 x 128 Mbit flash
    2. Use of licensed AMI UEFI BIOS
    3. Support for DualBIOS™
    4. Support for Q-Flash Plus
    5. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
  • Outras Características
    1. Support for APP Center
      * Available applications in APP Center may differ by motherboard model. Supported functions of each application may also differ depending on motherboard specifications.
      @BIOS
      Ambient LED
      EasyTune
      EZ Setup
      Fast Boot
      Cloud Station
      ON/OFF Charge
      Smart TimeLock
      Smart Recovery 2
      System Information Viewer
      USB Blocker
      V-Tuner
    2. Support for Q-Flash
    3. Support for Smart Switch
    4. Support for Xpress Install
  • Bundled Software
    1. Norton® Internet Security (OEM version)
    2. Intel® Smart Response Technology
    3. cFosSpeed
  • Sistema Operativo
    1. Support for Windows 10/8.1/8/7
  • Form Factor
    1. ATX Form Factor; 30.5cm x 24.4cm
  • Observação
    1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
    2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.
    • Processador
      1. Support for Intel® Core™ i7 processors in the LGA2011-3 package
      2. Support for Intel® Xeon® E5-1600 / E5-2600 / E5-4600 v3 / v4 processors in the LGA2011-3 package
      3. L3 cache varies with CPU
      (Please refer "CPU Support List" for more information.)
    • Chipset
      1. Intel® X99 Express Chipset
    • Memória
      1. 4 x DDR4 DIMM sockets supporting up to 64 GB of system memory
        * Support for up to 256 GB of system memory when using Registered DIMMs.
        * Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
      2. 4 channel memory architecture
      3. Support for DDR4 2800(O.C.) / 2666(O.C.) / 2400(O.C.) / 2133 MHz memory modules
      4. Support for non-ECC memory modules
      5. Support for Extreme Memory Profile (XMP) memory modules
      6. Support for RDIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
      (Please refer "Memory Support List" for more information.)
    • Áudio
      1. Realtek® ALC1150 codec
      2. High Definition Audio
      3. 2/4/5.1/7.1-channel
      4. Support for S/PDIF Out
    • LAN
      1. Intel® GbE LAN chips (10/100/1000 Mbit)
    • Slots de Expansão
      1. 2 x PCI Express x16 slots, running at x16 (PCIE_1, PCIE_2)
        * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIE_1 slot; if you are installing two PCI Express graphics cards, it is recommended that you install them in the PCIE_1 and PCIE_2 slots.

      2. 2 x PCI Express x16 slots, running at x8 (PCIE_3, PCIE_4)
        * The PCIE_4 slot shares bandwidth with the PCIE_1 slot. When the PCIE_4 slot is populated, the PCIE_1 slot will operate at up to x8 mode.
        * When an 28 lane CPU is installed, the PCIE_2 slot operates at up to x8 mode and the PCIE_3 operates at up to x4 mode.
        (All PCI Express x16 slots conform to PCI Express 3.0 standard.)
        3. Š
      3. 3 x PCI Express x1 slots
        (The PCI Express x1 slots conform to PCI Express 2.0 standard.)

      4. 1 x M.2 Socket 1 connector for the wireless communication module (M2_WIFI)
    • Tecnologias de Múltiplas Gráficas
      1. Support for NVIDIA® Quad-GPU SLI™ and 4-Way/3-Way/2-Way NVIDIA® SLI™ technologies
      2. Support for AMD Quad-GPU CrossFireX™ and 4-Way/3-Way/2-Way AMD CrossFire™ technologies
      * The 4-Way NVIDIA® SLI™ configuration is not supported when an i7-5820K CPU is installed. To set up a 3-Way SLI configuration, refer to "1-6 Setting up AMD CrossFire™/NVIDIA® SLI™ Configuration."
    • Interface de Armazenamento
    • Chipset:
      1. 1 x M.2 PCIe connector
        (Socket 3, M key, type 2260/2280 SATA & PCIe x2/x1 SSD support)
      2. 1 x SATA Express connector
      3. 6 x SATA 6Gb/s connectors (SATA3 0~5)
      4. Support for RAID 0, RAID 1, RAID 5, and RAID 10
        * Only AHCI mode is supported when an M.2 PCIe SSD or a SATA Express device is installed.
        (M2_10G, SATA Express, and SATA3 4/5 connectors can only be used one at a time. The SATA3 4/5 connectors will become unavailable when an M.2 SSD is installed in the M2_10G connector.)
      Chipset:
      1. 4 x SATA 6Gb/s connectors (sSATA3 0~3), supporting IDE and AHCI modes only
        2. (An operating system installed on the SATA3 0~5 connectors cannot be used on the sSATA3 0~3 connectors.)
    • USB
    • Chipset:
      1. 4 x USB 3.0/2.0 ports (2 ports on the back panel, 2 ports available through the internal USB header)
      2. 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
      Chipset + Renesas® uPD720210 USB 3.0 Hub:
      1. 4 x USB 3.0/2.0 ports on the back panel
    • Conectores I/O internos
      1. 1 x 24-pin ATX main power connector
      2. 1 x 8-pin ATX 12V power connector
      3. 1 x PCIe power connector
      4. 1 x M.2 Socket 3 connector
      5. 1 x SATA Express connector
      6. 10 x SATA 6Gb/s connectors
      7. 1 x CPU fan header
      8. 1 x water cooling fan header (CPU_OPT)
      9. 3 x system fan headers
      10. 1 x front panel header
      11. 1 x front panel audio header
      12. 1 x USB 3.0/2.0 header
      13. 2 x USB 2.0/1.1 headers
      14. 1 x Trusted Platform Module (TPM) header
      15. 1 x Thunderbolt add-in card connector
      16. 1 x Clear CMOS jumper
    • Painel I/O Traseiro
      1. 1 x PS/2 keyboard port
      2. 1 x PS/2 mouse port
      3. 6 x USB 3.0/2.0 ports
      4. 4 x USB 2.0/1.1 ports
      5. 1 x RJ-45 port
      6. 1 x optical S/PDIF Out connector
      7. 5 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Line In, Line Out, Mic In)
      8. 2 x Wi-Fi antenna connector holes
    • Controlador I/O
      1. iTE® I/O Controller Chip
    • Monitorização H/W
      1. System voltage detection
      2. CPU/System/Chipset temperature detection
      3. CPU/CPU OPT/System fan speed detection
      4. CPU/System/Chipset overheating warning
      5. CPU/CPU OPT/System fan fail warning
      6. CPU/CPU OPT/System fan speed control
        * Whether the fan speed control function is supported will depend on the cooler you install.
    • BIOS
      1. 2 x 128 Mbit flash
      2. Use of licensed AMI UEFI BIOS
      3. Support for DualBIOS™
      4. Support for Q-Flash Plus
      5. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
    • Outras Características
      1. Support for APP Center
        * Available applications in APP Center may differ by motherboard model. Supported functions of each application may also differ depending on motherboard specifications.
        @BIOS
        Ambient LED
        EasyTune
        EZ Setup
        Fast Boot
        Cloud Station
        ON/OFF Charge
        Smart TimeLock
        Smart Recovery 2
        System Information Viewer
        USB Blocker
        V-Tuner
      2. Support for Q-Flash
      3. Support for Smart Switch
      4. Support for Xpress Install
    • Bundled Software
      1. Norton® Internet Security (OEM version)
      2. Intel® Smart Response Technology
      3. cFosSpeed
    • Sistema Operativo
      1. Support for Windows 10/8.1/8/7
    • Form Factor
      1. ATX Form Factor; 30.5cm x 24.4cm
    • Observação
      1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
      2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.

      * Os termos HDMI, HDMI High-Definition Multimedia Interface (interface multimédia de alta-definição), a apresentação comercial HDMI e os Logótipos HDMI são marcas comerciais ou marcas registadas da HDMI Licensing Administrator, Inc.
      * The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
      * Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
      * All trademarks and logos are the properties of their respective holders.
      * Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
