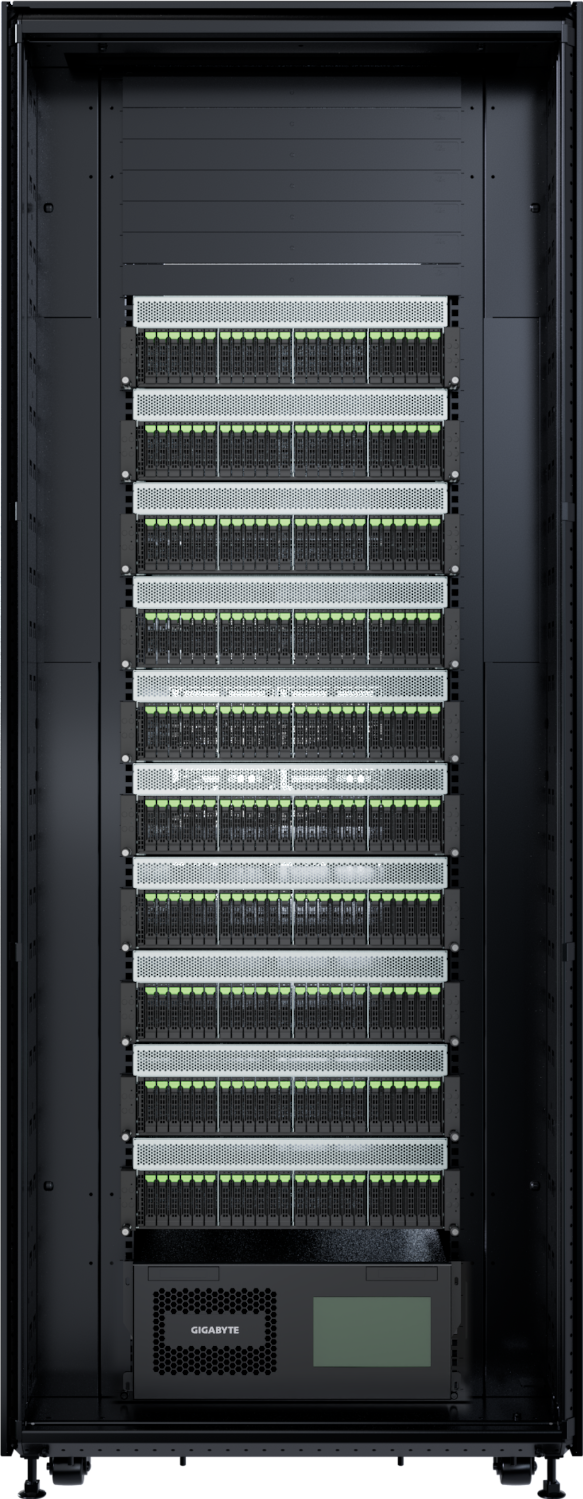

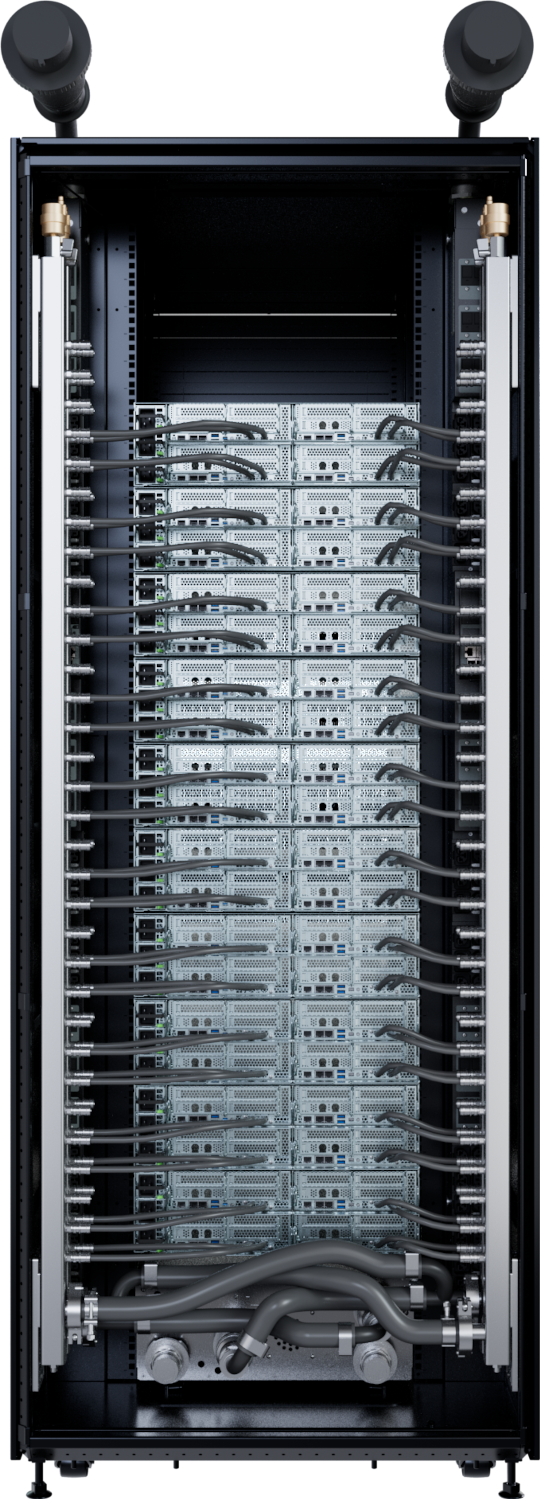

GIGAPOD HPC DLC Rack Scale Solution - HPC DLC Rack_42U_40N

1/2

42U 40 Nodes

GIGAPOD HPC DLC Rack Scale Solution

10 x GIGABYTE 3U4N DLC high density servers
80 x Intel^® Xeon^® 6900-Series Processors
Up to 76 kW rack power consumption
Reserved space for InfiniBand / Ethernet switches
Integrated G-REX cluster-level DLC power and cooling management kit
Compatible with GIGABYTE POD Manager software for cluster management / orchestration
Supports flexible storage with GIGABYTE storage servers and validated partner solutions

Save

Quote

Configuration

	DL83-HD0
Cooling Type	Direct Liquid Cooling
Rack Height	42U
Server Model	H374-A80-LAW1 H374-A81-LAW1
Server Configuration	10 x 3U4N DLC high density servers
CPU	Intel^® Xeon^® 6900-Series Processors Total 80 processors
Switch	Flexible validated InfiniBand / Ethernet switch configurations
PDU	2 x PDUs Input: 415 V, 100 A, 3-phase
Rack Power Consumption	Up to 76 kW
CDU	In-Rack Liquid-to-Liquid CDU Cooling Capacity: 100 kW (5°C approach temperature) Primary Loop Connections: 1" FD83 QDC couplings (inlet/outlet) Input Power: 2 x C20, AC 100-240V , 50/60 Hz 1+1 redundant power supplies and pumps
Management	Integrated G-REX DLC power and cooling management kit: - 1 x N120-LS0 management node - Real-time cluster-level monitoring and control - Supports Modbus, Redfish, and REST APIs for seamless integration with CDUs and RDHx Optional GIGABYTE POD Management (GPM) software suite: - Essential single-node BMC for real-time hardware health and remote system oversight - Unified cluster-scale management and deep telemetry for high-density deployments - Total POD-level orchestration for infrastructure provisioning and environmental monitoring
Storage Solutions	Flexible validated partner solutions with GIGABYTE storage servers


Cooling Type
Rack Height
Server Model
Server Configuration
CPU
Switch
PDU
Rack Power Consumption
CDU
Management
Storage Solutions

DL83-HD0
Direct Liquid Cooling
42U
H374-A80-LAW1 H374-A81-LAW1
10 x 3U4N DLC high density servers
Intel^® Xeon^® 6900-Series Processors Total 80 processors
Flexible validated InfiniBand / Ethernet switch configurations
2 x PDUs Input: 415 V, 100 A, 3-phase
Up to 76 kW
In-Rack Liquid-to-Liquid CDU Cooling Capacity: 100 kW (5°C approach temperature) Primary Loop Connections: 1" FD83 QDC couplings (inlet/outlet) Input Power: 2 x C20, AC 100-240V , 50/60 Hz 1+1 redundant power supplies and pumps
Integrated G-REX DLC power and cooling management kit: - 1 x N120-LS0 management node - Real-time cluster-level monitoring and control - Supports Modbus, Redfish, and REST APIs for seamless integration with CDUs and RDHx Optional GIGABYTE POD Management (GPM) software suite: - Essential single-node BMC for real-time hardware health and remote system oversight - Unified cluster-scale management and deep telemetry for high-density deployments - Total POD-level orchestration for infrastructure provisioning and environmental monitoring
Flexible validated partner solutions with GIGABYTE storage servers
