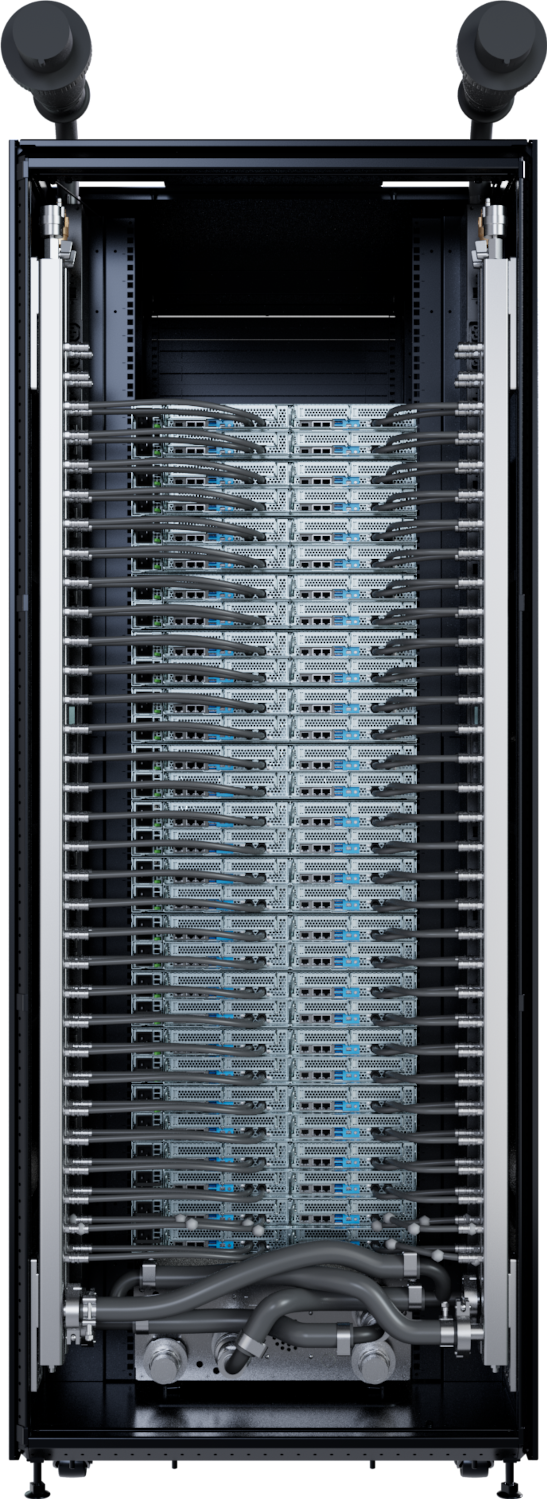

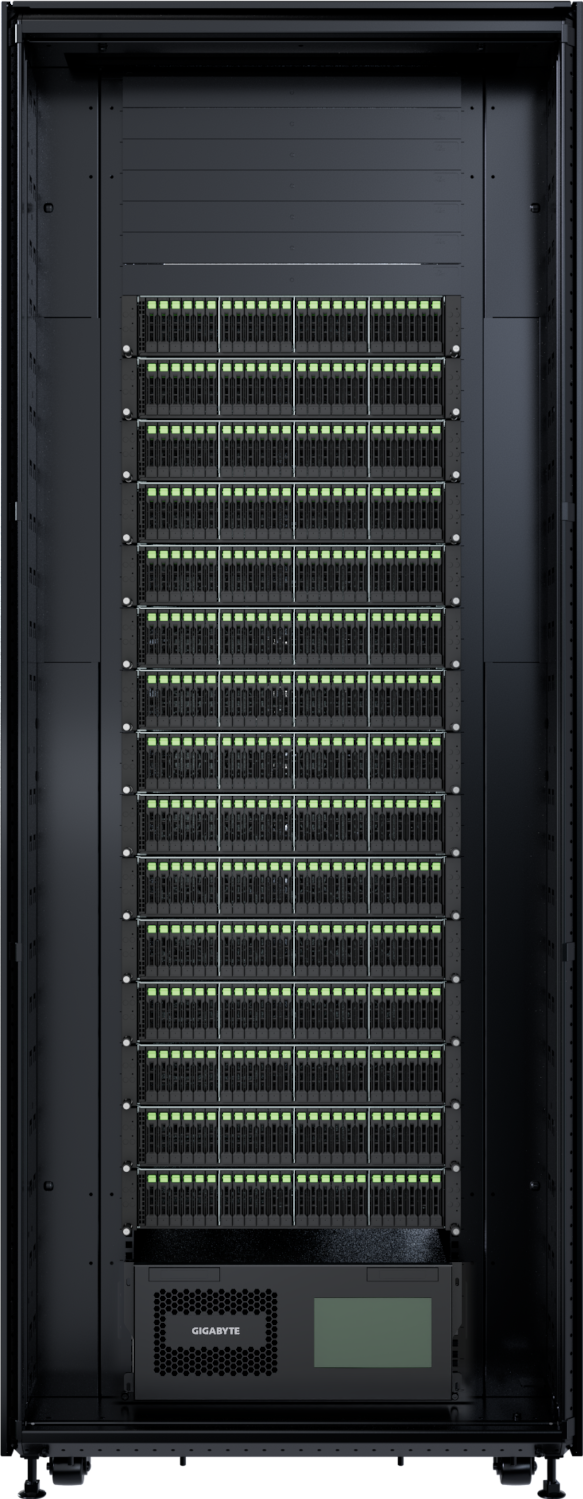

GIGAPOD HPC DLC Rack Scale Solution - HPC DLC Rack_42U_60N

1/2

42U 60 Nodes

GIGAPOD HPC DLC Rack Scale Solution

15 x GIGABYTE 2U4N DLC high density servers
120 x AMD EPYC^™ 9005/9004 Series Processors or
Intel^® Xeon^® 6900-Series Processors
Up to 105 kW rack power consumption
Reserved space for InfiniBand / Ethernet switches
Integrated G-REX cluster-level DLC power and cooling management kit
Compatible with GIGABYTE POD Manager software for cluster management / orchestration
Supports flexible storage with GIGABYTE storage servers and validated partner solutions

Save

Quote

Configuration

	DL83-HD1
Cooling Type	Direct Liquid Cooling
Rack Height	42U
Server Model	H273-Z85-LAZ1	H274-A81-LAZ1
Server Configuration	15 x 2U4N DLC high density servers
CPU	AMD EPYC^™ 9005 Series Processors AMD EPYC^™ 9004 Series Processors Total 120 processors	Intel^® Xeon^® 6900-Series Processors Total 120 processors
Switch	Flexible validated InfiniBand / Ethernet switch configurations
PDU	2 x PDUs Input: 415 V, 125 A, 3-phase
Rack Power Consumption	Up to 105 kW
CDU	In-Rack Liquid-to-Liquid CDU Cooling Capacity: 100 kW (5°C approach temperature) Primary Loop Connections: 1" FD83 QDC couplings (inlet/outlet) Input Power: 2 x C20, AC 100-240V , 50/60 Hz 1+1 redundant power supplies and pumps
Management	Integrated G-REX DLC power and cooling management kit: - 1 x N120-LS0 management node - Real-time cluster-level monitoring and control - Supports Modbus, Redfish, and REST APIs for seamless integration with CDUs and RDHx Optional GIGABYTE POD Management (GPM) software suite: - Essential single-node BMC for real-time hardware health and remote system oversight - Unified cluster-scale management and deep telemetry for high-density deployments - Total POD-level orchestration for infrastructure provisioning and environmental monitoring
Storage Solutions	Flexible validated partner solutions with GIGABYTE storage servers


Cooling Type
Rack Height
Server Model
Server Configuration
CPU
Switch
PDU
Rack Power Consumption
CDU
Management
Storage Solutions

DL83-HD1
Direct Liquid Cooling
42U
H273-Z85-LAZ1
15 x 2U4N DLC high density servers
AMD EPYC^™ 9005 Series Processors AMD EPYC^™ 9004 Series Processors Total 120 processors
Flexible validated InfiniBand / Ethernet switch configurations
2 x PDUs Input: 415 V, 125 A, 3-phase
Up to 105 kW
In-Rack Liquid-to-Liquid CDU Cooling Capacity: 100 kW (5°C approach temperature) Primary Loop Connections: 1" FD83 QDC couplings (inlet/outlet) Input Power: 2 x C20, AC 100-240V , 50/60 Hz 1+1 redundant power supplies and pumps
Integrated G-REX DLC power and cooling management kit: - 1 x N120-LS0 management node - Real-time cluster-level monitoring and control - Supports Modbus, Redfish, and REST APIs for seamless integration with CDUs and RDHx Optional GIGABYTE POD Management (GPM) software suite: - Essential single-node BMC for real-time hardware health and remote system oversight - Unified cluster-scale management and deep telemetry for high-density deployments - Total POD-level orchestration for infrastructure provisioning and environmental monitoring
Flexible validated partner solutions with GIGABYTE storage servers

DL83-HD1
Direct Liquid Cooling
42U
H274-A81-LAZ1
15 x 2U4N DLC high density servers
Intel^® Xeon^® 6900-Series Processors Total 120 processors
Flexible validated InfiniBand / Ethernet switch configurations
2 x PDUs Input: 415 V, 125 A, 3-phase
Up to 105 kW
In-Rack Liquid-to-Liquid CDU Cooling Capacity: 100 kW (5°C approach temperature) Primary Loop Connections: 1" FD83 QDC couplings (inlet/outlet) Input Power: 2 x C20, AC 100-240V , 50/60 Hz 1+1 redundant power supplies and pumps
Integrated G-REX DLC power and cooling management kit: - 1 x N120-LS0 management node - Real-time cluster-level monitoring and control - Supports Modbus, Redfish, and REST APIs for seamless integration with CDUs and RDHx Optional GIGABYTE POD Management (GPM) software suite: - Essential single-node BMC for real-time hardware health and remote system oversight - Unified cluster-scale management and deep telemetry for high-density deployments - Total POD-level orchestration for infrastructure provisioning and environmental monitoring
Flexible validated partner solutions with GIGABYTE storage servers
