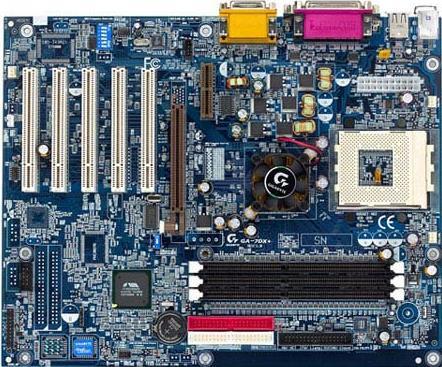

GA-7DX+ (Rev. 1.0)

EspecificaciónSoporte y DescargasNoticias / PremiosWhere to Buy

Especificación

  • Procesador
    1. Socket A for AMD Athlon™/AMD Athlon™ XP/Duron™ 200/266MHz FSB processors
    2. Supports 500MHz ~ 2000+ and faster
    3. Auto/1.5V/1.525V/1.55V...1.85V(15 scales / 0.025V per scale) CPU Voltage adjustable
    4. Supports CPU multiplier 5.0/5.5/.../12.5
  • Chipset
    1. AMD 761™ north bridge and VIA 686B south bridge
    2. AC97 codec
  • Memoria
    1. Supports up to 3GB DDR SDRAM (2GB unbrffered memory)
    2. 2.5V/2.7V/2.9V DDR memory voltage adjustable
    3. 3 DIMMs of 184-pin DDR sockets
    4. Supports either PC1600/DDR200 or PC2100/DDR266 DDR memory
    5. Supports 72bits ECC type DRAM integrity mode
  • Puertos de Expansión
    1. 1 x AGP 4X
    2. 1.5V/1.6V/1.8V AGP Pro voltage adjustable
    3. 5 x PCI slots support 33MHz and PCI 2.2 compliant
    4. 1 x AMR (Audio Modem Riser) slot
  • Controlador de E/S
    1. 2 x UDMA ATA 66/100 bus master IDE ports on board
    2. 1 x FDD, 2 x COM, 1 x LPT, PS/2 Keyboard, PS/2 Mouse on board
    3. 1 x joystick, 1 x line-in, 1 x line-out and 1 x MIC on board
    4. 2 x USB 1.1 ports on board, 2 x USB 1.1 ports by cable
    5. IrDA TX / RX header
  • Monitorización H/W
    1. 4 cooling fan connectors
    2. System health status detect and report by BIOS
    3. H/W detect and report Power-in voltage, CPU voltage and CMOS battery status
  • BIOS
    1. Dual AWARD BIOS, 2 x 2M bit flash ROM, enhanced ACPI feature for PC98/Win98/Win2000/WinMe compliance, Green, PnP, DMI, INT13 (>8.4GB) and Anti-Virus functions
    2. IDE#1~#4, SCSI, LS120, ZIP and CD-ROM bootable
    3. AC recovery ON/OFF control
    4. Auto-detect and report system health status
    5. Supports DualBIOS™ and @BIOS™
  • Diseño
    1. ATX form factor, 4 layers PCB (30.5 x 24.4 cm)
  • Controlador
    1. AMD service pack utility
    2. AC97 driver
  • Otras Características
    1. Suspend-To-RAM (STR); Supports Wake-On-LAN (WOL)
    2. Supports Internal / External Modem Ring On
    3. Supports USB KB Wake up from S3
    4. Provides 4 fan power connectors
    5. Poly fuse for keyboard over-current protection
    6. Supports EasyTune III™ and Q-Flash
  • Energía
    1. ATX power connector
    2. Power-on by LAN, RTC, Modem and Switch
    3. Power-off by Windows 95/98/Me/2000/XP/NT shut down and Switch
  • Procesador
    1. Socket A for AMD Athlon™/AMD Athlon™ XP/Duron™ 200/266MHz FSB processors
    2. Supports 500MHz ~ 2000+ and faster
    3. Auto/1.5V/1.525V/1.55V...1.85V(15 scales / 0.025V per scale) CPU Voltage adjustable
    4. Supports CPU multiplier 5.0/5.5/.../12.5
  • Chipset
    1. AMD 761™ north bridge and VIA 686B south bridge
    2. AC97 codec
  • Memoria
    1. Supports up to 3GB DDR SDRAM (2GB unbrffered memory)
    2. 2.5V/2.7V/2.9V DDR memory voltage adjustable
    3. 3 DIMMs of 184-pin DDR sockets
    4. Supports either PC1600/DDR200 or PC2100/DDR266 DDR memory
    5. Supports 72bits ECC type DRAM integrity mode
  • Puertos de Expansión
    1. 1 x AGP 4X
    2. 1.5V/1.6V/1.8V AGP Pro voltage adjustable
    3. 5 x PCI slots support 33MHz and PCI 2.2 compliant
    4. 1 x AMR (Audio Modem Riser) slot
  • Controlador de E/S
    1. 2 x UDMA ATA 66/100 bus master IDE ports on board
    2. 1 x FDD, 2 x COM, 1 x LPT, PS/2 Keyboard, PS/2 Mouse on board
    3. 1 x joystick, 1 x line-in, 1 x line-out and 1 x MIC on board
    4. 2 x USB 1.1 ports on board, 2 x USB 1.1 ports by cable
    5. IrDA TX / RX header
  • Monitorización H/W
    1. 4 cooling fan connectors
    2. System health status detect and report by BIOS
    3. H/W detect and report Power-in voltage, CPU voltage and CMOS battery status
  • BIOS
    1. Dual AWARD BIOS, 2 x 2M bit flash ROM, enhanced ACPI feature for PC98/Win98/Win2000/WinMe compliance, Green, PnP, DMI, INT13 (>8.4GB) and Anti-Virus functions
    2. IDE#1~#4, SCSI, LS120, ZIP and CD-ROM bootable
    3. AC recovery ON/OFF control
    4. Auto-detect and report system health status
    5. Supports DualBIOS™ and @BIOS™
  • Diseño
    1. ATX form factor, 4 layers PCB (30.5 x 24.4 cm)
  • Controlador
    1. AMD service pack utility
    2. AC97 driver
  • Otras Características
    1. Suspend-To-RAM (STR); Supports Wake-On-LAN (WOL)
    2. Supports Internal / External Modem Ring On
    3. Supports USB KB Wake up from S3
    4. Provides 4 fan power connectors
    5. Poly fuse for keyboard over-current protection
    6. Supports EasyTune III™ and Q-Flash
  • Energía
    1. ATX power connector
    2. Power-on by LAN, RTC, Modem and Switch
    3. Power-off by Windows 95/98/Me/2000/XP/NT shut down and Switch

* Los términos HDMI, HDMI High-Definition Multimedia Interface (Interfaz multimedia de alta definición), HDMI Trade Dress (diseño e imagen comercial HDMI) y los logotipos HDMI son marcas comerciales o marcas registradas de HDMI Licensing Administrator, Inc.
* Todos los materiales aquí provistos son solo para referencia. GIGABYTE se reserva el derecho de modificar o revisar el contenido a cualquier hora sin aviso alguno.
* Todas las marcas y logos son propiedad de sus propios dueños.
* Debido a la arquitectura estándar de la PC, cierta cantidad de memoria es reservada para uso del sistema y actualmente la memoria disponible es menor a la mencionada.
