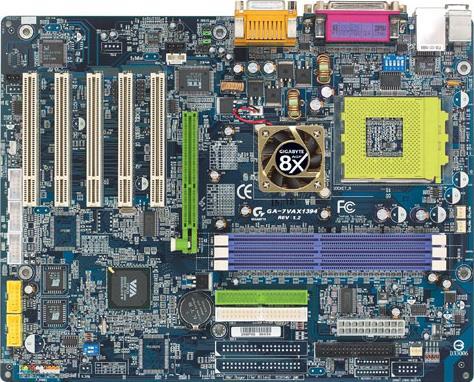

GA-7VAX1394 (Rev. 1.x)

EspecificaciónSoporte y DescargasNoticias / PremiosWhere to Buy

Especificación

  • Procesador
    1. Socket A for AMD Athlon™ XP / Athlon™ / Duron™ 200/266/333 MHz FSB processors
  • Front Side Bus
    1. 333/266/200 MHz FSB
  • Chipset
    1. North-bridge : VIA KT400
    2. South-bridge : VIA 8235
    3. VIA VT6306 IEEE1394 controller
    4. Super I/O : ITE IT8705F
    5. Realtek 8100BL Ethernet 10/100Mb LAN controller
    6. Realtek ALC650 AC97 codec Chip
    7. Dual BIOS
  • Memoria
    1. Type : DDR400(PC3200)* / DDR333 (PC2700) / DDR266 (PC2100) / DDR200 (PC1600) -184pin
    2. Max capacity : Up to 3GB by 3 DIMM slots
    DDR400 (PC3200) support list
  • Puertos de Expansión
    1. 1 x AGP slot (8X/4X -AGP 3.0 compliant)
    2. 5 x PCI slots (PCI 2.2 compliant)
  • Conectores Internos de E/S
    1. 1 x FDD port
    2. 2 x UDMA ATA133/100/66 Bus Master IDE ports
    3. 3 x IEEE 1394 connectors
    4. 2 x USB 2.0 connectors (support 4 ports by cable )
  • Conectores del Panel Trasero
    1. PS/2 Keyboard / Mouse
    2. 2 x USB 2.0 ports
    3. 2 x COM ports
    4. 1 x RJ45 LAN port
    5. Audio (1 x Line-in / 1 x Line-out / 1 x Mic) connector
    6. 1 x Game/Midi Port
    7. 1 x LPT
  • Monitorización H/W
    1. System health status auto-detect and report by BIOS
    2. H/W detect and report power-in voltage, CPU voltage, and Fan Speed
    3. Support auto detect temperature thermal shutdown function
  • BIOS
    1. 2X4Mbit flash RAM
    2. Award BIOS with enhanced ACPI feature for PC98/Win98/Win2000/WinMe/XP compliance, Green, PnP, DMI, INT13 (>8.4GB) and Anti-Virus functions
    3. IDE#1~#4, SCSI, LS120, ZIP and CD-ROM bootable
    4. AC recovery ON/OFF control
  • Software Incluido
    1. Norton Internet Security
    2. Adobe Acrobat Reader
    3. Adobe Acrobat e-Book Reader
  • Diseño
    1. ATX, Dimension : ( 30.5 x 24.4 cm )
  • Configuración CPU/AGP/DIMM
    1. CPU FSB adjustable via BIOS (1MHz-linear)
    2. CPU multiplier by DIP Switch
    3. CPU Vcore Voltage adjustable via BIOS
    4. AGP Voltage adjustable via BIOS
    5. Memory Voltage adjustable via BIOS
  • Controlador
    1. VIA 4 in 1 service pack utility
    2. Realtek LAN driver
    3. Realtek sound driver
    4. VIA USB 2.0 driver
    5. Winbond Smart IO driver
    6. Free software
  • Otras Características
    1. GIGABYTE patented DualBIOS™
    2. Suspend-To-RAM (STR)
    3. Supports USB KB/MS Wake up from S3
    4. Poly fuse for keyboard over-current protection
  • Energía
    1. ATX power connector
    2. Power-off by Windows 95/ 98/ Me/ 2000/ NT/ XP shut down and Switch
  • Procesador
    1. Socket A for AMD Athlon™ XP / Athlon™ / Duron™ 200/266/333 MHz FSB processors
  • Front Side Bus
    1. 333/266/200 MHz FSB
  • Chipset
    1. North-bridge : VIA KT400
    2. South-bridge : VIA 8235
    3. VIA VT6306 IEEE1394 controller
    4. Super I/O : ITE IT8705F
    5. Realtek 8100BL Ethernet 10/100Mb LAN controller
    6. Realtek ALC650 AC97 codec Chip
    7. Dual BIOS
  • Memoria
    1. Type : DDR400(PC3200)* / DDR333 (PC2700) / DDR266 (PC2100) / DDR200 (PC1600) -184pin
    2. Max capacity : Up to 3GB by 3 DIMM slots
    DDR400 (PC3200) support list
  • Puertos de Expansión
    1. 1 x AGP slot (8X/4X -AGP 3.0 compliant)
    2. 5 x PCI slots (PCI 2.2 compliant)
  • Conectores Internos de E/S
    1. 1 x FDD port
    2. 2 x UDMA ATA133/100/66 Bus Master IDE ports
    3. 3 x IEEE 1394 connectors
    4. 2 x USB 2.0 connectors (support 4 ports by cable )
  • Conectores del Panel Trasero
    1. PS/2 Keyboard / Mouse
    2. 2 x USB 2.0 ports
    3. 2 x COM ports
    4. 1 x RJ45 LAN port
    5. Audio (1 x Line-in / 1 x Line-out / 1 x Mic) connector
    6. 1 x Game/Midi Port
    7. 1 x LPT
  • Monitorización H/W
    1. System health status auto-detect and report by BIOS
    2. H/W detect and report power-in voltage, CPU voltage, and Fan Speed
    3. Support auto detect temperature thermal shutdown function
  • BIOS
    1. 2X4Mbit flash RAM
    2. Award BIOS with enhanced ACPI feature for PC98/Win98/Win2000/WinMe/XP compliance, Green, PnP, DMI, INT13 (>8.4GB) and Anti-Virus functions
    3. IDE#1~#4, SCSI, LS120, ZIP and CD-ROM bootable
    4. AC recovery ON/OFF control
  • Software Incluido
    1. Norton Internet Security
    2. Adobe Acrobat Reader
    3. Adobe Acrobat e-Book Reader
  • Diseño
    1. ATX, Dimension : ( 30.5 x 24.4 cm )
  • Configuración CPU/AGP/DIMM
    1. CPU FSB adjustable via BIOS (1MHz-linear)
    2. CPU multiplier by DIP Switch
    3. CPU Vcore Voltage adjustable via BIOS
    4. AGP Voltage adjustable via BIOS
    5. Memory Voltage adjustable via BIOS
  • Controlador
    1. VIA 4 in 1 service pack utility
    2. Realtek LAN driver
    3. Realtek sound driver
    4. VIA USB 2.0 driver
    5. Winbond Smart IO driver
    6. Free software
  • Otras Características
    1. GIGABYTE patented DualBIOS™
    2. Suspend-To-RAM (STR)
    3. Supports USB KB/MS Wake up from S3
    4. Poly fuse for keyboard over-current protection
  • Energía
    1. ATX power connector
    2. Power-off by Windows 95/ 98/ Me/ 2000/ NT/ XP shut down and Switch

* Los términos HDMI, HDMI High-Definition Multimedia Interface (Interfaz multimedia de alta definición), HDMI Trade Dress (diseño e imagen comercial HDMI) y los logotipos HDMI son marcas comerciales o marcas registradas de HDMI Licensing Administrator, Inc.
* Todos los materiales aquí provistos son solo para referencia. GIGABYTE se reserva el derecho de modificar o revisar el contenido a cualquier hora sin aviso alguno.
* Todas las marcas y logos son propiedad de sus propios dueños.
* Debido a la arquitectura estándar de la PC, cierta cantidad de memoria es reservada para uso del sistema y actualmente la memoria disponible es menor a la mencionada.
