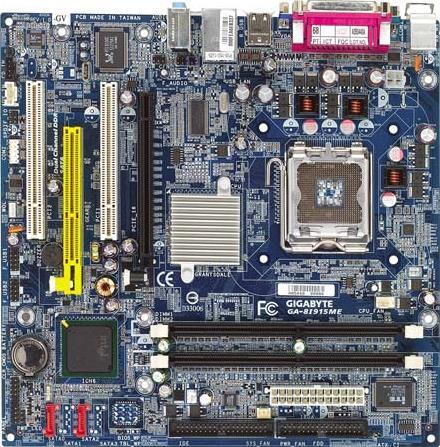

GA-8I915ME-GV (Rev. 1.x)

DescripciónEspecificaciónSoporte y DescargasNoticias / PremiosWhere to Buy

Especificación

  • Procesador
    1. LGA 775 for Pentium® 4 Processor
  • Front Side Bus
    1. 800 / 533 MHz FSB
  • Chipset
    1. Northbridge : Intel® 915GV
    2. Southbridge : Intel® ICH6
    3. Integrated Peripherals :
      1. Realtek 8100C 10/100 Ethernet controller
      2. Realtek ALC655 audio codec
  • Memoria
    1. Type: Dual Channel DDR 400/333
    2. Max capacity: 2 GB
    3. DIMM slots: 2
    * Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
  • Conectores Internos de E/S
    1. 2 x Serial ATA connectors
    2. 2 x USB 2.0 connectors (4 ports by cable)
    3. 1 x FDD connector
    4. 1 x UltraDMA 100/66 IDE
    5. 2 x cooling fan pin headers
    6. 1 x CD in
    7. 1 x COM port connector
    8. 1 x 24-pin ATX Power connector
    9. 1 x 4-pin ATX 12V Power connector
  • Conectores del Panel Trasero
    1. 4 x USB 2.0 ports
    2. 1 x RJ45 LAN port
    3. 3 x Audio jacks (Line Out / Line-in / Mic in)
    4. 1 x VGA port
    5. 1 x LPT port
    6. 2 x PS/2 ports(Keyboard/Mouse)
  • Monitorización H/W
    1. System voltage detection
    2. CPU temperature detection
    3. CPU / System fan speed detection
    4. CPU warning temperature
    5. CPU / System fan failure warning
    6. CPU smart fan control
  • BIOS
    1. 1 X 3M bit flash ROM
  • Diseño
    1. Micro ATX
    2. 24.4cm x 23.6cm
  • Otras Características
    1. Supports @BIOS
    2. Supports EasyTune 5 (only supports Hardware Monitor function)
  • Otras Descripciones
    1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
    2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP SP1/SP2. If drivers are available from the vendors, we will update them on the GIGABYTE website.
    • Procesador
      1. LGA 775 for Pentium® 4 Processor
    • Front Side Bus
      1. 800 / 533 MHz FSB
    • Chipset
      1. Northbridge : Intel® 915GV
      2. Southbridge : Intel® ICH6
      3. Integrated Peripherals :
        1. Realtek 8100C 10/100 Ethernet controller
        2. Realtek ALC655 audio codec
    • Memoria
      1. Type: Dual Channel DDR 400/333
      2. Max capacity: 2 GB
      3. DIMM slots: 2
      * Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
    • Conectores Internos de E/S
      1. 2 x Serial ATA connectors
      2. 2 x USB 2.0 connectors (4 ports by cable)
      3. 1 x FDD connector
      4. 1 x UltraDMA 100/66 IDE
      5. 2 x cooling fan pin headers
      6. 1 x CD in
      7. 1 x COM port connector
      8. 1 x 24-pin ATX Power connector
      9. 1 x 4-pin ATX 12V Power connector
    • Conectores del Panel Trasero
      1. 4 x USB 2.0 ports
      2. 1 x RJ45 LAN port
      3. 3 x Audio jacks (Line Out / Line-in / Mic in)
      4. 1 x VGA port
      5. 1 x LPT port
      6. 2 x PS/2 ports(Keyboard/Mouse)
    • Monitorización H/W
      1. System voltage detection
      2. CPU temperature detection
      3. CPU / System fan speed detection
      4. CPU warning temperature
      5. CPU / System fan failure warning
      6. CPU smart fan control
    • BIOS
      1. 1 X 3M bit flash ROM
    • Diseño
      1. Micro ATX
      2. 24.4cm x 23.6cm
    • Otras Características
      1. Supports @BIOS
      2. Supports EasyTune 5 (only supports Hardware Monitor function)
    • Otras Descripciones
      1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
      2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP SP1/SP2. If drivers are available from the vendors, we will update them on the GIGABYTE website.

      * Los términos HDMI, HDMI High-Definition Multimedia Interface (Interfaz multimedia de alta definición), HDMI Trade Dress (diseño e imagen comercial HDMI) y los logotipos HDMI son marcas comerciales o marcas registradas de HDMI Licensing Administrator, Inc.
      * Todos los materiales aquí provistos son solo para referencia. GIGABYTE se reserva el derecho de modificar o revisar el contenido a cualquier hora sin aviso alguno.
      * Todas las marcas y logos son propiedad de sus propios dueños.
      * Debido a la arquitectura estándar de la PC, cierta cantidad de memoria es reservada para uso del sistema y actualmente la memoria disponible es menor a la mencionada.
