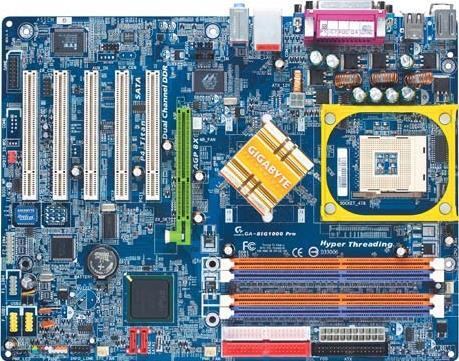

GA-8IG1000 Pro-G (Rev. 3.x)

DescripciónEspecificaciónSoporte y DescargasNoticias / PremiosWhere to Buy

Especificación

  • Procesador
    1. Socket 478 for Intel® Pentium® 4 processor.
  • Front Side Bus
    1. 800 / 533 / 400 MHz FSB
  • Chipset
    1. North Bridge : Intel® 865G GMCH
    2. South Bridge : Intel® ICH5
    3. Integrated Peripherals :
      1. Marvell Gigabit Ethernet Controller
      2. Texas Instrument IEEE 1394 chip
      3. Realtek ALC850 CODEC
  • Memoria
    1. Type: Dual Channel DDR 400 / 333 / 266 support
    2. Max capacity: 4 GB (Please read FAQ for further information)
    3. DIMM slots: 4
  • Puertos de Expansión
    1. 1 x AGP 8x slot
    2. 5 x PCI slots (PCI 2.3 compliant)
  • Conectores Internos de E/S
    1. 2 x Serial ATA ports
    2. 2 x IEEE 1394 pin header
    3. 2 x USB 2.0 connectors(supports 4 ports by cable)
    4. 2 x UltraDMA 100/66 Bus Master IDE
    5. 1 x FDD connector
    6. 1 x S/P-DIF input/output pin header
    7. CD/AUX in
    8. 1 x COM port
    9. 1 x Game port pin header
  • Conectores del Panel Trasero
    1. 4 x USB 2.0 ports
    2. 1 x RJ45 LAN port
    3. 1 x LPT port
    4. 1 x VGA port
    5. 1 x COM port
    6. 3 x Audio ports (Line-in / Line-out / MIC)
    7. 2 x PS/2 ports (Keyboard/Mouse)
  • Monitorización H/W
    1. ITE 8712F
    2. System health status auto-detect and report by BIOS
    3. Hardware detecting and reporting for case open, power-in voltage, CPU voltage, and fan speed.
  • BIOS
    1. 2 x 4M bit flash ROM, Award BIOS
  • Software Incluido
    1. Norton Internet Security 2003
      1. Norton Anti Virus™
      2. Norton™ Personal Firewall
      3. Norton™ Privacy Control
      4. Norton™ Parental Control
      5. Norton™ Spam Alert
    2. GIGABYTE Windows Utility Manager
    3. Adobe Acrobat Reader
  • Diseño
    1. ATX
    2. 30.5cm x 23.0cm
  • Controlador
    1. Intel® chipset software installation utility
    2. Intel® Graphics driver
    3. Marvell gigabit lan driver
    4. Realtek audio driver
    5. USB2.0 driver
  • Otras Características
    1. Xpress Install
    2. Xpress Recovery
    3. EasyTune™ 4
    4. @BIOS
    5. Q-Flash™
  • Otras Descripciones
    1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
    2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP SP1/SP2. If drivers are available from the vendors, we will update them on the GIGABYTE website.
    • Procesador
      1. Socket 478 for Intel® Pentium® 4 processor.
    • Front Side Bus
      1. 800 / 533 / 400 MHz FSB
    • Chipset
      1. North Bridge : Intel® 865G GMCH
      2. South Bridge : Intel® ICH5
      3. Integrated Peripherals :
        1. Marvell Gigabit Ethernet Controller
        2. Texas Instrument IEEE 1394 chip
        3. Realtek ALC850 CODEC
    • Memoria
      1. Type: Dual Channel DDR 400 / 333 / 266 support
      2. Max capacity: 4 GB (Please read FAQ for further information)
      3. DIMM slots: 4
    • Puertos de Expansión
      1. 1 x AGP 8x slot
      2. 5 x PCI slots (PCI 2.3 compliant)
    • Conectores Internos de E/S
      1. 2 x Serial ATA ports
      2. 2 x IEEE 1394 pin header
      3. 2 x USB 2.0 connectors(supports 4 ports by cable)
      4. 2 x UltraDMA 100/66 Bus Master IDE
      5. 1 x FDD connector
      6. 1 x S/P-DIF input/output pin header
      7. CD/AUX in
      8. 1 x COM port
      9. 1 x Game port pin header
    • Conectores del Panel Trasero
      1. 4 x USB 2.0 ports
      2. 1 x RJ45 LAN port
      3. 1 x LPT port
      4. 1 x VGA port
      5. 1 x COM port
      6. 3 x Audio ports (Line-in / Line-out / MIC)
      7. 2 x PS/2 ports (Keyboard/Mouse)
    • Monitorización H/W
      1. ITE 8712F
      2. System health status auto-detect and report by BIOS
      3. Hardware detecting and reporting for case open, power-in voltage, CPU voltage, and fan speed.
    • BIOS
      1. 2 x 4M bit flash ROM, Award BIOS
    • Software Incluido
      1. Norton Internet Security 2003
        1. Norton Anti Virus™
        2. Norton™ Personal Firewall
        3. Norton™ Privacy Control
        4. Norton™ Parental Control
        5. Norton™ Spam Alert
      2. GIGABYTE Windows Utility Manager
      3. Adobe Acrobat Reader
    • Diseño
      1. ATX
      2. 30.5cm x 23.0cm
    • Controlador
      1. Intel® chipset software installation utility
      2. Intel® Graphics driver
      3. Marvell gigabit lan driver
      4. Realtek audio driver
      5. USB2.0 driver
    • Otras Características
      1. Xpress Install
      2. Xpress Recovery
      3. EasyTune™ 4
      4. @BIOS
      5. Q-Flash™
    • Otras Descripciones
      1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
      2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP SP1/SP2. If drivers are available from the vendors, we will update them on the GIGABYTE website.

      * Los términos HDMI, HDMI High-Definition Multimedia Interface (Interfaz multimedia de alta definición), HDMI Trade Dress (diseño e imagen comercial HDMI) y los logotipos HDMI son marcas comerciales o marcas registradas de HDMI Licensing Administrator, Inc.
      * Todos los materiales aquí provistos son solo para referencia. GIGABYTE se reserva el derecho de modificar o revisar el contenido a cualquier hora sin aviso alguno.
      * Todas las marcas y logos son propiedad de sus propios dueños.
      * Debido a la arquitectura estándar de la PC, cierta cantidad de memoria es reservada para uso del sistema y actualmente la memoria disponible es menor a la mencionada.
