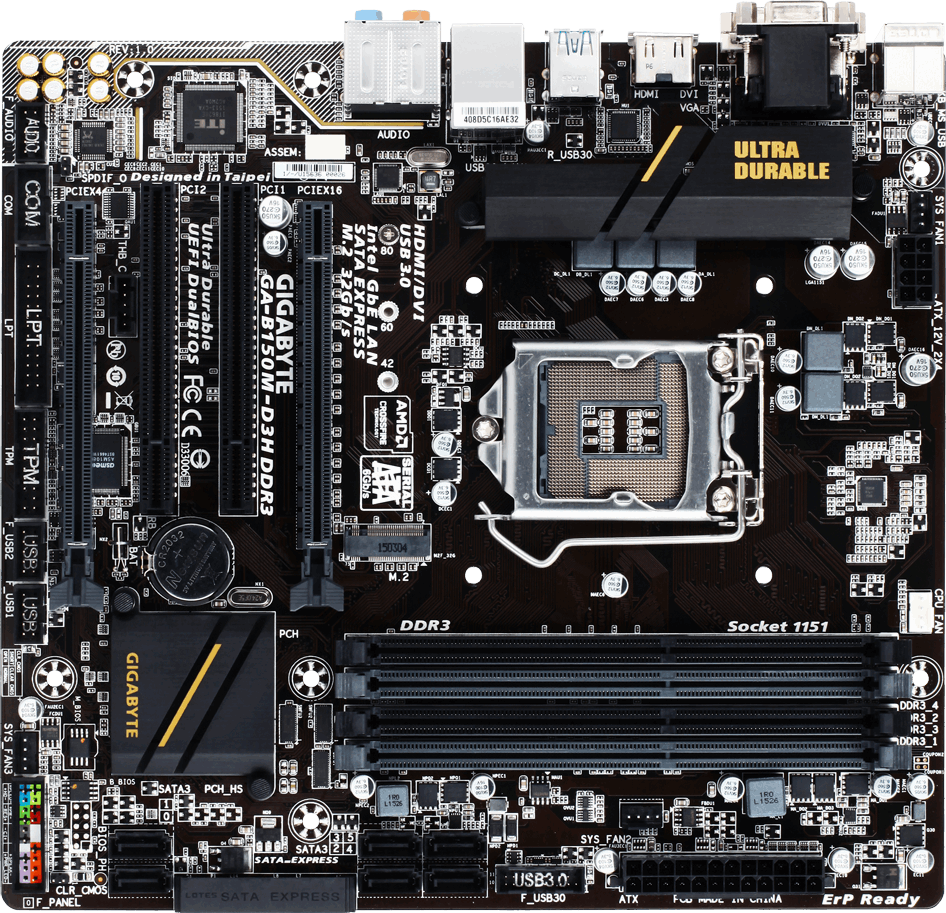

GA-B150M-D3H DDR3 (Rev. 1.0)

Intel® B150 Chipset
DescripciónEspecificaciónSoporte y DescargasNoticias / PremiosAprender másWhere to Buy

Especificación

  • Procesador
    1. Support for 7th/6th Generation Intel® Core™ i7 processors/Intel® Core™ i5 processors/ Intel® Core™ i3 processors/Intel® Pentium® processors/ Intel® Celeron® processors in the LGA1151 package
      * For 7th Generation Intel® Core™ processors support need to update the latest BIOS.
    2. L3 cache varies with CPU
    (Please refer "CPU Support List" for more information.)
  • Chipset
    1. Intel® B150 Express Chipset
  • Memoria
    1. 4 x DDR3 DIMM sockets supporting up to 64 GB of system memory
      * Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
    2. Dual channel memory architecture
    3. Support for DDR3/DDR3L 1866(OC)/1600/1333 MHz memory modules
    4. Support for ECC UDIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
    5. Support for non-ECC UDIMM 1Rx8/2Rx8 memory modules
    (Please refer "Memory Support List" for more information.)
  • Gráficos Integrados
  • Integrated Graphics Processor-Intel® HD Graphics support:
    1. 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
    2. 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
      * The DVI-D port does not support D-Sub connection by adapter.
    3. 1 x HDMI port, supporting a maximum resolution of 4096x2160@24 Hz
      * Support for HDMI 1.4 version.
    4. Support for up to 3 displays at the same time
    5. Maximum shared memory of 1024 MB
  • Audio
    1. Realtek® ALC892 codec
    2. High Definition Audio
    3. 2/4/5.1/7.1-channel
    4. Support for S/PDIF Out
    • LAN
      1. Intel® GbE LAN chip (10/100/1000 Mbit)
    • Puertos de Expansión
      1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)
        * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
      2. 1 x PCI Express x16 slot, running at x4 (PCIEX4)
        (All of the PCI Express slots conform to PCI Express 3.0 standard.)
        3. 2 x PCI slots
    • Tecnología Multi-Gráficos
      1. Support for 2-Way AMD CrossFire™ technology
    • Interfaz de Almacenamiento
    • Chipset:
      1. 1 x M.2 Socket 3 connector (Socket 3, M key, type 2242/2260/2280 SATA & PCIe x4/x2/x1 SSD support)
      2. 1 x SATA Express connector
        * Not compatible with regular SATA devices.
      3. 6 x SATA 6Gb/s connectors
    • USB
    • Chipset:
      1. 6 x USB 3.0/2.0 ports (4 ports on the back panel, 2 ports available through the internal USB header)
      2. 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
    • Conectores Internos de E/S
      1. 1 x 24-pin ATX main power connector
      2. 1 x 8-pin ATX 12V power connector
      3. 1 x M.2 Socket 3 connector
      4. 1 x SATA Express connector
      5. 6 x SATA 6Gb/s connectors
      6. 1 x CPU fan header
      7. 3 x system fan headers
      8. 1 x front panel header
      9. 1 x front panel audio header
      10. 1 x S/PDIF Out header
      11. 1 x USB 3.0/2.0 header
      12. 2 x USB 2.0/1.1 headers
      13. 1 x Trusted Platform Module (TPM) header
      14. 1 x Thunderbolt™ add-in card connector
      15. 1 x serial port header
      16. 1 x parallel port header
      17. 1 x Clear CMOS jumper
    • Conectores del Panel Trasero
      1. 1 x PS/2 keyboard/mouse port
      2. 1 x D-Sub port
      3. 1 x DVI-D port
      4. 1 x HDMI port
      5. 4 x USB 3.0/2.0 ports
      6. 2 x USB 2.0/1.1 ports
      7. 1 x RJ-45 port
      8. 6 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Side Speaker Out, Line In, Line Out, Mic In)
    • Controlador de E/S
      1. iTE® I/O Controller Chip
    • Monitorización H/W
      1. System voltage detection
      2. CPU/System temperature detection
      3. CPU/System fan speed detection
      4. CPU/System overheating warning
      5. CPU/System fan fail warning
      6. CPU/System fan speed control
        * Whether the fan speed control function is supported will depend on the cooler you install.
    • BIOS
      1. 2 x 128 Mbit flash
      2. Use of licensed AMI UEFI BIOS
      3. Support for DualBIOS™
      4. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
    • Características Únicas
      1. Support for APP Center
        * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
        3D OSD
        @BIOS
        AutoGreen
        Cloud Station
        EasyTune
        Fast Boot
        Smart TimeLock
        Smart Keyboard
        Smart Backup
        System Information Viewer
        USB Blocker
      2. Support for Q-Flash
      3. Support for Smart Switch
      4. Support for Xpress Install
    • Software Incluido
      1. Norton® Internet Security (OEM version)
      2. Intel® Small Business Advantage
      3. cFosSpeed
    • Sistema Operativo
      1. Windows® 10 64-bit (for 7th Generation Intel® Processors)
      2. Windows® 10 64-bit / Windows® 8.1 64-bit / Windows® 7 32-bit / 64-bits (for 6th Generation Intel® Processors)
        * Please download the "Windows USB Installation Tool" from GIGABYTE's website and install it before installing Windows 7.
    • Diseño
      1. Micro ATX Form Factor; 24.4cm x 22.5cm
    • Otras Descripciones
      1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
      2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.
      • Procesador
        1. Support for 7th/6th Generation Intel® Core™ i7 processors/Intel® Core™ i5 processors/ Intel® Core™ i3 processors/Intel® Pentium® processors/ Intel® Celeron® processors in the LGA1151 package
          * For 7th Generation Intel® Core™ processors support need to update the latest BIOS.
        2. L3 cache varies with CPU
        (Please refer "CPU Support List" for more information.)
      • Chipset
        1. Intel® B150 Express Chipset
      • Memoria
        1. 4 x DDR3 DIMM sockets supporting up to 64 GB of system memory
          * Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
        2. Dual channel memory architecture
        3. Support for DDR3/DDR3L 1866(OC)/1600/1333 MHz memory modules
        4. Support for ECC UDIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
        5. Support for non-ECC UDIMM 1Rx8/2Rx8 memory modules
        (Please refer "Memory Support List" for more information.)
      • Gráficos Integrados
      • Integrated Graphics Processor-Intel® HD Graphics support:
        1. 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
        2. 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
          * The DVI-D port does not support D-Sub connection by adapter.
        3. 1 x HDMI port, supporting a maximum resolution of 4096x2160@24 Hz
          * Support for HDMI 1.4 version.
        4. Support for up to 3 displays at the same time
        5. Maximum shared memory of 1024 MB
      • Audio
        1. Realtek® ALC892 codec
        2. High Definition Audio
        3. 2/4/5.1/7.1-channel
        4. Support for S/PDIF Out
        • LAN
          1. Intel® GbE LAN chip (10/100/1000 Mbit)
        • Puertos de Expansión
          1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)
            * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
          2. 1 x PCI Express x16 slot, running at x4 (PCIEX4)
            (All of the PCI Express slots conform to PCI Express 3.0 standard.)
            3. 2 x PCI slots
        • Tecnología Multi-Gráficos
          1. Support for 2-Way AMD CrossFire™ technology
        • Interfaz de Almacenamiento
        • Chipset:
          1. 1 x M.2 Socket 3 connector (Socket 3, M key, type 2242/2260/2280 SATA & PCIe x4/x2/x1 SSD support)
          2. 1 x SATA Express connector
            * Not compatible with regular SATA devices.
          3. 6 x SATA 6Gb/s connectors
        • USB
        • Chipset:
          1. 6 x USB 3.0/2.0 ports (4 ports on the back panel, 2 ports available through the internal USB header)
          2. 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
        • Conectores Internos de E/S
          1. 1 x 24-pin ATX main power connector
          2. 1 x 8-pin ATX 12V power connector
          3. 1 x M.2 Socket 3 connector
          4. 1 x SATA Express connector
          5. 6 x SATA 6Gb/s connectors
          6. 1 x CPU fan header
          7. 3 x system fan headers
          8. 1 x front panel header
          9. 1 x front panel audio header
          10. 1 x S/PDIF Out header
          11. 1 x USB 3.0/2.0 header
          12. 2 x USB 2.0/1.1 headers
          13. 1 x Trusted Platform Module (TPM) header
          14. 1 x Thunderbolt™ add-in card connector
          15. 1 x serial port header
          16. 1 x parallel port header
          17. 1 x Clear CMOS jumper
        • Conectores del Panel Trasero
          1. 1 x PS/2 keyboard/mouse port
          2. 1 x D-Sub port
          3. 1 x DVI-D port
          4. 1 x HDMI port
          5. 4 x USB 3.0/2.0 ports
          6. 2 x USB 2.0/1.1 ports
          7. 1 x RJ-45 port
          8. 6 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Side Speaker Out, Line In, Line Out, Mic In)
        • Controlador de E/S
          1. iTE® I/O Controller Chip
        • Monitorización H/W
          1. System voltage detection
          2. CPU/System temperature detection
          3. CPU/System fan speed detection
          4. CPU/System overheating warning
          5. CPU/System fan fail warning
          6. CPU/System fan speed control
            * Whether the fan speed control function is supported will depend on the cooler you install.
        • BIOS
          1. 2 x 128 Mbit flash
          2. Use of licensed AMI UEFI BIOS
          3. Support for DualBIOS™
          4. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
        • Características Únicas
          1. Support for APP Center
            * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
            3D OSD
            @BIOS
            AutoGreen
            Cloud Station
            EasyTune
            Fast Boot
            Smart TimeLock
            Smart Keyboard
            Smart Backup
            System Information Viewer
            USB Blocker
          2. Support for Q-Flash
          3. Support for Smart Switch
          4. Support for Xpress Install
        • Software Incluido
          1. Norton® Internet Security (OEM version)
          2. Intel® Small Business Advantage
          3. cFosSpeed
        • Sistema Operativo
          1. Windows® 10 64-bit (for 7th Generation Intel® Processors)
          2. Windows® 10 64-bit / Windows® 8.1 64-bit / Windows® 7 32-bit / 64-bits (for 6th Generation Intel® Processors)
            * Please download the "Windows USB Installation Tool" from GIGABYTE's website and install it before installing Windows 7.
        • Diseño
          1. Micro ATX Form Factor; 24.4cm x 22.5cm
        • Otras Descripciones
          1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
          2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.

          * Los términos HDMI, HDMI High-Definition Multimedia Interface (Interfaz multimedia de alta definición), HDMI Trade Dress (diseño e imagen comercial HDMI) y los logotipos HDMI son marcas comerciales o marcas registradas de HDMI Licensing Administrator, Inc.
          * Todos los materiales aquí provistos son solo para referencia. GIGABYTE se reserva el derecho de modificar o revisar el contenido a cualquier hora sin aviso alguno.
          * Todas las marcas y logos son propiedad de sus propios dueños.
          * Debido a la arquitectura estándar de la PC, cierta cantidad de memoria es reservada para uso del sistema y actualmente la memoria disponible es menor a la mencionada.
