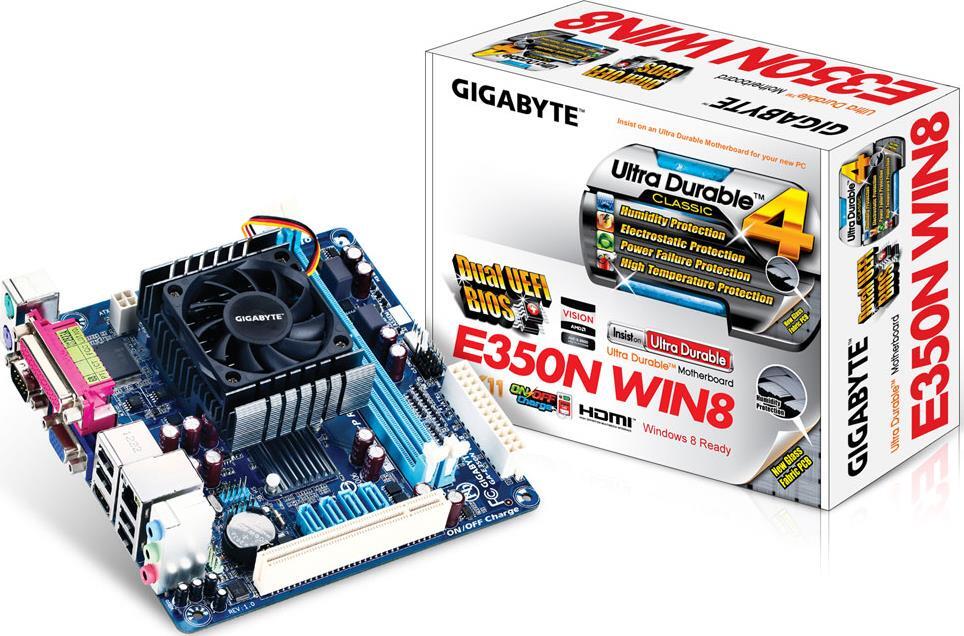

GA-E350N WIN8 (Rev. 1.0)

AMD E-350D + A45 FCH
DescripciónEspecificaciónSoporte y DescargasWhere to Buy

Especificación

  • APU
    1. Built in with an AMD E-350D Dual-Core processor
    2. Built in with an AMD Radeon™ HD 6310 (DirectX 11) graphics core
  • Chipset
    1. AMD A45 FCH
  • Memoria
    1. 2 x 1.5V DDR3 DIMM sockets supporting up to 16 GB of system memory (Note 1)
    2. Single channel memory architecture
    3. Support for DDR3 1333 (O.C.)/1066 MHz memory modules
      4. (Please refer "CPU Support List" for more information.)
  • Gráficos Integrados
  • Integrated in the APU:
    1. 1 x D-Sub port
    2. 1 x HDMI port, supporting a maximum resolution of 1920x1200
  • Audio
    1. Realtek ALC887 codec
    2. High Definition Audio
    3. 2/4/5.1/7.1-channel (Note 2)
    4. Support for S/PDIF Out
  • LAN
    1. Realtek GbE LAN chip (10/100/1000 Mbit)
  • Puertos de Expansión
    1. 1 x PCI slot
  • Interfaz de Almacenamiento
  • Chipset:
    1. 4 x SATA 3Gb/s connectors supporting up to 4 SATA 3Gb/s devices
  • USB
  • Chipset:
    1. Up to 8 USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
  • Conectores Internos de E/S
    1. 1 x 24-pin ATX main power connector
    2. 1 x 4-pin ATX 12V power connector
    3. 4 x SATA 3Gb/s connectors
    4. 1 x CPU fan header
    5. 1 x system fan header
    6. 1 x front panel header
    7. 1 x front panel audio header
    8. 1 x S/PDIF Out header
    9. 2 x USB 2.0/1.1 headers
    10. 1 x chassis intrusion header
    11. 1 x power LED header
    12. 1 x Clear CMOS jumper
  • Conectores del Panel Trasero
    1. 1 x PS/2 keyboard port
    2. 1 x PS/2 mouse port
    3. 1 x parallel port
    4. 1 x serial port
    5. 1 x D-Sub port
    6. 1 x HDMI port
    7. 4 x USB 2.0/1.1 ports
    8. 1 x RJ-45 port
    9. 3 x audio jacks (Line In/Line Out/Microphone)
  • Controlador de E/S
    1. iTE I/O Controller Chip
  • Monitorización H/W
    1. System voltage detection
    2. APU/System temperature detection
    3. APU/System fan speed detection
    4. APU overheating warning
    5. System fan speed control (Note 3)
  • BIOS
    1. 2 x 32 Mbit flash
    2. Use of licensed AMI EFI BIOS
    3. Support for DualBIOS™
    4. PnP 1.0a, DMI 2.0, SM BIOS 2.6, ACPI 2.0a
  • Características Únicas
    1. Support for @BIOS
    2. Support for Q-Flash
    3. Support for Xpress Install
    4. Support for EasyTune (Note 4)
    5. Support for Smart Recovery 2
    6. Support for Auto Green
    7. Support for ON/OFF Charge
    8. Support for Q-Share
  • Software Incluido
    1. Norton Internet Security (OEM version)
  • Sistema Operativo
    1. Support for Microsoft® Windows 8/7/Vista/XP
  • Diseño
    1. Mini-ITX Form Factor; 17.0cm x 17.0cm
  • Nota
  • (Note 1) Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.

    (Note 2) To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.

    (Note 3) Whether the system fan speed control function is supported will depend on the system cooler you install.

    (Note 4) Available functions in EasyTune may differ by motherboard model.
  • Otras Descripciones
    1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
    2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP SP1/SP2. If drivers are available from the vendors, we will update them on the GIGABYTE website.
