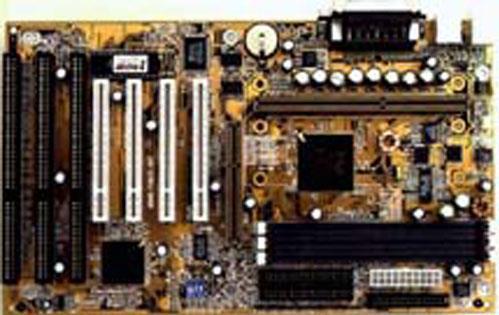

GA-686LX3

SpecificaţiiSuportNoutăţi/PremiiWhere to Buy

Specificaţii

  • CPU
    1. Intel Pentium® II Processor 233MHz-333MHz.
    2. Slot 1 Socket for Future Expansion
  • Chipset
    1. Intel 82440 EX AGPset
    2. Winbound 83977 I/O (1Mb/S)
  • Memorie
    1. CPU Built-in 256KB/512KB L2 cache
    2. 3 x 168-pin 3.3v DIMM sockets support
    3. Supports 8/16/32/64/128/256 MB DIMM Module
    4. Supports EDO RAM, SDRAM (Support ECC, 72 bit)
    5. Supports 8MB to 768MB DRAM Size
  • Sloturi de expansiune
    1. 4 x PCI 32-bit slots, PCI 2.1 compliant
    2. 3 x ISA 16-bit slots
    3. 1x AGP (1x & 2x Mode,66/133MHz) slot
  • Controller I/O
    1. 1x floppy port (360KB-2.88MB)
    2. 2x serial ports (16550 high-speed)
    3. 1x parallel port (EPP/ECP)
    4. PS/2 Keyboard
    5. PS/2 Mouse
    6. 2x USB
  • BIOS
    1. 2 Mbit (256KB) FLASH RAM
    2. Award PCI BIOS with Green, PnP, DMI, INT13 (HD>8.4)and Anti-Virus Functions
    3. LS120, ZIP, ATAPI CD-ROM, IDE #1, #2, #3, #4 Bootable
  • Form Factor
    1. Micro ATX , 4 layer PCB (24.5*20cm)
    2. ATX Connector on Board
    3. Double Deck ATX Back Panel
  • Driver
    1. Triones Ultra DMA/33 Bus Master IDE Driver ( & Intel)
    2. Intel Ultra DMA/33 Bus Master IDE Driver
    3. Suspend to Disk Utility (IDE ONLY)
  • Alimentare
    1. Power On by PS/2 Keyboard, PS/2 Mouse, LAN, RTC Alarm, Modem Ring & Soft-Power Switch
    2. Power Off by WindowsR 95 Shut down & Soft-Power Switch
    3. AC Recovery On/Off Control
    4. Supports Fan Stop During Suspend Mode
    5. Supports 3 Level ACPI LED
  • CPU
    1. Intel Pentium® II Processor 233MHz-333MHz.
    2. Slot 1 Socket for Future Expansion
  • Chipset
    1. Intel 82440 EX AGPset
    2. Winbound 83977 I/O (1Mb/S)
  • Memorie
    1. CPU Built-in 256KB/512KB L2 cache
    2. 3 x 168-pin 3.3v DIMM sockets support
    3. Supports 8/16/32/64/128/256 MB DIMM Module
    4. Supports EDO RAM, SDRAM (Support ECC, 72 bit)
    5. Supports 8MB to 768MB DRAM Size
  • Sloturi de expansiune
    1. 4 x PCI 32-bit slots, PCI 2.1 compliant
    2. 3 x ISA 16-bit slots
    3. 1x AGP (1x & 2x Mode,66/133MHz) slot
  • Controller I/O
    1. 1x floppy port (360KB-2.88MB)
    2. 2x serial ports (16550 high-speed)
    3. 1x parallel port (EPP/ECP)
    4. PS/2 Keyboard
    5. PS/2 Mouse
    6. 2x USB
  • BIOS
    1. 2 Mbit (256KB) FLASH RAM
    2. Award PCI BIOS with Green, PnP, DMI, INT13 (HD>8.4)and Anti-Virus Functions
    3. LS120, ZIP, ATAPI CD-ROM, IDE #1, #2, #3, #4 Bootable
  • Form Factor
    1. Micro ATX , 4 layer PCB (24.5*20cm)
    2. ATX Connector on Board
    3. Double Deck ATX Back Panel
  • Driver
    1. Triones Ultra DMA/33 Bus Master IDE Driver ( & Intel)
    2. Intel Ultra DMA/33 Bus Master IDE Driver
    3. Suspend to Disk Utility (IDE ONLY)
  • Alimentare
    1. Power On by PS/2 Keyboard, PS/2 Mouse, LAN, RTC Alarm, Modem Ring & Soft-Power Switch
    2. Power Off by WindowsR 95 Shut down & Soft-Power Switch
    3. AC Recovery On/Off Control
    4. Supports Fan Stop During Suspend Mode
    5. Supports 3 Level ACPI LED
