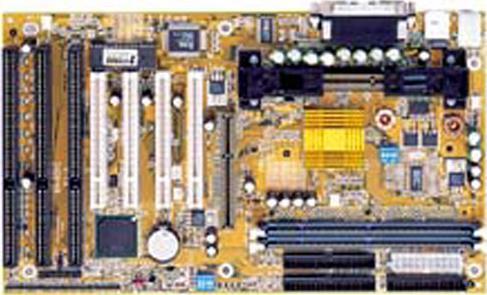

GA-6ZXC

SpecificaţiiSuportNoutăţi/PremiiWhere to Buy

Specificaţii

  • CPU
    1. Intel Pentium® II / III and Celeron™ Processor
    2. Slot 1 for future Processor supported
    3. 66/75*/83*/100/112*/133* MHz System Bus
    4. Clock multiplier 3.0~9.5
    5. AUTO Detect CPU Voltage
  • Chipset
    1. Intel® 440ZX AGPset
    2. iTE 8671 I/Oset
  • Memorie
    1. 8MB to 256MB DRAM size
    2. 2 x 3.3V DIMM Sockets
    3. Supports 8/16/32/64/128 MB SDRAM DIMM Module
  • Sloturi de expansiune
    1. 1 x AGP Slot Supports 66/133 MHz speeds
    2. 4 x PCI Slot Supports 33MHz & PCI 2.2 compliant
    3. 3 x ISA Slot
  • Controller I/O
    1. 2 x Ultra DMA/33 Bus Master IDE ports on board
    2. 1 x FDD, 2 x COM, 1 x LPT, PS/2 Keyboard, PS/2 Mouse on board
    3. 2 x USB ports on board
    4. IrDA TX / RX Header (optional)
  • BIOS
    1. 2Mbit Flash RAM
    2. AWARD BIOS with Enhanced ACPI Feature for PC98 / Win98 Compliance, Green, PnP, DMI, INT13 (>8.4GB) & Anti-Virus functions
    3. IDE#1~#4, SCSI, LS120, ZIP & CD-ROM bootable
  • Form Factor
    1. ATX , 4 layer PCB (30.6*18.0cm)
  • Driver
    1. Ultra DMA/33 Bus Master IDE Driver (Intel®) Intel® PIIX4e Patch Utility for Windows 95
  • Alte caracteristici
    1. Includes Wake-On-LAN Header (WOL) & SB-LINK™ connector
    2. Supports Internal / External modem wake on
    3. 3 Fan Power & Speed Detection Connectors
    4. Poly fuse for keyboard, USB, VGA & Game overcurrent protection
  • Alimentare
    1. ATX Power connector
    2. Power-on by K/B, PS/2 Mouse, LAN, RTC, Modem (COM A or B) & Switch
    3. Power-off by Windows®: 98 Shut down & Switch
    4. AC Recovery ON/OFF control
    5. Stop CPU Fan during entering suspend mode
    6. 3 Level ACPI LED Support
  • CPU
    1. Intel Pentium® II / III and Celeron™ Processor
    2. Slot 1 for future Processor supported
    3. 66/75*/83*/100/112*/133* MHz System Bus
    4. Clock multiplier 3.0~9.5
    5. AUTO Detect CPU Voltage
  • Chipset
    1. Intel® 440ZX AGPset
    2. iTE 8671 I/Oset
  • Memorie
    1. 8MB to 256MB DRAM size
    2. 2 x 3.3V DIMM Sockets
    3. Supports 8/16/32/64/128 MB SDRAM DIMM Module
  • Sloturi de expansiune
    1. 1 x AGP Slot Supports 66/133 MHz speeds
    2. 4 x PCI Slot Supports 33MHz & PCI 2.2 compliant
    3. 3 x ISA Slot
  • Controller I/O
    1. 2 x Ultra DMA/33 Bus Master IDE ports on board
    2. 1 x FDD, 2 x COM, 1 x LPT, PS/2 Keyboard, PS/2 Mouse on board
    3. 2 x USB ports on board
    4. IrDA TX / RX Header (optional)
  • BIOS
    1. 2Mbit Flash RAM
    2. AWARD BIOS with Enhanced ACPI Feature for PC98 / Win98 Compliance, Green, PnP, DMI, INT13 (>8.4GB) & Anti-Virus functions
    3. IDE#1~#4, SCSI, LS120, ZIP & CD-ROM bootable
  • Form Factor
    1. ATX , 4 layer PCB (30.6*18.0cm)
  • Driver
    1. Ultra DMA/33 Bus Master IDE Driver (Intel®) Intel® PIIX4e Patch Utility for Windows 95
  • Alte caracteristici
    1. Includes Wake-On-LAN Header (WOL) & SB-LINK™ connector
    2. Supports Internal / External modem wake on
    3. 3 Fan Power & Speed Detection Connectors
    4. Poly fuse for keyboard, USB, VGA & Game overcurrent protection
  • Alimentare
    1. ATX Power connector
    2. Power-on by K/B, PS/2 Mouse, LAN, RTC, Modem (COM A or B) & Switch
    3. Power-off by Windows®: 98 Shut down & Switch
    4. AC Recovery ON/OFF control
    5. Stop CPU Fan during entering suspend mode
    6. 3 Level ACPI LED Support

* Termenii HDMI, HDMI High-Definition Multimedia Interface, Imaginea comercială HDMI și Siglele HDMI sunt mărci comerciale sau mărci comerciale înregistrate ale HDMI Licensing Administrator, Inc.
* Materialele oferite aici sunt doar pentru referinţă. GIGABYTE îşi rezervă dreptul de a modifica sau revizui continutul oricând fără notificare prealabilă.
* Perfomanţa prezentată este bazată pe valorile teoretice maxime ale interfeţei de la vendorii respectivi de Chipset-uri sau de la organizaţiile ce au definit specificaţiile interfeţei. Perfomanţele reale pot varia în funcţie de sistem.
* Toate mărcile inregistrate şi logo-urile sunt proprietatea deţinătorilor respectivi.
* Datorită arhitecturii standard PC, o anumită cantitate de memorie este rezervată pentru sistem şi de aceea mărimea actuală a memoriei este mai mică decât cea indicată.
