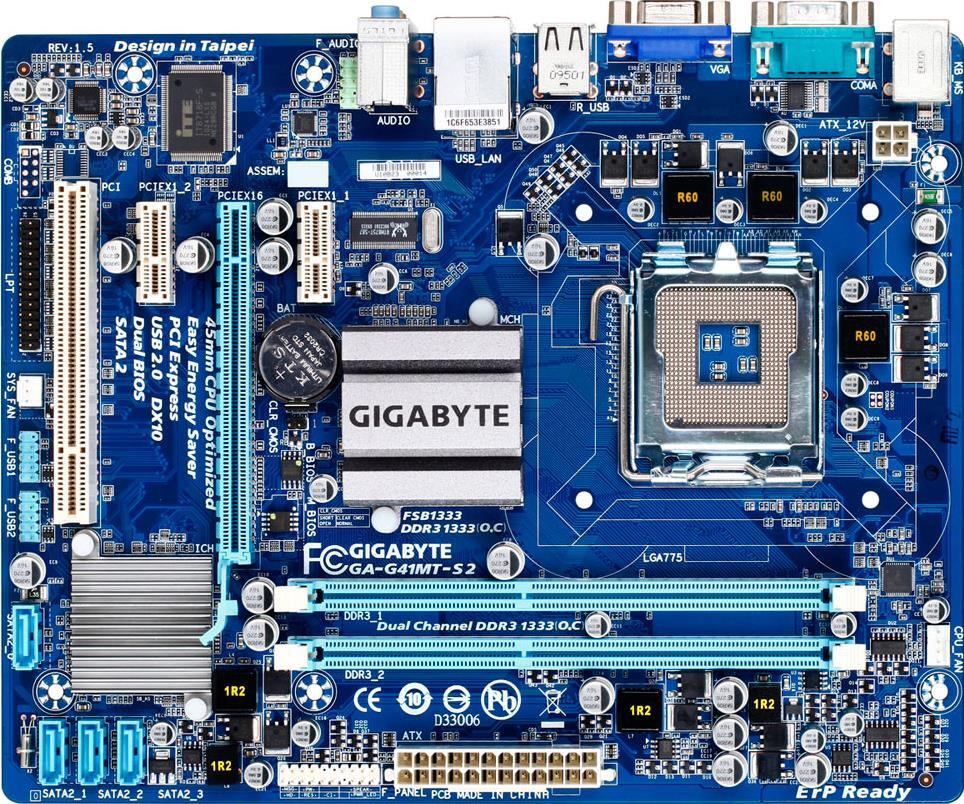

GA-G41MT-S2 (Rev. 1.5)

Rev. 1.5Rev. 1.3Rev. 1.4Rev. 2.1
Intel® G41 + ICH7 Chipset
رؤية عامةالمواصفاتالدعمأخبار و جوائزWhere to Buy

المواصفات

  • المعالج
    1. Support for an Intel® Core™ 2 Extreme processor/Intel® Core™ 2 Quad processor/Intel® Core™ 2 Duo processor/ Intel® Pentium® processor/Intel® Celeron® processor in the LGA775 package
    2. L2 cache varies with CPU
    (Please refer "CPU Support List" for more information.)
  • الناقل الأمامي للبيانات
    1. 1333/1066/800 MHz FSB
  • الشريحة الرئيسية
    1. North Bridge: Intel® G41 Express Chipset
    2. South Bridge: Inte® ICH7
  • الذاكرة
    1. 2 x 1.5V DDR3 DIMM sockets supporting up to 8 GB of system memory
      * Due to Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than 4 GB.
    2. Dual channel memory architecture
    3. Support for DDR3 1333(O.C.)/1066/800 MHz memory modules
    (Please refer "Memory Support List" for more information.)
  • الجرافيك المدمج
  • North Bridge:
    1. 1 x D-Sub port
  • الصوت
    1. Realtek audio codec
    2. High Definition Audio
    3. 2/4/5.1/7.1-channel
      * To enable 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
  • الشبكة
    1. 1 x Atheros AR8151 chip (10/100/1000 Mbit)
  • واجهات تركيب الكروت
    1. 1 x PCI Express x16 slot, running at x16
    2. 2 x PCI Express x1 slots
    3. 1 x PCI slot
  • واجهات التخزين
  • South Bridge:
    1. 4 x SATA 3Gb/s connectors supporting up to 4 SATA 3Gb/s devices
  • واجهات USB
  • South Bridge:
    1. Up to 8 USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
  • موصلات الدخل والخرج الداخلية
    1. 1 x 24-pin ATX main power connector
    2. 1 x 4-pin ATX 12V power connector
    3. 4 x SATA 3Gb/s connectors
    4. 1 x CPU fan header
    5. 1 x system fan header
    6. 1 x front panel header
    7. 1 x front panel audio header
    8. 2 x USB 2.0/1.1 headers
    9. 1 x parallel port
    10. 1 x clearing CMOS jumper
  • موصلات اللوحة الخلفية
    1. 1 x PS/2 keyboard port
    2. 1 x PS/2 mouse port
    3. 1 x serial port
    4. 1 x D-Sub port
    5. 4 x USB 2.0/1.1 ports
    6. 1 x RJ-45 port
    7. 3 x audio jacks (Line In/Line Out/Microphone)
  • وحدة تحكم الدخل والخرج
    1. iTE IT8718/IT8720
  • مراقبة المكونات
    1. System voltage detection
    2. CPU/System temperature detection
    3. CPU/System fan speed detection
    4. CPU overheating warning
    5. CPU/System fan fail warning
    6. CPU fan speed control
      * Whether the CPU fan speed control function is supported will depend on the CPU cooler you install.
  • وحدة التشغيل الرئيسية
    1. 2 x 8 Mbit flash
    2. Use of licensed AWARD BIOS
    3. Support for DualBIOS™
    4. PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b
  • المزايا الفريدة
    1. Support for @BIOS
    2. Support for Q-Flash
    3. Support for Xpress BIOS Rescue
    4. Support for Download Center
    5. Support for Xpress Install
    6. Support for Xpress Recovery2
    7. Support for EasyTune
      * Available functions in EasyTune may differ by motherboard model.
    8. Support for Easy Energy Saver
      * Due to the hardware limitation, you must install the Intel®Core™ 2 Extreme/Core™ 2 Quad/ Core™ 2 Duo/Pentium Dual-Core/Celeron Dual-Core/Celeron 400 Series CPU to enable support for Easy Energy Saver.
    9. Support for Time Repair
    10. Support for ON/OFF Charge
    11. Support for 3TB+ Unlock
    12. Support for Q-Share
  • البرامج المجانية
    1. Norton Internet Security (OEM version)
  • نظام التشغيل
    1. Support for Microsoft® Windows® 7/Vista/XP
  • حجم المنتج
    1. Micro ATX Form Factor; 24.4cm x 19.4cm
  • ملحوظة
    1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
    2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP SP1/SP2. If drivers are available from the vendors, we will update them on the GIGABYTE website.
    • المعالج
      1. Support for an Intel® Core™ 2 Extreme processor/Intel® Core™ 2 Quad processor/Intel® Core™ 2 Duo processor/ Intel® Pentium® processor/Intel® Celeron® processor in the LGA775 package
      2. L2 cache varies with CPU
      (Please refer "CPU Support List" for more information.)
    • الناقل الأمامي للبيانات
      1. 1333/1066/800 MHz FSB
    • الشريحة الرئيسية
      1. North Bridge: Intel® G41 Express Chipset
      2. South Bridge: Inte® ICH7
    • الذاكرة
      1. 2 x 1.5V DDR3 DIMM sockets supporting up to 8 GB of system memory
        * Due to Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than 4 GB.
      2. Dual channel memory architecture
      3. Support for DDR3 1333(O.C.)/1066/800 MHz memory modules
      (Please refer "Memory Support List" for more information.)
    • الجرافيك المدمج
    • North Bridge:
      1. 1 x D-Sub port
    • الصوت
      1. Realtek audio codec
      2. High Definition Audio
      3. 2/4/5.1/7.1-channel
        * To enable 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
    • الشبكة
      1. 1 x Atheros AR8151 chip (10/100/1000 Mbit)
    • واجهات تركيب الكروت
      1. 1 x PCI Express x16 slot, running at x16
      2. 2 x PCI Express x1 slots
      3. 1 x PCI slot
    • واجهات التخزين
    • South Bridge:
      1. 4 x SATA 3Gb/s connectors supporting up to 4 SATA 3Gb/s devices
    • واجهات USB
    • South Bridge:
      1. Up to 8 USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
    • موصلات الدخل والخرج الداخلية
      1. 1 x 24-pin ATX main power connector
      2. 1 x 4-pin ATX 12V power connector
      3. 4 x SATA 3Gb/s connectors
      4. 1 x CPU fan header
      5. 1 x system fan header
      6. 1 x front panel header
      7. 1 x front panel audio header
      8. 2 x USB 2.0/1.1 headers
      9. 1 x parallel port
      10. 1 x clearing CMOS jumper
    • موصلات اللوحة الخلفية
      1. 1 x PS/2 keyboard port
      2. 1 x PS/2 mouse port
      3. 1 x serial port
      4. 1 x D-Sub port
      5. 4 x USB 2.0/1.1 ports
      6. 1 x RJ-45 port
      7. 3 x audio jacks (Line In/Line Out/Microphone)
    • وحدة تحكم الدخل والخرج
      1. iTE IT8718/IT8720
    • مراقبة المكونات
      1. System voltage detection
      2. CPU/System temperature detection
      3. CPU/System fan speed detection
      4. CPU overheating warning
      5. CPU/System fan fail warning
      6. CPU fan speed control
        * Whether the CPU fan speed control function is supported will depend on the CPU cooler you install.
    • وحدة التشغيل الرئيسية
      1. 2 x 8 Mbit flash
      2. Use of licensed AWARD BIOS
      3. Support for DualBIOS™
      4. PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b
    • المزايا الفريدة
      1. Support for @BIOS
      2. Support for Q-Flash
      3. Support for Xpress BIOS Rescue
      4. Support for Download Center
      5. Support for Xpress Install
      6. Support for Xpress Recovery2
      7. Support for EasyTune
        * Available functions in EasyTune may differ by motherboard model.
      8. Support for Easy Energy Saver
        * Due to the hardware limitation, you must install the Intel®Core™ 2 Extreme/Core™ 2 Quad/ Core™ 2 Duo/Pentium Dual-Core/Celeron Dual-Core/Celeron 400 Series CPU to enable support for Easy Energy Saver.
      9. Support for Time Repair
      10. Support for ON/OFF Charge
      11. Support for 3TB+ Unlock
      12. Support for Q-Share
    • البرامج المجانية
      1. Norton Internet Security (OEM version)
    • نظام التشغيل
      1. Support for Microsoft® Windows® 7/Vista/XP
    • حجم المنتج
      1. Micro ATX Form Factor; 24.4cm x 19.4cm
    • ملحوظة
      1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
      2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP SP1/SP2. If drivers are available from the vendors, we will update them on the GIGABYTE website.

      * يراجتلا رهظملاو ،HDMI High-Definition Multimedia Interfaceو ،HDMI تاحلطصم دعُ ت HDMI Licensing ةكرشل ةلجسم ةيراجت تاملاع وأ ةيراجت تاملاع ،HDMI تاراعشو ،HDMI Administrator, Inc.
      * كل المعلومات المذكورة للاطلاع فقط. وتحتفظ جيجابايت بالحق في تعديلها أو مراجعتها في أي وقت دون اخطار مسبق.
      * مستوى الأداء المعروض اعتماداً على أقصي القيم الافتراضية للواجهات والتي زودنا بها المصنعين المختلفين والذين وضعوا المعايير القياسية لهذه الواجهات. وقد يختلف مستوى الأداء الفعلي باختلاف مواصفات الحاسب.
      * كل العلامات التجارية والشعارات هي ملك لحامليها.
      * نظرأً لخصائص الحاسب القياسية، فإن قدراً من السعة الكلية للذاكرة يتم استخدامه من قبل الحاسب ولذلك تصبح سعة الذاكرة الحقيقية أقل من السعة المذكورة على وحدات الذاكرة.
