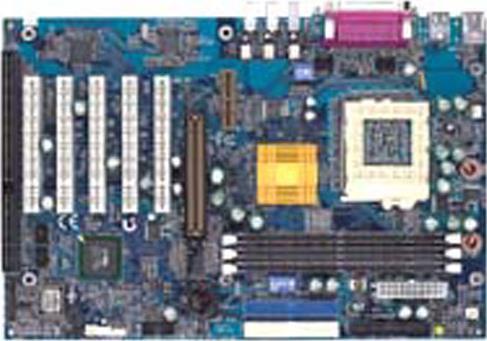

GA-6VX7-1394 (Rev. 3.2)
page.modelPage.tab.spec
- Processor
- Socket 370 for Intel® and other compatible processors
- Supports CPU multiplier 3.0~8.0 for future processors
- AUTO/66/75*/83*/100/112*/124*/133/140*/150* MHz FSB
- AUTO detect CPU voltage
- Styrkrets
- VIA Apollo Pro Family AGPset
- TI TSB12LV23 & TSB41LV03 1394 I/O chip
- Minne
- 3*168-pin DIMM sockets.
- Supports PC-100 / PC-133 SDRAM and VCM SDRAM
- Supports up to 1.5GB DRAM
- Supports only 3.3V SDRAM DIMM
- Supports 72 bit ECC type DRAM integrity mode
- Expansionsplatser
- 1 x AMR (Audio Modem Riser) Slot
- 1 x AGP Slot Supports 2X / 4X mode
- 5 x PCI Slot Supports 33MHz & PCI 2.2 compliant
- 1 x ISA Slot
- I/O kontroller
- 2 x Ultra DMA33/66 Bus Master IDE ports on board / 2 x Ultra DMA 66/100 Bus Master IDE ports on board (for revision 5.0 only)
- 1 x FDD, 2 x COM, 1 x LPT, PS/2 Keyboard, PS/2 Mouse on board
- 2 x USB ports on board
- 3 x 1394 I/O connectors
- 2 x USB ports by cable (optional accessary)
- IrDA TX / RX Header ready
- Hårdvaru visning
- CPU / System fan revolution delect
- CPU / System temperature detect
- System voltage detect (Vcore, Vcc3, Vcc, +12V)
- CPU overheat shutdown detect
- BIOS
- 2Mbit Flash RAM
- AMI BIOS with Enhanced ACPI Feature for PC98/Win98/Win2000 Compliance, Green, PnP, DMI, INT13 (>8.4GB) & Anti-Virus functions
- IDE#1~#4, SCSI, LS120, ZIP & CD-ROM bootable
- AC Recovery ON/OFF control
- Formfaktor
- ATX , 4 layer PCB (30.5*20.3 cm)
- Drivrutiner
- VIA 4 in 1 service pack utility
- Hardware monitor utility
- Övriga funktioner
- Suspend-To-RAM (STR)
- Includes Wake-On-LAN Header (WOL) ; Includes Wake-On-Ring (WOR)
- Supports Internal / External modem wake on
- Poly fuse for keyboard overcurrent protection
- Effekt
- ATX Power connector
- Power-on by LAN, RTC, Modem & Switch
- Power-off by Windows 95/98 Shut down & Switch
- Wake-up by USB device
- 3 Level ACPI LED Support
- Processor
- Socket 370 for Intel® and other compatible processors
- Supports CPU multiplier 3.0~8.0 for future processors
- AUTO/66/75*/83*/100/112*/124*/133/140*/150* MHz FSB
- AUTO detect CPU voltage
- Styrkrets
- VIA Apollo Pro Family AGPset
- TI TSB12LV23 & TSB41LV03 1394 I/O chip
- Minne
- 3*168-pin DIMM sockets.
- Supports PC-100 / PC-133 SDRAM and VCM SDRAM
- Supports up to 1.5GB DRAM
- Supports only 3.3V SDRAM DIMM
- Supports 72 bit ECC type DRAM integrity mode
- Expansionsplatser
- 1 x AMR (Audio Modem Riser) Slot
- 1 x AGP Slot Supports 2X / 4X mode
- 5 x PCI Slot Supports 33MHz & PCI 2.2 compliant
- 1 x ISA Slot
- I/O kontroller
- 2 x Ultra DMA33/66 Bus Master IDE ports on board / 2 x Ultra DMA 66/100 Bus Master IDE ports on board (for revision 5.0 only)
- 1 x FDD, 2 x COM, 1 x LPT, PS/2 Keyboard, PS/2 Mouse on board
- 2 x USB ports on board
- 3 x 1394 I/O connectors
- 2 x USB ports by cable (optional accessary)
- IrDA TX / RX Header ready
- Hårdvaru visning
- CPU / System fan revolution delect
- CPU / System temperature detect
- System voltage detect (Vcore, Vcc3, Vcc, +12V)
- CPU overheat shutdown detect
- BIOS
- 2Mbit Flash RAM
- AMI BIOS with Enhanced ACPI Feature for PC98/Win98/Win2000 Compliance, Green, PnP, DMI, INT13 (>8.4GB) & Anti-Virus functions
- IDE#1~#4, SCSI, LS120, ZIP & CD-ROM bootable
- AC Recovery ON/OFF control
- Formfaktor
- ATX , 4 layer PCB (30.5*20.3 cm)
- Drivrutiner
- VIA 4 in 1 service pack utility
- Hardware monitor utility
- Övriga funktioner
- Suspend-To-RAM (STR)
- Includes Wake-On-LAN Header (WOL) ; Includes Wake-On-Ring (WOR)
- Supports Internal / External modem wake on
- Poly fuse for keyboard overcurrent protection
- Effekt
- ATX Power connector
- Power-on by LAN, RTC, Modem & Switch
- Power-off by Windows 95/98 Shut down & Switch
- Wake-up by USB device
- 3 Level ACPI LED Support
