GB-TCV1A
Legacy | Firmware updates supportedWind River Validated Intelligent IoT Gateway Solution
- Intel® Atom™ processor E3815
- 1 x SO-DIMM DDR3L slot
- 1 x GbE LAN (Realtek RTL8111G)
- 1 x 2.5" HDD/SSD internal bay
- 1 x SATA II 3Gb/s port
Specifications
Operating Properties
Operating temperature: 0°C to 35°C
Operating humidity: 0%-90% (non-condensing)
Non-operating temperature: -20°C to 60°C
Non-operating humidity: 0%-95% (non-condensing)
Operating humidity: 0%-90% (non-condensing)
Non-operating temperature: -20°C to 60°C
Non-operating humidity: 0%-95% (non-condensing)
CPU
Intel Atom processor E3815
Single core, 22nm
1.46GHz
512Kb cache
5W TDP
Single core, 22nm
1.46GHz
512Kb cache
5W TDP
Socket
1 x BGA 1170
Memory
1 x SO-DIMM slot
DDR3L memory
Up to 8GB
1067Mhz
2GB DDR3L memory pre-installed
DDR3L memory
Up to 8GB
1067Mhz
2GB DDR3L memory pre-installed
Flash Memory
4GB of eMMC memory
LAN
1 x GbE LAN port (Realtek RTL8111G)
Video
Intel HD Graphics
Audio
-
SATA
1 x SATA II 3Gb/s port
Expansion Slots
1 x Full-size Mini-PCIe slot
Occupied by WiFi + Bluetooth card (Azurewave® AW-NB159H)
Occupied by WiFi + Bluetooth card (Azurewave® AW-NB159H)
Internal I/O
1 x RTC header
1 x System fan header
1 x LPC (80h) header
1 x LVDS connector
1 x USB 2.0 header
1 x SATA power connector
1 x System power connector
1 x System fan header
1 x LPC (80h) header
1 x LVDS connector
1 x USB 2.0 header
1 x SATA power connector
1 x System power connector

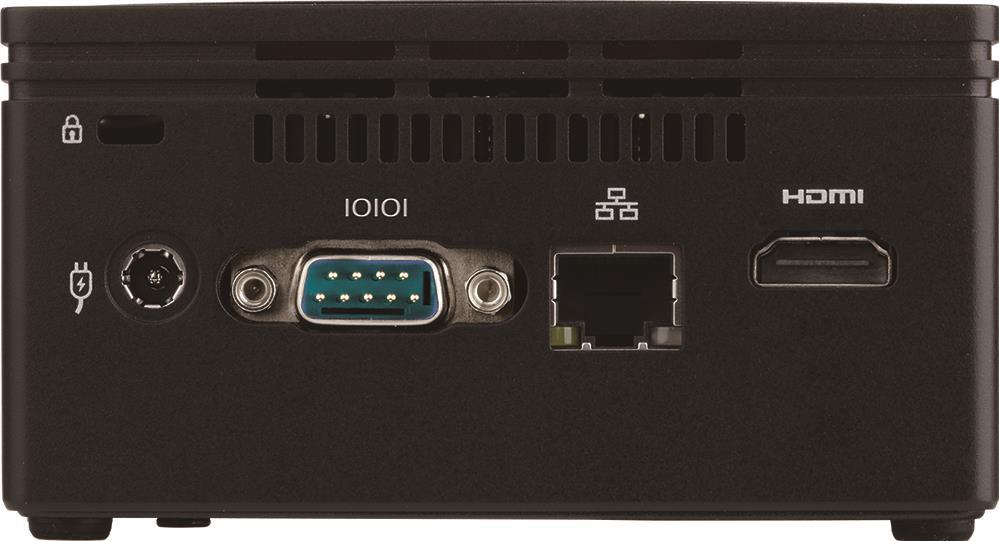

Rear I/O
1 x Serial DB-9
1 x RJ45
1 x HDMI 1.4a
1 x DC-In
1 x Kensington lock slot
1 x RJ45
1 x HDMI 1.4a
1 x DC-In
1 x Kensington lock slot
TPM
-
OS Compatibility
Windows 7 32bit / 64bit
Windows 8.1 32bit / 64bit
Wind River Linux 7
Android 4.4
Fedora 20
Windows 8.1 32bit / 64bit
Wind River Linux 7
Android 4.4
Fedora 20
Power Supply
External power adapter:
- 12V
- 2.5A
- 30W
- 100~240VA
Ordering Information
L10 System: 9BTCV1AMR-SI
Power adapter: 25EP2-500303-A3S
Power adapter: 25EP2-500303-A3S
Storage
1 x 2.5" HDD/SSD internal bay

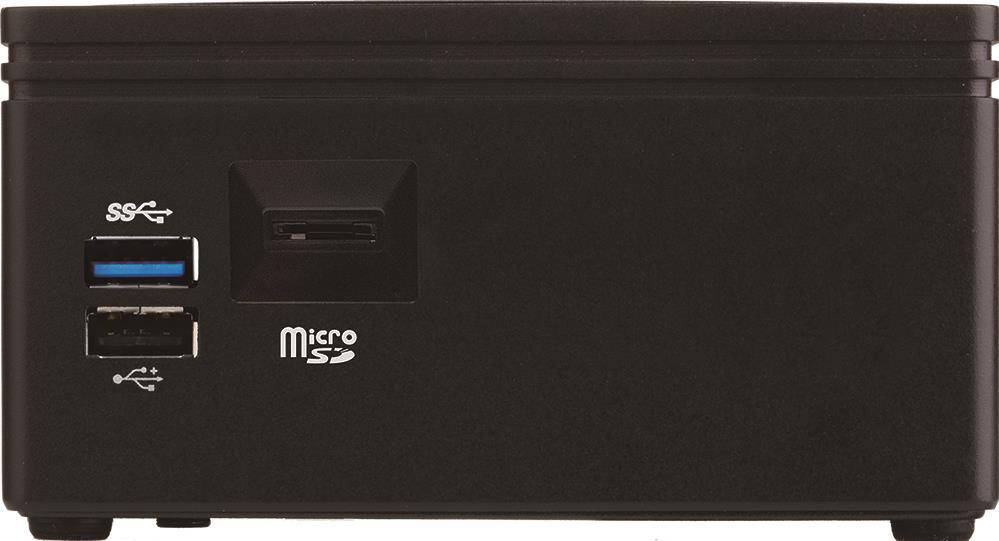

Front I/O
1 x USB 3.0
1 x USB 2.0
1 x MicroSD card slot
1 x USB 2.0
1 x MicroSD card slot
System Fans
Fanless
Dimension
107.6(W) x 56.1(H) x 114.4 (D) mm
Motherboard
MZBAYVA
Weight
400g
