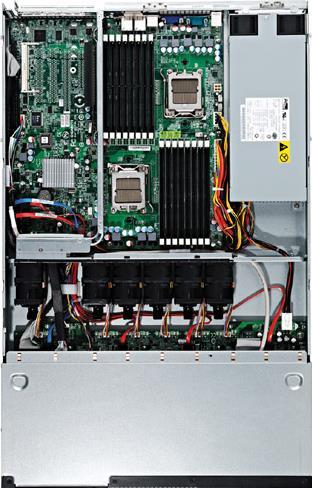

GS-R1233-RHLegacy | Software updates supported
Nvidia nForce Professional 3600 chipset
- Up to two AMD Opteron processors 2400 series.
- Up to 16 DIMMs of registered DDR2 memory.
- 4 3.5" HS-HDD bays configuration.
- Optional SAS solution.
- Support one full-height PCIe x16 and one SO-DIMM IF adapters.
- Optional IPMI 2.0 module providing secure IP-based remote server management.
- Single PSU 500W.
- Specifications
- Support
- Related Resources
Specifications
Motherboard
- GA-3CESL2-RH
CPU
- Dual AMD Opteron processor 2400 series
Chipset
- Nvidia nForce Professional 3600 chipset
Memory
- 16 DDR2 DIMM sockets support registered
- 4 channel native 667/ 800MHz
LAN
- 2 Gigabit LAN (Dual Marvell 88E1116)
- 1 port 100BASE-TX for management
Video
- XGI Volari Z9s 32MB DDR2
Storage
- 4 3.5" HS-HDD bays
RAID
- Nvidia NVRAID 0/ 1/ 0+1/ 5/ JBOD
- Optional 8 ports SAS 6Gbps SW RAID add-on card: GC-RLE086-RH
Peripheral Drives
- 1 slim DVD-Combo
Expansion Slots
- Full height: 1 PCI Express x16 (1.0 x16 bus)
- Others: 1 SO-DIMM IF
Power Supply[#1]
- Single PSU 500W
System Management
- Optional IPMI 2.0 module: GC-MMDS-RH
Part Numbers
- 9NR123300R-00
[#1] Power cords are not included with server packages. Customers are responsible for selecting appropriate power cords from the optional accessories or contacting sales for customization.
[#2] All materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at any time without prior notice.
[#3] Advertised performance is based on maximum theoretical interface values as specified by the respective chipset vendors or standards organizations. Actual performance may vary depending on system configuration.
[#4] All trademarks and logos are the property of their respective owners.
