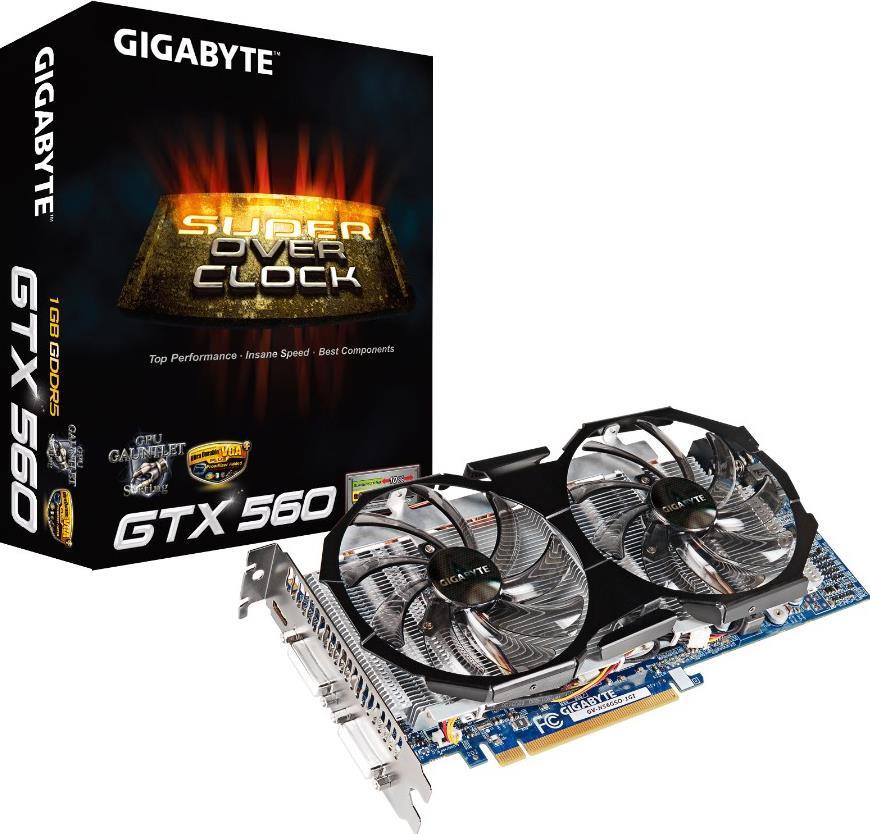

GV-N56GSO-1GI

GIGABYTE Super Overclock Series
OverviewSpecificationsSupportNews & AwardsLearn MoreWhere to Buy

Specifications

  • Graphics Processing
  • GeForce GTX 560
  • I/O
  • HDMI*1 (by cable)
    DisplayPort* (by adapter)
    mini HDMI*1
    mini DisplayPort*
    DVI-I*2
    DVI-D*
    D-sub*1 (by adapter)
  • Core Clock
  • 900 MHz
  • Process Technology
  • 40 nm
  • Memory Clock
  • 4008 MHz
  • Memory Size
  • 1 GB
  • Memory Type
  • GDDR5
  • Memory Bus
  • 256 bit
  • Card Bus
  • PCI-E 2.0
  • Digital max resolution
  • 2560 x 1600
  • Multi-view
  • 2
  • Card size
  • H=43 mm x L=255 mm x W=137 mm
  • PCB Form
  • ATX
  • DirectX
  • 11.1
  • OpenGL
  • 4.1
  • Recommended PSU
  • Minimum 500W or greater system power supply with two 6-pin external power connectors
  • Analog max resolution
  • 2048 x 1536
  • Shader Clock
  • 1800 MHz
  • Tools
  • N/A
  • Graphics Processing
  • GeForce GTX 560
  • I/O
  • HDMI*1 (by cable)
    DisplayPort* (by adapter)
    mini HDMI*1
    mini DisplayPort*
    DVI-I*2
    DVI-D*
    D-sub*1 (by adapter)
  • Core Clock
  • 900 MHz
  • Process Technology
  • 40 nm
  • Memory Clock
  • 4008 MHz
  • Memory Size
  • 1 GB
  • Memory Type
  • GDDR5
  • Memory Bus
  • 256 bit
  • Card Bus
  • PCI-E 2.0
  • Digital max resolution
  • 2560 x 1600
  • Multi-view
  • 2
  • Card size
  • H=43 mm x L=255 mm x W=137 mm
  • PCB Form
  • ATX
  • DirectX
  • 11.1
  • OpenGL
  • 4.1
  • Recommended PSU
  • Minimum 500W or greater system power supply with two 6-pin external power connectors
  • Analog max resolution
  • 2048 x 1536
  • Shader Clock
  • 1800 MHz
  • Tools
  • N/A

* The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
