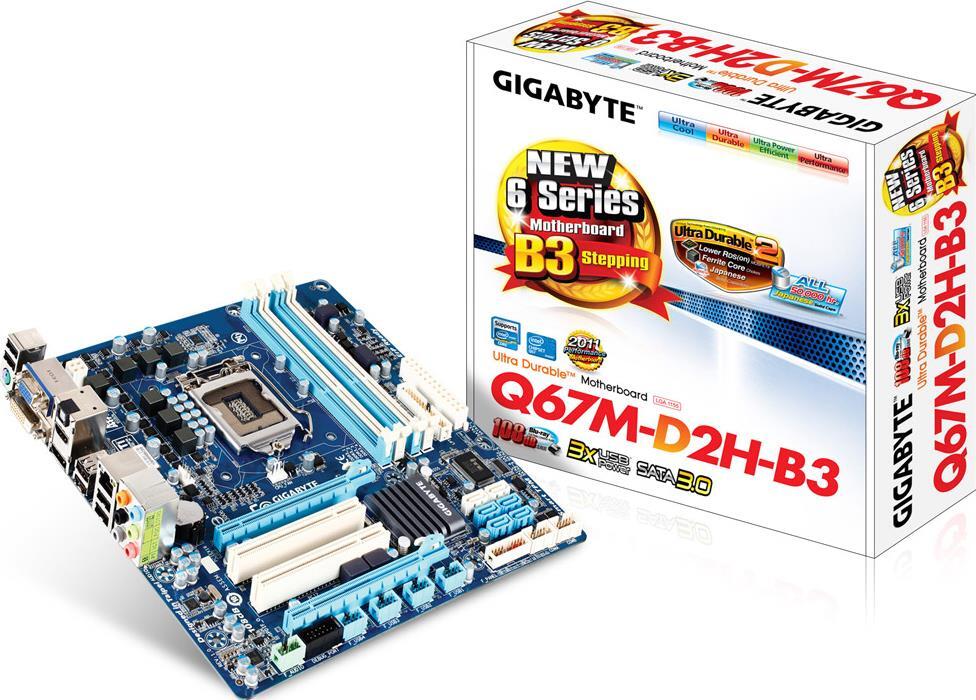

GA-Q67M-D2H-B3 (Rev. 1.0)

Intel® Q67 Chipset
OverviewSpecificationsSupportNews & AwardsLearn MoreWhere to Buy

Specifications

  • CPU
    1. Support for Intel® Core™ i7 processors/Intel® Core™ i5 processors/ Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1155 package
    2. L3 cache varies with CPU
    (Some Intel® Core™ processors require a graphic card, please refer "CPU support List" for more information.)
  • Chipset
    1. Intel® Q67 Express Chipset
  • Memory
    1. 4 x 1.5V DDR3 DIMM sockets supporting up to 32 GB of system memory
      2. *Due to Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than 4 GB.
    2. Dual channel memory architecture
    3. Support for DDR3 1333/1066/800 MHz memory modules
    4. Support for non-ECC memory modules
      5. (Go to GIGABYTE's website for the latest supported memory speeds and memory modules.)
  • Onboard Graphics
  • Integrated Graphics Processor:
    1. 1 x D-Sub port
    2. 1 x DVI-D port, supporting a maximum resolution of 1920x1200
      3. * The DVI-D port does not support D-Sub connection by adapter.
    3. 1 x HDMI port, supporting a maximum resolution of 1920x1200
    4. 1 x DisplayPort, supporting a maximum resolution of 2560x1600p
  • Audio
    1. Realtek ALC889 codec
    2. High Definition Audio
    3. 2/4/5.1/7.1-channel
  • LAN
    1. 1 x Intel 82579 chip (10/100/1000 Mbit)
  • Expansion Slots
    1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)
    2. 1 x PCI Express x16 slot, running at x4 (PCIEX4)
      3. (All PCI Express slots conform to PCI Express 2.0 standard.)
    3. 2 x PCI slots
  • Multi-Graphics Technology
    1. Support for ATI CrossFireX™ technology
      2. * The PCIEX16 slot operates at up to x4 mode when ATI CrossFireX™ is enabled.
  • Storage Interface
  • Chipset:
    1. 2 x SATA 6Gb/s connectors (SATA3_0~SATA3_1) supporting up to 2 SATA 6Gb/s devices
    2. 4 x SATA 3Gb/s connectors (SATA2_2~SATA2_5) supporting up to 4 SATA 3Gb/s devices
    3. Support for SATA RAID 0, RAID 1, RAID 5, and RAID 10
      4. * When a RAID set is built across the SATA 6Gb/s and SATA 3Gb/s channels, the system performance of the RAID set may vary depending on the devices being connected.
  • USB
  • Chipset:
    1. Up to 14 USB 2.0/1.1 ports (6 on the back panel, 8 via the USB brackets connected to the internal USB headers)
  • Internal I/O Connectors
    1. 1 x 24-pin ATX main power connector
    2. 1 x 4-pin ATX 12V power connector
    3. 2 x SATA 6Gb/s connectors
    4. 4 x SATA 3Gb/s connectors
    5. 1 x CPU fan header
    6. 1 x system fan header
    7. 1 x front panel header
    8. 1 x front panel audio header
    9. 4 x USB 2.0/1.1 headers
    10. 1 x debug card header
    11. 1 x parallel port header
    12. 2 x serial port headers
    13. 1 x clearing CMOS jumper
  • Back Panel Connectors
    1. 1 x PS/2 keyboard/mouse port
    2. 1 x D-Sub port
    3. 1 x DVI-D port
    4. 1 x optical S/PDIF Out connector
    5. 1 x HDMI port
    6. 1 x DisplayPort
    7. 6 x USB 2.0/1.1 ports
    8. 1 x RJ-45 port
    9. 6 x audio jacks (Center/Subwoofer Speaker Out/Rear Speaker Out/Side Speaker Out/Line In/Line Out/Microphone)
  • I/O Controller
    1. iTE IT8728 chip
  • H/W Monitoring
    1. System voltage detection
    2. CPU/System temperature detection
    3. CPU/System fan speed detection
    4. CPU overheating warning
    5. CPU/System fan fail warning
    6. CPU/System fan speed control
      7. * Whether the CPU/system fan speed control function is supported will depend on the CPU/system cooler you install.
  • BIOS
    1. 1 x 64 Mbit flash
    2. Use of licensed AMI BIOS
    3. PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b
  • Unique Features
    1. Support for Xpress Install
    2. Support for Q-Share
  • Bundled Software
    1. Norton Internet Security (OEM version)
  • Operating System
    1. Support for Microsoft® Windows 8/7/Vista/XP
  • Form Factor
    1. Micro ATX Form Factor; 24.4cm x 24.4cm
  • Remark
    1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
    2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP SP1/SP2. If drivers are available from the vendors, we will update them on the GIGABYTE website.
    • CPU
      1. Support for Intel® Core™ i7 processors/Intel® Core™ i5 processors/ Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1155 package
      2. L3 cache varies with CPU
      (Some Intel® Core™ processors require a graphic card, please refer "CPU support List" for more information.)
    • Chipset
      1. Intel® Q67 Express Chipset
    • Memory
      1. 4 x 1.5V DDR3 DIMM sockets supporting up to 32 GB of system memory
        2. *Due to Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than 4 GB.
      2. Dual channel memory architecture
      3. Support for DDR3 1333/1066/800 MHz memory modules
      4. Support for non-ECC memory modules
        5. (Go to GIGABYTE's website for the latest supported memory speeds and memory modules.)
    • Onboard Graphics
    • Integrated Graphics Processor:
      1. 1 x D-Sub port
      2. 1 x DVI-D port, supporting a maximum resolution of 1920x1200
        3. * The DVI-D port does not support D-Sub connection by adapter.
      3. 1 x HDMI port, supporting a maximum resolution of 1920x1200
      4. 1 x DisplayPort, supporting a maximum resolution of 2560x1600p
    • Audio
      1. Realtek ALC889 codec
      2. High Definition Audio
      3. 2/4/5.1/7.1-channel
    • LAN
      1. 1 x Intel 82579 chip (10/100/1000 Mbit)
    • Expansion Slots
      1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)
      2. 1 x PCI Express x16 slot, running at x4 (PCIEX4)
        3. (All PCI Express slots conform to PCI Express 2.0 standard.)
      3. 2 x PCI slots
    • Multi-Graphics Technology
      1. Support for ATI CrossFireX™ technology
        2. * The PCIEX16 slot operates at up to x4 mode when ATI CrossFireX™ is enabled.
    • Storage Interface
    • Chipset:
      1. 2 x SATA 6Gb/s connectors (SATA3_0~SATA3_1) supporting up to 2 SATA 6Gb/s devices
      2. 4 x SATA 3Gb/s connectors (SATA2_2~SATA2_5) supporting up to 4 SATA 3Gb/s devices
      3. Support for SATA RAID 0, RAID 1, RAID 5, and RAID 10
        4. * When a RAID set is built across the SATA 6Gb/s and SATA 3Gb/s channels, the system performance of the RAID set may vary depending on the devices being connected.
    • USB
    • Chipset:
      1. Up to 14 USB 2.0/1.1 ports (6 on the back panel, 8 via the USB brackets connected to the internal USB headers)
    • Internal I/O Connectors
      1. 1 x 24-pin ATX main power connector
      2. 1 x 4-pin ATX 12V power connector
      3. 2 x SATA 6Gb/s connectors
      4. 4 x SATA 3Gb/s connectors
      5. 1 x CPU fan header
      6. 1 x system fan header
      7. 1 x front panel header
      8. 1 x front panel audio header
      9. 4 x USB 2.0/1.1 headers
      10. 1 x debug card header
      11. 1 x parallel port header
      12. 2 x serial port headers
      13. 1 x clearing CMOS jumper
    • Back Panel Connectors
      1. 1 x PS/2 keyboard/mouse port
      2. 1 x D-Sub port
      3. 1 x DVI-D port
      4. 1 x optical S/PDIF Out connector
      5. 1 x HDMI port
      6. 1 x DisplayPort
      7. 6 x USB 2.0/1.1 ports
      8. 1 x RJ-45 port
      9. 6 x audio jacks (Center/Subwoofer Speaker Out/Rear Speaker Out/Side Speaker Out/Line In/Line Out/Microphone)
    • I/O Controller
      1. iTE IT8728 chip
    • H/W Monitoring
      1. System voltage detection
      2. CPU/System temperature detection
      3. CPU/System fan speed detection
      4. CPU overheating warning
      5. CPU/System fan fail warning
      6. CPU/System fan speed control
        7. * Whether the CPU/system fan speed control function is supported will depend on the CPU/system cooler you install.
    • BIOS
      1. 1 x 64 Mbit flash
      2. Use of licensed AMI BIOS
      3. PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b
    • Unique Features
      1. Support for Xpress Install
      2. Support for Q-Share
    • Bundled Software
      1. Norton Internet Security (OEM version)
    • Operating System
      1. Support for Microsoft® Windows 8/7/Vista/XP
    • Form Factor
      1. Micro ATX Form Factor; 24.4cm x 24.4cm
    • Remark
      1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
      2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP SP1/SP2. If drivers are available from the vendors, we will update them on the GIGABYTE website.
