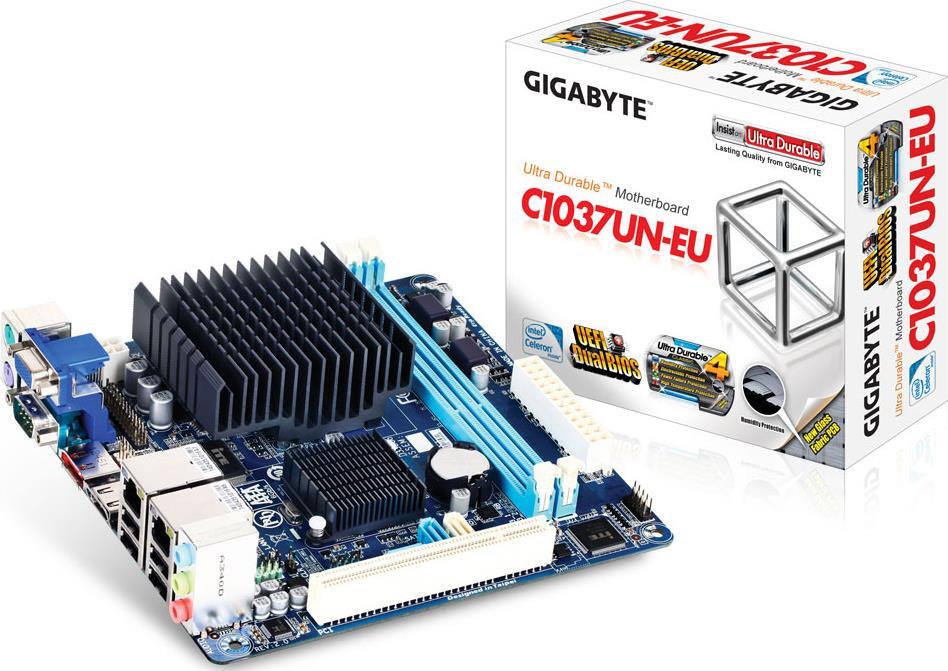

GA-C1037UN-EU (Rev. 2.0)

Rev. 2.0Rev. 1.0
Intel® NM70 Chipset
OverviewSpecificationsSupportWhere to Buy

Specifications

  • Procesor
    1. Built in with an Intel® Dual-core Celeron® 1037U processor (1.8 GHz)
      * Do not disassemble the onboard CPU/chipset and the heatsinks by yourself to avoid damage to these components.
    2. 2 MB L3 cache
  • Čipset
    1. Intel® NM70 Chipset
  • Pamäť
    1. 2 x DDR3 DIMM sockets supporting up to 16 GB of system memory
      * Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
    2. Dual channel memory architecture
    3. Support for DDR3 1600/1333 MHz memory modules
    (Please refer "Memory Support List" for more information.)
  • Integrovaná grafika
  • Integrated Graphics Processor:
    1. 1 x D-Sub port
    2. 1 x HDMI port, supporting a maximum resolution of 1920x1200
      * Support for HDMI 1.4 version.
    3. Maximum shared memory of 1 GB
  • Zvuk
    1. Realtek® ALC887 codec
    2. High Definition Audio
    3. 2/4/5.1/7.1-channel
      * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
  • Sieť
    1. 2 x Realtek® GbE LAN chips (10/100/1000 Mbit)
      * Teaming is not supported.
  • Rozširujúce sloty
    1. 1 x PCI slot
  • Rozhranie pre úložný priestor
  • Chipset:
    1. 1 x SATA 6Gb/s connector (SATA3 0)
    2. 2 x SATA 3Gb/s connectors (SATA2 1~2)
    3. 1 x eSATA 3Gb/s connector on the back panel
  • USB
  • Chipset:
    1. 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
  • Interné I/O konektory
    1. 1 x 24-pin ATX main power connector
    2. 1 x 4-pin ATX 12V power connector
    3. 1 x SATA 6Gb/s connector
    4. 2 x SATA 3Gb/s connectors
    5. 1 x CPU fan header
    6. 1 x system fan header
    7. 1 x front panel header
    8. 1 x front panel audio header
    9. 2 x USB 2.0/1.1 headers
    10. 1 x parallel port header
    11. 1 x serial port header
    12. 1 x Clear CMOS jumper
    13. 1 x chassis intrusion header
  • Zadný panel
    1. 1 x PS/2 keyboard port
    2. 1 x PS/2 mouse port
    3. 1 x D-Sub port
    4. 1 x serial port
    5. 1 x HDMI port
    6. 4 x USB 2.0/1.1 ports
    7. 1 x eSATA 3Gb/s connector
    8. 2 x RJ-45 ports
    9. 3 x audio jacks (Line In, Line Out, Mic In)
  • I/O ovládač
    1. iTE® I/O Controller Chip
  • H/W monitorovanie
    1. System voltage detection
    2. CPU/System temperature detection
    3. CPU/System fan speed detection
      * Whether the fan speed detect function is supported will depend on the cooler you install.
    4. System fan speed control
      * Whether the fan speed control function is supported will depend on the cooler you install.
  • BIOS
    1. 2 x 32 Mbit flash
    2. Use of licensed AMI UEFI BIOS
    3. Support for DualBIOS™
    4. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
  • Špecifické funkcie
    1. Support for @BIOS
    2. Support for Q-Flash
    3. Support for Xpress Install
    4. Support for EasyTune
      * Available functions in EasyTune may differ by motherboard model.
    5. Support for Smart Recovery 2
    6. Support for Auto Green
    7. Support for ON/OFF Charge
  • Bundled Software
    1. Norton® Internet Security (OEM version)
    2. Intel® Smart Connect Technology
  • Operačný systém
    1. Support for Windows 8.1/8/7/XP
  • Rozmery
    1. Mini-ITX Form Factor; 17.0cm x 17.0cm
  • Poznámky
    1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
    2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP SP1/SP2. If drivers are available from the vendors, we will update them on the GIGABYTE website.
    • Procesor
      1. Built in with an Intel® Dual-core Celeron® 1037U processor (1.8 GHz)
        * Do not disassemble the onboard CPU/chipset and the heatsinks by yourself to avoid damage to these components.
      2. 2 MB L3 cache
    • Čipset
      1. Intel® NM70 Chipset
    • Pamäť
      1. 2 x DDR3 DIMM sockets supporting up to 16 GB of system memory
        * Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
      2. Dual channel memory architecture
      3. Support for DDR3 1600/1333 MHz memory modules
      (Please refer "Memory Support List" for more information.)
    • Integrovaná grafika
    • Integrated Graphics Processor:
      1. 1 x D-Sub port
      2. 1 x HDMI port, supporting a maximum resolution of 1920x1200
        * Support for HDMI 1.4 version.
      3. Maximum shared memory of 1 GB
    • Zvuk
      1. Realtek® ALC887 codec
      2. High Definition Audio
      3. 2/4/5.1/7.1-channel
        * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
    • Sieť
      1. 2 x Realtek® GbE LAN chips (10/100/1000 Mbit)
        * Teaming is not supported.
    • Rozširujúce sloty
      1. 1 x PCI slot
    • Rozhranie pre úložný priestor
    • Chipset:
      1. 1 x SATA 6Gb/s connector (SATA3 0)
      2. 2 x SATA 3Gb/s connectors (SATA2 1~2)
      3. 1 x eSATA 3Gb/s connector on the back panel
    • USB
    • Chipset:
      1. 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
    • Interné I/O konektory
      1. 1 x 24-pin ATX main power connector
      2. 1 x 4-pin ATX 12V power connector
      3. 1 x SATA 6Gb/s connector
      4. 2 x SATA 3Gb/s connectors
      5. 1 x CPU fan header
      6. 1 x system fan header
      7. 1 x front panel header
      8. 1 x front panel audio header
      9. 2 x USB 2.0/1.1 headers
      10. 1 x parallel port header
      11. 1 x serial port header
      12. 1 x Clear CMOS jumper
      13. 1 x chassis intrusion header
    • Zadný panel
      1. 1 x PS/2 keyboard port
      2. 1 x PS/2 mouse port
      3. 1 x D-Sub port
      4. 1 x serial port
      5. 1 x HDMI port
      6. 4 x USB 2.0/1.1 ports
      7. 1 x eSATA 3Gb/s connector
      8. 2 x RJ-45 ports
      9. 3 x audio jacks (Line In, Line Out, Mic In)
    • I/O ovládač
      1. iTE® I/O Controller Chip
    • H/W monitorovanie
      1. System voltage detection
      2. CPU/System temperature detection
      3. CPU/System fan speed detection
        * Whether the fan speed detect function is supported will depend on the cooler you install.
      4. System fan speed control
        * Whether the fan speed control function is supported will depend on the cooler you install.
    • BIOS
      1. 2 x 32 Mbit flash
      2. Use of licensed AMI UEFI BIOS
      3. Support for DualBIOS™
      4. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
    • Špecifické funkcie
      1. Support for @BIOS
      2. Support for Q-Flash
      3. Support for Xpress Install
      4. Support for EasyTune
        * Available functions in EasyTune may differ by motherboard model.
      5. Support for Smart Recovery 2
      6. Support for Auto Green
      7. Support for ON/OFF Charge
    • Bundled Software
      1. Norton® Internet Security (OEM version)
      2. Intel® Smart Connect Technology
    • Operačný systém
      1. Support for Windows 8.1/8/7/XP
    • Rozmery
      1. Mini-ITX Form Factor; 17.0cm x 17.0cm
    • Poznámky
      1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
      2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP SP1/SP2. If drivers are available from the vendors, we will update them on the GIGABYTE website.

      * Pojmy HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress a logá HDMI sú ochranné známky alebo registrované ochranné známky spoločnosti HDMI Licensing Administrator, Inc.
      * The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
      * Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
      * All trademarks and logos are the properties of their respective holders.
      * Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
