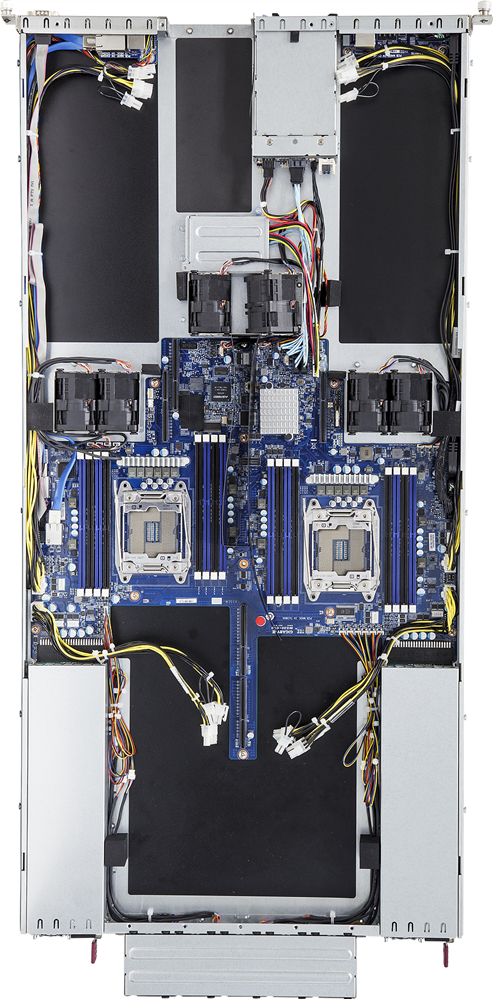

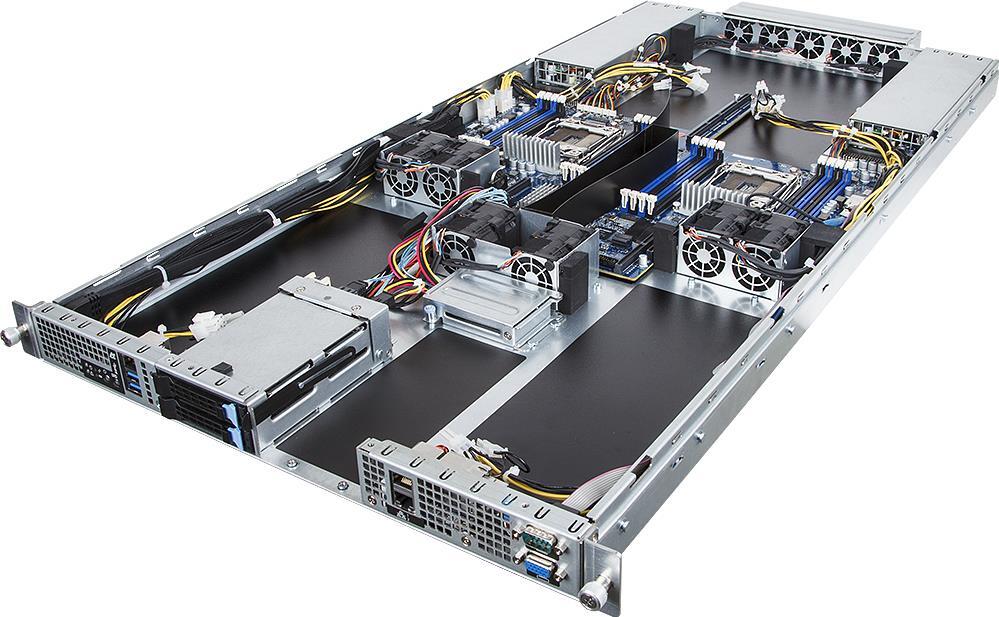

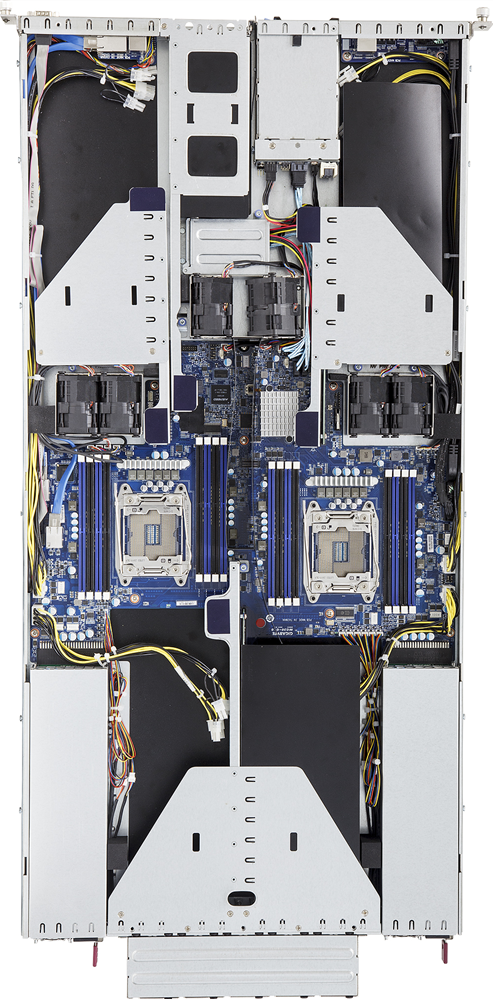

G190-H44Legacy | Software updates supported

1U
440 x 43.5 x 900 mm

MG30-G10

Intel^® Xeon^® E5-2600 V3 processors supported
Intel^® Xeon^® E5-2600 V4 processors supported
To support 140W and 145W processors, the following conditions apply:
- Special fan duct required (see "Part Numbers" below)
- 1.8" HDD cage must be removed
- Front bottom PCIe slot cannot be used
Please refer to the manual of "SOP for installing fan duct with 145W processor" in support & download page
NOTE: If only 1 CPU is installed, some PCIe or memory functions might be unavailable

2 x LGA 2011-3
Mounting pitch: narrow ILM (56x94mm)
Max. length of M4 screw threads: 3.7mm
Screws longer than 3.7mm might damage the motherboard

Intel^® C612

16 x DIMM slots
DDR4 memory supported only
Quad channel memory architecture
RDIMM modules up to 32GB supported
LRDIMM modules up to 64GB supported
3DS LRDIMM modules up to 128GB supported
1.2V modules: 2133/2400 MHz

2 x GbE LAN ports (Intel^® I350-AM2)
1 x 10/100/1000 management LAN

Integrated in Aspeed^® AST2400
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp

-

2 x 2.5" hot-swappable HDD/SSD bays
2 x 1.8" fixed HDD/SSD bays

4 x SATA III 6Gb/s ports

-

Intel^® SATA RAID 0/1/5/10

-

2 x Full-length low-profile slots
- 1 x PCI-e x16 slot (Gen3 x8 bus)
- 1 x PCI-e x8 slot (Gen3 x8 bus)
4 x Full-length full-height x16 slots (Gen3 x16 bus), supporting:
- Support Intel^® Xeon Phi cards
- Support NVIDIA^® cards
- Support AMD^® cards
Please contact us for details about the supported card models
4 x Riser cards:
- 1 x CRSG221
- 1 x CRSG220
- 1 x CRSG211
- 1 x CRSG210

- GIGABYTE carries out comprehensive validation to ensure support for Intel^® Xeon Phi, Nvidia^® and AMD^® adapters.
- Note: each system is validated for population with a uniform GPU model. Support is not provided for mixed GPU populations.
- For the latest QVL, please contact your GIGABYTE representative.

2 x 50-pin PSU connectors
4 x 8-pin ATX 12V power connectors
1 x 6-pin HDD back plane power connector
2 x 4-pin HDD power connectors
1 x Front panel header
1 x USB 3.0 header
4 x SATA III 6Gb/s ports
1 x HDD back plane board header
1 x SATA SGPIO header
1 x TPM header
1 x IPMB connector
2 x RJ45 LAN port connectors
1 x Serial header
1 x Front LAN port LED (link / active) header
1 x Front VGA header
1 x Intel RAID key header
18 x GPU fan headers
4 x System fan headers
1 x BIOS recovery jumper
1 x Clear CMOS jumper
1 x ME update jumper
1 x S3 power on select jumper
1 x Force to stop FRB timer jumper
1 x BIOS write protect jumper
1 x Clear password jumper

2 x USB 3.0
3 x RJ45
1 x VGA
1 x Serial
1 x ID button with LED
1 x Power button with LED
1 x Reset button
1 x NMI button

-

2 x SAS / SATA ports

1 x TPM header

2 x 2000W redundant PSU
80 PLUS Platinum

AC input:
- 1000W: 100-120V/ 12.5-10.5A, 50-60Hz
- 1800W: 200-220V/ 10-9.5A, 50-60Hz
- 1980W: 220-230V/ 10-9.8A, 50-60Hz
- 2000W: 230-240V/ 10-9.8A, 50-60Hz

DC output:
- 1000W@100-120V
+12V/ 83.3A
+12Vsb/ 3.5A
- 1800W@200-220V
+12V/ 150.0A
+12Vsb/ 3.5A
- 1980W@220-230V
+12V/ 165.0A
+12Vsb/ 3.5A
- 2000W@230-240V
+12V/ 166.7A
+12Vsb/ 3.5A

Aspeed^® AST2400 management controller
Avocent^® MergePoint IPMI 2.0 web interface:

• Network settings
• Network security settings
• Users control
• Services settings
• IPMI settings
• Sessions control
• LDAP settings
• Power control
• Voltages, fans and temperatures monitoring
• System event log
• Events management (platform events, trap settings, email settings)
• Serial Over LAN
• vKVM & vMedia (launch, configuration)

Windows Server 2008 R2 (x64)
Windows Server 2012 R2 (x64)
Windows Server 2016

Red Hat Enterprise Linux 6.7 (x86/x64)
Red Hat Enterprise Linux 7.2 (x64)

SUSE Linux Enterprise Server 11.4 (x86/x64)
SUSE Linux Enterprise Server 12 (x64)

Ubuntu 12.04 LTS (x86/x64)
Ubuntu 14.04 LTS (x86/x64)

VMware ESXi 5.1 U2
VMware ESXi 5.5 U2
VMware ESXi 6.0 U1

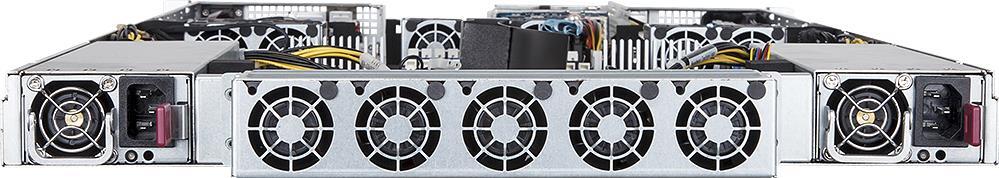

11 x 40x56mm (23'000rpm)

Operating temperature: 10°C to 35°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)

26.7 kg (full packaging)

1156 x 259 x 738 mm

1 x G190-H44
1 x Quick Start Guide
2 x CPU heatsinks
1 x Rail kit

Barebone package: 6NG190H44MR-00-200
Spare parts list:
- Rail kit: 25HB2-NJ2101-N1R
- Back plane board: 9CBPG020NR-00
- Power supply: 25EP0-220002-C2S
- Front panel board 1: 9CFPG000NR-00
- Front panel board 2: 9CFPG010NR-00
- Riser card 1: 9CRSG220NR-00
- Riser card 2: 9CRSG210NR-00
- Riser card 3: 9CRSG211NR-00
- Riser card 4: 9CRSG221NR-00
- Bracket for 4 x NVIDIA GPU: 25HB1-G19034-U1R or 25HB2-G19031-U1R (in option)
- Bracket for 4 x Intel Xeon Phi GPU: 25HB2-G19030-U1R (in option)
- Bracket for 4 x Intel VCA cards: 25HB2-G19033-U1R (in option)
- Bracket for 4 x AMD GPU (S9050 and S9150): 25HB2-G19032-U1R (in option)
- Special fan duct: 25HA8-G19030-S5R (in option)
- NVIDIA P40/M60/K80/P100 power cable: 2 x 25CRI-600321-B0R (600mm, front side) + 2 x 25CRI-250322-B0R (250mm, rear side) per unit (in option)
