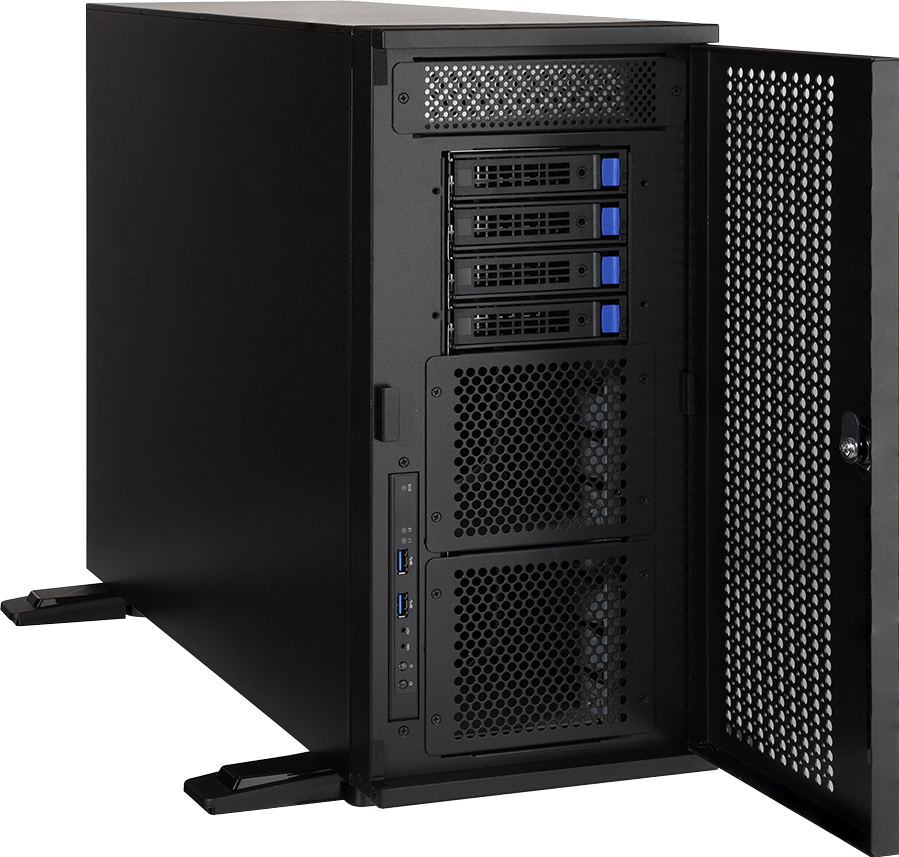

W291-Z00Legacy | Software updates supported

Pedestal
200 x 450.2 x 642.2 mm

AMD EPYC™ 7001 series processor family
Single processor, 14nm
Up to 32-core, 64 threads
TDP up to 200W

Socket SP3

System on Chip

8 x DIMM slots
DDR4 memory supported only
8-Channel memory architecture
RDIMM modules up to 64GB supported
LRDIMM modules up to 128GB supported
Memory speed: 2666/2400/2133 MHz

2 x 1Gb/s LAN ports (Intel^® I210-AT)
1 x 10/100/1000 management LAN

Integrated in Aspeed^® AST2500
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp

N/A

4 x 3.5"/2.5" SATAIII hot-swappable HDD/SSD bays

SAS card is required for SAS devices support

Depends on SAS Add-on card

1 x 5.25" space reserved for ODD device

Slot_7 (PCIe_7): 1 x PCIe x16 (Gen3 x16 bus)
Slot_5 (PCIe_5): 1 x PCIe x16 (Gen3 x16 bus)
Slot_4 (PCIe_4): 1 x PCIe x8 (Gen3 x8 bus)
Slot_3 (PCIe_3): 1 x PCIe x16 (Gen3 x16 bus)
Slot_1 (PCIe_1): 1 x PCIe x16 (Gen3 x16 bus)

1 x M.2 slot:
- M-key
- PCIe Gen3 x4
- Supports NGFF-2242/2260/2280/22110 cards

1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
4 x SlimSAS connectors
1 x M.2 slot
1 x CPU fan headers
6 x System fan headers
1 x USB 3.0 header
2 x COM headers
1 x TPM header
1 x Front panel header
1 x HDD back plane board header
1 x PMBus connector
1 x IPMB connector
1 x Clear CMOS jumper
1 x BIOS recovery jumper

2 x USB 3.0
1 x Power button with LED
1 x ID button with LED
1 x Reset button
1 x NMI button
1 x System status LED
2 x LAN activity LEDs

Hard drive cage:
1 x HDD power on LED
1 x HDD activity LED
1 x HDD key lock

2 x USB 3.0
1 x VGA
2 x RJ45
1 x MLAN
1 x ID switch with LED
1 x Power switch with LED

1 x TPM header with LPC interface
Optional TPM2.0 kit: CTM000

2 x 1600W redundant PSUs
80 PLUS Platinum

AC Input:
- 100-127V~/ 12A, 47-63Hz
- 200-240V~/ 9.48A, 47-63Hz

DC Output:
- Max 1000W/ 100-127V~
+ 12V/ 82A
+ 12Vsb/ 2.1A
- Max 1600W/ 200-240V~
+ 12V/ 132A
+ 12Vsb/ 2.1A

Aspeed^® AST2500 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface

• Dashboard
• JAVA Based Serial Over LAN
• HTML5 KVM
• Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
• Sensor Reading History Data
• FRU Information
• SEL Log in Linear Storage/Circular Storage Policy
• Hardware Inventory
• Fan Profile
• System Firewall
• Power Consumption
• Power Control
• LDAP / AD / RADIUS Support
• Backup & Restore Configuration
• Remote BIOS/BMC/CPLD Update
• Event Log Filter
• User Management
• Media Redirection Settings
• PAM Order Settings
• SSL Settings
• SMTP Settings

Windows Server 2012 R2 with Update
Windows Server 2016

Red Hat Enterprise Linux 7.4 (x64) or later
Red Hat Enterprise Linux 8.0 (x64) or later
Red Hat Enterprise Linux 9.0 (x64) or later

SUSE Linux Enterprise Server 11 SP4 (x64) or later
SUSE Linux Enterprise Server 12 SP3 (x64) or later
SUSE Linux Enterprise Server 15 (x64) or later

Ubuntu 16.04 LTS (x64) or later
Ubuntu 18.04 LTS (x64) or later
Ubuntu 20.04 LTS (x64) or later

VMware ESXi 6.5 Update1 or later
VMware ESXi 6.7 or later
VMware ESXi 7.0 or later
VMware ESXi 8.0 or later

Citrix Xenserver 7.1.0 CU2 or later
Citrix Xenserver 7.4.0 or later
Citrix Hypervisor 8.0.0 or later

3 x 120x120x38mm (8,500 rpm)
1 x 92x92x25mm (Attached in HDD cage)

Operating temperature: 10°C to 35°C
Operating humidity: 8-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)

Net Weight: 19.5 kg
Gross Weight: 23 kg

348 x 691 x 791 mm

1 x W291-Z00
1 x Heatsink
1 x Quick Installation guide

Barebone package: 6NW291Z00MR-00-1*
Part Numbers:
- Motherboard: 9MZ01CE1NR-00-1*
- I/O shield: 12AIO-MZ01C1-00R
- Power supply: 25EP0-216007-L0S
- Fan-sink: 12SF2-01A067-00R
- Mylar for AMD VEGA64 passive HS version: 25HA1-W29101-S5R (as an option)
- Railkit for W291-Z00 (as an option, (A)+(B)+(C))
(A) 25HB5-W29101-I0R ( Ear left side), Q'ty: 1
(B) 25HB5-W29100-I0R (Ear right side), Q'ty: 1
(C) 25HB2-3A6104-I0R (Rail kit), Q'ty: 1
