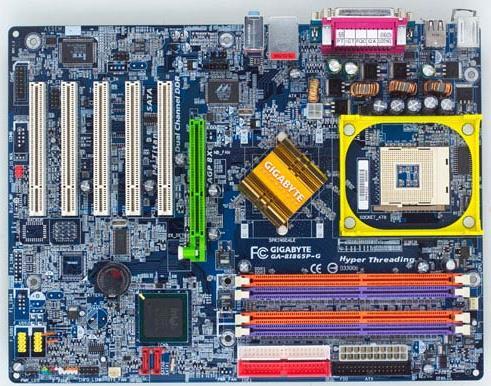

GA-8I865P-G (Rev. 1.0)

DescripciónEspecificaciónSoporte y DescargasNoticias / PremiosWhere to Buy

Especificación

  • Procesador
    1. Socket 478 for Intel® new 0.13 micron-process Pentium® 4 processor with Hyper-Threading technology
    2. 533/400 MHz FSB
  • Chipset
    1. North bridge: Intel® 865P MCH
    2. South bridge: Intel® ICH5
    3. Integrated Peripherals:
      1. Realtek ALC850 Audio AC'97 CODEC
      2. Marvell Gigabit Ethernet controller
  • Memoria
    1. Type: DDR333 (PC2700)/ DDR266 (PC2100) - 184pin
    2. Max capacity: Up to 4GB by 4 DIMM slots in two channel (Please read FAQ for further information)
    * Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
  • Puertos de Expansión
    1. 1 x AGP universal slot (8x/4x-AGP 3.0 compliant), supports 1.5v display card only.
    2. 5 x PCI slots (PCI 2.2 compliant)
  • Conectores Internos de E/S
    1. 2 x Serial ATA connector
    2. 2 x UDMA ATA 100/66 Bus Master IDE connectors
    3. 1 x FDD connector
    4. 8 x USB 2.0/1.1 connectors (support 4 ports by cable)
    5. S/P DIF input/output pin header
    6. 2 x cooling fan pin headers
    7. CD/AUX in
    8. 1 x Game/Midi connector
  • Conectores del Panel Trasero
    1. PS/2 Keyboard / Mouse
    2. 4 x USB 2.0/1.1 ports
    3. 2 x COM ports
    4. 1 x LPT
    5. Audio (1 x Line-in / 1 x Line-out / 1 x Mic) connector
  • Monitorización H/W
    1. System health status auto-detect and report by BIOS
    2. Hardware detecting and reporting for case open, power-in voltage, CPU voltage, and fan speed.
  • BIOS
    1. 2M bit flash ROM, Phoenix BIOS
  • Software Incluido
    1. @BIOS™, Easy Tune™ 4, Q-Flash™, GMC™
    2. Norton Internet Security
      1. Norton Anti Virus™
      2. Norton™ Personal Firewall
      3. Norton™ Privacy Control
      4. Norton™ Parental Control
      5. Norton™ Spam Alert
    3. GIGABYTE Windows Utility Manager
    4. Adobe Acrobat Reader
  • Diseño
    1. ATX form factor, 30.5 x 23.0 cm
  • Configuración CPU/AGP/DIMM
    1. CPU FSB / Multiplier / Vcore Voltage adjustable via BIOS
    2. AGP Voltage / Clock adjustable via BIOS
    3. DIMM Voltage / Clock adjustable via BIOS
  • Controlador
    1. Intel® chipset software installation utility
    2. Marvell LAN driver
    3. Realtek audio driver
    4. USB2.0 driver
  • Otras Características
    1. Suspend to RAM (STR)
    2. Supports USB KB / MS wake up from S3
  • Energía
    1. ATX power connector and ATX 12V connector
    2. Power-off by Windows 98/ Me/ 2000/ XP shut down and switch
  • Otras Descripciones
    1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
    2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP SP1/SP2. If drivers are available from the vendors, we will update them on the GIGABYTE website.
    • Procesador
      1. Socket 478 for Intel® new 0.13 micron-process Pentium® 4 processor with Hyper-Threading technology
      2. 533/400 MHz FSB
    • Chipset
      1. North bridge: Intel® 865P MCH
      2. South bridge: Intel® ICH5
      3. Integrated Peripherals:
        1. Realtek ALC850 Audio AC'97 CODEC
        2. Marvell Gigabit Ethernet controller
    • Memoria
      1. Type: DDR333 (PC2700)/ DDR266 (PC2100) - 184pin
      2. Max capacity: Up to 4GB by 4 DIMM slots in two channel (Please read FAQ for further information)
      * Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
    • Puertos de Expansión
      1. 1 x AGP universal slot (8x/4x-AGP 3.0 compliant), supports 1.5v display card only.
      2. 5 x PCI slots (PCI 2.2 compliant)
    • Conectores Internos de E/S
      1. 2 x Serial ATA connector
      2. 2 x UDMA ATA 100/66 Bus Master IDE connectors
      3. 1 x FDD connector
      4. 8 x USB 2.0/1.1 connectors (support 4 ports by cable)
      5. S/P DIF input/output pin header
      6. 2 x cooling fan pin headers
      7. CD/AUX in
      8. 1 x Game/Midi connector
    • Conectores del Panel Trasero
      1. PS/2 Keyboard / Mouse
      2. 4 x USB 2.0/1.1 ports
      3. 2 x COM ports
      4. 1 x LPT
      5. Audio (1 x Line-in / 1 x Line-out / 1 x Mic) connector
    • Monitorización H/W
      1. System health status auto-detect and report by BIOS
      2. Hardware detecting and reporting for case open, power-in voltage, CPU voltage, and fan speed.
    • BIOS
      1. 2M bit flash ROM, Phoenix BIOS
    • Software Incluido
      1. @BIOS™, Easy Tune™ 4, Q-Flash™, GMC™
      2. Norton Internet Security
        1. Norton Anti Virus™
        2. Norton™ Personal Firewall
        3. Norton™ Privacy Control
        4. Norton™ Parental Control
        5. Norton™ Spam Alert
      3. GIGABYTE Windows Utility Manager
      4. Adobe Acrobat Reader
    • Diseño
      1. ATX form factor, 30.5 x 23.0 cm
    • Configuración CPU/AGP/DIMM
      1. CPU FSB / Multiplier / Vcore Voltage adjustable via BIOS
      2. AGP Voltage / Clock adjustable via BIOS
      3. DIMM Voltage / Clock adjustable via BIOS
    • Controlador
      1. Intel® chipset software installation utility
      2. Marvell LAN driver
      3. Realtek audio driver
      4. USB2.0 driver
    • Otras Características
      1. Suspend to RAM (STR)
      2. Supports USB KB / MS wake up from S3
    • Energía
      1. ATX power connector and ATX 12V connector
      2. Power-off by Windows 98/ Me/ 2000/ XP shut down and switch
    • Otras Descripciones
      1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
      2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP SP1/SP2. If drivers are available from the vendors, we will update them on the GIGABYTE website.

      * Los términos HDMI, HDMI High-Definition Multimedia Interface (Interfaz multimedia de alta definición), HDMI Trade Dress (diseño e imagen comercial HDMI) y los logotipos HDMI son marcas comerciales o marcas registradas de HDMI Licensing Administrator, Inc.
      * Todos los materiales aquí provistos son solo para referencia. GIGABYTE se reserva el derecho de modificar o revisar el contenido a cualquier hora sin aviso alguno.
      * Todas las marcas y logos son propiedad de sus propios dueños.
      * Debido a la arquitectura estándar de la PC, cierta cantidad de memoria es reservada para uso del sistema y actualmente la memoria disponible es menor a la mencionada.
