CRA4548 (rev. 1.0)

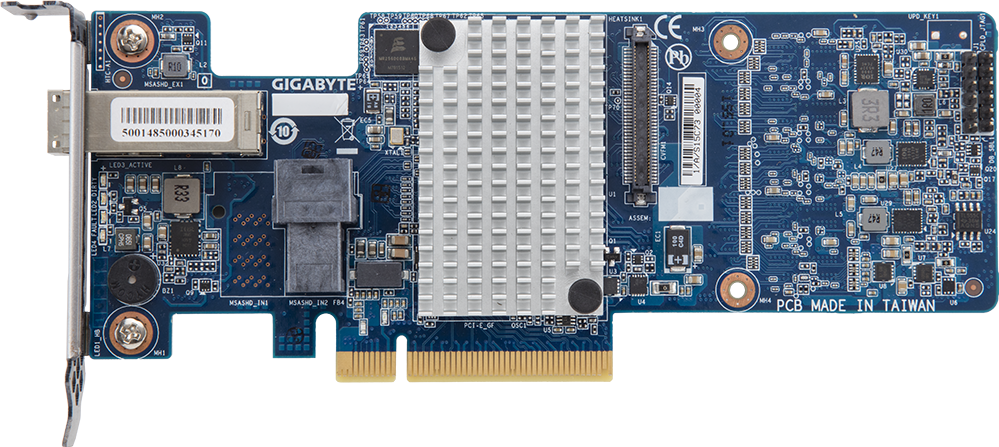

Broadcom SAS3108 H/W RAID Card (240-PD)
Broadcom SAS3108 H/W RAID Card (240-PD)
- 1 x internal Mini-SAS HD SFF8643 connector for up to 4 x SAS 12Gb/s ports
- 1 x external Mini-SAS HD SFF8644 connector
- Up to 240 x physical devices supported via SAS expander
- Broadcom SAS3108
- Hardware RAID 0/1/5/6/10/50/60
- 2GB DDR3 cache memory
- (Optional) CacheVault Flash Cache Protection Module
- PCIe x8 slot (3.0 x8 bus)
- 168 x 68.9 mm
1/2
SPECIFICATIONS
Ports
1 x internal Mini-SAS HD SFF8643 connector for up to 4 x SAS 12Gb/s ports
1 x external Mini-SAS HD SFF8644 connector
Provides internal storage, external JBOD expansion and RAID data protection to address a wide range of storage performance and capacity requirements
Up to 240 x physical devices supported via expander
Supports SAS / Enterprise SATA hard drives
1 x external Mini-SAS HD SFF8644 connector
Provides internal storage, external JBOD expansion and RAID data protection to address a wide range of storage performance and capacity requirements
Up to 240 x physical devices supported via expander
Supports SAS / Enterprise SATA hard drives
Controller
Broadcom® SAS3108
RAID
Hardware RAID 0/1/5/6/10/50/60
2GB DDR3 cache memory
Compatible with Broadcom® CacheVault Flash Cache Protection Module PN: 25FCZ-CVM020-L1R
Compatible with Broadcom® CacheVault Flash Cache Protection Module PN: 25FCZ-CVM020-L1R
Interface
PCIe x8 slot (3.0 x8 bus)
Dimension
168 x 68.9 mm
Format
Half-length low profile card
Available with full-height or low-profile bracket
Available with full-height or low-profile bracket
Ordering Information
9CRA4548NR-00
12 units per carton
Packaging dimensions: 305 x 285 x 250 mm
12 units per carton
Packaging dimensions: 305 x 285 x 250 mm
Remark
California Proposition 65:
WARNING: This product contains a chemical, including lead,
know to the state of California to cause birth defects or other reproductive harm.
http://www.p65warnings.ca.gov/
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
SUPPORT
Driver
Utility
- Choose your OS
- Choose your OS
- Windows Server 2016 64bit
- Windows Server 2012 64bit
- Windows Server 2008 R2 64bit
- Windows 8.1 64bit
- Windows 10 64bit
- VMware 6.0 U2
- VMware 6.0 U1
- Linux
- FreeBSD
Chipset
Chipset
Version
Size
Date
LSI SAS3108 Driver
Version : 6.14-6.714.05.00
6.94 MB
2017/08/15
OS: Windows Server 2012 64bit,Windows Server 2008 R2 64bit,Windows 8.1 64bit,Windows 10 64bit,Windows Server 2016 64bit
- Choose your OS
- Choose your OS
- Windows Server 2016 64bit
- Windows Server 2012 R2 64bit
- Windows Server 2008 R2 64bit
- Windows 8.1 64bit
- Windows 10 64bit
- Linux
Utility
Description
Version
Size
Date
MegaRAID Storage Manager (MSM)
Version : 17.05.00.02
100.6 MB
2017/09/25
OS: Windows Server 2008 R2 64bit,Windows 8.1 64bit,Windows Server 2012 R2 64bit,Windows 10 64bit,Windows Server 2016 64bit
MegaRAID Storage Manager (MSM)
For Linux 64-bit
For Linux 64-bit
Version : 17.05.00.02
105.73 MB
2017/09/25
OS: Linux
MegaRAID Storage Manager (MSM)
For Linux 32-bit
For Linux 32-bit
Version : 17.05.00.02
107.24 MB
2017/09/25
OS: Linux
Support List
Description
Version
Size
Date
