CSA4710 (rev. 1.x)

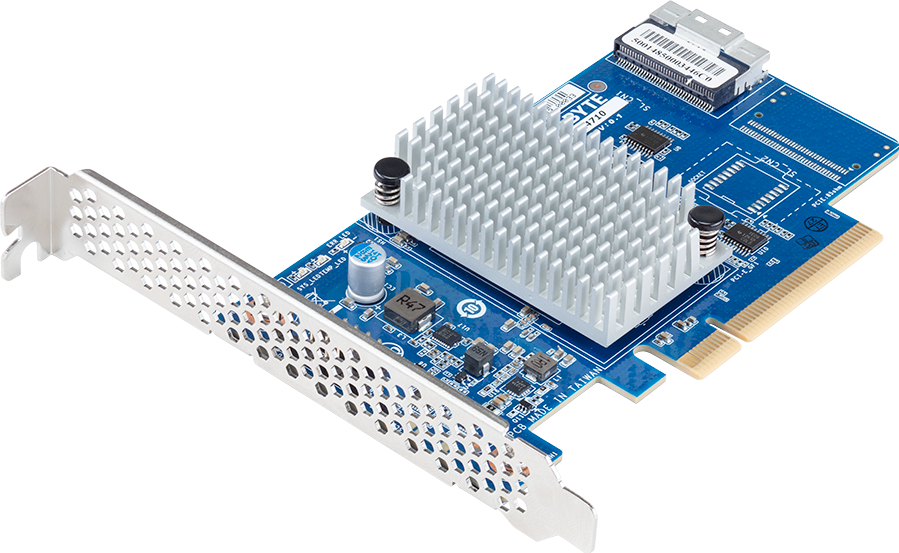

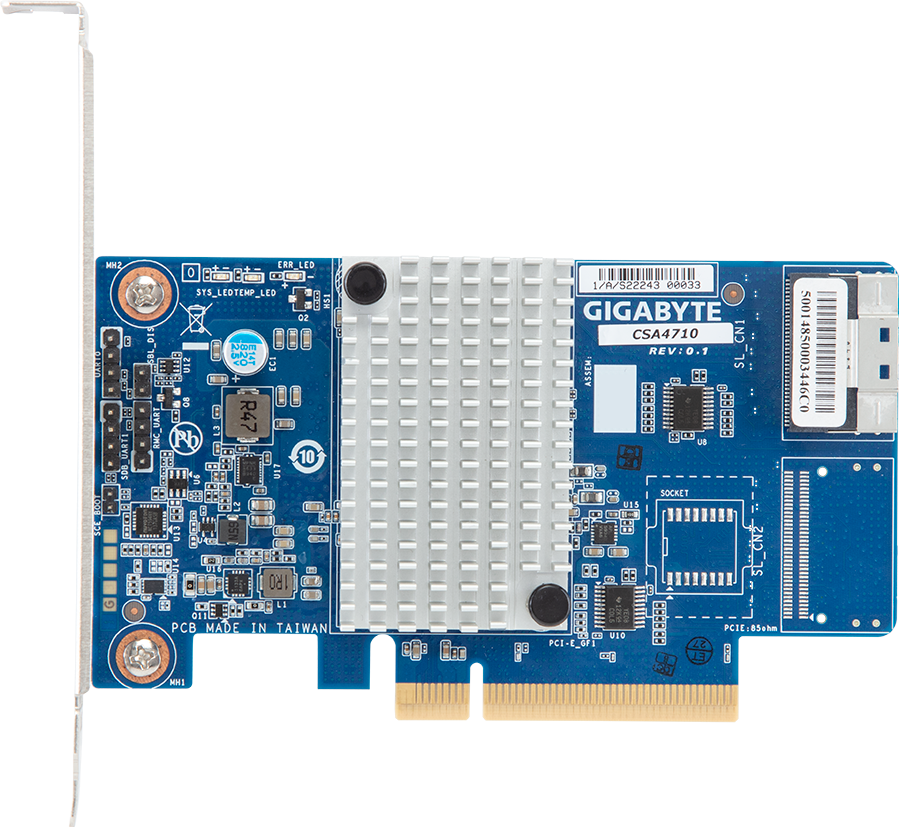

Broadcom® SAS3808 8-port 12Gb/s PCIe 4.0 x8 HBA
- Broadcom® SAS3808 controller
- 1 x SlimLine SAS 8i connector
- Supports up to 8 x SAS 12Gb/s or SATA 6Gb/s physical devices
- Supports up to 2 x PCIe x4 NVMe physical devices
- Max. 32 x SAS/SATA physical devices with SAS expander
- PCIe x8 (Gen4 x8 bus)
- Card dimensions: 68.9 x 120 mm
Request a Quote
SPECIFICATIONS
Ports
1 x SlimLine SAS 8i connector
Supports up to 8 x SAS 12Gb/s or SATA 6Gb/s physical devices
Supports up to 2 x PCIe x4 NVMe physical devices
Max. 32 x SAS/SATA physical devices with SAS expander
NOTE: Please select enterprise SATA devices
Supports up to 8 x SAS 12Gb/s or SATA 6Gb/s physical devices
Supports up to 2 x PCIe x4 NVMe physical devices
Max. 32 x SAS/SATA physical devices with SAS expander
NOTE: Please select enterprise SATA devices
Controller
Broadcom® SAS3808
RAID
Non-RAID supported
Interface
PCIe x8 (Gen4 x8 bus)
Dimension
68.9 x 120 mm
Format
Low-profile card
Available with full-height or low-profile brackets
Available with full-height or low-profile brackets
Includes
1 x Full-height bracket
1 x Low-profile bracket
1 x Low-profile bracket
Remark
California Proposition 65:
WARNING: This product contains a chemical, including lead,
know to the state of California to cause birth defects or other reproductive harm.
http://www.p65warnings.ca.gov/
Ordering Information
9CSA4710MR-00-1*
- Individual packaging, 6 PCS per carton
- Packaging dimensions: 305 x 251 x 220 mm
9CSA4710NR-00-1*
- Bulk packaging, 15 PCS per carton
- Packaging dimensions: 305 x 251 x 220 mm
NOTE: This card is only compatible with GIGABYTE servers
- Individual packaging, 6 PCS per carton
- Packaging dimensions: 305 x 251 x 220 mm
9CSA4710NR-00-1*
- Bulk packaging, 15 PCS per carton
- Packaging dimensions: 305 x 251 x 220 mm
NOTE: This card is only compatible with GIGABYTE servers
