TO25-S11-AA01

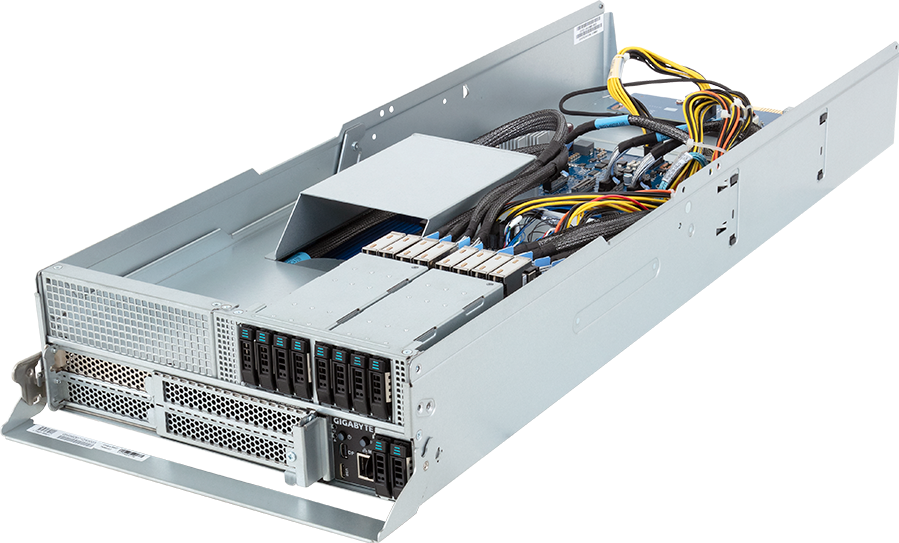

ORv3 Compute Node - 5th/4th Gen Intel® Xeon® Scalable - 2OU 2-Node UP 10-Bay E1.S Gen4 NVMe
- Single 5th/4th Gen Intel® Xeon® Scalable Processors
- Single Intel® Xeon® CPU Max Series
- 8-Channel DDR5 RDIMM, 8 x DIMMs
- Dual ROM Architecture
- 10 x E1.S Gen4 NVMe hot-swap bays
- 1 x M.2 slot with SATA interface
- 2 x FHHL PCIe Gen5 x16 slots
- 1 x LP PCIe Gen5 x8 slot
- 48V DC Bus Bar power solution
Ordering Numbers: 6NTO25S11DR000AB01*
Specifications
Dimensions (WxHxD, mm)
2OU 2-Node
262.7 x 90 x 740
262.7 x 90 x 740
Open Rack Version
ORv3
Motherboard
MS13-HD0
CPU
5th Generation Intel® Xeon® Scalable Processors
4th Generation Intel® Xeon® Scalable Processors
Intel® Xeon® CPU Max Series
Single processor, TDP up to 350W
4th Generation Intel® Xeon® Scalable Processors
Intel® Xeon® CPU Max Series
Single processor, TDP up to 350W
Memory
8 x DIMM slots
DDR5 memory supported
8-Channel memory per processor
5th Gen Intel® Xeon®:
RDIMM: Up to 5600 MT/s
4th Gen Intel® Xeon®:
RDIMM: Up to 4800 MT/s
Intel® Xeon® Max Series:
RDIMM: Up to 4800 MT/s
DDR5 memory supported
8-Channel memory per processor
5th Gen Intel® Xeon®:
RDIMM: Up to 5600 MT/s
4th Gen Intel® Xeon®:
RDIMM: Up to 4800 MT/s
Intel® Xeon® Max Series:
RDIMM: Up to 4800 MT/s
LAN
Front:
1 x 10/100/1000 Mbps Management LAN
1 x 10/100/1000 Mbps Management LAN
Storage
Front hot-swap:
10 x 9.5mm E1.S Gen4 NVMe
Internal M.2 (CFPH010):
1 x M.2 (2242/2260/2280/22110), SATA, from PCH
10 x 9.5mm E1.S Gen4 NVMe
Internal M.2 (CFPH010):
1 x M.2 (2242/2260/2280/22110), SATA, from PCH
SAS
N/A
RAID
N/A
PCIe Expansion Slots
Riser Card CRSH02D:
- 2 x FHHL x16 (Gen5 x16)
Riser Card CRSH02E:
- 1 x LP x16 (Gen5 x16), occupied for E1.S
- 1 x LP x16 (Gen5 x8)
- 2 x FHHL x16 (Gen5 x16)
Riser Card CRSH02E:
- 1 x LP x16 (Gen5 x16), occupied for E1.S
- 1 x LP x16 (Gen5 x8)
Front I/O
1 x MLAN
1 x ID button with LED
I/O board - CFPH010:
1 x USB 3.2 Gen1 port (Type-C)
1 x Mini-DP
1 x Power button with LED
1 x System status LED
1 x ID LED
1 x ID button with LED
I/O board - CFPH010:
1 x USB 3.2 Gen1 port (Type-C)
1 x Mini-DP
1 x Power button with LED
1 x System status LED
1 x ID LED
Security Modules
1 x TPM header with SPI interface
- Optional TPM2.0 kit: CTM010
- Optional TPM2.0 kit: CTM010
Power Supply
Supports up to 1600W
System Management
ASPEED® AST2600 Baseboard Management Controller
GIGABYTE Management Console web interface
GIGABYTE Management Console web interface
- Dashboard
- HTML5 KVM
- Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
- Sensor Reading History Data
- FRU Information
- SEL Log in Linear Storage / Circular Storage Policy
- Hardware Inventory
- Fan Profile
- System Firewall
- Power Consumption
- Power Control
- Advanced power capping
- LDAP / AD / RADIUS Support
- Backup & Restore Configuration
- Remote BIOS/BMC/CPLD Update
- Event Log Filter
- User Management
- Media Redirection Settings
- PAM Order Settings
- SSL Settings
- SMTP Settings
OS Compatibility
Please refer to OS compatibility table in support page
Additional certifications:
Windows Server 2022
Windows Server 2025
Additional certifications:
Windows Server 2022
Windows Server 2025
System Fans
N/A
Packaging Dimensions
1177 x 479 x 261 mm
Packaging Content
1 x TO25-S11-AA01
1 x CPU heatsink
3 x Carriers
1 x CPU heatsink
3 x Carriers
Part Numbers
- Barebone package (5th/4th Gen): 6NTO25S11DR000AB01*
- Barebone package (4th Gen): 6NTO25S11DR000AA01*
- Motherboard: 9MS13HD0UR-000*
- CPU heatsink: 25ST1-143102-C1R
- Front panel board - COFP111: 9COFP111NR-00*
- Re-driver card - CORC211: 9CORC211NR-00*
- Riser card - CRSH02D: 9CRSH02DNR-00*
- Riser card - CRSH02E: 9CRSH02ENR-00*
- EDSFF base board - COBP721: 9COBP721NR-00*
- EDSFF base board - COBP740: 9COBP740NR-00*
- EDSFF riser card - CSPP010: 9CSPP010NR-00*
- I/O board with M.2 slot - CFPH010: 9CFPH010NR-00*
Optional parts:
- RMA packaging: 6NTO25S11SR-RMA-A100
- Barebone package (4th Gen): 6NTO25S11DR000AA01*
- Motherboard: 9MS13HD0UR-000*
- CPU heatsink: 25ST1-143102-C1R
- Front panel board - COFP111: 9COFP111NR-00*
- Re-driver card - CORC211: 9CORC211NR-00*
- Riser card - CRSH02D: 9CRSH02DNR-00*
- Riser card - CRSH02E: 9CRSH02ENR-00*
- EDSFF base board - COBP721: 9COBP721NR-00*
- EDSFF base board - COBP740: 9COBP740NR-00*
- EDSFF riser card - CSPP010: 9CSPP010NR-00*
- I/O board with M.2 slot - CFPH010: 9CFPH010NR-00*
Optional parts:
- RMA packaging: 6NTO25S11SR-RMA-A100
No. of Bus Bars
1 x 48V Bus Bar
