• A Fast to Deploy Internet Gateway Solution

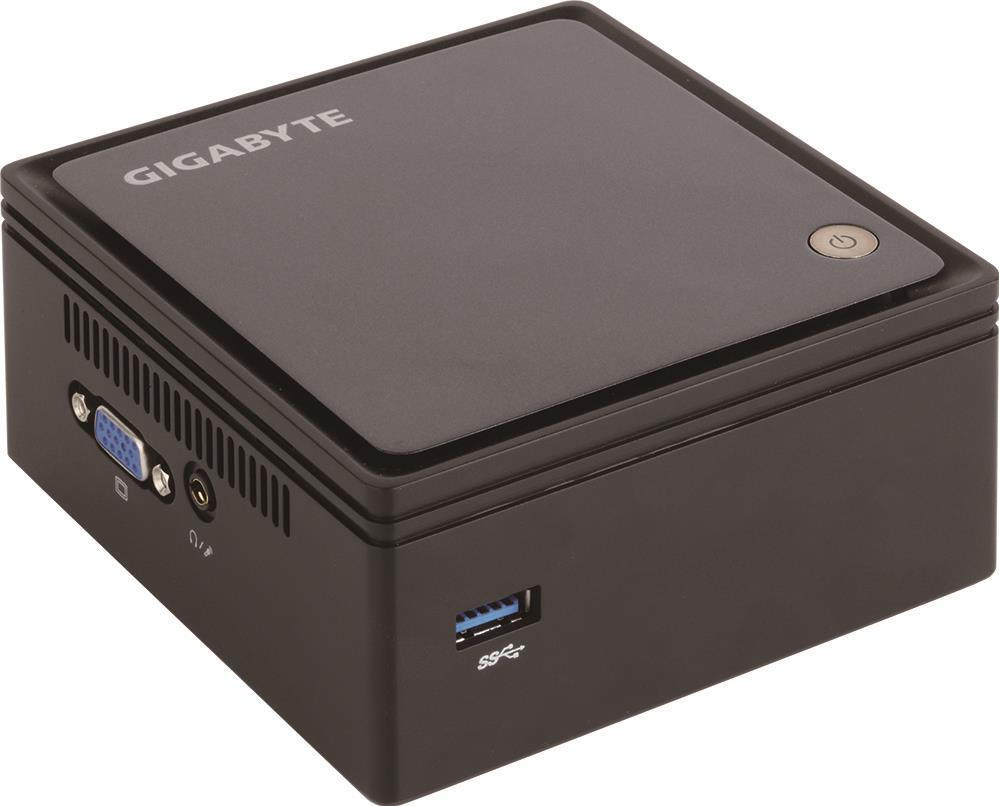

    The GB-BXBT-3825 is an ideal gateway solution for the growing IoT (Internet of Things) market trend allowing users to quickly deploy a solution in this kind of application scenario.

    The GB-BXBT-3825 is powered by an Intel Atom E3825 dual-core processor and is mainly designed for industrial applications in, where it can serve as a data aggregation, filter and sharing hub between data generating devices and data analysis ones. It also ensures that all the generated data can safely travel back and forth the ends of a network topology without having to replace existing infrastructure. For local data acquisition, the GB-BXBT-3825 offers a broad range of industrial interfaces such as:

       • 1 x GbE LAN port
       • 1 x USB 3.0 port + 2 x USB 2.0 ports
       • 1 x HDMI-Out
       • 1 x VGA-Out
       • Pre-built 8021.11b/ g/ n WiFi and Bluetooth 4.0 combo card

    Also, a built-in 500GB HDD with a pre-loaded Wind River intelligent device system platform guarantees a scalable, sustainable, and secured development environment for the deployment of the GB-BXBT-3825 as an IoT gateway. Finally, all these features come in a maintenance-free design and an extremely compact footprint of only 56 mm x 107 mm x 114 mm (H x W x D).

    This solution is your ideal choice to build secured and high performing intelligent connected systems in the shortest amount of time.
  • Intel® Atom™ E3800 Processor
    The Intel Atom processor E3800 product family is the first system-on-chip designed for intelligent systems, delivering outstanding compute, graphical, and media performance while operating in an extended range of thermal conditions. These SoCs are based on the Silvermont microarchitecture, utilizing Intel’s industry-leading 22nm process technology with 3-D tri-gate transistors, which deliver significant improvements in computational performance and energy efficiency.
  • 2.5" SATA Hard Drive Support
    Utilizing SATA III 6Gb/s high speed data transfer technology, the xxx supports the installation of one 2.5” SATA hard drive and one mSATA SSD module. This allows for optimized storage configurations which combine fast SSD performance with larger capacity hard drives.
  • SuperSpeed USB 3.0
    With superfast transfer rates of up to 5 Gbps, users are able to experience a theoretical 10x improvement over USB 2.0. Additionally, backwards compatibility with USB 2.0 assures users of long term use of their legacy USB 2.0 devices.
  • High-Definition Everywhere
    HDMI is a High-Definition Multimedia Interface which provides up to 5Gb/s video transmitting bandwidth and 8-channel high quality audio all through a single cable. Able to transmit superior, uncompressed digital video and audio, HDMI ensures the crispest rendering of digital content up to 1080p without the quality losses associated with analog interfaces and their digital-to-analog conversion. In addition, HDMI is compatible with HDCP (High-bandwidth Digital Content Protection), allowing the playback of Blu-ray/HD DVD and other protected media content.
  • Kensington Lock Slot
    GIGABYTE embedded systems come with a Kensington lock slot for additional asset management and security. Keeping your hardware and confidential data inside well protected.
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.

SPECIFICATIONS

Operating Properties
Operating temperature: 0°C to 35°C
Operating humidity: 0%-90% (non-condensing)
Non-operating temperature: -20°C to 60°C
Non-operating humidity: 0%-95% (non-condensing)
CPU
Intel Atom processor E3825
Dual core, 22nm
1.33GHz
1MB cache
6W TDP
Socket
1 x BGA 1170
Memory
1 x SO-DIMM slot
1.35V DDR3L memory
Up to 8GB
1067Mhz

2GB DDR3L 1600Mhz memory module in option
Please contact region sales for detailed configuration
LAN
1 x GbE LAN port (Realtek RTL8111G)
Video
Intel HD graphics
Max. resolution via HDMI: 1920 x 1080 @ 60Hz
Max. resolution via VGA: 2560 x 1600 @ 60Hz
Audio
Realtek ALC283
SATA
1 x SATA II 3Gb/s port
Expansion Slots
1 x Half-size mini PCIe slot

Pre-installed:
- 1 x WiFi + Bluetooth card
- Azurewave AW-NB159H
Internal I/O
1 x SATA III 3Gb/s port
1 x Storage connector (20-pin)
1 x GPIO header
Rear I/O
2 x USB 2.0
1 x HDMI-Out
1 x RJ45
1 x DC-in
OS Compatibility
Windows 7 (32bit / 64bit)
Windows 8.1 (32bit / 64bit)
Wind River Linux 7
Power Supply
AC 100~240V
12V DC-In
30W/2.5A
Packaging Content
9BKMA2WMR-00:
1 x 2.5" hard drive
1 x Memory module
1 x Wifi & BT module
1 x Quick starting guide
1 x VESA mount bracket
1 x Power plug adapter
1 x 30W power adapter

6BKMA2WMR-00:
1 x Wifi & BT module
1 x VESA mount bracket
1 x Power plug adapter
1 x 30W power adapter
Ordering Information
10 pieces per carton
Packaging dimensions: 411 x 383 x 200mm
Storage
1 x 2.5" HDD/SSD internal bay
Supports 7.0 & 9.5 mm HDD/SSD

2.5" Hard drive in option
Please contact region sales for detailed configuration
Front I/O
1 x USB 3.0
System Fans
Fanless
Dimension
107.6(W) x 56.1(H) x 114.4(D) mm
Motherboard
MZBAYAD
100 x 105 mm
Weight
420g
Side I/O
1 x VGA
1 x Headphone / MIC jack
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
