- M9M3XAI

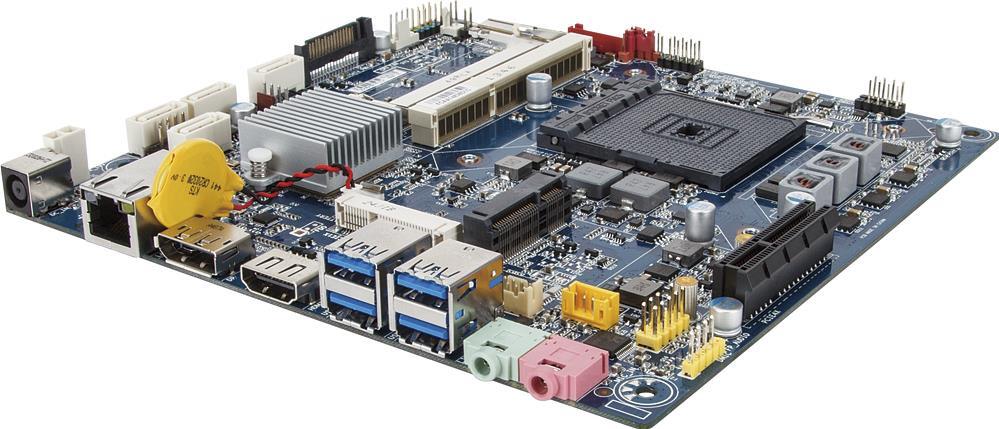

M9M3XAI (rev. 1.0)
AMD A75 chipset
Build to Order
Thin Mini-ITX form factor
Supports AMD® A series APU & Athlon™ series CPU
2 x SO-DIMM, up to 16GB 2133MHz
1 x GbE LAN port (Realtek RTL8111G)
4 x SATA III 6Gb/s ports
-
AMD A series APUAMD APUs combine a CPU and GPU onto the same chip, so motherboards with an APU design don’t need integrated graphics or discrete graphics offering less expensive options for smaller and more energy-efficient machines.
-
GIGABYTE Thin Mini-ITX StandardsGIGABYTE Thin-Mini-ITX motherboards are the ideal platform for today’s All-in-One, small form factor and slim profile PCs. Offering a full featured PC experience in a minimal device footprint, GIGABYTE Thin Mini-ITX motherboards are 43% thinner than traditional Mini-ITX designs.
-
Onboard mSATA SupportThis motherboard features an onboard mSATA slot allowing users to easily take advantage of advanced SSD-based technologies like Intel® Smart Response and Intel® Rapid Start. Mounting an affordable, low capacity mSATA SSD directly onto your motherboard can enhance your PC's performance with better overall desktop responsiveness, faster boot times and faster system resume from 'Suspend to Disk' and 'Standby' modes.
-
SuperSpeed USB 3.0With superfast transfer rates of up to 5 Gbps, users are able to experience a theoretical 10x improvement over USB 2.0. Additionally, backwards compatibility with USB 2.0 assures users of long term use of their legacy USB 2.0 devices.
-
DisplayPort SupportFeaturing DisplayPort, a next generation graphics display interface that delivers up to 10.8 Gbps of bandwidth over standard cables, providing billions of colors with the fastest refresh rates and the greatest color depths.
-
High-Definition EverywhereHDMI is a High-Definition Multimedia Interface which provides up to 5Gb/s video transmitting bandwidth and 8-channel high quality audio all through a single cable. Able to transmit superior, uncompressed digital video and audio, HDMI ensures the crispest rendering of digital content up to 1080p without the quality losses associated with analog interfaces and their digital-to-analog conversion. In addition, HDMI is compatible with HDCP (High-bandwidth Digital Content Protection), allowing the playback of Blu-ray/HD DVD and other protected media content.
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
SPECIFICATIONS
Form Factor
Thin Mini-ITX
170W x 170D (mm)
170W x 170D (mm)
Operating Properties
Operating temperature: 0°C to 50°C
Operating humidity: 0-90% (non-condensing)
Non-operating temperature: -40°C to 70°C
Non-operating humidity: 0%-95% (non-condensing)
Operating humidity: 0-90% (non-condensing)
Non-operating temperature: -40°C to 70°C
Non-operating humidity: 0%-95% (non-condensing)
CPU
Supports AMD A series APU or Athlon™ series CPU
Socket
1 x FM2+
Chipset
AMD A75
Memory
2 x SO-DIMM DDR3/DDR3L slots
Dual channel memory architecture
Up to 16GB
1.35V, 1.5V modules: 1600/1866/2133 MHz
Dual channel memory architecture
Up to 16GB
1.35V, 1.5V modules: 1600/1866/2133 MHz
LAN
1 x GbE LAN port (Realtek RTL8111G)
Video
APU with integrated AMD Radeon HD 8000/7000 series graphics:
*To use the onboard graphics ports, you must install an AMD APU with integrated graphics.
1 x DisplayPort supports a maximum resolution of 2560 x 1600
1 x HDMI supports a maximum resolution of 4096 x 2160
Onboard LVDS supports a maximum resolution of 1920 x 1080 @ 24Hz
Maximum shared memory of 2 GB
*To use the onboard graphics ports, you must install an AMD APU with integrated graphics.
1 x DisplayPort supports a maximum resolution of 2560 x 1600
1 x HDMI supports a maximum resolution of 4096 x 2160
Onboard LVDS supports a maximum resolution of 1920 x 1080 @ 24Hz
Maximum shared memory of 2 GB
Audio
Realtek ALC887 codec
Supports 2/4/5.1/7.1 channels
Supports 2/4/5.1/7.1 channels
SAS
-
SATA
4 x SATA III 6Gb/s ports
RAID
AMD SATA RAID 0/1/10
Expansion Slots
1 x PCIe x4 (3.0 x4 bus)
1 x mSATA slot supports SATA 6Gb/s
1 x Half-size Mini-PCIe slot
1 x mSATA slot supports SATA 6Gb/s
1 x Half-size Mini-PCIe slot
Internal I/O
1 x 2-pin 19V ATX power connector
1 x LVDS 18/24bit connector
1 x 80H connector
1 x 15-pin SATA power connector
4 x SATA III 6Gb/s ports
1 x CPU fan header
1 x System fan header
3 x USB 2.0 headers (for 5 x USB 2.0 ports)
1 x Front audio header
1 x Digital MIC header
1 x Front panel header
1 x Speaker header
1 x Serial header
1 x Monitor switch header
1 x Backlight header
1 x FPD header
1 x FPD power jumper
1 x LCD voltage selection jumper
1 x Clear CMOS jumper
1 x LVDS 18/24bit connector
1 x 80H connector
1 x 15-pin SATA power connector
4 x SATA III 6Gb/s ports
1 x CPU fan header
1 x System fan header
3 x USB 2.0 headers (for 5 x USB 2.0 ports)
1 x Front audio header
1 x Digital MIC header
1 x Front panel header
1 x Speaker header
1 x Serial header
1 x Monitor switch header
1 x Backlight header
1 x FPD header
1 x FPD power jumper
1 x LCD voltage selection jumper
1 x Clear CMOS jumper
Rear I/O
1 x DC-in
1 x RJ45
1 x DisplayPort v1.2
1 x HDMI v1.4
4 x USB 3.0
1 x Line-out
1 x MIC-in
1 x RJ45
1 x DisplayPort v1.2
1 x HDMI v1.4
4 x USB 3.0
1 x Line-out
1 x MIC-in
TPM
-
OS Compatibility
Windows 8.1 (x64)
Windows 7 (x32/x64)
Windows 7 (x32/x64)
PSU Connectors
1 x 2-pin 19V ATX power connector
Power Supply
DC-in 19V / 12V
Packaging Content
1 x M9M3XAI
1 x I/O shield
1 x SATA power cable
1 x I/O shield
1 x SATA power cable
Ordering Information
9M9M3XAINR-SI
20 units per carton
Packaging dimensions: 550 x 451 x 330 mm
Spare parts:
- I/O shield: 12AIO-H77TN4-00R
- SATA power cable: 25CRI-710300-S8R
20 units per carton
Packaging dimensions: 550 x 451 x 330 mm
Spare parts:
- I/O shield: 12AIO-H77TN4-00R
- SATA power cable: 25CRI-710300-S8R
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
