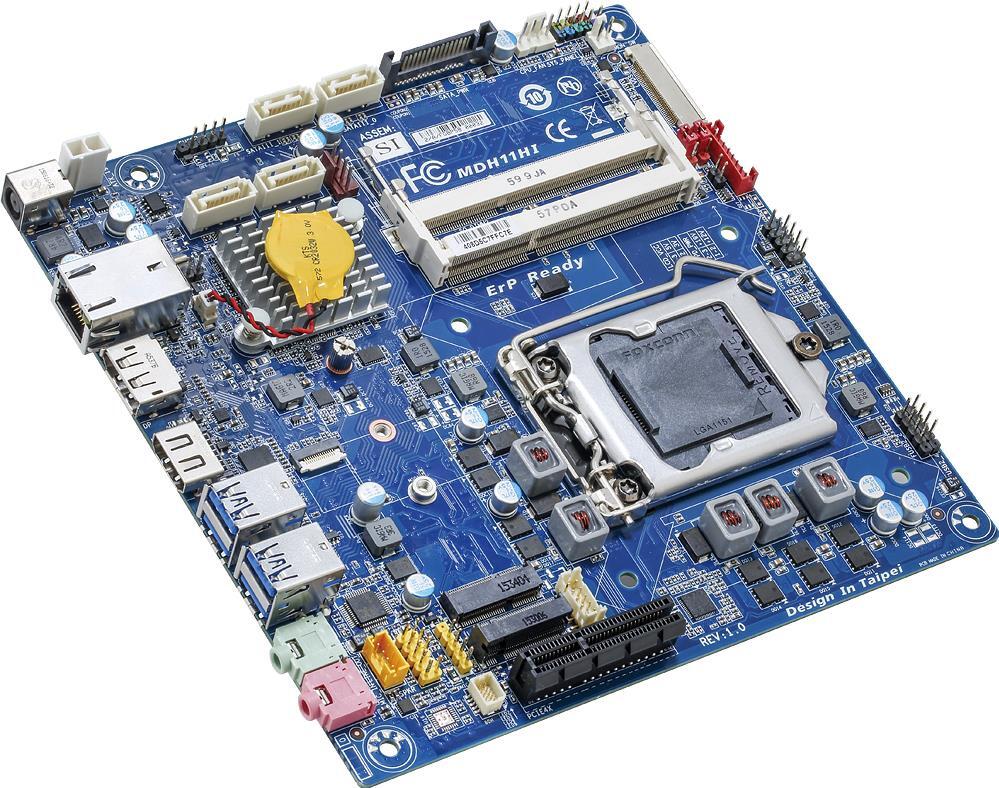

• GIGABYTE Thin Mini-ITX Standards
    GIGABYTE Thin-Mini-ITX motherboards are the ideal platform for today’s All-in-One, small form factor and slim profile PCs. Offering a full featured PC experience in a minimal device footprint, GIGABYTE Thin Mini-ITX motherboards are 43% thinner than traditional Mini-ITX designs.
  • M.2 Onboard Connector
    Providing users PCI-Express connectivity for SSD devices. Delivering up to 10 Gbps data transfer speeds, M.2 offers users considerably faster storage performance than current mSATA and even SATA Revision 3 6Gbps storage devices.
  • SuperSpeed USB 3.0
    With superfast transfer rates of up to 5 Gbps, users are able to experience a theoretical 10x improvement over USB 2.0. Additionally, backwards compatibility with USB 2.0 assures users of long term use of their legacy USB 2.0 devices.
  • DisplayPort Support
    Featuring DisplayPort, a next generation graphics display interface that delivers up to 10.8 Gbps of bandwidth over standard cables, providing billions of colors with the fastest refresh rates and the greatest color depths.
  • The Next Generation Multimedia Interface
    HDMI 2.0, which is backwards compatible with earlier versions of the HDMI specifications, significantly increases bandwidth up to 18Gbps and adds key enhancements to support continuing market requirements for enhancing the consumer video and audio experience.
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.

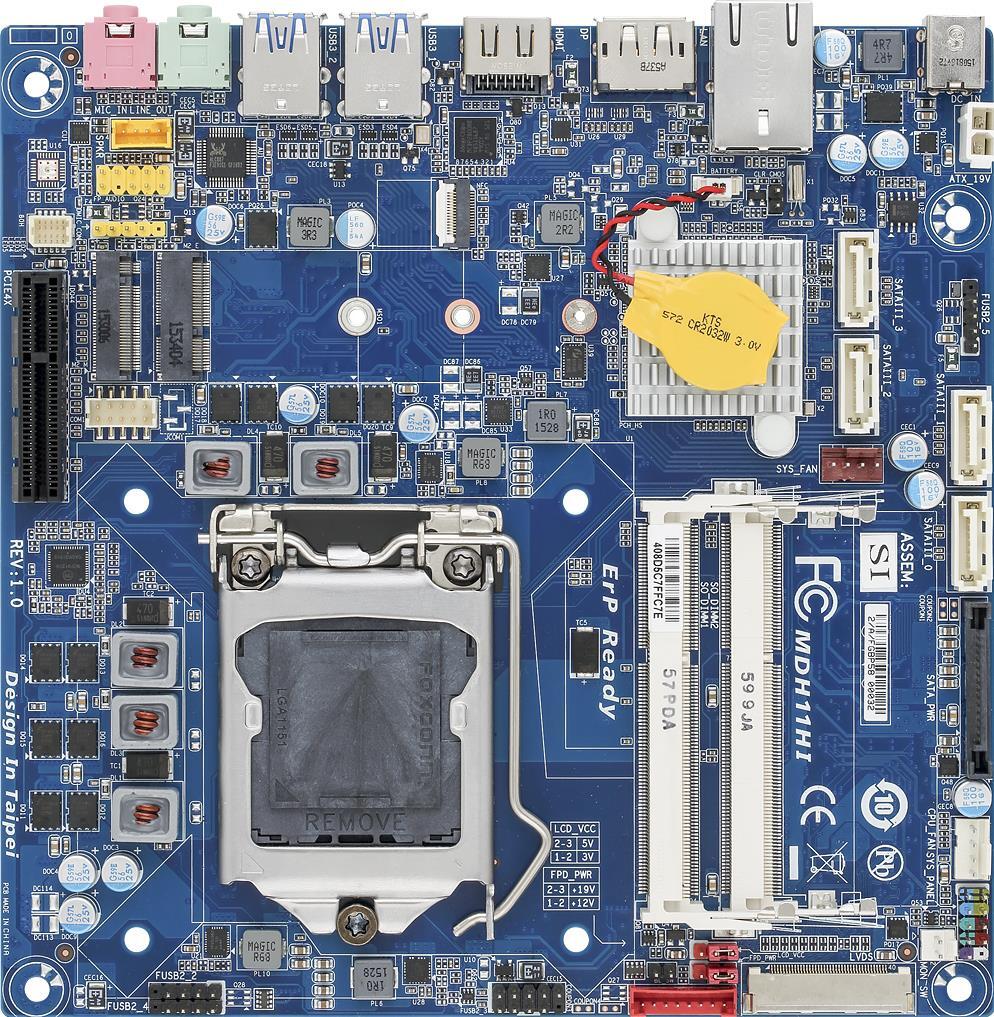

SPECIFICATIONS

Form Factor
Thin Mini-ITX
170W x 170D (mm)
Operating Properties
Operating temperature: 0°C to 50°C
Operating humidity: 0-90% (non-condensing)
Non-operating temperature: -40°C to 70°C
Non-operating humidity: 0%-95% (non-condensing)
CPU
Supports for Intel® Core™ i7 processors
                       Intel® Core™ i5 processors
                       Intel® Core™ i3 processors
                       Intel® Pentium® processors
                       Intel® Celeron® processors
L3 cache varies with CPU
Socket
1 x LGA 1151
Chipset
Intel® H110 Express Chipset
Memory
2 x SO-DIMM slots
1.35V DDR3L memory only
Up to 32GB
1600MHz
LAN
1 x GbE LAN port (Realtek RTL8111HS-CG)
Video
Intel HD Graphics
Max. resolution via DP: 4096 x 2304 @ 60Hz
Max. resolution via HDMI: 4096 x 2160 @ 60Hz
Max. resolution via LVDS: 1920 x 1200 @ 60Hz
Audio
Realtek ALC887
SATA
4 x SATA 6Gb/s ports
(3 x SATA 6Gb/s ports if the SATA M.2 slot is used)
RAID
-
Expansion Slots
1 x PCIe x4 (3.0 x4 bus) slot
1 x M.2 slot:
- M-key
- SATA 6Gb/s or PCIe 2.0 x4 signal
- Supports NGFF-2260/2280 cards

1 x M.2 slot:
- E-key
- PCIe 2.0 x1 signal
- Supports NGFF-2230 cards
Internal I/O
1 x 12V power connector
4 x SATA 6Gb/s ports
1 x SATA power connector
1 x LVDS 18/24bit connector
1 x CPU fan header
1 x System fan header
3 x USB 2.0 headers (up to 5 x USB 2.0 ports)
1 x Front panel header
1 x Front audio header
1 x Digital microphone header
1 x Backlight switch header
1 x FPD header
1 x LCD selection jumper
1 x Clear CMOS jumper
1 x NFC connector
1 x COM (RS-232)

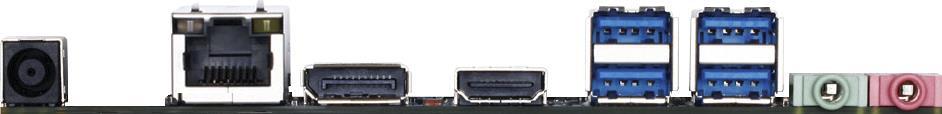

Rear I/O
1 x DC-in
1 x RJ45
4 x USB 3.0
1 x DisplayPort v1.2
1 x HDMI v2.0
1 x Line-out
1 x MIC-in
TPM
-
OS Compatibility
Windows 10 (x64)
Windows 8.1 (x64)
Windows 7 (x32/x64)

- Please download the "Windows USB Installation Tool" from GIGABYTE's website and install it before installing Windows 7
PSU Connectors
1 x 12-19V DC-in or
1 x 12V power connector
Packaging Content
1 x SATA power cable (710mm)
1 x 25.54mm I/O shield
1 x 44.45mm I/O shield
Ordering Information
9MDH11HINR-SI
20 units per carton
Packaging dimensions: 550 x 451 x 330 mm
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
