• M.2 Onboard Connector
    Providing users PCI-Express connectivity for SSD devices. Delivering up to 10 Gbps data transfer speeds, M.2 offers users considerably faster storage performance than current mSATA and even SATA Revision 3 6Gbps storage devices.
  • SuperSpeed USB 3.0
    With superfast transfer rates of up to 5 Gbps, users are able to experience a theoretical 10x improvement over USB 2.0. Additionally, backwards compatibility with USB 2.0 assures users of long term use of their legacy USB 2.0 devices.
  • DisplayPort Support
    Featuring DisplayPort, a next generation graphics display interface that delivers up to 10.8 Gbps of bandwidth over standard cables, providing billions of colors with the fastest refresh rates and the greatest color depths.
  • High-Definition Everywhere
    HDMI is a High-Definition Multimedia Interface which provides up to 5Gb/s video transmitting bandwidth and 8-channel high quality audio all through a single cable. Able to transmit superior, uncompressed digital video and audio, HDMI ensures the crispest rendering of digital content up to 1080p without the quality losses associated with analog interfaces and their digital-to-analog conversion. In addition, HDMI is compatible with HDCP (High-bandwidth Digital Content Protection), allowing the playback of Blu-ray/HD DVD and other protected media content.
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.

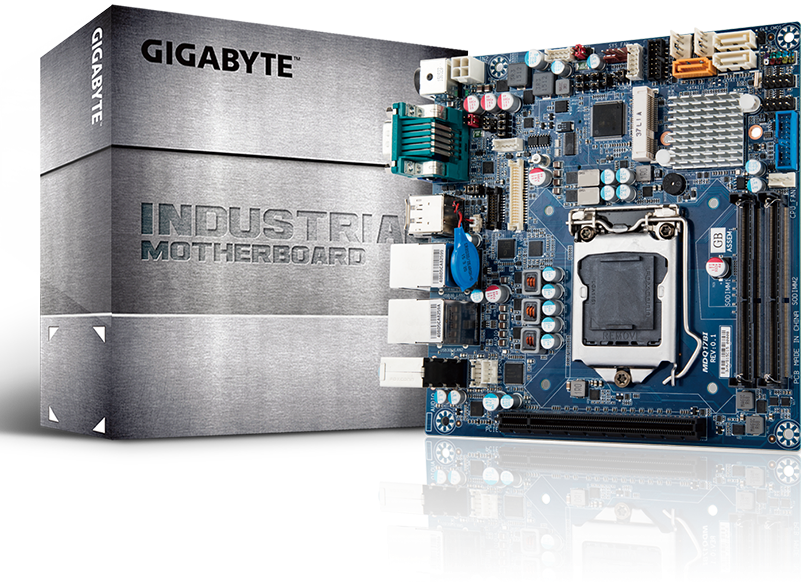

SPECIFICATIONS

Form Factor
Mini-ITX
170W x 170D (mm)
Operating Properties
Operating temperature: 0°C to 60°C
Operating humidity: 0-90% (non-condensing)
Non-operating temperature: -40°C to 70°C
Non-operating humidity: 0%-95% (non-condensing)
CPU
Supports for Intel® Core™ i7 processors
                       Intel® Core™ i5 processors
                       Intel® Core™ i3 processors
                       Intel® Pentium® processors
                       Intel® Celeron® processors
L3 cache varies with CPU
Socket
1 x LGA 1151
Chipset
Intel® Q170 Express Chipset
Memory
2 x DDR4 DIMM sockets supporting up to 32 GB of system memory
Dual channel memory architecture
Support for DDR4 2400 MHz memory modules
LAN
2 x GbE LAN ports (Intel® I219LM + Intel® I211AT)
Video
Integrated Graphics Processor - Intel® HD Graphics support:
1 x DisplayPort up to 4096 x 2304 @60Hz
* Support for DisplayPort 1.2 version
1 x HDMI port up to 4096 x 2160 @24Hz
* Support for HDMI 1.4 version
1 x LVDS connector up to 1920 x 1200 @60Hz
* Support for up to 3 displays at the same time
Audio
Realtek ALC269 codec High Definition Audio
SATA
3 x SATA 6Gb/s ports
One port with SATA DOM supported

1 x M.2 slot:
- M-key
- SATA 6Gb/s or PCIe 3.0 x4
- Supports NGFF-2242/2280
RAID
Intel® SATA RAID 0, RAID 1, RAID 5, and RAID 10
Expansion Slots
1 x PCIe x16 (Gen3 x16 bus) slot

1 x Mini PCI-e x1 slot:
- Supports mSATA & wifi cards
Internal I/O
1 x 4 pin (2 x 2) power connector
3 x SATA 6Gb/s ports
1 x eDP connector
1 x LVDS 18/24bit connector
1 x CPU fan header
1 x System fan header
1 x USB 3.0 headers
2 x USB 2.0 headers ( 4 x ports)
1 x Front panel header
1 x Front audio header
1 x LCD selection jumper
1 x Clear CMOS jumper
1 x TPM header
1 x COM_1 header (RS232 / RS422 / RS485, RI / 5V / 12V)
Rear I/O
1 x 12V-24V DC-in with key lock
2 x RJ45
4 x USB 3.0
1 x HDMI 1.4
1 x DisplayPort 1.2
1 x D-sub VGA
1 x COM_2 header (RS232 / RS422 / RS485, RI / 5V / 12V)
1 x Line-in
1 x Line-out
1 x MIC-in
TPM
1 x TPM header for TPM 2.0 module
TPM module in option
OS Compatibility
Windows 10 (x64)
Windows 8.1 (x64)
Windows 7 (x32 / x64)

- Please download the "Windows USB Installation Tool" from GIGABYTE's website and install it before installing Windows 7
PSU Connectors
1 x 12-24V DC-in or
1 x 4 pin (2 x 2) power connector
Packaging Content
1 x Quick Installation Guide
1 x IO shielding
Ordering Information
9MDQ17BINR-SI
20 units per carton
Packaging dimensions: 550 x 451 x 330 mm
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
