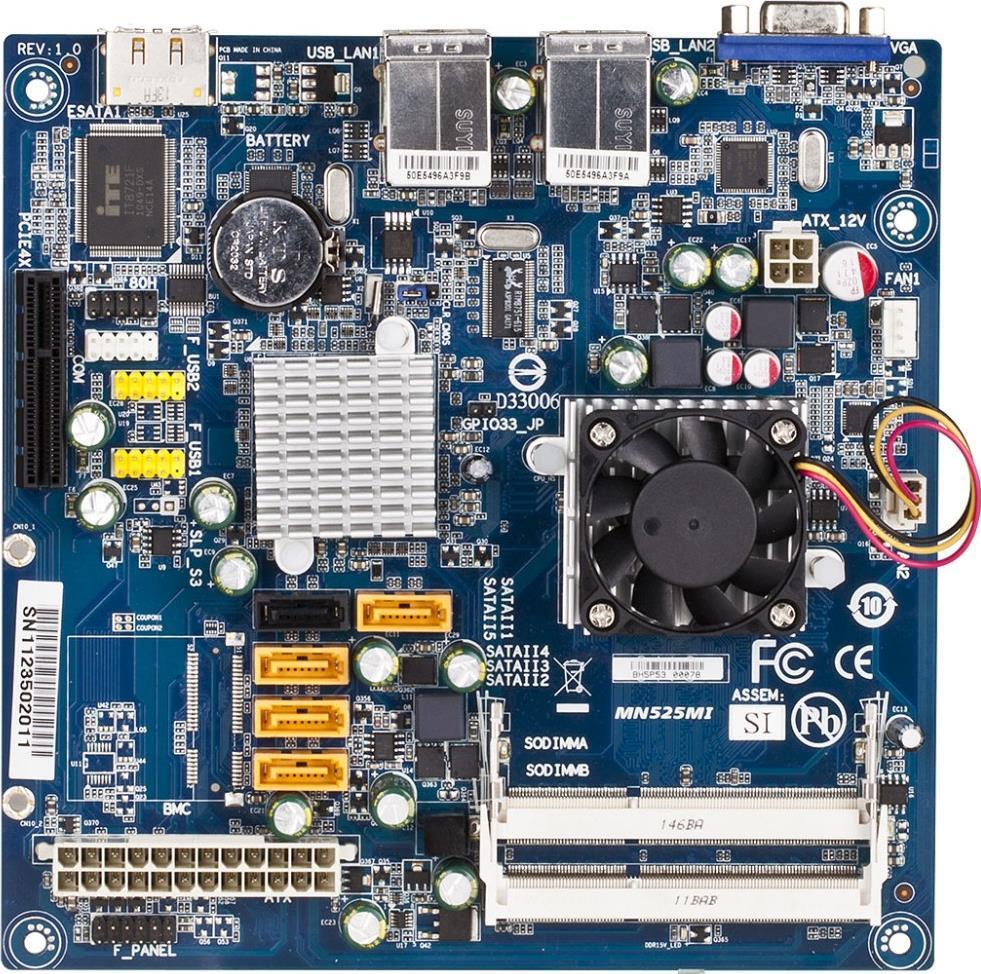

MN525MI (rev. 1.0)
Intel® ICH9R chipset
- Mini-ITX form factor
- Intel® Atom™ D525 1.8GHz processor
- 2 x SO-DIMM, up to 4GB 800MHz
- 2 x GbE LAN ports (Intel® 82567LM + Intel® 82574L)
- 5 x SATA II 3Gb/s ports
- RAID support
- 1 x COM port (1 x internal)
1/2
SPECIFICATIONS
Form Factor
Mini-ITX
170W x 170D (mm)
170W x 170D (mm)
CPU
Intel® Atom™ D525
2 cores / 4 threads
1.8 GHz
13W max. TDP
2 cores / 4 threads
1.8 GHz
13W max. TDP
Socket
1 x BGA 559
Chipset
Intel® ICH9R
Memory
1 x SO-DIMM DDR3 slot
Single channel memory architecture
Up to 4GB
1.5V modules: 800 MHz
Single channel memory architecture
Up to 4GB
1.5V modules: 800 MHz
LAN
2 x GbE LAN ports (Intel® 82567LM + Intel® 82574L)
Video
Intel® GMA3150
Audio
-
SATA
5 x SATA II 3Gb/s ports
RAID
Intel® SATA RAID 0/1/10/5
Expansion Slots
1 x PCIe x4 (Gen2 x1 bus) slot
Internal I/O
3 x USB 2.0 headers
1 x CPU fan header
1 x System fan header
1 x Front panel header
1 x Keyboard+mouse header
1 x 4-pin 12V ATX power connector
1 x 24-pin ATX main power connector
1 x CPU fan header
1 x System fan header
1 x Front panel header
1 x Keyboard+mouse header
1 x 4-pin 12V ATX power connector
1 x 24-pin ATX main power connector

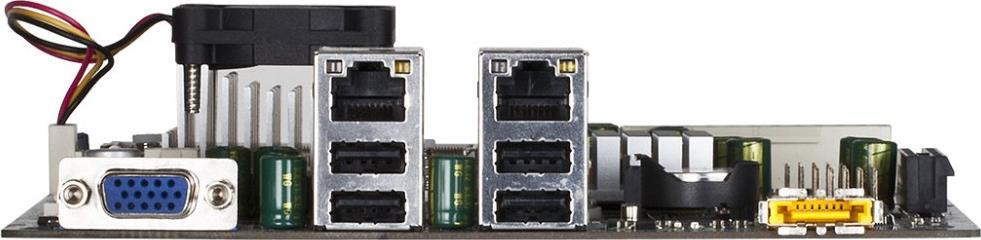

Rear I/O
4 x USB 2.0
1 x VGA
1 x e-SATA
2 x RJ45
1 x VGA
1 x e-SATA
2 x RJ45
TPM
-
OS Compatibility
Windows 7 32/64bit
PSU Connectors
1 x 24-pin ATX main power connector
1 x 4-pin ATX 12V auxiliary power connector
1 x 4-pin ATX 12V auxiliary power connector
Power Supply
-
Packaging Content
-
Ordering Information
9MN525MINR-SI
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
