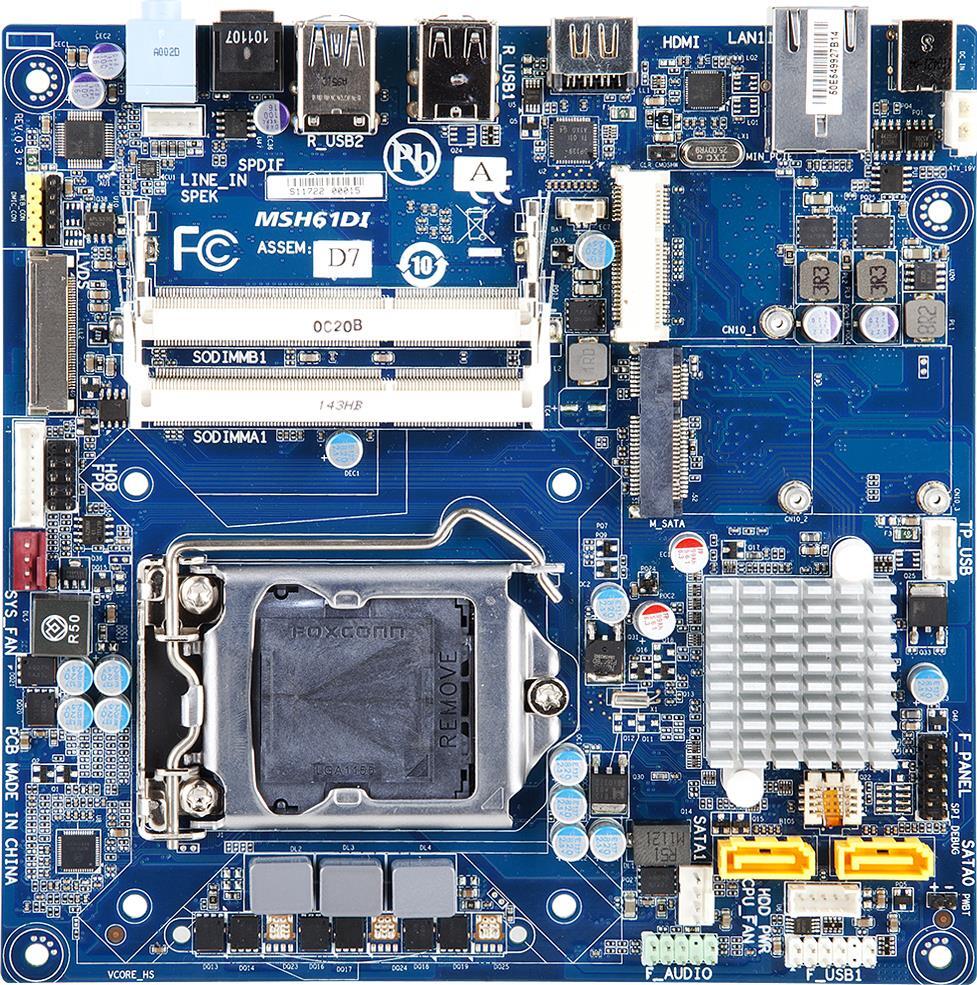

MSH61DILegacy | Software updates supported
Intel® H61 chipset
- Thin Mini-ITX form factor
- Intel® 2nd/3th Gen. Core™ processors
- 2 x SO-DIMM, up to 8GB 1600/1333MHz
- 1 x GbE LAN
- 2 x SATA II 3Gbs ports
Specifications
Form Factor
Thin Mini-ITX
170W x 170D (mm)
170W x 170D (mm)
Operating Properties
Operating temperature: -10°C to 60°C
Operating humidity: 0-85% (non-condensing)
Non-operating temperature: -40°C to 70°C
Non-operating humidity: 0%-85% (non-condensing)
CPU
Intel® 2nd/3rd Core™ processors
Socket
1 x LGA 1155
Chipset
Intel® H61 chipset
Memory
2 x SO-DIMM slots
Up to 8GB DDR3 memory
1600/1333MHz
Up to 8GB DDR3 memory
1600/1333MHz
LAN
1 x GbE LAN
Realtek RTL8111E
Realtek RTL8111E
Video
Intel® integrated graphics
Audio
Realtek ALC887
- Support High Definition Audio
- Support speaker 2 Channel: 3W / 4ohm 2ch
- Support 7.1 Channel Jack
SATA
2 x SATA II 3Gbs
RAID
-
Expansion Slots
1 x Mini-PCIe (full size)
1 x Mini-PCIe (half size)
1 x Mini-PCIe (half size)
Internal I/O
1 x 1F_PANEL slot
1 x Speaker cable slot
1 x F_USB pin header
1 x P_USB pin header
1 x LVDS slot
1 x WEBCAM slot
1 x DMIC slot
1 x F_AUDIO slot
1 x Speaker cable slot
1 x F_USB pin header
1 x P_USB pin header
1 x LVDS slot
1 x WEBCAM slot
1 x DMIC slot
1 x F_AUDIO slot

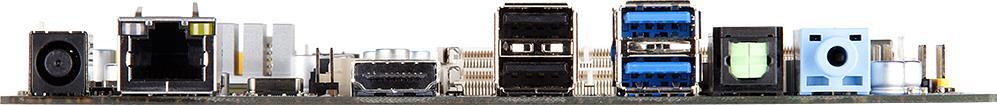

Rear I/O
2 x USB 3.0
2 x USB 2.0
1 x HDMI-Out
1 x S/PDIF-Out
1 x Audio jack
1 x RJ45
1 x DC-In
2 x USB 2.0
1 x HDMI-Out
1 x S/PDIF-Out
1 x Audio jack
1 x RJ45
1 x DC-In
OS Compatibility
Windows 7 (32/64bit)
Windows 8 (32/64bit)
Windows 8 (32/64bit)
Power Supply
DC-In 19V or 12V
