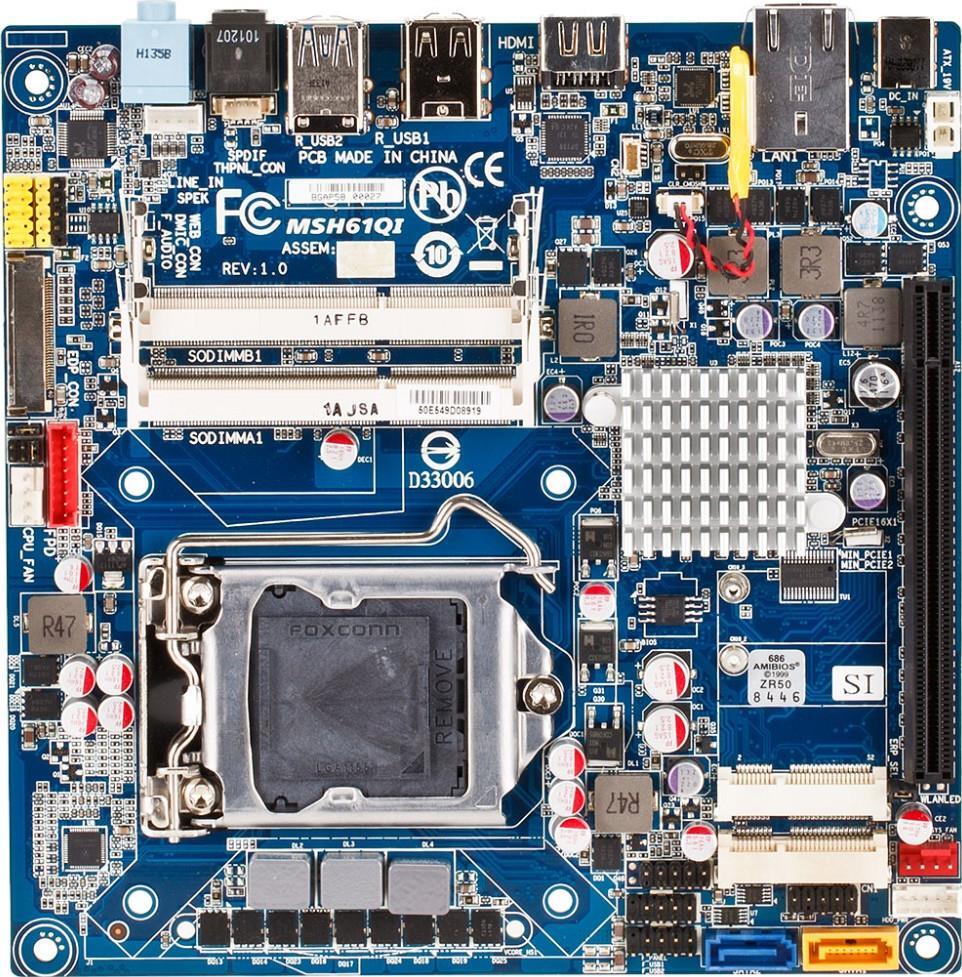

MSH61QILegacy | Software updates supported
Thin Mini-ITX Motherboard
- Compliant with Intel Thin Mini-ITX form factor, optimized for AIO PCs and space saving slim PCs
- Socket LGA 1155 supporting 3rd Gen Intel Core processor family up to TDP 95W
- Built with a PCIe x16 connector
- Two built-in SO-DIMM slots supporting DDR3 1600MHz memory up to 8GB
- Supports two SATA 6Gbps connectors
- Gigabit Ethernet LAN supporting
- One built-in half-sized mini card, and one mini PCIe for mSATA
- Specifications
- Support
Specifications
Form Factor
Thin Mini-ITX (170x170mm)
CPU
1 x LGA1155 socket
Supports Intel® Core™ 2nd & 3rd generation i7 / i5 / i3 series
Up to 95W TDP
L3 cache based on CPU type
Supports Intel® Core™ 2nd & 3rd generation i7 / i5 / i3 series
Up to 95W TDP
L3 cache based on CPU type
Chipset
Intel® H61 Express Chipset
Memory
2 x SO-DIMM slots
Up to 8GB of DDR3 memory
2nd generation Core processors support up to 1333MHz memory
3rd generation Core processors support up to 1600MHz memory
Up to 8GB of DDR3 memory
2nd generation Core processors support up to 1333MHz memory
3rd generation Core processors support up to 1600MHz memory
LAN
1 x Gigabit Ethernet Controller
Realtek RTL8111E (10/100/1000 Mbit)
Realtek RTL8111E (10/100/1000 Mbit)
Video
Intel® HD Graphics
2nd generation Core processors support DirectX 10.1
3rd generation Core processors support DirectX 11
2nd generation Core processors support DirectX 10.1
3rd generation Core processors support DirectX 11
Audio
Realtek ALC887 controller
SATA
2 x SATA II 3Gb/s ports
Expansion Slots
1x PCIe x16 slot
1x Mini-PCIe (full size)
1x Mini-PCIe (half size)
1x Mini-PCIe (full size)
1x Mini-PCIe (half size)
Internal I/O
4x USB 2.0
1x Touch Panel Connecotor ( USB Interface )
1x Speaker connector
1x Web camera connector ( USB Interface )
1x Digital Mic con
1x Front Audio header
1x LVDS 24bit
1x CPU Fan
1x System Fan
1x SATA Power
1x ATX 19V 2Pin Connector
1x Front Panel
1x Touch Panel Connecotor ( USB Interface )
1x Speaker connector
1x Web camera connector ( USB Interface )
1x Digital Mic con
1x Front Audio header
1x LVDS 24bit
1x CPU Fan
1x System Fan
1x SATA Power
1x ATX 19V 2Pin Connector
1x Front Panel
Rear I/O
2x USB 3.0
2x USB 2.0
1x HDMI-Out
1x RJ45
1x Line-In
1x SPDIF-Out
1x DC-In
2x USB 2.0
1x HDMI-Out
1x RJ45
1x Line-In
1x SPDIF-Out
1x DC-In
OS Compatibility
Windows 7
Windows 8
Windows 8
Power Supply
19V DC 180W AC100~240V, 50~60Hz (universal)
