• Intel® Celeron® J1900 Processor
    The Intel Celeron J1900 Quad-Core processor is the latest SoC from Intel, combining CPU, graphics and memory controller in one package. Based on the 22nm manufacturing process, the Intel Celeron J1900 uses the smallest package of any desktop processor within a low thermal envelope of on 10 watts. The Intel Celeron J1900 boasts excellent performance including DX11 framework on Intel HD Graphics 4000, plus a dedicated H.264 encoder for smooth HD video playback.
  • Dual Gigabit LAN
    Experience the flexibility and convenience of the integrated Dual Lan function.
  • SuperSpeed USB 3.0
    With superfast transfer rates of up to 5 Gbps, users are able to experience a theoretical 10x improvement over USB 2.0. Additionally, backwards compatibility with USB 2.0 assures users of long term use of their legacy USB 2.0 devices.
  • High-Definition Everywhere
    HDMI is a High-Definition Multimedia Interface which provides up to 5Gb/s video transmitting bandwidth and 8-channel high quality audio all through a single cable. Able to transmit superior, uncompressed digital video and audio, HDMI ensures the crispest rendering of digital content up to 1080p without the quality losses associated with analog interfaces and their digital-to-analog conversion. In addition, HDMI is compatible with HDCP (High-bandwidth Digital Content Protection), allowing the playback of Blu-ray/HD DVD and other protected media content.
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.

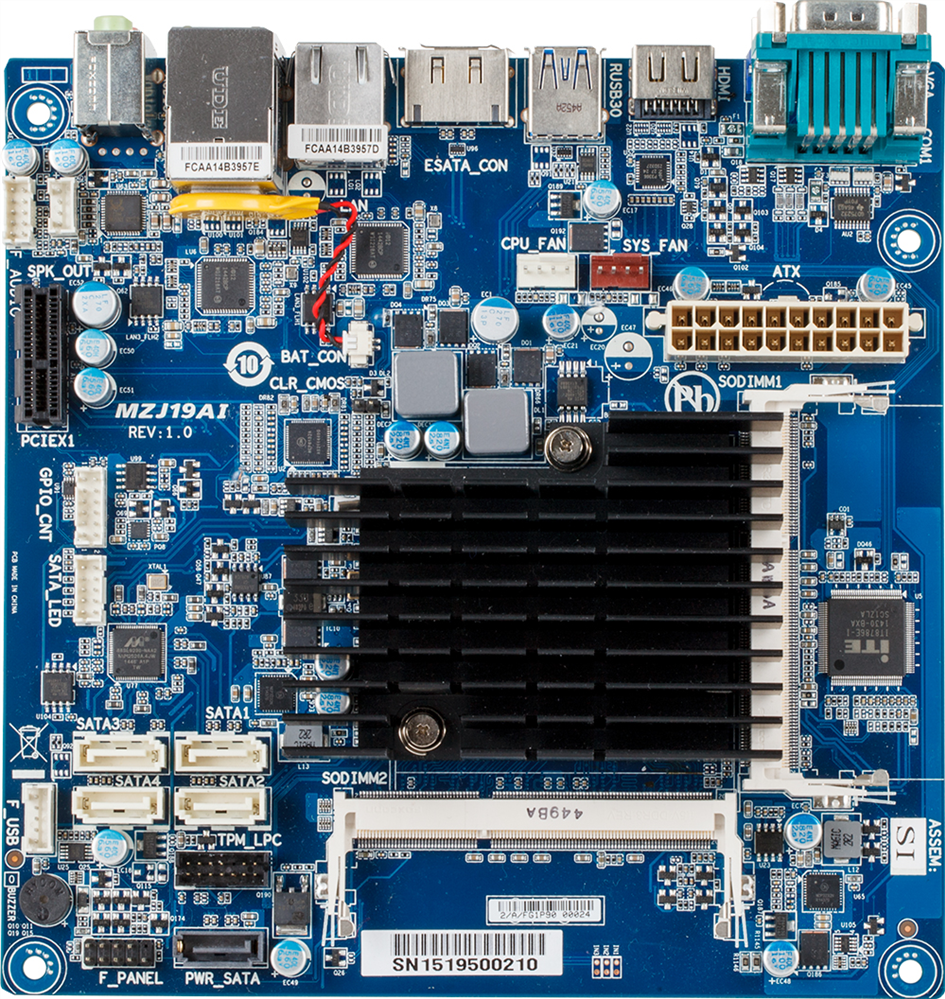

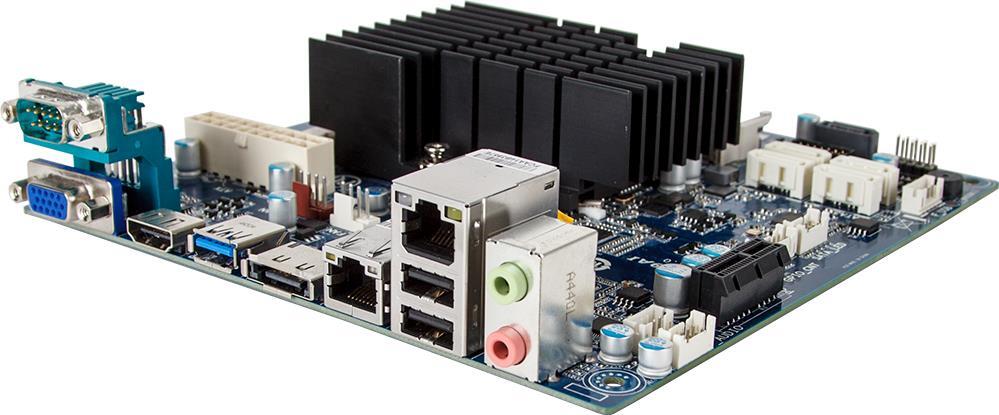

SPECIFICATIONS

Form Factor
Mini-ITX
170W x 170D (mm)
Operating Properties
Operating temperature: 0°C to 50°C
Operating humidity: 0-90% (non-condensing)
ŠNon-operating temperature: -40°C to 70°C
Non-operating humidity: 0%-95% (non-condensing)
CPU
Intel® Celeron® J1900
4 cores / 4 threads
2.0 - 2.42 GHz
10W max. TDP
Socket
1 x BGA 1170
Chipset
-
Memory
2 x SO-DIMM DDR3L slots
Dual channel memory architecture
Up to 8GB
1.35V modules: 1333 MHz
Flash Memory
-
LAN
2 x GbE LAN ports (Intel® I210)
Video
Intel® HD Graphics, supporting:
  • 1 x HDMI port: max. resolution 1920x1080 at 60hz (HDMI 14.a)
  • 1 x D-SUB port: max. resolution 2560x1600 at 60hz (with compatible displays)
Audio
Realtek® ALC269 controller
Supports 2/4 channel configurations
SAS
-
SATA
4 x SATA III 6Gb/s ports
1 x SATA II 3Gb/s port
1 x eSATA 3Gb/s port
RAID
Marvell® SATA RAID 0/1/10
Expansion Slots
1 x PCIe x1 (Gen2 x1 bus) slot
Internal I/O
1 x 20-pin ATX main power connector
1 x Front USB 2.0 header
1 x SATA GPIO header
1 x GPIO header
1 x TPM header
1 x Front audio header
1 x Speaker out header
4 x SATA III 6Gb/s ports
1 x SATA II 3Gb/s port
1 x Front panel header
1 x CPU fan header
1 x System fan header

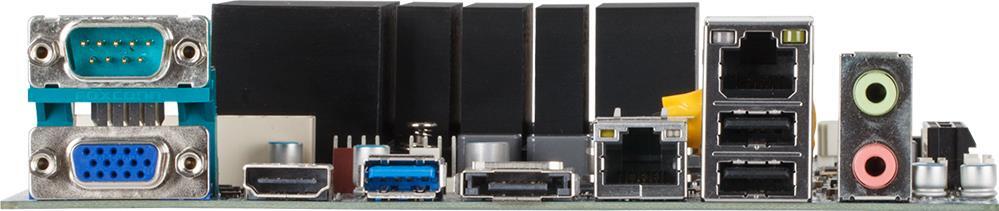

Rear I/O
1 x USB 3.0
2 x USB 2.0
1 x eSATA
1 x VGA
1 x HDMI
1 x Serial
2 x RJ45
2 x Audio jacks
TPM
1 x TPM header
Infineon® SLB9635TT1.2 module in option
OS Compatibility
Windows 7 (x64)
Windows 8 (x64)
Windows 8.1 (x64)
Windows Server IoT 2019
PSU Connectors
1 x 20-pin ATX main power connector
Power Supply
-
Packaging Content
1 x I/O shield
Ordering Information
9MZJ19AINR-SI
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
