G431-MM0
(rev. 100)

Discontinued

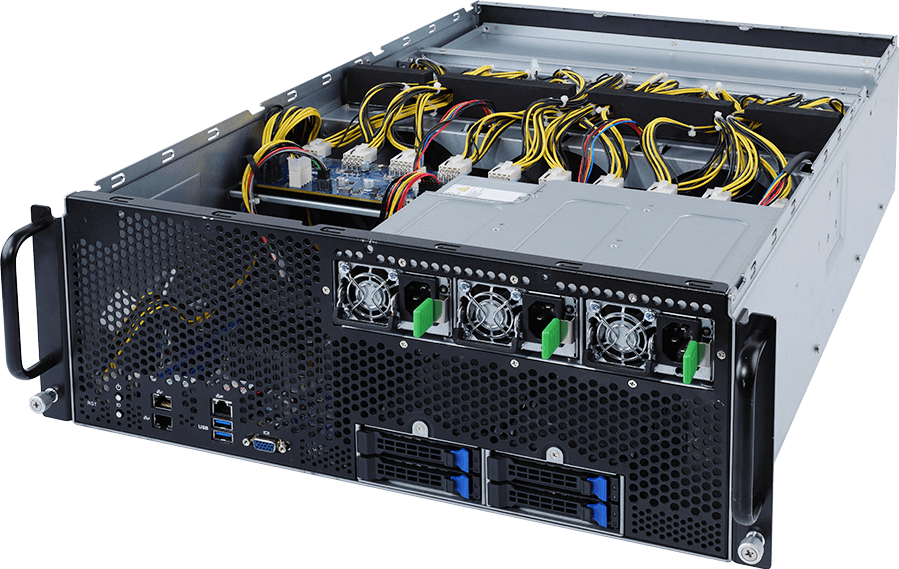

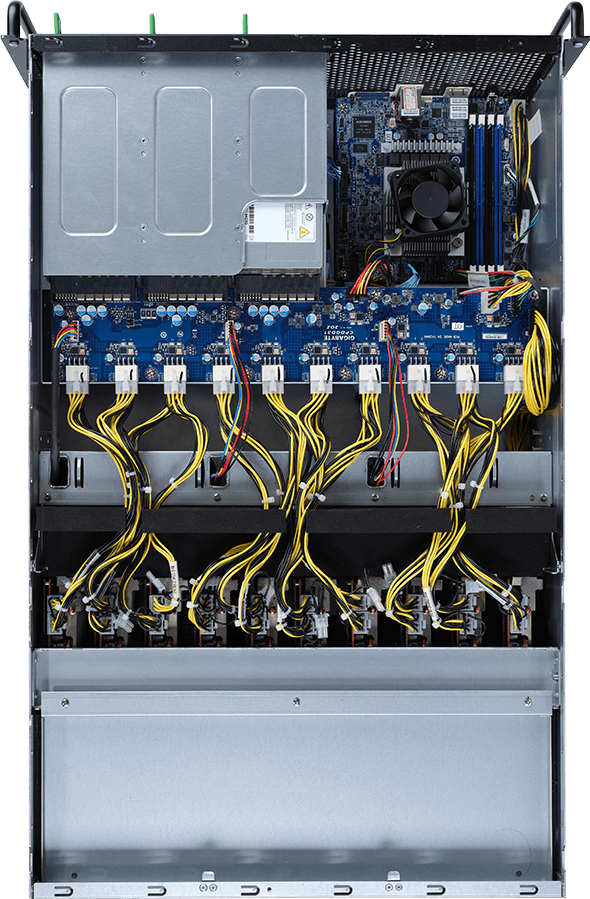

HPC Server - 4U UP 10 x PCIe Gen3 x1 GPU Server
  • Up to 10 x PCIe Gen3 x1 GPGPU cards
  • AMD EPYC™ Embedded 3151 SoC processor
  • Dual Channel DDR4 RDIMM/ UDIMM ECC, 4 x DIMMs
  • 2 x 1Gb/s LAN ports ( Intel® I210-AT)
  • 1 x dedicated management port
  • 4 x SATA 2.5" hot-swappable HDD/SSD bays
  • 3 x 80 PLUS Platinum 1600W redundant PSU

SPECIFICATIONS

Dimensions (WxHxD, mm)
4U
438 x 169 x 700
Motherboard
MJ11-EC1
CPU
AMD EPYC™ 3151 SoC processor
Single processor, 7nm, TDP 45W
Processor Frequency: 2.7GHz-2.9GHz
Up to 4-core, 8 threads per processor
2MB L2 Cache, 16MB L3 Cache
Socket
SP4r2
Chipset
System on Chip
Memory
4 x DIMM slots
DDR4 memory supported only
Dual Channel memory architecture
UDIMM, UDIMM ECC, RDIMM modules up to 128GB supported
Memory speed: Up to 2666 MHz
LAN
Front Side:
2 x 1GbE LAN ports ( Intel® I210-AT)
1 x 10/100/1000 management LAN
Video
Integrated in Aspeed® AST2500
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp, DDR4 SDRAM
Storage
4 x 2.5" hot-swappable HDD/SSD bays
SATA devices supported only
SATA
Supported
SAS
N/A
RAID
N/A
Peripheral Drives
N/A
Expansion Slots
10 x PCIe x16 slots (Gen3 x1 bus) for GPU cards
Internal I/O
1 x 2 x 4-pin 12V power connector
1 x 2 x 2-pin 5VSB/PSON power connector
1 x SlimSAS 4i connector
2 x SlimSAS 8i connectors
1 x M.2 slot
1 x CPU fan header
2 x System fan headers
1 x USB 3.0 header
1 x COM1 header
1 x Front panel header
1 x IPMB connector
1 x PMBUS connector
1 x Clear CMOS jumper

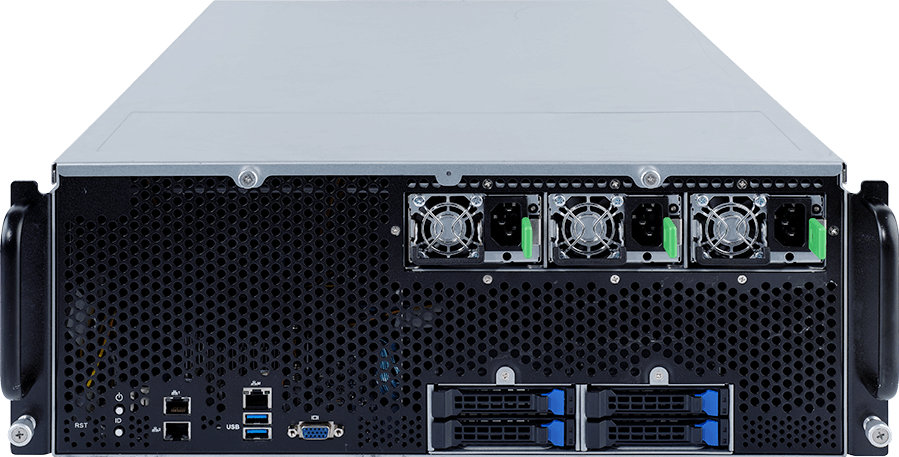

Front I/O
2 x USB 3.0
1 x VGA
2 x RJ45
1 x MLAN
1 x Power button with LED
1 x ID button with LED
1 x Reset button
Rear I/O
N/A
Backplane Board
4 x 2.5" ports
Speed and bandwidth: SATA 6Gb/s
TPM
Onboard TPM 2.0 INFINEON SLB9665
Power Supply
3 x 1600W redundant PSUs
80 PLUS Platinum

AC Input:
- 100-240V~/ 12-7A, 50-60Hz
- 200-240V~/ 9.5A, 50-60Hz

DC Input:
240Vdc/ 8A

DC Output:
- Max 1000W/ 100-240V~
+12V/ 80.5A
+12Vsb/ 3A
- Max 1600W/ 200-240V~ or 240Vdc Input
+12V/ 130.4A
+12Vsb/ 3A
System Management
Aspeed® AST2500 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface

  • Dashboard
  • JAVA Based Serial Over LAN
  • HTML5 KVM
  • Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
  • Sensor Reading History Data
  • FRU Information
  • SEL Log in Linear Storage / Circular Storage Policy
  • Hardware Inventory
  • Fan Profile
  • System Firewall
  • Power Consumption
  • Power Control
  • LDAP / AD / RADIUS Support
  • Backup & Restore Configuration
  • Remote BIOS/BMC/CPLD Update
  • Event Log Filter
  • User Management
  • Media Redirection Settings
  • PAM Order Settings
  • SSL Settings
  • SMTP Settings
OS Compatibility
Windows Server 2016 x64
Windows Server 2019 x64

Red Hat Enterprise Linux 6.10 x64
Red Hat Enterprise Linux 7.6 x64

SUSE Linux Enterprise Server 12 SP3 x64
SUSE Linux Enterprise Server 15 x64

Ubuntu 17.10.1 x64
Ubuntu 18.04.1 LTS x64

VMware ESXi 7.0b
System Fans
3 x 120x120x38mm (8,300rpm)
Operating Properties
Operating temperature: 10°C to 35°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Weight
Net Weight: TBD kg
Gross Weight: TBD kg
Packaging Content
1 x G431-MM0
TBD 1 x Rail kit
Part Numbers
Barebone with rail kit: 6NG431MM0MR-00
- Motherboard: 9MJ11EC1NR-00
- Rail kit: TBD
- CPU fan-sink: 12SF2-01A093-00R
- Back plane board_12-port: 9CBPG043NR-00
- Fan module kit: 25ST2-123822-S1R
- Power supply: 25EP0-216009-F3S
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
