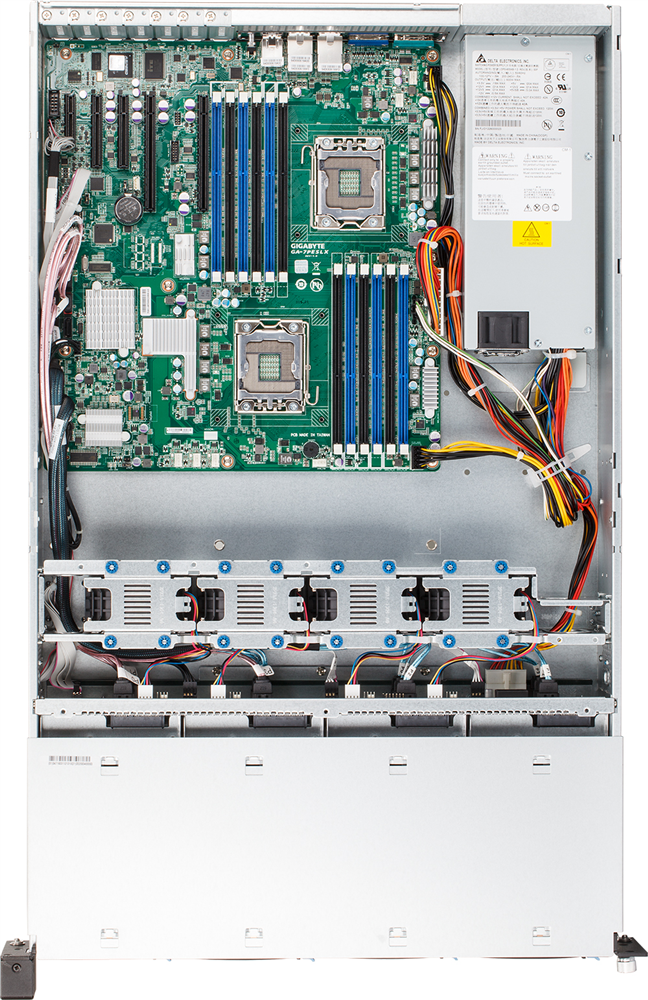

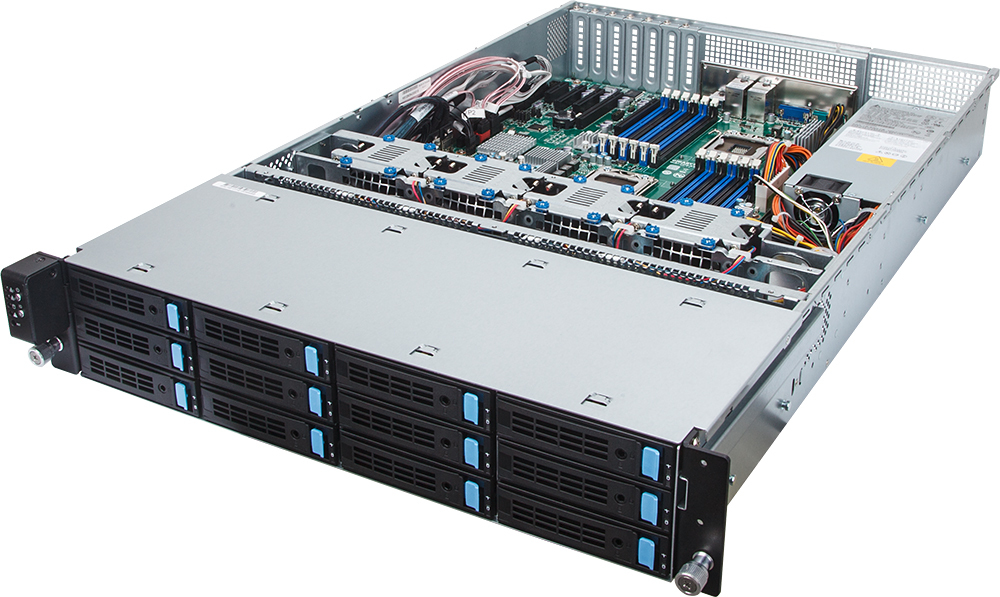

• This barebone server has been designed as a mass storage solution to answer the storage needs of today's environment, where cloud services are rapidly expanding and the files size ever increasing.
    This solution achieves a high storage density with 12 HDD bays (3.5") packed into its 2U chassis, and uses the best standards (SATA 3.0, SAS 6Gb/s, PCIe Gen 3.0) to get the best I/O performance on your critical files.
    Of course, storing files on the GS-R22PFL also means safeguarding them with comprehensive RAID support (Intel SW RAID 0/1/5/10, LSI SAS2008 HW RAID 0/1/1E/10).
  • Intel® Xeon® Processor E5-2600 V2 Product Family
    Deployable through a simple BIOS update, the support of the Intel Xeon processors E5-2600 V2 product family delivers the benefits of the 22nm tri-gate process technology to the high end server industry. Those benefits include, among others, higher frequencies, higher core counts (up to 12 cores / 24 threads) and larger last-level caches, but especially a much more varied mix of core/frequencies with notably the introduction of a new dual socket workstation segment. This new die shrink also allows for overall energy efficiency increase, with up to 30% average decrease in idle power consumption.
    Finally, virtualization applications will benefit from increased performance thanks to the Advanced Programmable Interrupt Controller (APIC) technology, and more security features are included in the mix as well, such as the Intel® Platform Protection Technology with OS Guard, and Intel® Data Protection Technology with Secure Key.
  • Support of PCIe Generation 3.0
  • SATA 3
  • SAS
  • Server Management
  • VMware Ready
    The VMware Ready program allows customers to quickly identify products and solutions from VMware's partners, which are optimized for VMware vSphere.
    The VMware Ready logo certifies that this product addresses VMware's specific criteria in terms of integration and compatibility, and that it is ready to execute mission-critical applications and operations.
  • Red Hat Certified Hardware
    GIGABYTE has certified the GS-R22PXL with Red Hat Enterprise Linux to provide its customers with the confidence of knowing that their hardware systems are supported by Red Hat when they run Red Hat Enterprise Linux.
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.

SPECIFICATIONS

Dimensions (WxHxD, mm)
2U
430 x 87 x 712
Motherboard
GA-7PESLX
CPU
Supports Intel® Xeon® processor E5-2400 & E5-2400 V2 product families
Socket
2 x LGA 1356
2 x CPU heatsinks included
Chipset
Intel® C602
Memory
12 x DIMM slots
Tri channel memory architecture
ECC & non-ECC UDIMM/RDIMM modules supported
Single and dual rank UDIMM modules up to 8GB supported
Single, dual and quad rank RDIMM modules up to 32GB supported
1.35V modules: 800/1066/1333 MHz
1.5V modules: 800/1066/1333/(1600*) MHz

*RDIMM only
LAN
2 x GbE LAN ports (Intel® 82574L)
1 x 10/100 management LAN
Video
Integrated in Aspeed® AST2300
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp
Storage
12 x 3.5" hot-swappable HDD/SSD bays
SATA
2 x SATA III 6Gb/s ports
4 x SATA II 3Gb/s ports
SAS
2 x Mini-SAS (for 8 x SAS 6Gb/s ports)
RAID
Intel® SATA RAID 0/1/5/10
LSI® SAS2008 RAID 0/1/1E/10
Peripheral Drives
-
Expansion Slots
6 x Full-length low-profile slots
2 x PCIe x16 (Gen3 x16 bus) connectors
1 x PCIe x8 (Gen3 x4 bus) connector
1 x PCIe x8 (Gen2 x4 bus) connector
1 x PCIe x4 (Gen2 x1 bus) connector
Internal I/O
1 x 24-pin main power connector
2 x 8-pin 12V power connectors
4 x System fan headers
2 x CPU fan headers
1 x PMBus connector
1 x LSI® RAID select connector
1 x BIOS write protect jumper
1 x LSI® firmware readiness LED
2 x Mini-SAS connectors
1 x SATA SGPIO connector
4 x SATA II 3Gb/s ports
2 x SATA III 6Gb/s ports
2 x SATA port DOM support jumpers
1 x ME enable/disable jumper
1 x BIOS recovery jumper
1 x Clear password jumper
1 x Force to Stop FRB3 Timer jumper
2 x USB 2.0 headers
1 x Front panel header
1 x Serial header
Front I/O
Š1 x Power button with LED
Š1 x System status LED
Š1 x ID button with LED
Š1 x Reset button
Š2 x LAN LEDs
Š1 x HDD status LED

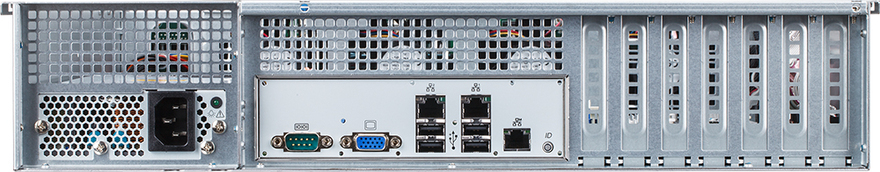

Rear I/O
Š4 x USB 2.0
Š1 x Serial
Š1 x VGA
Š3 x RJ45
Š1 x ID button with LED
Backplane I/O
N/A
TPM
1 x TPM header
Power Supply
1 x 600W PSU
80 PLUS Gold
100~220V AC
System Management
Aspeed® AST2300 management controller
Avocent® MergePoint IPMI 2.0 web interface:
  • Network settings
  • Network security settings
  • Users control
  • Services settings
  • IPMI settings
  • Sessions control
  • LDAP settings
  • Power control
  • Voltages, fans and temperatures monitoring
  • System event log
  • Events management (platform events, trap settings, email settings)
  • Serial Over LAN
  • vKVM & vMedia (launch, configuration)
OS Compatibility
Windows Server 2003 R2 + SP2 (x86/x64)
Windows Server 2008 SP2 (x86/x64)
Windows Server 2008 R2 (x64)

Red Hat Enterprise Linux 6.1 (x86/x64)

SUSE Linux Enterprise Server 11.1 (x86/x64)

VMware ESXi 5.0 / 5.1 / 5.1 U1 / 5.1 U2
Weight
~21.6 kg
System Fans
4 x 80x80x38mm (9000rpm)
Operating Properties
Operating temperature: 5°C to 35°C
ŠNon-operating temperature: 0°C to 50°C
Š10-80% operating humidity at 30°C
Part Numbers
Barebone: 6NR22PXLMS-00
Rail kit: 25HB2-073900-I0R
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.

SUPPORT

  • Choose your OS
  • Choose your OS
  • Windows Server 2008 R2
  • Windows Server 2008 64bit
  • Windows Server 2008 32bit
  • Windows Server 2003 64bit
  • Windows Server 2003 32bit
Chipset
Chipset
Version
Size
Date
Intel INF driver
Version : 9.2.3.1025
2.66 MB
2013/04/26
OS: Windows Server 2003 32bit,Windows Server 2003 64bit,Windows Server 2008 32bit,Windows Server 2008 64bit,Windows Server 2008 R2
SATA RAID/AHCI
SATA RAID/AHCI
Version
Size
Date
  1. Intel RAID driver
  2. Intel RAID utility for Windows x86/x64
Version : 3.6.0.1093
128.12 MB
2013/04/26
OS: Windows Server 2003 32bit,Windows Server 2003 64bit,Windows Server 2008 32bit,Windows Server 2008 64bit,Windows Server 2008 R2
VGA
VGA
Version
Size
Date
VGA driver
Version : 0.96
25.63 MB
2013/04/26
OS: Windows Server 2003 32bit,Windows Server 2003 64bit,Windows Server 2008 32bit,Windows Server 2008 64bit,Windows Server 2008 R2
BIOS
Description
Version
Size
Date
1. Fixed issue that UEFI device always display on boot menu. 2. Fixed issue that SMBIOS data incorrect. 3. Fixed issue that system can't wake up inserts PCIe card on CPU1 PCIe slot.
Version : F06
6.89 MB
2013/03/13
Warning:
Because BIOS flashing is potentially risky, if you do not encounter problems using the current version of BIOS, it is recommended that you not flash the BIOS. To flash the BIOS, do it with caution. Inadequate BIOS flashing may result in system malfunction.

What is a BETA?
BETA describes a new version that is reliable yet may not include all the features of the final product. During this phase we are previewing new features and gathering customer input to insure our product provides the best experience possible.
