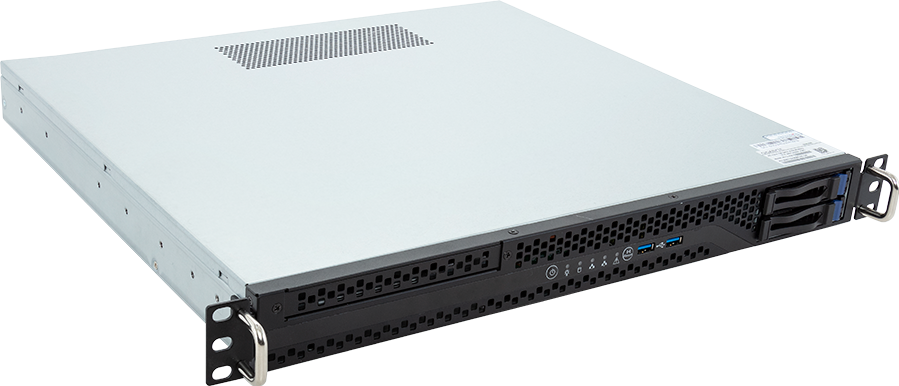

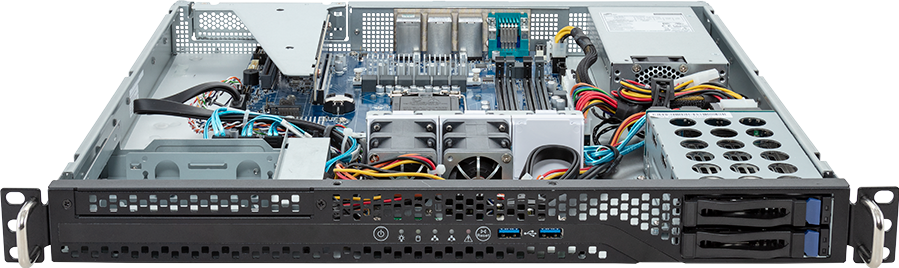

Specifications
Dimensions (WxHxD, mm)
1U
430 x 43.5 x 393.2
430 x 43.5 x 393.2

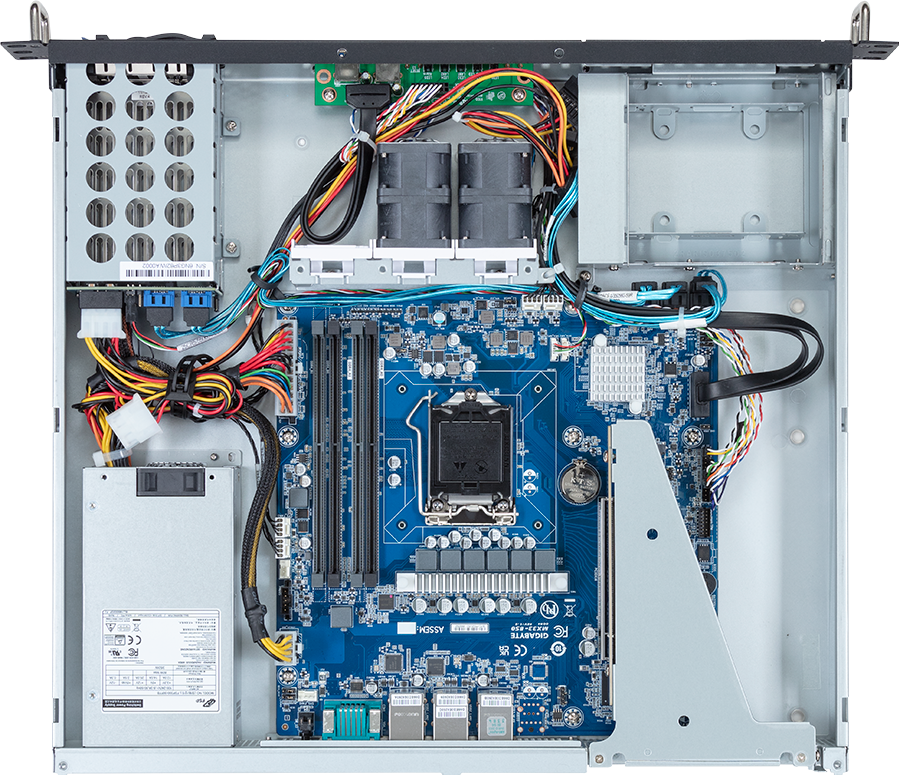

Motherboard
MX33-BS0
CPU
Intel® Xeon® E-2300 Processor
10th Gen Intel® Pentium® Processor
Single processor, TDP up to 95W
10th Gen Intel® Pentium® Processor
Single processor, TDP up to 95W
Socket
1 x LGA 1200
Socket H5
Socket H5
Chipset
Intel® C252
Memory
4 x DIMM slots
Support DDR4 ECC/Non-ECC UDIMM
Dual channel memory per processor
Up to 3200/2666 MT/s
Support DDR4 ECC/Non-ECC UDIMM
Dual channel memory per processor
Up to 3200/2666 MT/s
LAN
Rear:
2 x 1Gb/s LAN (2 x Intel® I210-AT)
- Support NCSI function
1 x 10/100/1000 Mbps Management LAN
2 x 1Gb/s LAN (2 x Intel® I210-AT)
- Support NCSI function
1 x 10/100/1000 Mbps Management LAN
Video
Integrated in ASPEED® AST2500
- 1 x VGA port
- 1 x VGA port
Storage
Front hot-swap:
2 x 2.5" SATA [1]
Internal:
2 x 2.5" SATA [1]
Internal M.2:
1 x M.2 (2242/2280), PCIe Gen3 x4, from PCH
[1] SATA supported only.
2 x 2.5" SATA [1]
Internal:
2 x 2.5" SATA [1]
Internal M.2:
1 x M.2 (2242/2280), PCIe Gen3 x4, from PCH
[1] SATA supported only.
SAS
N/A
RAID
Intel® SATA RAID 0/1/10/5
PCIe Expansion Slots
Riser Card CRS101R:
- 1 x FHHL x16 (Gen4 x16), from CPU [1]
[1] The expansion slot is downgraded to Gen3 x16 when running on 10th Gen Intel® Pentium® Processor.
- 1 x FHHL x16 (Gen4 x16), from CPU [1]
[1] The expansion slot is downgraded to Gen3 x16 when running on 10th Gen Intel® Pentium® Processor.
Front I/O
2 x USB 3.2 Gen1 ports (Type-A)
1 x Power button
1 x Reset button
1 x Power LED
2 x LAN activity LEDs
1 x Storage activity LED
1 x System status LED
1 x Power button
1 x Reset button
1 x Power LED
2 x LAN activity LEDs
1 x Storage activity LED
1 x System status LED
Rear I/O
2 x USB 3.2 Gen2 ports (Type-A)
4 x USB 2.0 ports (Type-A)
1 x VGA port
1 x COM port
2 x RJ45 ports
1 x MLAN port
1 x ID button with LED
4 x USB 2.0 ports (Type-A)
1 x VGA port
1 x COM port
2 x RJ45 ports
1 x MLAN port
1 x ID button with LED
Backplane Board
N/A
Security Modules
1 x TPM header with SPI interface
- Optional TPM2.0 kit: CTM010
- Optional TPM2.0 kit: CTM010
Power Supply[#1]
Single 350W 80 PLUS Bronze power supply
AC Input:
- 100-240V~/ 6-3A, 50-60Hz
DC Output:
- Max 350W/ 100-240V~
+ 12V/ 29A
+ 5V/ 14A
+ 3.3V/ 12A
+ 5Vsb/ 2.5A
AC Input:
- 100-240V~/ 6-3A, 50-60Hz
DC Output:
- Max 350W/ 100-240V~
+ 12V/ 29A
+ 5V/ 14A
+ 3.3V/ 12A
+ 5Vsb/ 2.5A
System Management
ASPEED® AST2500 Baseboard Management Controller
AMI MegaRAC SP-X Solution Web interface
AMI MegaRAC SP-X Solution Web interface
- Dashboard
- JAVA Based Serial Over LAN
- HTML5 KVM
- Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
- Sensor Reading History Data
- FRU Information
- SEL Log in Linear Storage / Circular Storage Policy
- Hardware Inventory
- Fan Profile
- System Firewall
- Power Consumption
- Power Control
- LDAP / AD / RADIUS Support
- Backup & Restore Configuration
- Remote BIOS/BMC/CPLD Update
- Event Log Filter
- User Management
- Media Redirection Settings
- PAM Order Settings
- SSL Settings
- SMTP Settings
OS Compatibility
Red Hat Enterprise Linux 6.9
Red Hat Enterprise Linux 7.3
SUSE Linux Enterprise Server 11.2
SUSE Linux Enterprise Server 12.2
Ubuntu 16.04.6 LTS
Ubuntu 18.04.2 LTS
VMware 6.5
Windows Server 2016
Windows Server 2019
Red Hat Enterprise Linux 7.3
SUSE Linux Enterprise Server 11.2
SUSE Linux Enterprise Server 12.2
Ubuntu 16.04.6 LTS
Ubuntu 18.04.2 LTS
VMware 6.5
Windows Server 2016
Windows Server 2019
System Fans
2 x 40x40x56mm
Operating Properties
Operating temperature: 10°C to 35°C
Operating humidity: 8% to 80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20% to 95% (non-condensing)
Operating humidity: 8% to 80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20% to 95% (non-condensing)
Packaging Dimensions
592 x 518 x 155 mm
Packaging Content
1 x R112-X30
1 x CPU heatsink
[Note] Rail kit not included. Please refer to optional parts for compatible rail kit.
1 x CPU heatsink
[Note] Rail kit not included. Please refer to optional parts for compatible rail kit.
Part Numbers
- Barebone package: 6NR112X30MR-00-1*
- Motherboard: 9MX33BS0NR-00*
- CPU heatsink: 12SP2-160006-10R
- Fan module: 25ST2-405623-A0R
- Riser card - CRS101R: 9CRS101RNR-00*
- Power supply: 25EP0-203509-F3S
Optional parts:
- Rail kit: 25HB2-130000-I0R
- Motherboard: 9MX33BS0NR-00*
- CPU heatsink: 12SP2-160006-10R
- Fan module: 25ST2-405623-A0R
- Riser card - CRS101R: 9CRS101RNR-00*
- Power supply: 25EP0-203509-F3S
Optional parts:
- Rail kit: 25HB2-130000-I0R
[#1] Power cords are not included with server packages. Customers are responsible for selecting appropriate power cords from the optional accessories or contacting sales for customization.
[#2] All materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at any time without prior notice.
[#3] Advertised performance is based on maximum theoretical values as specified by the respective chipset vendors or standards organizations. Actual performance may vary depending on system configuration.
[#4] All trademarks and logos are the property of their respective owners.
