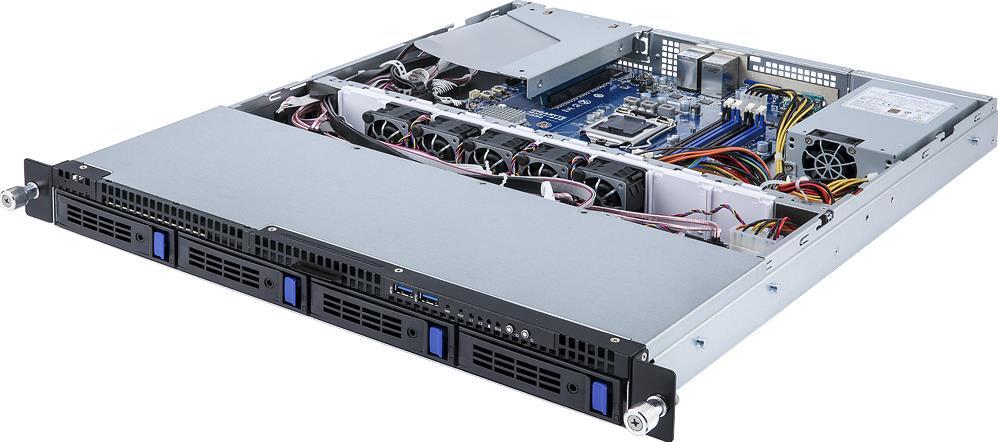

SPECIFICATIONS

Dimensions (WxHxD, mm)
1U
430 x 43.5 x 533.4 mm
Motherboard
CPU
Supports Intel® Xeon® processor E3-1200 V6/V5 product family
Supports 7th/ 6th Gen Intel® Core™ i3 processors, Intel® Celeron® processors, Intel® Pentium® processors
Socket
1 x LGA 1151
Chipset
Intel® C232
Memory
4 x DIMM slots
Dual channel memory architecture
Supports 1.2V DDR4 memory
ECC UDIMM modules supported
Up to 64GB
Supported speeds: 2400/2133 MHz
LAN
2 x GbE LAN ports (Intel® I210)
Video
Integrated in Aspeed® AST2400
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp
Audio
-
Storage
4 x 3.5" hot-swappable HDD/SSD bays
SATA
Onboard 6 x SATA III 6Gb/s ports
SAS
Supported via add-on SAS Card
RAID
Intel® SATA RAID 0/1/10/5
Peripheral Drives
-
Expansion Slots
1 x Half-length full-height slot
1 x PCIe x16 (Gen3 x16 bus) connector
1 x M.2 (Gen3 x1 bus) slot:
- PCIe signal only
- M-key
- Max. width: 22mm
- Max. length: 80mm
Internal I/O
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
6 x SATA III 6Gb/s ports
1 x USB 2.0 vertical port
1 x CPU fan header
4 x System fan headers
1 x USB 3.0 header
1 x USB 2.0 header
1 x S/PDIF-Out header
1 x S/PDIF-In header
1 x Serial header
1 x TPM header
1 x SATA SGPIO header
2 x SATA DOM headers
1 x Front panel header
1 x JTAG PLD header
1 x JTAG BMC header
1 x Chassis intrusion header
1 x Vboot selection jumper
1 x BIOS recovery jumper
1 x ME recovery jumper
1 x ME update jumper
1 x Force EN jumper
1 x SMBus selection jumper
1 x Clear CMOS jumper
1 x BIOS password jumper
1 x M3 mask jumper
1 x IPMB connector
1 x PMBus connector

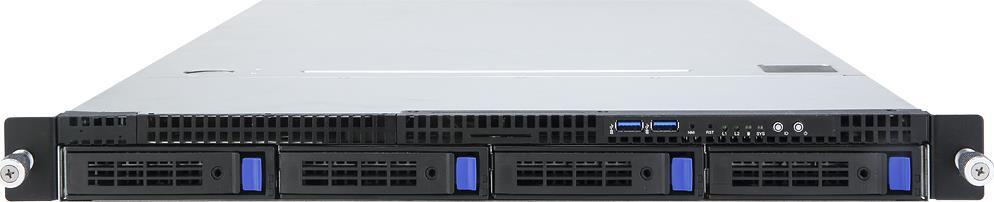

Front I/O
2 x USB 3.0
1 x Power button
1 x Reset button
1 x NMI button
1 x ID button with LED
1 x System status LED
1 x HDD LED
4 x LAN LEDs

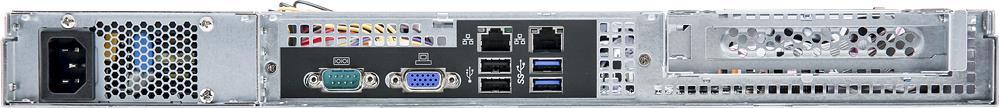

Rear I/O
1 x Serial
1 x VGA
2 x RJ45
2 x USB 2.0
2 x USB 3.0
Backplane I/O
4 x SAS/SATA ports

SAS card is required for SAS devices support
TPM
1 x TPM header
Power Supply
1 x 250W PSU
80 PLUS Bronze

AC input:
- 100-127V/ 9A, 50-60Hz
- 200-240V/ 5A, 50-60Hz

DC output:
- 250W
System Management
Aspeed® AST2400 management controller
Avocent® MergePoint IPMI 2.0 web interface:
  • Network settings
  • Network security settings
  • Users control
  • Services settings
  • IPMI settings
  • Sessions control
  • LDAP settings
  • Power control
  • Voltages, fans and temperatures monitoring
  • System event log
  • Events management (platform events, trap settings, email settings)
  • Serial Over LAN
  • vKVM & vMedia (launch, configuration)
OS Compatibility
Windows Server 2012
Windows Server 2012 R2
Windows Server 2016
RHEL 7.2 (x64)
Ubuntu 12.04 LTS x64
Ubuntu 14.04 LTS x64
SUSE Linux Enterprise Server 11.4 x64
SUSE Linux Enterprise Server 12 x64
VMware 5.5 U3 (x64)
VMware 6.0 U1 (x64)
Weight
7.5kg
System Fans
5 x 40x40x28mm (18'000rpm)
Operating Properties
Operating temperature: 10°C to 35°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Packaging Dimensions
815 x 588 x 250 mm
Packaging Content
1 x R121-X30
1 x Quick Start Guide
1 x CPU Heat Sink
1 x Rail kit
Part Numbers
Barebone package: 6NR121X30MR-SI
Spare parts:
- Tool-less rail kit: 25HB2-3A6101-K0R
- CPU heatsink: 25ST1-253200-J1R
- Back plane board: 9CBP1040NR-00
- Power supply: 25EP0-202502-F3S
- Riser card - CRS1011: 9CRS1011NR-00
