R161-R12 (rev. 100)

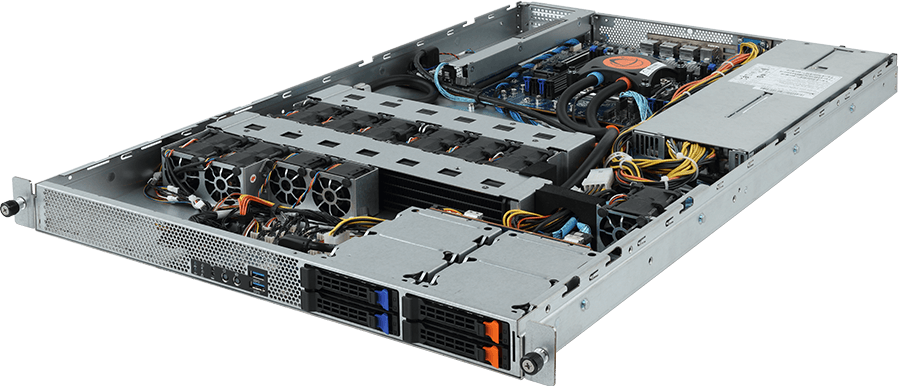

1U Intel® X299 Server System - Liquid Cooling Solution
| Application:
Networking
Application:
- Sealed loop liquid cooling system to support overclocking
- Supports Intel® Core™ X Series Processors
- Quad Channel Non-ECC Unbuffered DDR4, 8 x DIMMs
- Intel® Optane™ Memory Ready
- Dual 1Gb/s LAN ports (Intel® I350-AM2)
- 1 x Dedicated management port
- 2 x U.2, 2 x SATA/SAS 2.5" hot-swappable HDD/SSD bays
- 2 x M.2 with PCIe Gen3 x4/x2 interface
- 2 x PCIe Gen3 low profile expansion slots
- Aspeed® AST2500 remote management controller
- Dual 1100W 80 PLUS Platinum redundant power supply
Request a Quote
1/5
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
SPECIFICATIONS
Dimensions (WxHxD, mm)
1U
438 x 43.5 x 730
438 x 43.5 x 730
Motherboard
MR11-LC0
CPU
Intel® Core™ X series 44-lane/28-lane processors
Socket
1 x LGA 2066
Mounting pitch: square ILM (80x80mm)
Mounting pitch: square ILM (80x80mm)
Chipset
Intel® X299 Express Chipset
Memory
8 x DIMM slots
DDR4 memory modules supported only
Quad channel memory architecture
Support for non-ECC Un-buffered DIMM
DDR4 modules: 2667/2400/2133 MHz
DDR4 memory modules supported only
Quad channel memory architecture
Support for non-ECC Un-buffered DIMM
DDR4 modules: 2667/2400/2133 MHz
LAN
2 x 1Gb/s LAN ports (Intel® I350-AM2)
1 x 10/100/1000 management LAN
1 x 10/100/1000 management LAN
Video
Integrated in Aspeed® AST2500
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp, DDR4 SDRAM
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp, DDR4 SDRAM
Audio
-
Storage
2 x U.2, 2 x SATA/SAS or 4 x SATA/SAS hot-swappable HDD/SSD bays
2.5" HDD supported only
2.5" HDD supported only
SATA
Supported
SAS
Supported via add-on SAS Card
RAID
Intel® SATA RAID 0/ 1/ 10/ 5
Peripheral Drives
-
Expansion Slots
- 1 x internal PCIe x16 slots (Gen3 x16)*
* The PCIe slot is unavailable for system level
* The PCIe slot is shared with riser card 1 x PCIe x16 signal
Riser Card CRS1027:
- 1 x PCIe x16 slots (Gen3 x16), Low profile half-length
- 1 x PCIe x16 slots (Gen3 x16), Low profile half-length
2 x M.2 slots:
- M-key
- PCIe Gen3 x4
- Supports NGFF-2242/2260/2280 cards
* The PCIe slot is unavailable for system level
* The PCIe slot is shared with riser card 1 x PCIe x16 signal
Riser Card CRS1027:
- 1 x PCIe x16 slots (Gen3 x16), Low profile half-length
- 1 x PCIe x16 slots (Gen3 x16), Low profile half-length
2 x M.2 slots:
- M-key
- PCIe Gen3 x4
- Supports NGFF-2242/2260/2280 cards
Internal I/O
3 x Power supply connectors
5 x SlimSAS connectors
2 x fan headers
1 x USB 3.0 header
1 x TPM header
1 x VROC connector
1 x Front panel header
1 x HDD back plane board header
1 x IPMB connector
1 x Clear CMOS jumper
1 x BIOS recovery jumper
5 x SlimSAS connectors
2 x fan headers
1 x USB 3.0 header
1 x TPM header
1 x VROC connector
1 x Front panel header
1 x HDD back plane board header
1 x IPMB connector
1 x Clear CMOS jumper
1 x BIOS recovery jumper
Front I/O
2 x USB 3.0
1 x Power button with LED
1 x ID button with LED
1 x Reset button
1 x NMI button
1 x System status LED
1 x HDD activity LED
2 x LAN activity LEDs
1 x Power button with LED
1 x ID button with LED
1 x Reset button
1 x NMI button
1 x System status LED
1 x HDD activity LED
2 x LAN activity LEDs
Rear I/O
2 x USB 3.0
1 x VGA
1 x COM
2 x RJ45
1 x MLAN
1 x VGA
1 x COM
2 x RJ45
1 x MLAN
Backplane I/O
Bandwidth: SATAIII 6Gb/s or SAS 12Gb/s or U.2 PCIe Gen3 x4 per port
TPM
1 x TPM header with LPC interface
Optional TPM2.0 kit: CTM000
Optional TPM2.0 kit: CTM000
Power Supply
2 x 1100W redundant PSUs
80 PLUS Platinum
AC Input:
- 100-240V~/ 12-6A, 50-60Hz
DC Input:
- 190-310Vdc/ 7A
DC Output:
- Max 850W/ 100-240Vac~
+12V/ 70A
+5Vsb/ 3A
- Max 1100W/ 200-240Vac
+12V/ 90.5A
+5Vsb/ 3A
System Management
Aspeed® AST2500 management controller
Avocent® MergePoint IPMI 2.0 web interface:
Avocent® MergePoint IPMI 2.0 web interface:
- Network settings
- Network security settings
- Hardware information
- Users control
- Services settings
- IPMI settings
- Sessions control
- LDAP settings
- Power control
- Fan profiles
- Voltages, fans and temperatures monitoring
- System event log
- Events management (platform events, trap settings, email settings)
- Serial Over LAN
- vKVM & vMedia (HTML5)
OS Compatibility
Windows Server 2012 R2 with Update
Windows Server 2016 x64
Windows 10 x64
Red Hat Enterprise Linux 6.9 x64
Red Hat Enterprise Linux 7.5 x64
SUSE Linux Enterprise Server 11.4 x64
SUSE Linux Enterprise Server 12.3 x64
Ubuntu 16.04.5 LTS x64
Ubuntu 18.04 LTS x64
VMware ESXi 6.5
Windows Server 2016 x64
Windows 10 x64
Red Hat Enterprise Linux 6.9 x64
Red Hat Enterprise Linux 7.5 x64
SUSE Linux Enterprise Server 11.4 x64
SUSE Linux Enterprise Server 12.3 x64
Ubuntu 16.04.5 LTS x64
Ubuntu 18.04 LTS x64
VMware ESXi 6.5
Weight
Net Weight: 13.2 kg
Gross Weight: 21.8 kg
Gross Weight: 21.8 kg
System Fans
2 x 40x40x28mm (25,000rpm)
9 x 40x40x56mm (23,000rpm)
9 x 40x40x56mm (23,000rpm)
Operating Properties
Operating temperature: 10°C to 35°C
Operating humidity: 8-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Operating humidity: 8-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Packaging Dimensions
985 x 588 x 250 mm
Packaging Content
1 x R161-R12
1 x Rail kit
1 x Rail kit
Part Numbers
Barebone package: 6NR161R12MR-00
Part Numbers:
- Motherboard: 9MR11LC0NR-00
- Rail kit: 25HB2-3A0202-K0R - Back plane board_2-port: 9CBP2020NR-00 - Back plane board_4-port: 9CBP1043NR-00 - Front panel board: 9CFP1012NR-00
- Power supply: 25EP0-201100-F3S - Riser card - CRS1027: 9CRS1027NR-00
- Rail kit: 25HB2-3A0202-K0R - Back plane board_2-port: 9CBP2020NR-00 - Back plane board_4-port: 9CBP1043NR-00 - Front panel board: 9CFP1012NR-00
- Power supply: 25EP0-201100-F3S - Riser card - CRS1027: 9CRS1027NR-00
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
SUPPORT
Driver
BIOS
Utility
Firmware
- Choose your OS
- Choose your OS
- Windows Server 2016 64bit
- Windows Server 2012 R2 64bit
- Windows 10 64bit
Chipset
Chipset
Version
Size
Date
Intel® INF Driver
Version : 10.1.1.44
3.07 MB
2017/08/29
OS: Windows Server 2012 R2 64bit,Windows 10 64bit,Windows Server 2016 64bit
Intel® Management Engine Driver
Version : 11.11.50.1422
3.93 MB
2019/01/09
OS: Windows Server 2012 R2 64bit,Windows 10 64bit,Windows Server 2016 64bit
LAN
LAN
Version
Size
Date
Intel® LAN Driver and Utility
Version : 22.6
339.77 MB
2019/01/09
OS: Windows Server 2012 R2 64bit,Windows 10 64bit,Windows Server 2016 64bit
SATA RAID/AHCI
SATA RAID/AHCI
Version
Size
Date
Intel® SATA Preinstall driver
(For AHCI / RAID Mode)
Note: Windows setup to read from USB devices
(For AHCI / RAID Mode)
Note: Windows setup to read from USB devices
Version : 15.9.0.1015
2.09 MB
2019/01/09
OS: Windows Server 2012 R2 64bit,Windows 10 64bit,Windows Server 2016 64bit
Intel® Rapid Storage Technology enterprise (Intel® RST)
Version : 15.9.0.1015
17.4 MB
2019/01/09
OS: Windows Server 2012 R2 64bit,Windows 10 64bit,Windows Server 2016 64bit
VGA
VGA
Version
Size
Date
ASPEED Graphic Driver
Version : 1.03
0.57 MB
2017/03/22
OS: Windows Server 2012 R2 64bit,Windows 10 64bit,Windows Server 2016 64bit
BIOS
Warning:
Because BIOS flashing is potentially risky, if you do not encounter problems using the current version of BIOS, it is recommended that you not flash the BIOS. To flash the BIOS, do it with caution. Inadequate BIOS flashing may result in system malfunction.
What is a BETA?
BETA describes a new version that is reliable yet may not include all the features of the final product. During this phase we are previewing new features and gathering customer input to insure our product provides the best experience possible.
Because BIOS flashing is potentially risky, if you do not encounter problems using the current version of BIOS, it is recommended that you not flash the BIOS. To flash the BIOS, do it with caution. Inadequate BIOS flashing may result in system malfunction.
What is a BETA?
BETA describes a new version that is reliable yet may not include all the features of the final product. During this phase we are previewing new features and gathering customer input to insure our product provides the best experience possible.
- Choose your OS
- Choose your OS
- Windows Server 2019
- Windows Server 2016 R2 64bit
- Windows Server 2016 64bit
- Windows Server 2012 R2 64bit
- Windows Server 2012 64bit
- Windows 10 64bit
- Ubuntu
- Linux CentOS
- Linux
Utility
Description
Version
Size
Date
GSM CLI
Version : 2.1.50
110.55 MB
2021/03/06
OS: Windows Server 2012 64bit,Windows Server 2012 R2 64bit,Linux CentOS,Windows 10 64bit,Ubuntu,Windows Server 2016 R2 64bit,Windows Server 2019
GSM Server
Version : 2.04
1147.65 MB
2020/12/04
OS: Linux,Windows Server 2016 64bit,Windows Server 2019
GSM Agent
Version : 1.02
671.51 MB
2018/09/21
OS: Linux,Windows Server 2016 64bit,Windows Server 2019
Firmware
Description
Version
Size
Date
BMC Firmware with embedded GIGABYTE Management Console
(AST2500 AMI)
1. ErP Lot9 Supported
2. Guidelines to Preserve Configuration Settings (ErP Lot9 Update)
3. Vertiv BMC EOL & Update Procedure
(AST2500 AMI)
1. ErP Lot9 Supported
2. Guidelines to Preserve Configuration Settings (ErP Lot9 Update)
3. Vertiv BMC EOL & Update Procedure
Version : 12.49.06
94.56 MB
2020/11/29
English
BMC Firmware with embedded GIGABYTE Management Console
(AST2500 AMI)
1. Vertiv BMC EOL & Update Procedure
2. Guidelines to Preserve Configuration Settings (ErP Lot9 Update)
(AST2500 AMI)
1. Vertiv BMC EOL & Update Procedure
2. Guidelines to Preserve Configuration Settings (ErP Lot9 Update)
Version : 12.40.30
84.21 MB
2020/03/08
English
