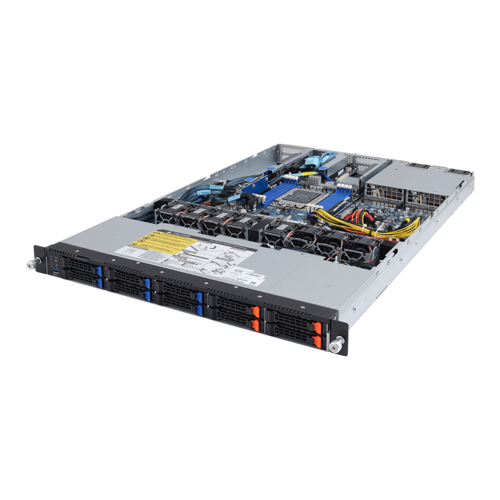

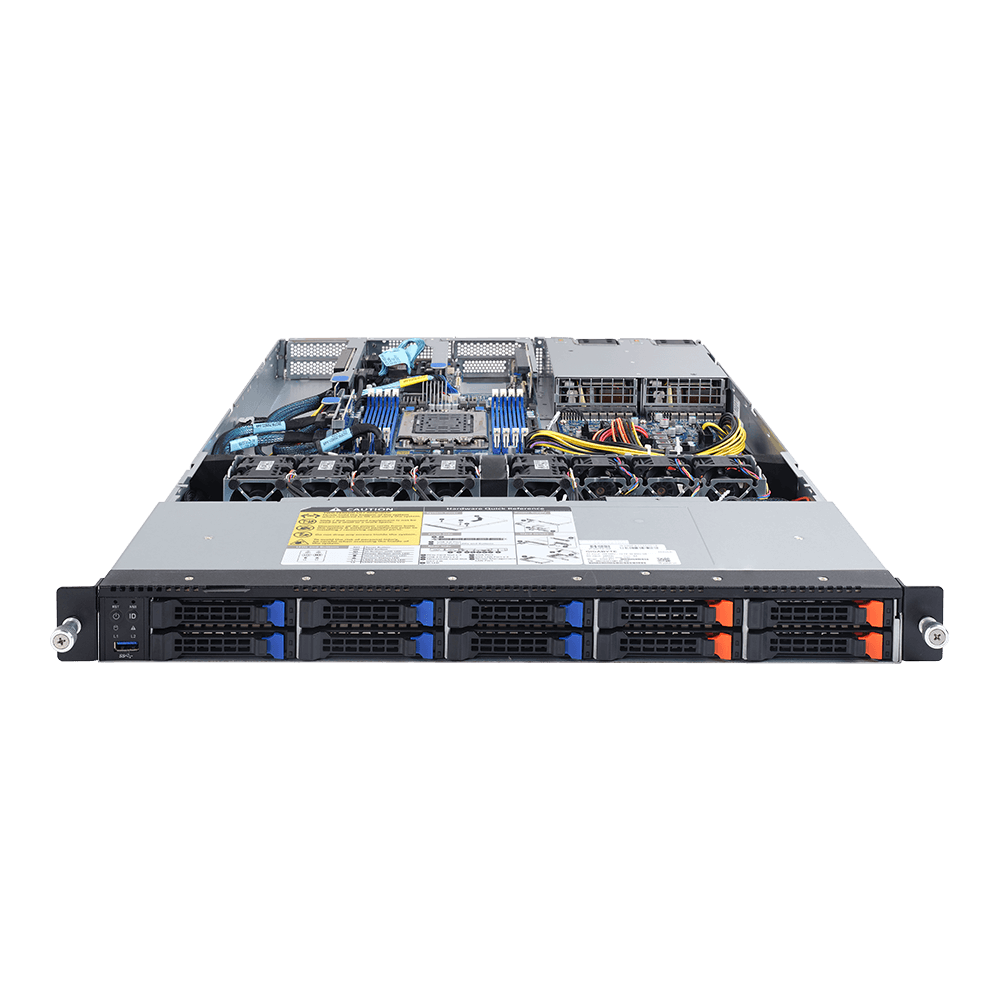

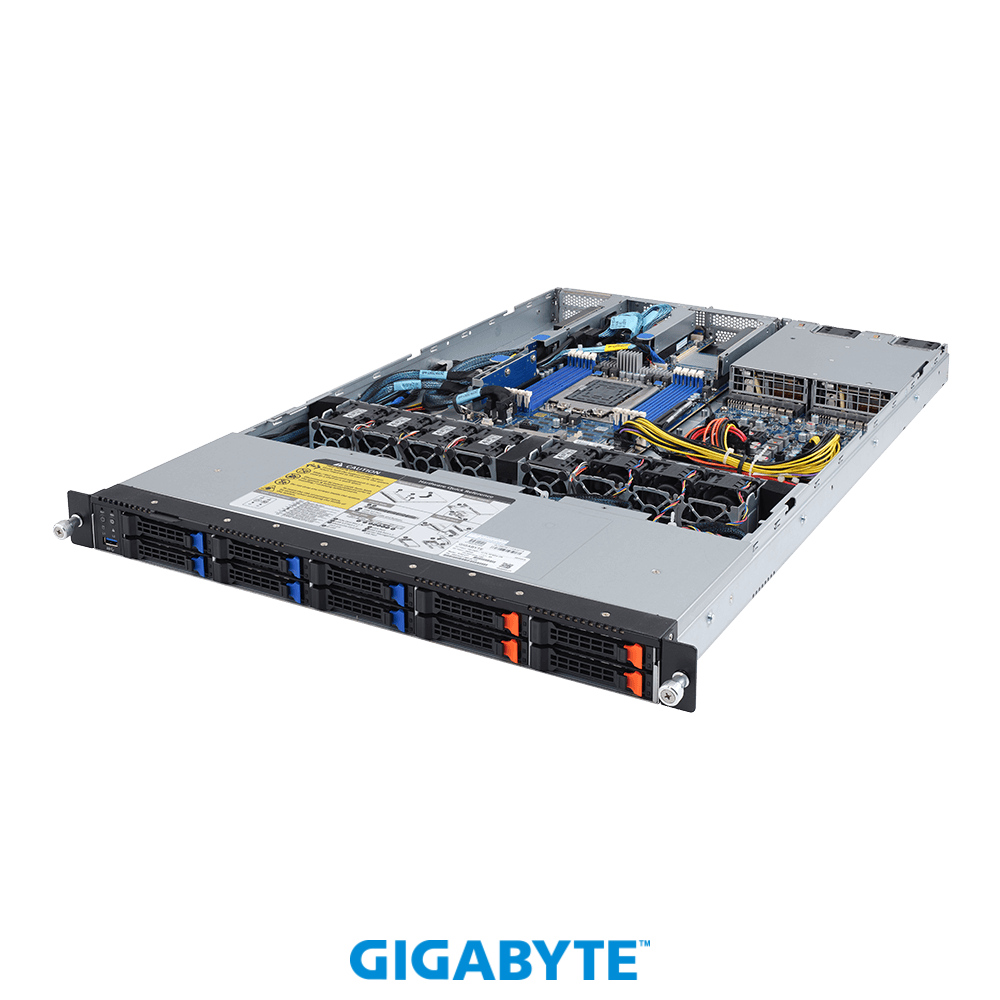

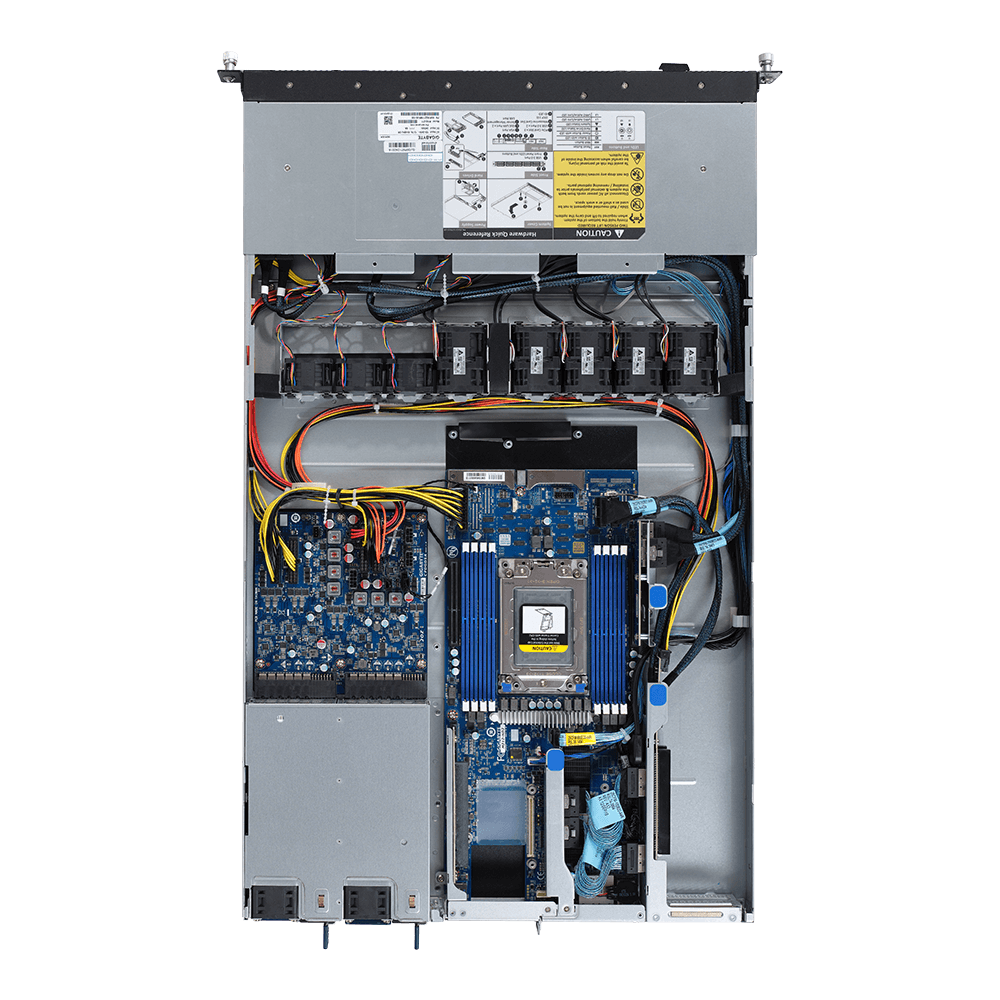

R162-Z11 (rev. 100)
(rev.A00)
AMD EPYC™ 7002 Server System - 1U 10-Bay
| Application:
AI
,
AI Inference
,
HPC
&
Networking
Application:
- Compatible with 3 x NVIDIA Tesla® PCIe GPU cards
- Single AMD EPYC™ 7002 series processor family
- 8-Channel RDIMM/LRDIMM DDR4, 8 x DIMMs
- 2 x 1Gb/s LAN ports (Intel® I350-AM2)
- 1 x Dedicated management port
- 6 x 2.5" SATA and 4 x 2.5 NVMe hot-swappable HDD/SSD bays
- Ultra-Fast M.2 with PCIe Gen3 x4 interface
- 3 x PCIe x16 expansion slots
- 1 x OCP 2.0 Gen3 x16 mezzanine slots
- Aspeed® AST2500 remote management controller
- 1200W 80 PLUS Platinum redundant PSU
Request a Quote
1/5
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
SPECIFICATIONS
Dimensions (WxHxD, mm)
1U
438 x 43.5 x 730
438 x 43.5 x 730
Motherboard
MZ12-HD2
CPU
AMD EPYC™ 7002 series processor family
Single processor, 7nm technology
Up to 64-core, 128 threads per processor
TDP up to 225W, cTDP up to 240W
Conditional support 280W
Non-supported NVIDIA Tesla GPU if using 280W CPU
Compatible with AMD EPYC™ 7001 series processor family
Single processor, 7nm technology
Up to 64-core, 128 threads per processor
TDP up to 225W, cTDP up to 240W
Conditional support 280W
Non-supported NVIDIA Tesla GPU if using 280W CPU
Compatible with AMD EPYC™ 7001 series processor family
Chipset
System on Chip
Memory
8 x DIMM slots
DDR4 memory supported only
8-Channel memory architecture
RDIMM modules up to 128GB supported
LRDIMM modules up to 128GB supported
Memory speed: Up to 3200 MHz
DDR4 memory supported only
8-Channel memory architecture
RDIMM modules up to 128GB supported
LRDIMM modules up to 128GB supported
Memory speed: Up to 3200 MHz
LAN
2 x 1GbE LAN ports (1 x Intel® I350-AM2)
1 x 10/100/1000 management LAN
1 x 10/100/1000 management LAN
Video
Integrated in Aspeed® AST2500
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp
Audio
-
Storage
6 x 2.5" SATA/SAS hot-swappable HDD/SSD bays
4 x 2.5" NVMe hot-swappable SSD bays
* SAS card is required for SAS devices support
* Backplane JP_SEL switch set from "00010" to "00000" (all OFF) if SAS RAID crad is installed
4 x 2.5" NVMe hot-swappable SSD bays
* SAS card is required for SAS devices support
* Backplane JP_SEL switch set from "00010" to "00000" (all OFF) if SAS RAID crad is installed
SAS
-
RAID
-
Peripheral Drives
-
Expansion Slots
Riser Card CRSH01D:
- 1 x PCIe x16 slot (Gen4 x16), Low profile half-length
Riser Card CRS1060:
- 2 x PCIe x16 slots (Gen3 x16), Low profile half-length
1 x OCP 2.0 mezzanine slot with PCIe Gen3 x16 bandwidth (Type1, P1, P2, P3, P4)
1 x onboard M.2 slot:
- M-key
- PCIe Gen3 x4
- Supports NGFF-2242/2260/2280/22110 cards
- CPU TDP is limited to 155W if using M.2 device
NOTE: - Support is not provided for mixed GPU populations
- 1 x PCIe x16 slot (Gen4 x16), Low profile half-length
Riser Card CRS1060:
- 2 x PCIe x16 slots (Gen3 x16), Low profile half-length
1 x OCP 2.0 mezzanine slot with PCIe Gen3 x16 bandwidth (Type1, P1, P2, P3, P4)
1 x onboard M.2 slot:
- M-key
- PCIe Gen3 x4
- Supports NGFF-2242/2260/2280/22110 cards
- CPU TDP is limited to 155W if using M.2 device
NOTE: - Support is not provided for mixed GPU populations
Internal I/O
1 x M.2 slot
1 x USB 3.0 header
1 x TPM header
1 x OCP 2.0 mezzanine slot
1 x Front panel header
1 x Back plane board header
1 x IPMB connector
1 x Clear CMOS jumper
1 x BIOS recovery jumper
1 x USB 3.0 header
1 x TPM header
1 x OCP 2.0 mezzanine slot
1 x Front panel header
1 x Back plane board header
1 x IPMB connector
1 x Clear CMOS jumper
1 x BIOS recovery jumper
Front I/O
1 x USB 3.0
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
2 x LAN activity LEDs
1 x HDD activity LED
1 x System status LED
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
2 x LAN activity LEDs
1 x HDD activity LED
1 x System status LED
Rear I/O
2 x USB 3.0
1 x VGA
2 x RJ45
1 x MLAN
1 x ID LED
1 x VGA
2 x RJ45
1 x MLAN
1 x ID LED
Backplane I/O
Backplane P/N: 9CBP10A1NR-00
Speed and bandwidth:
10 x ports for PCIe x4
Speed and bandwidth:
10 x ports for PCIe x4
TPM
1 x TPM header with SPI interface
Optional TPM2.0 kit: CTM010
Optional TPM2.0 kit: CTM010
Power Supply
2 x 1200W redundant PSUs
80 PLUS Platinum
AC input:
- 100-240V/ 12-7A, 50-60Hz
- 200-240V/ 7A, 50-60Hz
DC output:
- 1200W
- 12V, 80.5A (100-240V)
- 12V, 97A (200-240V)
- 12Vsb, 3A
System Management
Aspeed® AST2500 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface
- Dashboard
- JAVA Based Serial Over LAN
- HTML5 KVM
- Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
- Sensor Reading History Data
- FRU Information
- SEL Log in Linear Storage / Circular Storage Policy
- Hardware Inventory
- Fan Profile
- System Firewall
- Power Consumption
- Power Control
- LDAP / AD / RADIUS Support
- Backup & Restore Configuration
- Remote BIOS/BMC/CPLD Update
- Event Log Filter
- User Management
- Media Redirection Settings
- PAM Order Settings
- SSL Settings
- SMTP Settings
OS Compatibility
Windows Server 2016 ( X2APIC/256T not supported)
Windows Server 2019
Red Hat Enterprise Linux 7.6 ( x64) or later
Red Hat Enterprise Linux 8.0 ( x64) or later
SUSE Linux Enterprise Server 12 SP4 ( x64) or later
SUSE Linux Enterprise Server 15 SP1 ( x64) or later
Ubuntu 16.04.6 LTS (x64) or later
Ubuntu 18.04.3 LTS (x64) or later
Ubuntu 20.04 LTS (x64) or later
VMware ESXi 6.5 EP15 or later
VMware ESXi 6.7 Update3 or later
VMware ESXi 7.0 or later
Citrix Hypervisor 8.1.0 or later
Windows Server 2019
Red Hat Enterprise Linux 7.6 ( x64) or later
Red Hat Enterprise Linux 8.0 ( x64) or later
SUSE Linux Enterprise Server 12 SP4 ( x64) or later
SUSE Linux Enterprise Server 15 SP1 ( x64) or later
Ubuntu 16.04.6 LTS (x64) or later
Ubuntu 18.04.3 LTS (x64) or later
Ubuntu 20.04 LTS (x64) or later
VMware ESXi 6.5 EP15 or later
VMware ESXi 6.7 Update3 or later
VMware ESXi 7.0 or later
Citrix Hypervisor 8.1.0 or later
Weight
Net Weight: 11.95 kg
Gross Weight: 20.5 kg
Gross Weight: 20.5 kg
System Fans
5 x 40x40x56mm (23'000rpm)
3 x 40x40x28mm (18'000rpm)
3 x 40x40x28mm (18'000rpm)
Operating Properties
Operating temperature: 10°C to 35°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Ambient temperature limited to 30°C if using 280W CPU
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Ambient temperature limited to 30°C if using 280W CPU
Packaging Dimensions
985 x 588 x 250 mm
Packaging Content
1 x R162-Z11
1 x CPU heatsink
1 x Rail kit
1 x CPU heatsink
1 x Rail kit
Part Numbers
Barebone package: 6NR162Z11MR-00
Spare parts:
- Motherboard: 9MZ12HD2NR-00
- Rail kit: 25HB2-3A0202-K0R
- CPU heatsink: 25ST1-44320M-A3R
- Back plane board: 9CBP10A1NR-00
- Power supply: 25EP0-212002-F3S
- M.2 Riser card - CMTP052: 9CMTP052NR-00 (as an option)
- Riser card - CRSH01D: 9CRSH01DNR-00
- Riser card - CRS1060: 9CRS1060NR-00
Spare parts:
- Motherboard: 9MZ12HD2NR-00
- Rail kit: 25HB2-3A0202-K0R
- CPU heatsink: 25ST1-44320M-A3R
- Back plane board: 9CBP10A1NR-00
- Power supply: 25EP0-212002-F3S
- M.2 Riser card - CMTP052: 9CMTP052NR-00 (as an option)
- Riser card - CRSH01D: 9CRSH01DNR-00
- Riser card - CRS1060: 9CRS1060NR-00
