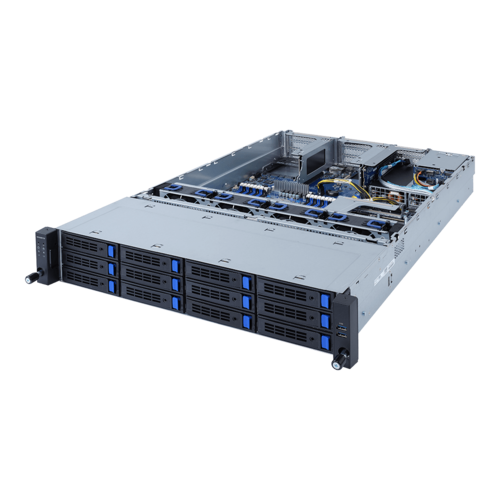

R262-ZA1 (rev. A00)

(rev.100)

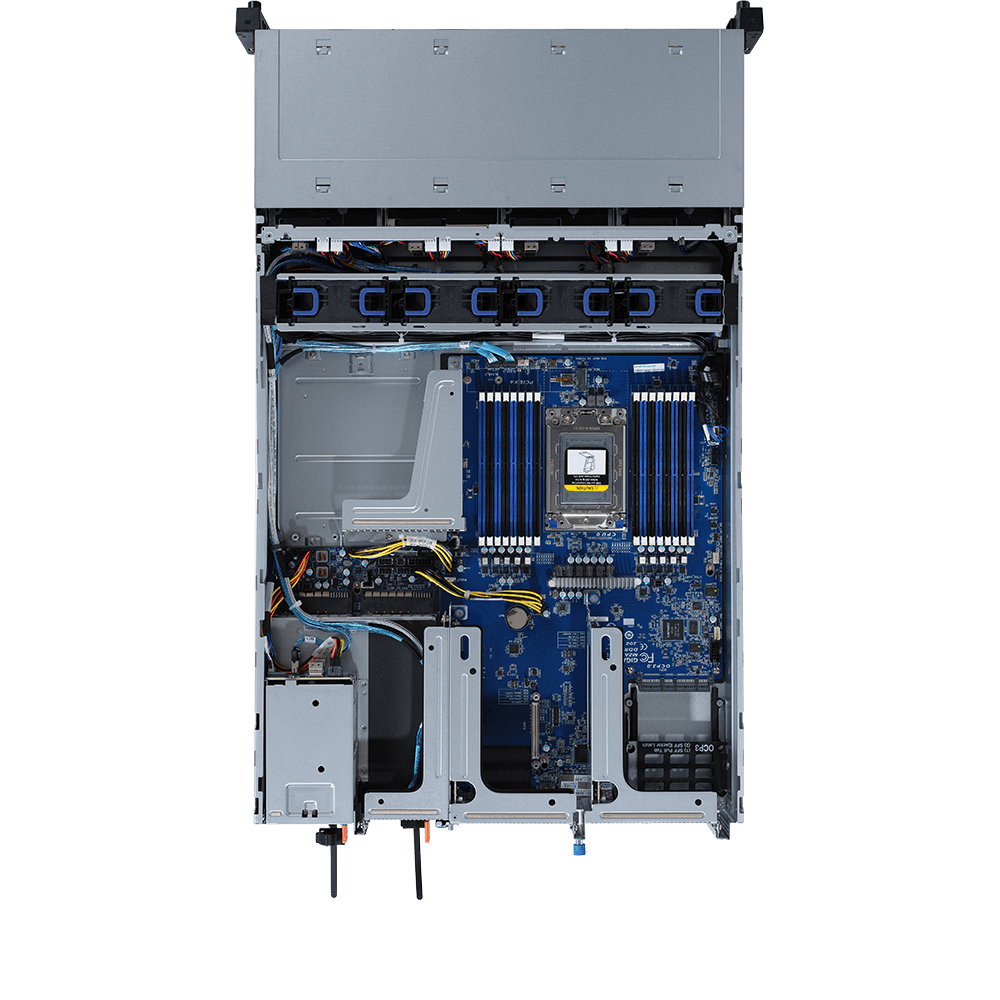

AMD EPYC™ 7003 Server System - 2U 14-Bay | Application: Networking

Application:

Networking

Hardware-level root of trust support
Single AMD EPYC™ 7003 series processor family
8-Channel RDIMM/LRDIMM DDR4, 16 x DIMMs
2 x 1Gb/s LAN ports (Intel^® I350-AM2)
1 x Dedicated management port
12 x 3.5" hot-swappable SSD bays in front side
2 x 2.5" hot-swappable SSD bays in rear side
Ultra-Fast M.2 with PCIe Gen4 x4 interface
Up to 9 x PCIe expansion slots
1 x OCP 3.0 Gen4 x16 mezzanine slot
1 x OCP 2.0 Gen3 x8 mezzanine slot
Dual 1200W 80 PLUS Platinum redundant power supply

Request a Quote

COMPARE

1/4

Select All

Cancel All Download

* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.

SPECIFICATIONS

Dimensions (WxHxD, mm)

2U
438 x 87.5 x 730

Motherboard

MZA2-CE0 Rev. 3.0

CPU

AMD EPYC™ 7003 series processor family
Single processor, 7nm technology
Up to 64-core, 128 threads per processor
cTDP up to 240W

Compatible with AMD EPYC™ 7002 series processor family

Socket

Socket SP3

Chipset

System on Chip

Memory

16 x DIMM slots
DDR4 memory supported only
8-Channel memory architecture
RDIMM modules up to 128GB supported
LRDIMM modules up to 128GB supported
3DS RDIMM/LRDIMM modules up to 256GB supported
Memory speed: Up to 3200*/ 2933 MHz

- Note:
* Follow BIOS setting and memory QVL list if running 3200 Mhz with 2DPC

LAN

2 x 1GbE LAN ports (1 x Intel^® I350-AM2)
1 x 10/100/1000 management LAN

Video

Integrated in Aspeed^® AST2500
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp

Audio

N/A

Storage

Front side:
12 x 3.5" hot-swappable HDD/SSD bays
- * 12 x blue HDD/SSD trays compatible with SATA/SAS devices

Rear side:
2 x 2.5" SATA/SAS hot-swappable HDD/SSD bays

SAS card is required to enable the drive bays

Default configuration supports:
4 x 3.5" SATA/SAS drives in front side
2 x 2.5" SATA/SAS drives in rear side

Recommended 12Gb/s SAS cards:
CRA4448
CRA3338

* NOTE: 8 x blue HDD/SSD trays are enabled by optional SAS Card

SAS

Depends on SAS add-on card

RAID

Depends on SAS add-on card

Peripheral Drives

N/A

Expansion Slots

Riser Card CRS2027:
- 1 x PCIe x8 slot (Gen4 x8), Low profile half-length
- 1 x PCIe x8 slot (Gen4 x8), Low profile half-length

Riser Card CRS2225:
- 1 x PCIe x16 slot (Gen4 x16 or x8), Full height half-length
- 1 x PCIe x8 slot (Gen4 x0 or x8), Full height half-length
- 1 x PCIe x16 slot (Gen4 x16), Full height half-length

Riser Card CRS2225:
- 1 x PCIe x16 slot (Gen4 x16 or x8), Full height half-length
- 1 x PCIe x8 slot (Gen4 x0 or x8), Full height half-length
- 1 x PCIe x16 slot (Gen3 x16 or x8, shared with OCP2.0 mezzanine slot), Full height half-length

Internal Riser Card CRS101H:
- 1 x PCIe x16 slot (Gen4 x16), Full height half-length

1 x OCP 3.0 mezzanine slot with PCIe Gen4 x16 bandwidth

1 x OCP 2.0 mezzanine slot with PCIe Gen3 x0 or x8 bandwidth, shared with CRS2225

1 x M.2 slot:
- M-key
- PCIe Gen4 x4
- Supports NGFF-2280/22110 cards

Internal I/O

1 x M.2 slot
1 x USB 3.0 header
1 x COM header
1 x TPM header
1 x OCP 3.0 mezzanine slot
1 x OCP 2.0 mezzanine slot
1 x Front panel header
1 x HDD back plane board header
1 x PMBus connector
1 x IPMB connector
1 x Clear CMOS jumper
1 x BIOS recovery jumper

Front I/O

2 x USB 3.0
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
2 x LAN activity LEDs
1 x HDD activity LED
1 x System status LED

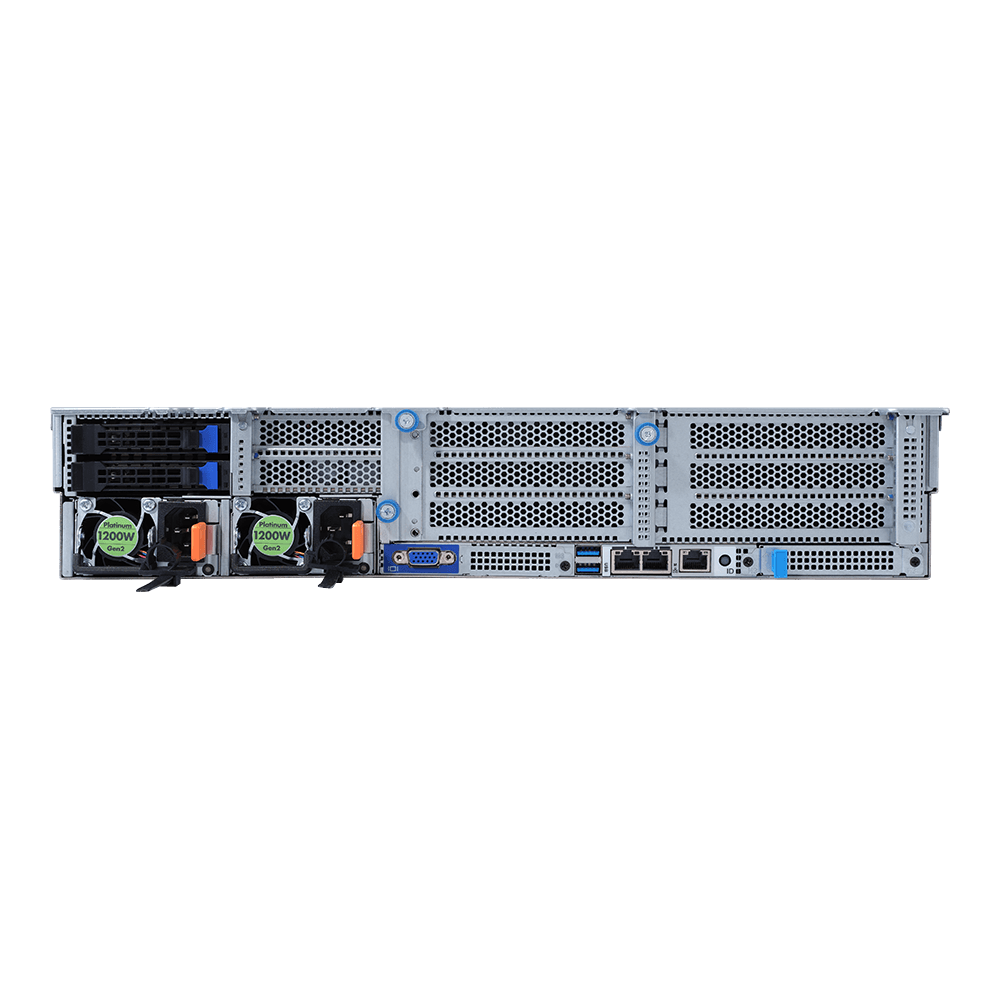

Rear I/O

2 x USB 3.0
1 x VGA
2 x RJ45
1 x MLAN
1 x ID button with LED

Backplane I/O

Front side_CBP20C5: 12 x SATA/SAS ports
Rear side_CBP2022: 2 x SATA/SAS ports

Speed and bandwidth:
SAS 12Gb/s, SATA 6Gb/s

TPM

1 x TPM header with SPI interface
Optional TPM2.0 kit: CTM010

Power Supply

2 x 1200W redundant PSUs
80 PLUS Platinum

AC Input:
- 100-240V~/ 12-7A, 50-60Hz
DC Input:
- 240Vdc/ 6A

DC Output:
- Max 1000W/ 100-240V~
+12V/ 80.5A
+12Vsb/ 3A
- Max 1200W/ 200-240V~ or 240Vdc input
+12V/ 97A
+12Vsb/ 3A

System Management

Aspeed^® AST2500 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface

Dashboard
JAVA Based Serial Over LAN
HTML5 KVM
Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
Sensor Reading History Data
FRU Information
SEL Log in Linear Storage / Circular Storage Policy
Hardware Inventory
Fan Profile
System Firewall
Power Consumption
Power Control
LDAP / AD / RADIUS Support
Backup & Restore Configuration
Remote BIOS/BMC/CPLD Update
Event Log Filter
User Management
Media Redirection Settings
PAM Order Settings
SSL Settings
SMTP Settings

OS Compatibility

Windows Server 2016 ( X2APIC/256T not supported)
Windows Server 2019

Red Hat Enterprise Linux 8.3 ( x64) or later

SUSE Linux Enterprise Server 12 SP5 ( x64) or later
SUSE Linux Enterprise Server 15 SP2 ( x64) or later

Ubuntu 18.04.5 LTS (x64) or later
Ubuntu 20.04 LTS (x64) or later

VMware ESXi 6.7 Update3 P03 or later
VMware ESXi 7.0 Update1 or later

Citrix Hypervisor 8.2.0 or later

System Fans

4 x 80x80x38mm (16,300rpm), 2-ball

Operating Properties

Operating temperature: 10°C to 35°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)

Packaging Dimensions

982 x 588 x 268 mm

Packaging Content

1 x R262-ZA1
1 x CPU heatsink
1 x Rail kit

Part Numbers

Barebone package: 6NR262ZA1MR-00 Rev. A00
Spare parts:
- Motherboard: 9MZA2CE0NR-00
- Rail kit: 25HB2-3A0202-K0R
- CPU heatsink: 25ST1-15320E-J1R
- Front panel board: 9CFP2001NR-00
- Back plane board ( Front): 9CBP20C5NR-00
- Back plane board ( Rear): 9CBP2022NR-00
- Power supply: 25EP0-212008-D0S
- Riser card - CRS2027: 9CRS2027NR-00
- Riser card - CRS2225: 9CRS2225NR-00
- Riser card - CRS101H: 9CRS101HNR-00
