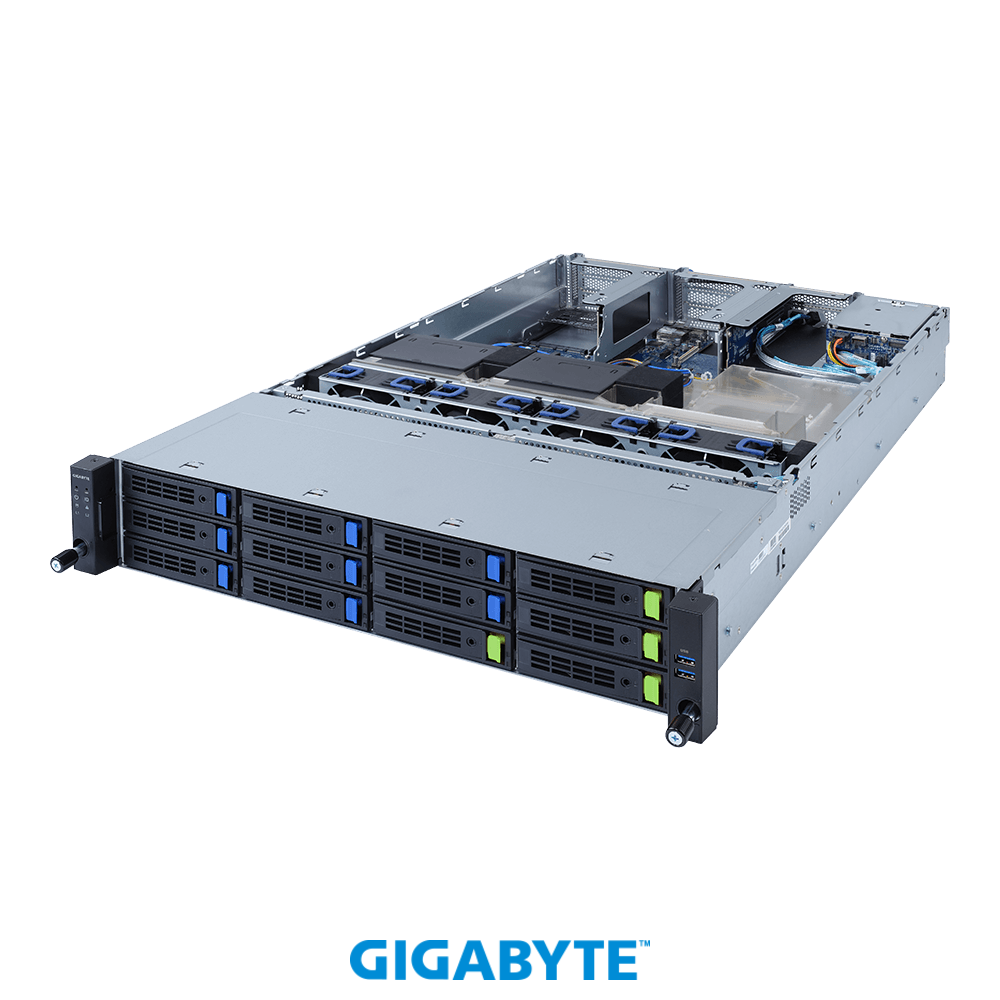

R262-ZA2
(rev. A00)

Rack Server - AMD EPYC™ 7003 - 2U UP 2 x PCIe Gen4 GPUs
  • NVIDIA-Certified System - Data Center Server
  • Hardware-level root of trust support
  • Supports up to 2 x Dual slot Gen4 GPUs
  • AMD EPYC™ 7003 Series processors
  • Single processor, 7nm technology
  • 8-Channel RDIMM/LRDIMM DDR4, 16 x DIMMs
  • 2 x 1Gb/s LAN ports via Intel® I350-AM2
  • 1 x Dedicated management port
  • 4 x 3.5" Gen4 NVMe/SATA/SAS hot-swappable bays
  • 8 x 3.5" SATA/SAS hot-swappable bays (optional)
  • 2 x 2.5" SATA/SAS hot-swappable bays on the rear side
  • 1 x M.2 slot with PCIe Gen4 x4 interface
  • 4 x FHFL PCIe Gen4 x16 and x8 slots
  • 1 x FHHL PCIe Gen4 x16 slot
  • 1 x FHHL PCIe Gen3 x16 or x8 slot
  • 2 x LP PCIe Gen4 x8 slots
  • 1 x OCP 3.0 Gen4 x16 slot
  • 1 x OCP 2.0 Gen3 x8 mezzanine slot
  • 1+1 1600W 80 PLUS Platinum redundant power supplies (-A00)
  • 1+1 1600W 80 PLUS Titanium redundant power supplies (-AT0)
Get a Quote
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.

SPECIFICATIONS

Dimensions (WxHxD, mm)
2U
438 x 87.5 x 730
Motherboard
MZA2-CE0 Rev. 3.0
CPU
AMD EPYC™ 7003 Series processors
Single processor, 7nm technology
Up to 64 cores, 128 threads
cTDP up to 240W

Compatible with AMD EPYC™ 7002 Series processors
Socket
1 x LGA 4094
Socket SP3
Chipset
System on Chip
Memory
16 x DIMM slots
DDR4 memory supported only
8-Channel memory architecture
RDIMM modules up to 128GB supported
LRDIMM modules up to 128GB supported
3DS RDIMM/LRDIMM modules up to 256GB supported
Memory speed: Up to 3200*/2933 MT/s

*Follow BIOS setting and memory QVL if running 3200 MT/s with 2DPC.
LAN
Rear side:
2 x 1GbE LAN ports (1 x Intel® I350-AM2)
Support NCSI function

1 x 10/100/1000 Mbps Management LAN
Video
Integrated in Aspeed® AST2500
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp
Storage
Front side:
4 x Gen4 NVMe/SATA/SAS hot-swappable trays
8 x SATA/SAS hot-swappable trays, enabled by optional SAS cards

Rear side:
2 x 2.5" SATA/SAS hot-swappable bays

SAS card is required to enable the drive bays

Default configuration supports:
4 x 3.5"/2.5" Gen4 NVMe/SATA/SAS drives on the front side
2 x 2.5" SATA/SAS drives on the rear side

Recommended 12Gb/s SAS cards:
CRA4448
CRA3338
SAS
Supported
RAID
Depends on SAS add-in cards
Expansion Slots
Riser Card CRS2027:
- 2 x PCIe x8 (Gen4 x8) low-profile slots

Riser Card CRS2225 x 2:
- 2 x PCIe x16 (Gen4 x16 or x8) FHFL slots, for GPUs
- 2 x PCIe x8 (Gen4 x0 or x8) FHFL slots
- 1 x PCIe x16 (Gen4 x16) FHHL slot
- 1 x PCIe x16 (Gen3 x16 or x8) FHHL slot, shared with OCP2.0 mezzanine slot

Internal Riser Card CRS101H:
- 1 x PCIe x16 (Gen4 x16) FHHL slot, occupied by CNV3134, 4-port NVMe card

1 x OCP 3.0 slot with PCIe Gen4 x16 bandwidth

1 x OCP 2.0 mezzanine slot with PCIe Gen3 x0 or x8 bandwidth, shared with CRS2225

1 x M.2 slot:
- M-key
- PCIe Gen4 x4
- Supports 2280/22110 cards

- Maximum limitation of GPU card: 296mm (L) x 111.5mm (W) x 39.5mm (H).
Internal I/O
1 x USB 3.0 header
1 x COM header
1 x TPM header
1 x Front panel header
1 x Backplane board header
1 x PMBus connector
1 x IPMB connector
1 x Clear CMOS jumper
1 x BIOS recovery jumper
Front I/O
2 x USB 3.0
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
2 x LAN activity LEDs
1 x Storage activity LED
1 x System status LED

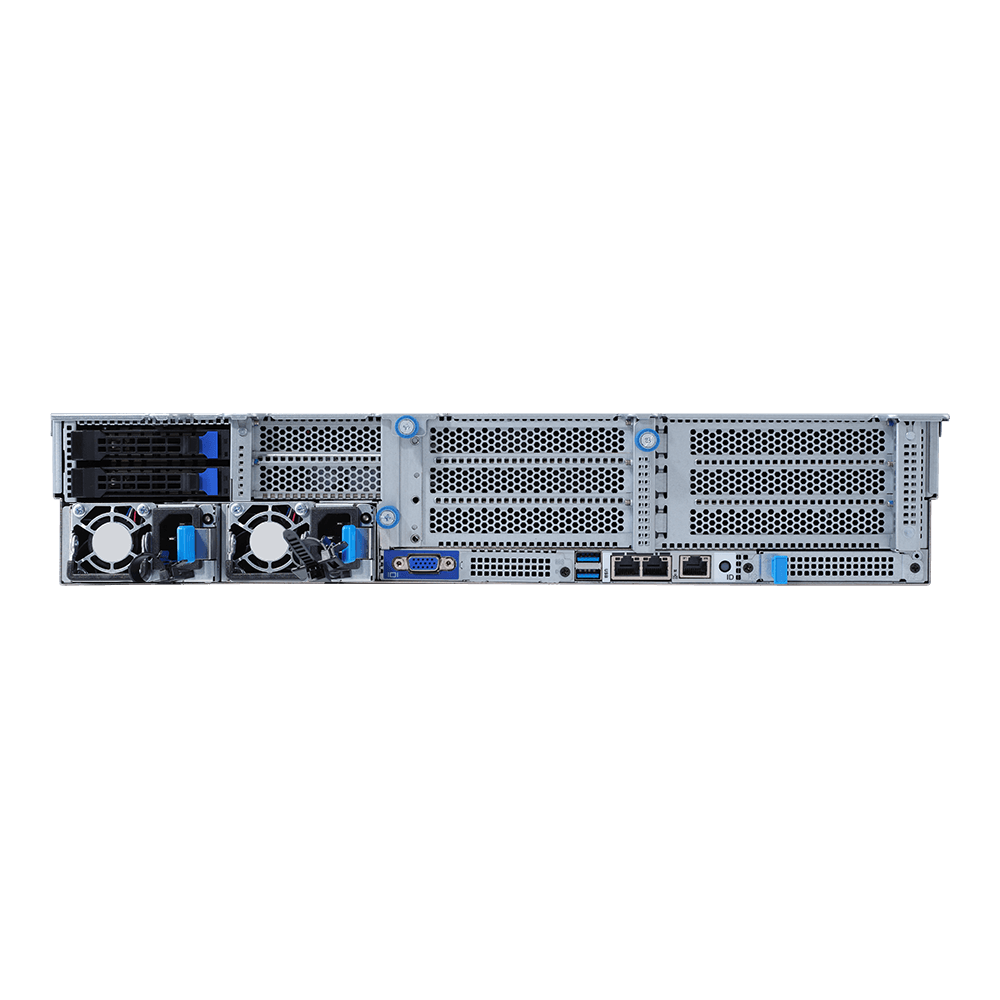

Rear I/O
2 x USB 3.0
1 x VGA
2 x RJ45
1 x MLAN
1 x ID button with LED
Backplane Board
Speed and bandwidth:
Front side - CBP20C5: PCIe Gen4 x4 or SATA 6Gb/s or SAS 12Gb/s
Rear side - CBP2022: SATA 6Gb/s or SAS 12Gb/s
TPM
1 x TPM header with SPI interface
Optional TPM2.0 kit: CTM010
Power Supply
1+1 1600W 80 PLUS Platinum redundant power supplies (-A00)

AC Input:
- 100-120V~/ 12A, 50/60Hz
- 200-240V~/ 10A, 50/60Hz

DC Input: (Only for China)
- 240Vdc/ 10A

DC Output:
- Max 1000W/ 100-120V~
+12V/ 81.5A
+12Vsb/ 2.5A
- Max 1600W/ 200-240V~ or 240Vdc Input
+12V/ 133A
+12Vsb/ 2.5A

1+1 1600W 80 PLUS Titanium redundant power supplies (-AT0)

AC Input:
- 100-240V~/ 12-9.5A, 50/60Hz

DC Input: (Only for China)
- 240Vdc/ 9.5A

DC Output:
- Max 1000W/ 100-127V~
+12.2V/ 82A
+12Vsb/ 3A
- Max 1600W/ 200-240V~ or 240Vdc Input
+12.2V/ 131.2A
+12Vsb/ 3A
System Management
Aspeed® AST2500 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface

  • Dashboard
  • JAVA Based Serial Over LAN
  • HTML5 KVM
  • Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
  • Sensor Reading History Data
  • FRU Information
  • SEL Log in Linear Storage / Circular Storage Policy
  • Hardware Inventory
  • Fan Profile
  • System Firewall
  • Power Consumption
  • Power Control
  • LDAP / AD / RADIUS Support
  • Backup & Restore Configuration
  • Remote BIOS/BMC/CPLD Update
  • Event Log Filter
  • User Management
  • Media Redirection Settings
  • PAM Order Settings
  • SSL Settings
  • SMTP Settings
OS Compatibility
Windows Server 2016 (X2APIC/256T not supported)
Windows Server 2019
Windows Server 2022

Red Hat Enterprise Linux 8.3 or later
Red Hat Enterprise Linux 9.0 or later

SUSE Linux Enterprise Server 12 SP5 or later
SUSE Linux Enterprise Server 15 SP2 or later

Ubuntu 18.04.5 LTS or later
Ubuntu 20.04 LTS or later
Ubuntu 22.04 LTS or later

VMware ESXi 6.7 Update3 P03 or later
VMware ESXi 7.0 Update1 or later
VMware ESXi 8.0 or later

Citrix Hypervisor 8.2.0 or later
System Fans
4 x 80x80x38mm (16,300rpm), 2-ball
Operating Properties
Operating temperature: 10°C to 35°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Weight
Net Weight: 17.8 kg
Packaging Dimensions
982 x 588 x 268 mm
Packaging Content
1 x R262-ZA2
1 x CPU heatsink
1 x GPU power cable (8pin to 2*8pin, 350mm)
1 x GPU power cable (8pin to 2*8pin, 480mm)
1 x 2-Section Rail kit
Part Numbers
- Barebone package: 6NR262ZA2MR-00-A*
- Motherboard: 9MZA2CE0NR-00
- 2-Section Rail kit (CMA not supported): 25HB2-3A0202-K0R
- CPU heatsink: 25ST1-443107-A3R
- Front panel board - CFP2001: 9CFP2001NR-00
- Backplane board (Front) - CBP20C5: 9CBP20C5NR-00
- Backplane board (Rear) - CBP2022: 9CBP2022NR-00
- Fan module: 25ST2-883829-D0R
- Riser card - CRS2027: 9CRS2027NR-00
- Riser card - CRS2225: 9CRS2225NR-00
- Riser card - CRS101H: 9CRS101HNR-00
- 4-port NVMe card - CNV3134: 9CNV3134NR-00
- GPU power cable (2*8pin, 350mm): 25CRI-350305-Y4R
- GPU power cable (2*8pin, 480mm): 25CRI-480300-Y4R
- Power supply (-A00): 25EP0-21600C-L0S
- Power supply (-AT0): 25EP0-21600E-L0S

Optional parts:

- 3-Section Rail kit (Supports CMA): 25HB2-AA6105-K0R
- Cable Management Arm: 25HB1-R18300-K0R
- RMA packaging: 6NR262ZA2SR-RMA-A100
