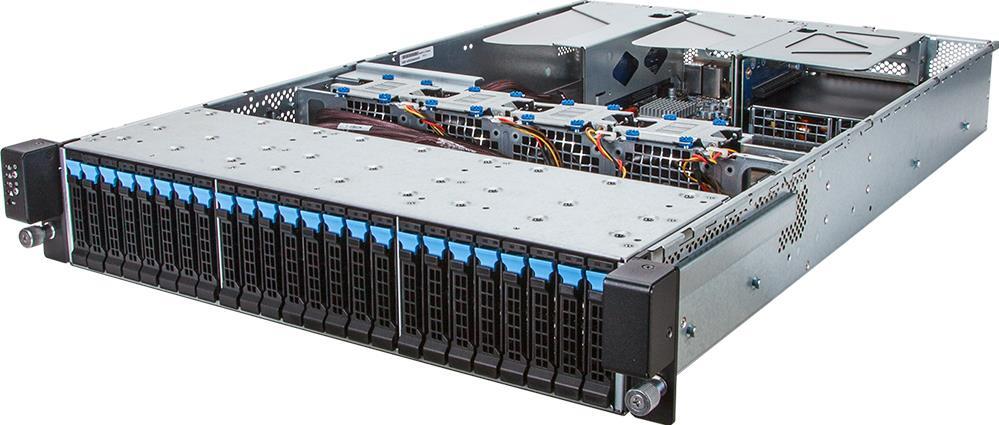

R280-F2OLegacy | Software updates supported

Rev. 172

Dual Socket 2U Rackmount Server

Standard Rackmount Server

Intel^® Xeon^® processor E5-2600 V3 / V4 product family
24 x RDIMM/LRDIMM ECC DIMM slots
24 x 2.5" hot-swappable HDD/SSD bays
LSI SAS2x36 expander
Supports SATA III 6Gb/s connections
2 x GbE LAN ports (Intel^® I350-BT2)
2 x 800W 80 PLUS Platinum 100~220V AC redundant PSUs

Save

Overview
Specifications
Support
Related Resources

Specifications

Dimensions (WxHxD, mm)

2U
430 x 87 x 712.4

Motherboard

MD90-FS0

CPU

Intel^® Xeon^® E5-2600 V3 processors
Intel^® Xeon^® E5-2600 V4 processors

NOTE: If only 1 CPU is installed, some PCIe, memory, network or I/O functions might be unavailable.

Socket

2 x LGA 2011-3
Mounting pitch: square ILM (80x80mm)
Max. length of M4 screw threads: 3.7mm
Screws longer than 3.7mm might damage the motherboard

Chipset

Intel^® C612

Memory

24 x DIMM slots
DDR4 memory supported only
Quad channel memory architecture
RDIMM modules up to 32GB supported
LRDIMM modules up to 64GB supported
3DS LRDIMM modules up to 128GB supported
1.2V modules: 1600/1866/2133/2400 MHz

LAN

2 x GbE LAN ports (Intel^® I350-BT2)
1 x 10/100/1000 management LAN

Video

Integrated in Aspeed^® AST2400
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp

Audio

N/A

Storage

24 x 2.5" hot-swappable HDD/SSD bays

Default configuration supports:
0 x SAS/SATA drives

SAS card required to enable the drives

SATA

2 x Mini-SAS (for 8 x SATA III 6Gb/s ports)
2 x SATA III 6Gb/s ports

SAS

N/A

RAID

N/A

Peripheral Drives

N/A

Expansion Slots

3 x Riser cards:
- 1 x CRS2120
  * 1 x PCI-e x16 slot (Gen3 x16 or x8)
  * 1 x PCI-e x8 slot (Gen3 x0 or x8)
- 1 x CRS2121
  * 1 x PCI-e x8 slot (Gen3 x0 or x8)
  * 1 x PCI-e x16 slot (Gen3 x16 or x8)
- 1 x CRS2140
  * 1 x PCI-e x16 slot (Gen3 x16 or x8)
  * 1 x PCI-e x8 slot (Gen3 x0 or x8)
  * 1 x PCI-e x8 slot (Gen3 x8 or x4)
  * 1 x PCIe x8 slot (Gen3 x0 or x4)

1 x PCIe mezzanine type H (Gen3 x8 bus) slot

Internal I/O

1 x 14-pin ATX main power connector
3 x 8-pin ATX 12V power connectors
3 x 4-pin ATX 12V power connectors
2 x Mini-SAS ports
2 x SATA III 6Gb/s ports
2 x CPU fan headers
5 x System fan headers
1 x USB 3.0 header
1 x Front panel header
1 x HDD back plane board header
1 x Chassis intrusion header
1 x PLD header
1 x TPM header
1 x JTAG header
1 x ME update jumper
1 x ME recovery jumper
1 x Clear CMOS jumper
1 x S3 mask jumper
1 x BMC RFB jumper
1 x IPMB connector

Front I/O

1 x Power button with LED
1 x ID button with LED
2 x LAN activity LEDs
1 x HDD activity LED
1 x System status LED
1 x Reset button

Rear I/O

2 x USB 3.0
2 x USB 2.0
3 x RJ45
1 x VGA
1 x Serial
1 x ID button with LED

Backplane Board

24 x SAS/SATA ports
LSI SAS2x36 expander

TPM

1 x TPM header

Power Supply^[#1]

2 x 800W redundant PSUs
80 PLUS Platinum
100~220V AC

System Management

Aspeed^® AST2400 management controller
Avocent^® MergePoint IPMI 2.0 web interface:

Network settings
Network security settings
Users control
Services settings
IPMI settings
Sessions control
LDAP settings
Power control
Voltages, fans and temperatures monitoring
System event log
Events management (platform events, trap settings, email settings)
Serial Over LAN
vKVM & vMedia (launch, configuration)

OS Compatibility

Windows Server 2008 R2 (x64)
Windows Server 2012 (x64)
Windows Server 2012 R2 (x64)
Windows Server 2016

Red Hat Enterprise Linux 6.7 (x86/x64)
Red Hat Enterprise Linux 7.2 (x64)

SUSE Linux Enterprise Server 11.4 (x86/x64)
SUSE Linux Enterprise Server 12 (x64)

Ubuntu 12.04 LTS (x86/x64)
Ubuntu 14.04 LTS (x86/x64)

VMware vSphere ESXi 5.1 U2
VMware vSphere ESXi 5.5 U2
VMware vSphere ESXi 6.0 U1
VMware vSphere ESXi 6.5

System Fans

4 x 80x80x38mm (14'900rpm)

Operating Properties

Operating temperature: 10°C to 35°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)

Weight

18 kg

Packaging Dimensions

982 x 588 x 268 mm

Packaging Content

1 x R280-F2O
1 x driver CD
2 x CPU heatsinks
1 x Rail kit

Part Numbers

Barebone package: 6NR280F2OMR-00
Spare parts:
- Rail kit: 25HB2-086300-I0R
- CPU heatsink: 25ST1-353200-T4R
- Back plane board: 9CBS2FN2NS-00
- Expander board: 9CBX2FN2NS-00
- Power supply: 25EP0-208000-D0S
- Riser card - CRS2140: 9CRS2140NR-00
- Riser card - CRS2120: 9CRS2120NR-00
- Riser card - CRS2121: 9CRS2121NR-00

[#1] Power cords are not included with server packages. Customers are responsible for selecting appropriate power cords from the optional accessories or contacting sales for customization.

[#2] All materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at any time without prior notice.

[#3] Advertised performance is based on maximum theoretical interface values as specified by the respective chipset vendors or standards organizations. Actual performance may vary depending on system configuration.

[#4] All trademarks and logos are the property of their respective owners.
