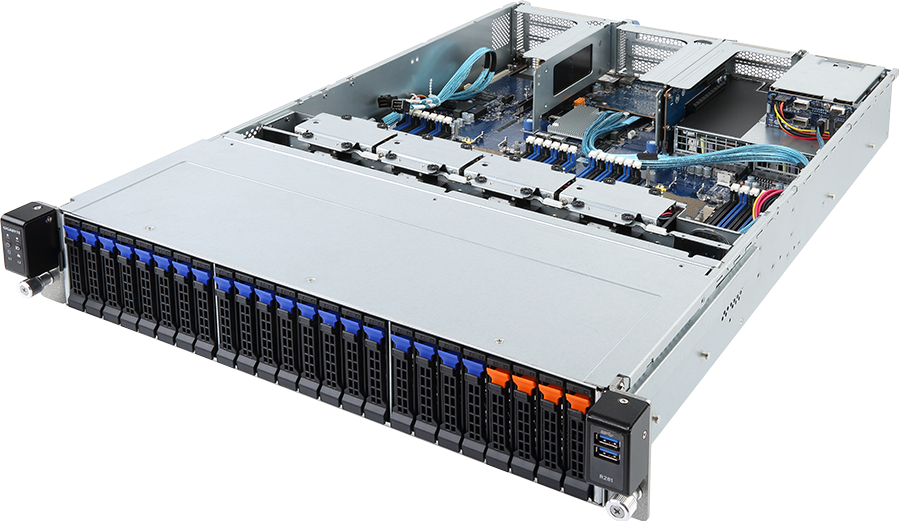

R281-N40 (rev. 400)
Intel® C621 Chipset
| Application:
Networking
Application:
- 2nd Gen Intel® Xeon® Scalable and Intel® Xeon® Scalable Processors
- Dual processor, LGA 3647
- 6-Channel RDIMM/LRDIMM DDR4, 24 x DIMMs
- Supports Intel® Optane™ DC Persistent Memory
- Dual 1Gb/s LAN port (Intel® I350-AM2)
- 1 x Dedicated management port
- Onboard 12Gb/s SAS expander
- 4 x 2.5" NVMe/SATA hot-swappable bays
- 20 x 2.5" SATA/SAS hot-swappable bays
- 2 x 2.5" SATA/SAS hot-swappable bays on rear side
- 6 x FHHL PCIe Gen3 x16 and x8 slots
- 2 x LP PCIe Gen3 x16 and x8 slots
- 1 x OCP Gen3 x16 mezzanine slot
- Aspeed® AST2500 remote management controller
- Dual 1200W 80 PLUS Platinum redundant power supply
Request a Quote
1/4
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
SPECIFICATIONS
Dimensions (WxHxD, mm)
2U
438 x 87.5 x 730
438 x 87.5 x 730
Motherboard
MR91-FS0
CPU
2nd Generation Intel® Xeon® Scalable and Intel® Xeon® Scalable Processors
Intel® Xeon® Platinum Processor, Intel® Xeon® Gold Processor, Intel® Xeon® Silver Processor and Intel® Xeon® Bronze Processor
Dual processor, TDP up to 205W
NOTE: If only 1 CPU is installed, some PCIe or memory functions might be unavailable
Intel® Xeon® Platinum Processor, Intel® Xeon® Gold Processor, Intel® Xeon® Silver Processor and Intel® Xeon® Bronze Processor
Dual processor, TDP up to 205W
NOTE: If only 1 CPU is installed, some PCIe or memory functions might be unavailable
Socket
2 x LGA 3647
Socket P
Socket P
Chipset
Intel® C621 Chipset
Memory
24 x DIMM slots
DDR4 memory supported only
6-channel memory architecture
RDIMM modules up to 64GB supported
LRDIMM modules up to 128GB supported
Supports Intel® Optane™ DC Persistent Memory (DCPMM)
1.2V modules: 2933/2666/2400/2133 MHz
Maximum verified DCPMM configuration:
* Ambient temperature 35°C
* 2nd Generation Intel® Xeon® Scalable processor 205W (Max.)
* DCPMM 256GB x12 pcs
DCPMM installation locations:
DIMM_P0_(A1, B1, C1)
DIMM_P0_(D1, E1, F1)
DIMM_P1_(G1, H1, I1)
DIMM_P1_(J1, K1, L1)
NOTE:
1. 2933MHz for 2nd Generation Intel® Xeon® Scalable Processors only
2. Intel® Optane™ DC Persistent Memory for 2nd Generation Intel® Xeon® Scalable Processors only
3. The maximum number of DCPMM that can be installed is based on a maximum operating (ambient) temperature of 35°C
4. To enquire about installing a greater number of DCPMM, please consult with your GIGABYTE technical or sales representative
DDR4 memory supported only
6-channel memory architecture
RDIMM modules up to 64GB supported
LRDIMM modules up to 128GB supported
Supports Intel® Optane™ DC Persistent Memory (DCPMM)
1.2V modules: 2933/2666/2400/2133 MHz
Maximum verified DCPMM configuration:
* Ambient temperature 35°C
* 2nd Generation Intel® Xeon® Scalable processor 205W (Max.)
* DCPMM 256GB x12 pcs
DCPMM installation locations:
DIMM_P0_(A1, B1, C1)
DIMM_P0_(D1, E1, F1)
DIMM_P1_(G1, H1, I1)
DIMM_P1_(J1, K1, L1)
NOTE:
1. 2933MHz for 2nd Generation Intel® Xeon® Scalable Processors only
2. Intel® Optane™ DC Persistent Memory for 2nd Generation Intel® Xeon® Scalable Processors only
3. The maximum number of DCPMM that can be installed is based on a maximum operating (ambient) temperature of 35°C
4. To enquire about installing a greater number of DCPMM, please consult with your GIGABYTE technical or sales representative
LAN
Rear side:
2 x 1Gb/s LAN ports (Intel® I350-AM2)
1 x 10/100/1000 management LAN
2 x 1Gb/s LAN ports (Intel® I350-AM2)
1 x 10/100/1000 management LAN
Video
Integrated in Aspeed® AST2500
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp, DDR4 SDRAM
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp, DDR4 SDRAM
Storage
Front side:
4 x 2.5" NVMe/SATA/SAS hot-swappable bays, NVMe from CPU_1
20 x 2.5" SATA/SAS hot-swappable bays
Rear side:
2 x 2.5" SATA/SAS hot-swappable bays
LSI SAS35x36 expander
Bandwidth: SATAIII 6Gb/s or SAS 12Gb/s per port
Default configuration supports:
4 x NVMe, 0 x SAS/SATA drives
SAS card is required to enable the drives
4 x 2.5" NVMe/SATA/SAS hot-swappable bays, NVMe from CPU_1
20 x 2.5" SATA/SAS hot-swappable bays
Rear side:
2 x 2.5" SATA/SAS hot-swappable bays
LSI SAS35x36 expander
Bandwidth: SATAIII 6Gb/s or SAS 12Gb/s per port
Default configuration supports:
4 x NVMe, 0 x SAS/SATA drives
SAS card is required to enable the drives
SATA
2 x 7-pin SATA III 6Gb/s with SATA DOM supported
By using pin_8 or external cable for power function
By using pin_8 or external cable for power function
SAS
Supported via add-on SAS Card
RAID
For SATA/SAS drives:
Depends on RAID card
For NVMe drives:
Intel® Virtual RAID On CPU (VROC) RAID 0/1/5
Note: VROC module is compatible for Intel®SSD only
Depends on RAID card
For NVMe drives:
Intel® Virtual RAID On CPU (VROC) RAID 0/1/5
Note: VROC module is compatible for Intel®SSD only
Expansion Slots
Riser Card CRS2131:
- 1 x PCIe x16 (Gen3 x16 or x8) FHHL slot, from CPU_0
- 1 x PCIe x8 (Gen3 x0 or x8) FHHL slot, from CPU_0
- 1 x PCIe x8 (Gen3 x8) FHHL slot, from CPU_0
Riser Card CRS2132:
- 1 x PCIe x16 (Gen3 x16 or x8) FHHL slot, from CPU_1
- 1 x PCIe x8 (Gen3 x0 or x8) FHHL slot, from CPU_1
- 1 x PCIe x8 (Gen3 x8) FHHL slot, from CPU_0
Riser Card CRS2124:
- 1 x PCIe x8 (Gen3 x0 or x8) low-profile slot, from CPU_1
- 1 x PCIe x16 (Gen3 x16 or x8) low-profile slot, from CPU_1
1 x OCP mezzanine slot with PCIe Gen3 x16 bandwidth (Type1, P1, P2, P3, P4, K2, K3), from CPU_0
1 x OCP mezzanine slot with PCIe Gen3 x16 bandwidth (Type1, P1, P2, P3, P4, K2, K3), from CPU_0, occupied by CNVO124 - 4 x NVMe mezzanine card
- 1 x PCIe x16 (Gen3 x16 or x8) FHHL slot, from CPU_0
- 1 x PCIe x8 (Gen3 x0 or x8) FHHL slot, from CPU_0
- 1 x PCIe x8 (Gen3 x8) FHHL slot, from CPU_0
Riser Card CRS2132:
- 1 x PCIe x16 (Gen3 x16 or x8) FHHL slot, from CPU_1
- 1 x PCIe x8 (Gen3 x0 or x8) FHHL slot, from CPU_1
- 1 x PCIe x8 (Gen3 x8) FHHL slot, from CPU_0
Riser Card CRS2124:
- 1 x PCIe x8 (Gen3 x0 or x8) low-profile slot, from CPU_1
- 1 x PCIe x16 (Gen3 x16 or x8) low-profile slot, from CPU_1
1 x OCP mezzanine slot with PCIe Gen3 x16 bandwidth (Type1, P1, P2, P3, P4, K2, K3), from CPU_0
1 x OCP mezzanine slot with PCIe Gen3 x16 bandwidth (Type1, P1, P2, P3, P4, K2, K3), from CPU_0, occupied by CNVO124 - 4 x NVMe mezzanine card
Internal I/O
2 x Power supply connectors
4 x SlimSAS connectors
2 x SATA 7-pin connectors
2 x CPU fan headers
1 x USB 3.0 header
1 x TPM header
1 x VROC connector
1 x Front panel header
1 x Backplane board header
1 x IPMB connector
1 x Clear CMOS jumper
1 x BIOS recovery jumper
4 x SlimSAS connectors
2 x SATA 7-pin connectors
2 x CPU fan headers
1 x USB 3.0 header
1 x TPM header
1 x VROC connector
1 x Front panel header
1 x Backplane board header
1 x IPMB connector
1 x Clear CMOS jumper
1 x BIOS recovery jumper
Front I/O
2 x USB 3.0
1 x Power button with LED
1 x ID button with LED
1 x Reset button
1 x NMI button
1 x System status LED
1 x HDD activity LED
2 x LAN activity LEDs
1 x Power button with LED
1 x ID button with LED
1 x Reset button
1 x NMI button
1 x System status LED
1 x HDD activity LED
2 x LAN activity LEDs
Rear I/O
2 x USB 3.0
1 x VGA
1 x COM (RJ45)
2 x RJ45
1 x MLAN
1 x ID button with LED
1 x VGA
1 x COM (RJ45)
2 x RJ45
1 x MLAN
1 x ID button with LED
Backplane I/O
Speed and bandwidth:
Front side - CBP20O2: PCIe Gen3 x4
Rear side - CBP2020: SATAIII 6Gb/s or SAS 12Gb/s
Front side - CBP20O2: PCIe Gen3 x4
Rear side - CBP2020: SATAIII 6Gb/s or SAS 12Gb/s
TPM
1 x TPM header with LPC interface
Optional TPM2.0 kit: CTM000
Optional TPM2.0 kit: CTM000
Power Supply
2 x 1200W 80 PLUS Platinum redundant power supplies
AC Input:
- 100-240V~/ 12-7A, 50-60Hz
DC Input: - 240Vdc/ 6A DC Output: - Max 1000W/ 100-240V~ + 12V/ 80.5A + 12Vsb/ 3A - Max 1200W/ 200-240V~ or 240Vdc Input + 12V/ 97A + 12Vsb/ 3A
DC Input: - 240Vdc/ 6A DC Output: - Max 1000W/ 100-240V~ + 12V/ 80.5A + 12Vsb/ 3A - Max 1200W/ 200-240V~ or 240Vdc Input + 12V/ 97A + 12Vsb/ 3A
System Management
Aspeed® AST2500 management controller
Avocent® MergePoint IPMI 2.0 web interface:
Avocent® MergePoint IPMI 2.0 web interface:
- Network settings
- Network security settings
- Hardware information
- Users control
- Services settings
- IPMI settings
- Sessions control
- LDAP settings
- Power control
- Fan profiles
- Voltages, fans and temperatures monitoring
- System event log
- Events management (platform events, trap settings, email settings)
- Serial Over LAN
- vKVM & vMedia (HTML5)
OS Compatibility
For Skylake processors:
Windows Server 2012 R2 with Update
Windows Server 2016
Windows Server 2019
Red Hat Enterprise Linux 6.9 (x64) or later
Red Hat Enterprise Linux 7.3 (x64) or later
Red Hat Enterprise Linux 8.0 (x64) or later
Red Hat Enterprise Linux 9.0 (x64) or later
SUSE Linux Enterprise Server 11 SP4 (x64) or later
SUSE Linux Enterprise Server 12 SP2 (x64) or later
SUSE Linux Enterprise Server 15 (x64) or later
Ubuntu 16.04.1 LTS (x64) or later
Ubuntu 18.04 LTS (x64) or later
Ubuntu 20.04 LTS (x64) or later
VMware ESXi 6.0 Update3 or later
VMware ESXi 6.5 or later
VMware ESXi 6.7 or later
VMware ESXi 7.0 or later
VMware ESXi 8.0 or later
Citrix Xenserver 7.1.0 CU2 or later
Citrix Xenserver 7.4.0 or later
Citrix Hypervisor 8.0.0 or later
For Cascade Lake processors:
Windows Server 2012 R2 with Update
Windows Server 2016
Windows Server 2019
Red Hat Enterprise Linux 7.6 (x64) or later
Red Hat Enterprise Linux 8.0 (x64) or later
Red Hat Enterprise Linux 9.0 (x64) or later
SUSE Linux Enterprise Server 12 SP3 (x64) or later
SUSE Linux Enterprise Server 15 (x64) or later
Ubuntu 18.04 LTS (x64) or later
Ubuntu 20.04 LTS (x64) or later
Ubuntu 22.04 LTS (x64) or later
VMware ESXi 6.0 Update3 or later
VMware ESXi 6.5 Update2 or later
VMware ESXi 6.7 Update1 or later
VMware ESXi 7.0 or later
VMware ESXi 8.0 or later
Citrix Xenserver 7.1.0 CU2 or later
Citrix Xenserver 7.5.0 or later
Citrix Hypervisor 8.0.0 or later
Windows Server 2012 R2 with Update
Windows Server 2016
Windows Server 2019
Red Hat Enterprise Linux 6.9 (x64) or later
Red Hat Enterprise Linux 7.3 (x64) or later
Red Hat Enterprise Linux 8.0 (x64) or later
Red Hat Enterprise Linux 9.0 (x64) or later
SUSE Linux Enterprise Server 11 SP4 (x64) or later
SUSE Linux Enterprise Server 12 SP2 (x64) or later
SUSE Linux Enterprise Server 15 (x64) or later
Ubuntu 16.04.1 LTS (x64) or later
Ubuntu 18.04 LTS (x64) or later
Ubuntu 20.04 LTS (x64) or later
VMware ESXi 6.0 Update3 or later
VMware ESXi 6.5 or later
VMware ESXi 6.7 or later
VMware ESXi 7.0 or later
VMware ESXi 8.0 or later
Citrix Xenserver 7.1.0 CU2 or later
Citrix Xenserver 7.4.0 or later
Citrix Hypervisor 8.0.0 or later
For Cascade Lake processors:
Windows Server 2012 R2 with Update
Windows Server 2016
Windows Server 2019
Red Hat Enterprise Linux 7.6 (x64) or later
Red Hat Enterprise Linux 8.0 (x64) or later
Red Hat Enterprise Linux 9.0 (x64) or later
SUSE Linux Enterprise Server 12 SP3 (x64) or later
SUSE Linux Enterprise Server 15 (x64) or later
Ubuntu 18.04 LTS (x64) or later
Ubuntu 20.04 LTS (x64) or later
Ubuntu 22.04 LTS (x64) or later
VMware ESXi 6.0 Update3 or later
VMware ESXi 6.5 Update2 or later
VMware ESXi 6.7 Update1 or later
VMware ESXi 7.0 or later
VMware ESXi 8.0 or later
Citrix Xenserver 7.1.0 CU2 or later
Citrix Xenserver 7.5.0 or later
Citrix Hypervisor 8.0.0 or later
Weight
20 kg
System Fans
4 x 80x80x38mm (16,300rpm)
Operating Properties
Operating temperature: 10°C to 35°C
Operating humidity: 8-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Operating humidity: 8-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Packaging Dimensions
982 x 588 x 268 mm
Packaging Content
1 x R281-N40
2 x CPU heatsinks
1 x Rail kit
1 x VROC module
2 x Non-fabric CPU carriers
2 x CPU heatsinks
1 x Rail kit
1 x VROC module
2 x Non-fabric CPU carriers
Part Numbers
- Barebone package: 6NR281N40MR-00-4*
- Motherboard: 9MR91FS0NR-00
- VROC module: 25FD0-R181N0-10R
- Rail kit: 25HB2-3A0202-K0R - CPU heatsink: 25ST1-353105-T1R - Non-fabric CPU carrier: 12KRC-0F3647-50R
- Front panel board - CFP2001: 9CFP2001NR-00
- Backplane board - CBP20O2: 9CBP20O2NR-00 - Backplane board - CBP2020: 9CBP2020NR-00 - Fan module: 25ST2-883829-D0R
- Riser card - CRS2131: 9CRS2131NR-00 - Riser card - CRS2132: 9CRS2132NR-00 - Riser card - CRS2124: 9CRS2124NR-00
- NVMe card - CNV0124: 9CNVO124NR-00
- Mezzanine card - CEPM080: 9CEPM080NR-00
- Power supply: 25EP0-212002-F3S - RJ45 type COM cable: 25CR0-200400-Y4R (optional)
- SAS Expander module: 9CEP26O0NR-00
- VROC module: 25FD0-R181N0-10R
- Rail kit: 25HB2-3A0202-K0R - CPU heatsink: 25ST1-353105-T1R - Non-fabric CPU carrier: 12KRC-0F3647-50R
- Front panel board - CFP2001: 9CFP2001NR-00
- Backplane board - CBP20O2: 9CBP20O2NR-00 - Backplane board - CBP2020: 9CBP2020NR-00 - Fan module: 25ST2-883829-D0R
- Riser card - CRS2131: 9CRS2131NR-00 - Riser card - CRS2132: 9CRS2132NR-00 - Riser card - CRS2124: 9CRS2124NR-00
- NVMe card - CNV0124: 9CNVO124NR-00
- Mezzanine card - CEPM080: 9CEPM080NR-00
- Power supply: 25EP0-212002-F3S - RJ45 type COM cable: 25CR0-200400-Y4R (optional)
- SAS Expander module: 9CEP26O0NR-00
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
SUPPORT
Driver
BIOS
Utility
Firmware
- All
- All
- Windows Server 2019
- Windows Server 2016 64bit
- Windows Server 2012 R2 64bit
- Linux
Chipset
Chipset
Version
Size
Date
Intel® Chipset Driver
Version : 10.1.17861.8101
3.34 MB
Apr 18, 2019
OS: Windows Server 2012 R2 64bit,Windows Server 2016 64bit,Windows Server 2019
Intel® Chipset Driver
Version : 10.1.18228.8176
3.12 MB
Dec 29, 2019
OS: Windows Server 2012 R2 64bit,Windows Server 2016 64bit,Windows Server 2019
LAN
LAN
Version
Size
Date
Intel® LAN Driver and Utility
Version : 23.5
487.48 MB
Apr 18, 2019
OS: Windows Server 2012 R2 64bit,Linux,Windows Server 2016 64bit,Windows Server 2019
SATA RAID/AHCI
SATA RAID/AHCI
Version
Size
Date
Intel® SATA Preinstall driver
(For AHCI / RAID Mode)
Note: Windows setup to read from USB devices
(For AHCI / RAID Mode)
Note: Windows setup to read from USB devices
Version : 6.0.0.1357
6.54 MB
Apr 19, 2019
OS: Windows Server 2012 R2 64bit,Windows Server 2016 64bit,Windows Server 2019
Intel® Rapid Storage Technology enterprise (Intel® RSTe)
Version : 6.0.0.1357
265.09 MB
Apr 21, 2019
OS: Windows Server 2012 R2 64bit,Windows Server 2016 64bit,Windows Server 2019
Utility
BIOS
Description
Version
Size
Date
Windows and UEFI mode flash BIOS SOP
Please download BIOS update tool from AMI Website
Please download BIOS update tool from AMI Website
-
0.31 MB
Jan 29, 2021
Warning:
Because BIOS flashing is potentially risky, if you do not encounter problems using the current version of BIOS, it is recommended that you not flash the BIOS. To flash the BIOS, do it with caution. Inadequate BIOS flashing may result in system malfunction.
What is a BETA?
BETA describes a new version that is reliable yet may not include all the features of the final product. During this phase we are previewing new features and gathering customer input to insure our product provides the best experience possible.
Because BIOS flashing is potentially risky, if you do not encounter problems using the current version of BIOS, it is recommended that you not flash the BIOS. To flash the BIOS, do it with caution. Inadequate BIOS flashing may result in system malfunction.
What is a BETA?
BETA describes a new version that is reliable yet may not include all the features of the final product. During this phase we are previewing new features and gathering customer input to insure our product provides the best experience possible.
- All
- All
- Windows Server 2022
- Windows Server 2019
- Windows Server 2016 R2 64bit
- Windows Server 2016 64bit
- Windows Server 2012 R2 64bit
- Windows Server 2012 64bit
- Windows 10 64bit
- VMware
- Ubuntu
- Linux CentOS
- Linux
Utility
Description
Version
Size
Date
GSM CLI
Version : 2.1.61
111.38 MB
May 22, 2023
OS: Windows Server 2012 64bit,Windows Server 2012 R2 64bit,Linux CentOS,Windows 10 64bit,Ubuntu,Windows Server 2016 R2 64bit,Windows Server 2019,Windows Server 2022
GSM Server
Version : 2.12
926.33 MB
Jan 18, 2023
OS: Linux,Windows Server 2016 64bit,Windows Server 2019
GSM Agent
Version : 2.5
720.29 MB
Dec 27, 2021
OS: Linux,Windows Server 2016 64bit,Windows Server 2019
Manual
Description
Version
Size
Date
User Guide - GIGABYTE Management Console (Vertiv)
Version : 1.2
3.92 MB
Oct 26, 2018
English
User Guide - BIOS setup manual (Intel Purley platform)
Version : 1.0
19.52 MB
Aug 17, 2017
English
Support List
Description
Version
Size
Date
RESOURCES
Success Case
Articles
Video
News
Security & Technical Advisory
Others
Back to R281-N40
Buy From One of the Regions Below
-
Africa, Middle East
-
America
-
Asia Pacific
-
Europe
