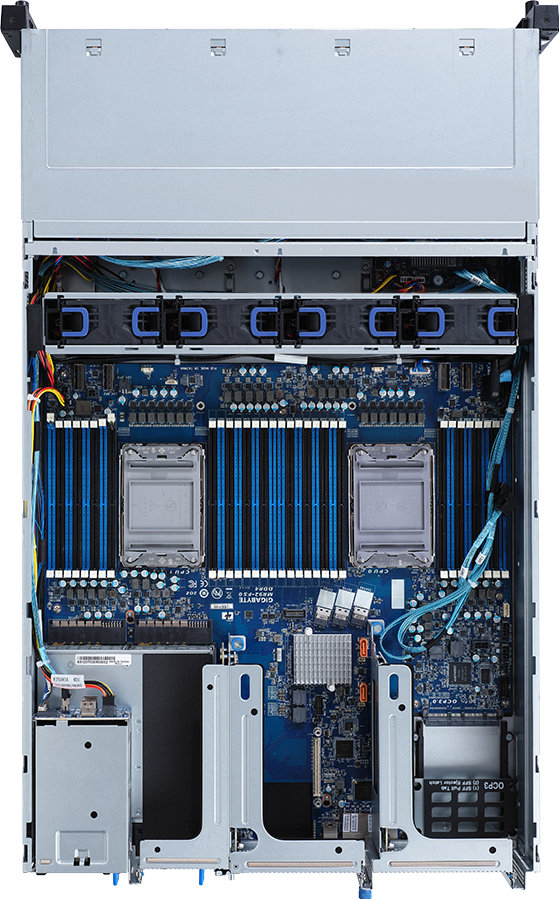

R282-2O0 (rev. 100)
3rd Gen. Intel® Xeon® Scalable DP Server System - 2U 24-Bay
| Application:
Networking
Application:
- 3rd Gen. Intel® Xeon® Scalable Processors
- 8-Channel RDIMM/LRDIMM DDR4 per processor, 32 x DIMMs
- Intel® C621A Express Chipset
- Dual ROM technology supported
- Supports Intel® Optane™ Persistent Memory 200 series
- 2 x 1Gb/s LAN ports (Intel® I350-AM2)
- 1 x Dedicated management port
- 24 x 2.5" SATA/SAS hot-swappable HDD/SSD bays
- 2 x 2.5" SATA/SAS hot-swappable HDD/SSD bays in rear side
- Onboard 12Gb/s SAS expander
- 8 x PCIe Gen4 x16 expansion slots
- 1 x OCP 3.0 Gen4 x16 mezzanine slot
- 1 x OCP 2.0 Gen3 x8 mezzanine slot
- 1600W (240V) 80 PLUS Platinum redundant power supply
Request a Quote
1/4
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
SPECIFICATIONS
Dimensions (WxHxD, mm)
2U
438 x 87.5 x 730
438 x 87.5 x 730
Motherboard
MR92-FS0
CPU
3rd Generation Intel® Xeon® Scalable Processors
Intel® Xeon® Platinum Processor, Intel® Xeon® Gold Processor, Intel® Xeon® Silver Processor
10nm technology, CPU TDP up to 270W
NOTE: If only 1 CPU is installed, some PCIe or memory functions might be unavailable
Intel® Xeon® Platinum Processor, Intel® Xeon® Gold Processor, Intel® Xeon® Silver Processor
10nm technology, CPU TDP up to 270W
NOTE: If only 1 CPU is installed, some PCIe or memory functions might be unavailable
Socket
2 x LGA 4189
Socket P+
Socket P+
Chipset
Intel® C621A Express Chipset
Memory
32 x DIMM slots
DDR4 memory supported only
8-channel memory architecture per processor
RDIMM modules up to 64GB supported
LRDIMM modules up to 128GB supported
3DS RDIMM/LRDIMM modules up to 256GB supported
1.2V modules: 3200/2933/2666 MHz
DDR4 memory supported only
8-channel memory architecture per processor
RDIMM modules up to 64GB supported
LRDIMM modules up to 128GB supported
3DS RDIMM/LRDIMM modules up to 256GB supported
1.2V modules: 3200/2933/2666 MHz
LAN
2 x 1Gb/s LAN ports ( Intel® I350-AM2)
1 x 10/100/1000 management LAN
1 x 10/100/1000 management LAN
Video
Integrated in Aspeed® AST2600
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp, DDR4 SDRAM
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp, DDR4 SDRAM
Audio
N/A
Storage
Front side: 24 x 2.5" SATA/SAS hot-swappable HDD/SSD bays
Rear side: 2 x 2.5" SATA/SAS hot-swappable HDD/SSD bays ( Connected via SAS Expander)
SAS card is required for SAS devices support
Broadcom SAS35x36R expander
Bandwidth: SATA 6Gb/s or SAS 12Gb/s per port
Default configuration supports:
Non-supported SATA/SAS drives without SAS card
Suggested 12Gb/s SAS cards:
CRA4448
Rear side: 2 x 2.5" SATA/SAS hot-swappable HDD/SSD bays ( Connected via SAS Expander)
SAS card is required for SAS devices support
Broadcom SAS35x36R expander
Bandwidth: SATA 6Gb/s or SAS 12Gb/s per port
Default configuration supports:
Non-supported SATA/SAS drives without SAS card
Suggested 12Gb/s SAS cards:
CRA4448
SAS
N/A
RAID
RAID Level depends on SAS Card
Intel® Virtual RAID On CPU (VROC) RAID 0, 1, 10, 5
Note: VROC module is compatible for Intel®SSD only
Intel® Virtual RAID On CPU (VROC) RAID 0, 1, 10, 5
Note: VROC module is compatible for Intel®SSD only
Peripheral Drives
N/A
Expansion Slots
Riser Card CRS2033:
- 1 x PCIe x16 slot (Gen4 x16), Full height half-length
- 2 x PCIe x8 slots (Gen4 x8), Full height half-length
Riser Card CRS2137:
- 1 x PCIe x16 slot (Gen4 x16 o x8), Full height half-length
- 1 x PCIe x8 slots (Gen4 x0 or x8), Full height half-length
- 1 x PCIe x16 slot (Gen4 x16 or x8), shared with OCP 2.0, Full height half-length
Riser Card CRS2027:
- 2 x PCIe x8 slots (Gen4 x8), Low profile half-length
1 x OCP 3.0 mezzanine slot with PCIe Gen4 x16 bandwidth from CPU_0
Supported NCSI function
1 x OCP 2.0 mezzanine slot with PCIe Gen3 x8 bandwidth from CPU_1
Supported NCSI function
- 1 x PCIe x16 slot (Gen4 x16), Full height half-length
- 2 x PCIe x8 slots (Gen4 x8), Full height half-length
Riser Card CRS2137:
- 1 x PCIe x16 slot (Gen4 x16 o x8), Full height half-length
- 1 x PCIe x8 slots (Gen4 x0 or x8), Full height half-length
- 1 x PCIe x16 slot (Gen4 x16 or x8), shared with OCP 2.0, Full height half-length
Riser Card CRS2027:
- 2 x PCIe x8 slots (Gen4 x8), Low profile half-length
1 x OCP 3.0 mezzanine slot with PCIe Gen4 x16 bandwidth from CPU_0
Supported NCSI function
1 x OCP 2.0 mezzanine slot with PCIe Gen3 x8 bandwidth from CPU_1
Supported NCSI function
Internal I/O
2 x CPU fan headers
1 x USB 3.0 header
1 x TPM header
1 x VROC connector
1 x Front panel header
1 x HDD back plane board header
1 x IPMB connector
1 x Clear CMOS jumper
1 x BIOS recovery jumper
1 x USB 3.0 header
1 x TPM header
1 x VROC connector
1 x Front panel header
1 x HDD back plane board header
1 x IPMB connector
1 x Clear CMOS jumper
1 x BIOS recovery jumper
Front I/O
2 x USB 3.0
1 x Power button with LED
1 x ID button with LED
1 x Reset button
1 x NMI button
1 x System status LED
1 x HDD activity LED
2 x LAN activity LEDs
1 x Power button with LED
1 x ID button with LED
1 x Reset button
1 x NMI button
1 x System status LED
1 x HDD activity LED
2 x LAN activity LEDs

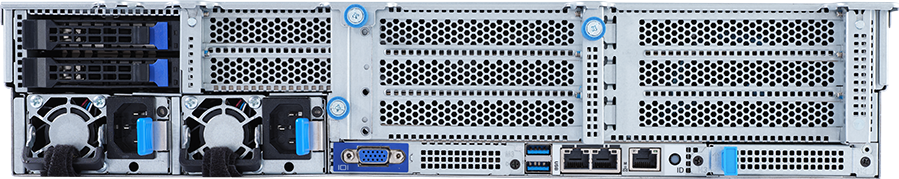

Rear I/O
2 x USB 3.0
1 x VGA
2 x RJ45
1 x MLAN
1 x ID button with LED
1 x VGA
2 x RJ45
1 x MLAN
1 x ID button with LED
Backplane I/O
Front side_CBP20O7NR: 16 x SATA/SAS and 8 x SATA/SAS/NVMe ports
Rear side_CBP2022: 2 x SATA/SAS ports
Bandwidth: PCIe Gen4 x4 or SATA 6Gb/s or SAS 12Gb/s per port
Rear side_CBP2022: 2 x SATA/SAS ports
Bandwidth: PCIe Gen4 x4 or SATA 6Gb/s or SAS 12Gb/s per port
TPM
1 x TPM header with SPI interface
Optional TPM2.0 kit: CTM010
Optional TPM2.0 kit: CTM010
Power Supply
2 x 1600W redundant PSUs
80 PLUS Platinum
AC Input:
- 100-120V~/ 12A, 50-60Hz
- 200-240V~/ 10.0A, 50-60Hz
DC Input:
240Vdc, 10A
DC Output:
- Max 1000W/ 100-120V~ +12V/ 81.5A +12Vsb/ 2.5A - Max 1600W at 200-240V or 240Vdc Input +12V/ 133A +12Vsb/ 2.5A
80 PLUS Platinum
AC Input:
- 100-120V~/ 12A, 50-60Hz
- 200-240V~/ 10.0A, 50-60Hz
DC Input:
240Vdc, 10A
DC Output:
- Max 1000W/ 100-120V~ +12V/ 81.5A +12Vsb/ 2.5A - Max 1600W at 200-240V or 240Vdc Input +12V/ 133A +12Vsb/ 2.5A
System Management
Aspeed® AST2600 management controller
Avocent® MergePoint IPMI 2.0 web interface:
Avocent® MergePoint IPMI 2.0 web interface:
- Network settings
- Network security settings
- Hardware information
- Users control
- Services settings
- IPMI settings
- Sessions control
- LDAP settings
- Power control
- Fan profiles
- Voltages, fans and temperatures monitoring
- System event log
- Events management (platform events, trap settings, email settings)
- Serial Over LAN
- vKVM & vMedia (HTML5)
OS Compatibility
Windows Server 2016
Windows Server 2019
Red Hat Enterprise Linux 7.9 ( x64) or later
Red Hat Enterprise Linux 8.2 ( x64) or later
Red Hat Enterprise Linux 8.3 ( x64) or later
SUSE Linux Enterprise Server 15 SP2 ( x64) or later
Ubuntu 20.04 LTS (x64) or later
Ubuntu 20.04.1 LTS (x64) or later
VMware ESXi 7.0 Update1 or later
VMware ESXi 7.0 Update2 or later
Windows Server 2019
Red Hat Enterprise Linux 7.9 ( x64) or later
Red Hat Enterprise Linux 8.2 ( x64) or later
Red Hat Enterprise Linux 8.3 ( x64) or later
SUSE Linux Enterprise Server 15 SP2 ( x64) or later
Ubuntu 20.04 LTS (x64) or later
Ubuntu 20.04.1 LTS (x64) or later
VMware ESXi 7.0 Update1 or later
VMware ESXi 7.0 Update2 or later
System Fans
4 x 80x80x38mm (16'300rpm)
Operating Properties
Operating temperature: 10°C to 35°C
Operating humidity: 8-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Operating humidity: 8-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Packaging Dimensions
982 x 588 x 268 mm
Packaging Content
1 x R282-2O0
2 x CPU heatsinks
1 x Rail kit
1 x VROC module
2 x CPU heatsinks
1 x Rail kit
1 x VROC module
Part Numbers
Barebone package: 6NR2822O0MR-00
Part Numbers:
- Motherboard: 9MR92FS0NR-00
- Rail kit: 25HB2-3A0202-K0R - CPU heatsink: 25ST1-343102-M1R - Back plane board_24-port: 9CBP20O7NR-00 - Back plane board_2-port: 9CBP2022NR-00 - Front panel board: 9CFP2001NR-00
- Power supply: 25EP0-216008-L0S - RJ45 type COM cable: 25CR0-200400-Y4R (in option)
- Riser card - CRS2033: 9CRS2033NR-00 - Riser card - CRS2137: 9CRS2137NR-00 - Riser card - CRS2027: 9CRS2027NR-00
- Rail kit: 25HB2-3A0202-K0R - CPU heatsink: 25ST1-343102-M1R - Back plane board_24-port: 9CBP20O7NR-00 - Back plane board_2-port: 9CBP2022NR-00 - Front panel board: 9CFP2001NR-00
- Power supply: 25EP0-216008-L0S - RJ45 type COM cable: 25CR0-200400-Y4R (in option)
- Riser card - CRS2033: 9CRS2033NR-00 - Riser card - CRS2137: 9CRS2137NR-00 - Riser card - CRS2027: 9CRS2027NR-00
