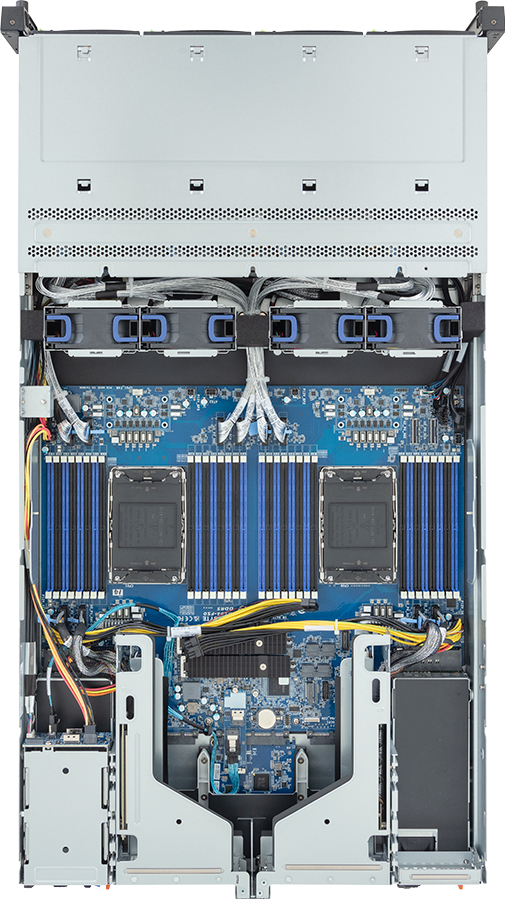

R284-S93-AAL1

Rack Server - Intel® Xeon® 6 Processors - 2U DP 2 x PCIe Gen5 GPUs
  • Supports up to 2 x Dual slot Gen5 GPUs
  • Dual Intel® Xeon® 6 Processors, LGA 4710
  • 8-Channel DDR5 RDIMM / MCR DIMM, 32 x DIMMs
  • Dual ROM Architecture
  • 2 x 1Gb/s LAN ports via Intel® I350-AM2
  • 12 x 3.5"/2.5" Gen5 NVMe/SATA/SAS-4 hot-swappable bays
  • 2 x 2.5" SATA/SAS-4 hot-swappable bays on the rear side
  • 2 x M.2 slots with PCIe Gen5 x4 interface
  • 2 x FHFL PCIe Gen5 x16 slots for GPUs
  • 2 x FHHL PCIe Gen5 x16 slots
  • 2 x OCP 3.0 Gen5 x16 slots
  • 1+1 2700W 80 PLUS Titanium redundant power supplies
Get a Quote
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.

SPECIFICATIONS

Dimensions (WxHxD, mm)
2U
438 x 87.5 x 815
Motherboard
MS94-FS0
CPU
Intel® Xeon® 6 Processors
- Intel® Xeon® 6700E-Series Processors
- Intel® Xeon® 6700P-Series Processors (available Q1'25)
- Intel® Xeon® 6500P-Series Processors (available Q1'25)

Dual processor, TDP up to 350W

Note: If only 1 CPU is installed, some PCIe or memory functions might be unavailable.
Socket
2 x LGA 4710
Socket E2
Chipset
System on Chip
Memory
32 x DIMM slots
DDR5 memory supported
MCR DIMM supported*
8-Channel memory architecture
RDIMM: Up to 6400 MT/s (1DPC), 5200 MT/s (2DPC)
MCR DIMM: Up to 8000 MT/s

*MCR DIMMs are only supported with Intel® Xeon® 6 Processors with P-cores and in a 1DPC configuration.
LAN
Rear side:
On I/O board:
- 2 x 1Gb/s LAN ports (1 x Intel® I350-AM2)
- Support NCSI function
- 1 x 10/100/1000 Mbps Management LAN
Video
Integrated in Aspeed® AST2600
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp
Storage
Front side:
12 x 3.5"/2.5" Gen5 NVMe/SATA/SAS-4* hot-swappable bays
- (4 x NVMe from CPU_0, 8 x NVMe from CPU_1)

Rear side:
2 x 2.5" SATA/SAS-4* hot-swappable bays
- (SATA from CPU_0, through I/O board)

*Storage card is required to support SATA and SAS drives.
SAS
Require SAS add-in cards
RAID
Require RAID add-in cards
Expansion Slots
PCIe Cable x 2:
- 1 x PCIe x16 (Gen5 x16) FHFL slot, from CPU_0
- 1 x PCIe x16 (Gen5 x16) FHFL slot, from CPU_1

Riser Card CRS101J:
- 1 x PCIe x16 (Gen5 x16) FHHL slot, from CPU_0

Riser Card CRS101K:
- 1 x PCIe x16 (Gen5 x16) FHHL slot, from CPU_1

1 x OCP 3.0 slot with PCIe Gen5 x16 bandwidth, from CPU_0
Supports NCSI function

1 x OCP 3.0 slot with PCIe Gen5 x16 bandwidth, from CPU_1
Supports NCSI function

2 x M.2 slots:
- M-key
- PCIe Gen5 x4, from CPU_1
- Support 2280/22110 cards

1 x M.2 slot (On I/O board):
- M-key
- PCIe Gen5 x2, from CPU_0, occupied for SATA support
- Support 2280 cards
Internal I/O
1 x TPM header
1 x PRoT connector
1 x VROC connector
Front I/O
2 x USB 3.2 Gen1
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
2 x LAN activity LEDs
1 x Storage activity LED
1 x System status LED

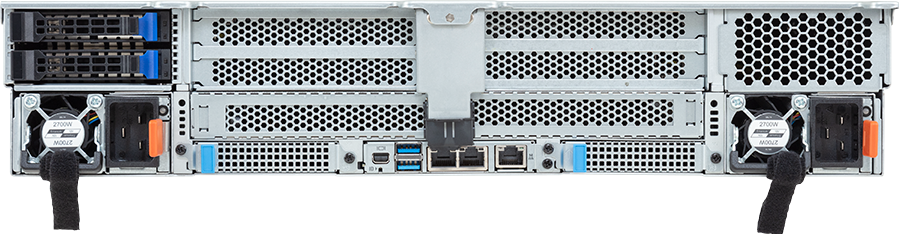

Rear I/O
On I/O board:
- 2 x USB 3.2 Gen1
- 1 x Mini-DP
- 2 x RJ45
- 1 x MLAN
- 1 x ID LED
Backplane Board
Speed and bandwidth:
Front side - CBP20C7: PCIe Gen5 x4 or SATA 6Gb/s or SAS-4 24Gb/s
Rear side - CBP2025: SATA 6Gb/s or SAS-4 24Gb/s
Security Modules
1 x TPM header with SPI interface
- Optional TPM2.0 kit: CTM012

1 x PRoT module connector (M.2 M-key)
- Optional PRoT module (AST1060 solution): CSC1200
Power Supply
1+1 2700W 80 PLUS Titanium redundant power supplies

AC Input:
- 100-127V~/ 12A, 50-60Hz
- 200-240V~/ 16A, 50-60Hz

DC Input: (Only for China)
- 240Vdc/ 16A

DC Output:
- Max 1008W/ 100-127V~
+12V/ 84A
+12Vsb/ 3A
- Max 2700W/ 200-240V~ or 240Vdc Input
+12V/ 225A
+12Vsb/ 3A

Note: The system power supply requires C19 power cord.
System Management
Aspeed® AST2600 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface

  • Dashboard
  • HTML5 KVM
  • Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
  • Sensor Reading History Data
  • FRU Information
  • SEL Log in Linear Storage / Circular Storage Policy
  • Hardware Inventory
  • Fan Profile
  • System Firewall
  • Power Consumption
  • Power Control
  • Advanced power capping
  • LDAP / AD / RADIUS Support
  • Backup & Restore Configuration
  • Remote BIOS/BMC/CPLD Update
  • Event Log Filter
  • User Management
  • Media Redirection Settings
  • PAM Order Settings
  • SSL Settings
  • SMTP Settings
OS Compatibility
Please refer to OS compatibility table in support page
System Fans
4 x 80x80x38mm (16,000rpm)
Operating Properties
Operating temperature: 10°C to 35°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Packaging Dimensions
1077 x 679 x 300 mm
Packaging Content
1 x R284-S93-AAL1
2 x CPU heatsinks
1 x Mini-DP to D-Sub cable
2 x GPU power cables (12VHPWR, 280mm)
4 x Carriers
1 x 2-Section Rail kit
Part Numbers
- Barebone package: 6NR284S93DR000AAL1*
- Motherboard: 9MS94FS0UR-000
- 2-Section Rail kit (CMA not supported): 25HB2-3A0206-K0R
- CPU heatsink: 25ST1-4Z3201-S7H
- M.2 heatsink: 12SP2-11000E-00R
- Front panel board - CFP2001: 9CFP2001NR-00
- Backplane board - CBP2025: 9CBP2025NR-00
- Backplane board - CBP20C7: 9CBP20C7NR-00
- Fan module: 25ST2-88382Y-A0R
- M.2 type SATA card - CRS2810: 9CRS2810NR-00
- Riser card - CRS101J: 9CRS101JNR-00
- Riser card - CRS101K: 9CRS101KNR-00
- I/O board with M.2 slot - CDCR010: 9CDCR010NR-00
- Mini-DP to D-Sub cable: 25CRN-200801-K1R
- GPU power cable (12VHPWR, 280mm): 25CRI-3000B2-Y4R
- Power supply: 25EP0-227000-D0S

Optional parts:

- C19 power cord 125V/15A (US): 25CP1-018000-Q0R
- C19 power cord 250V/16A (EU): 25CP3-01830H-Q0R
- C19 power cord 125V/15A (JP): 25CPA-01830B-Q0R
- 3-Section Rail kit (Supports CMA): 25HB2-A56121-K0R
- Cable Management Arm: 25HB1-R18300-K0R
