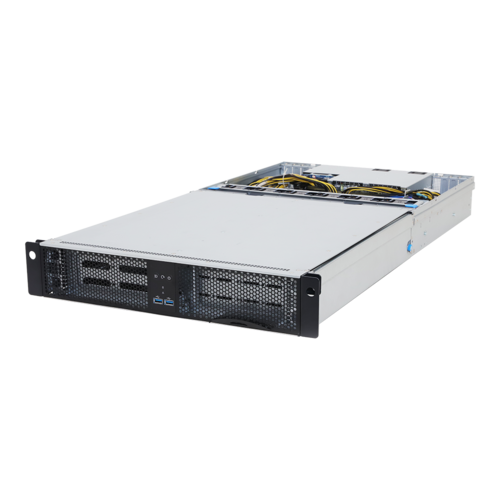

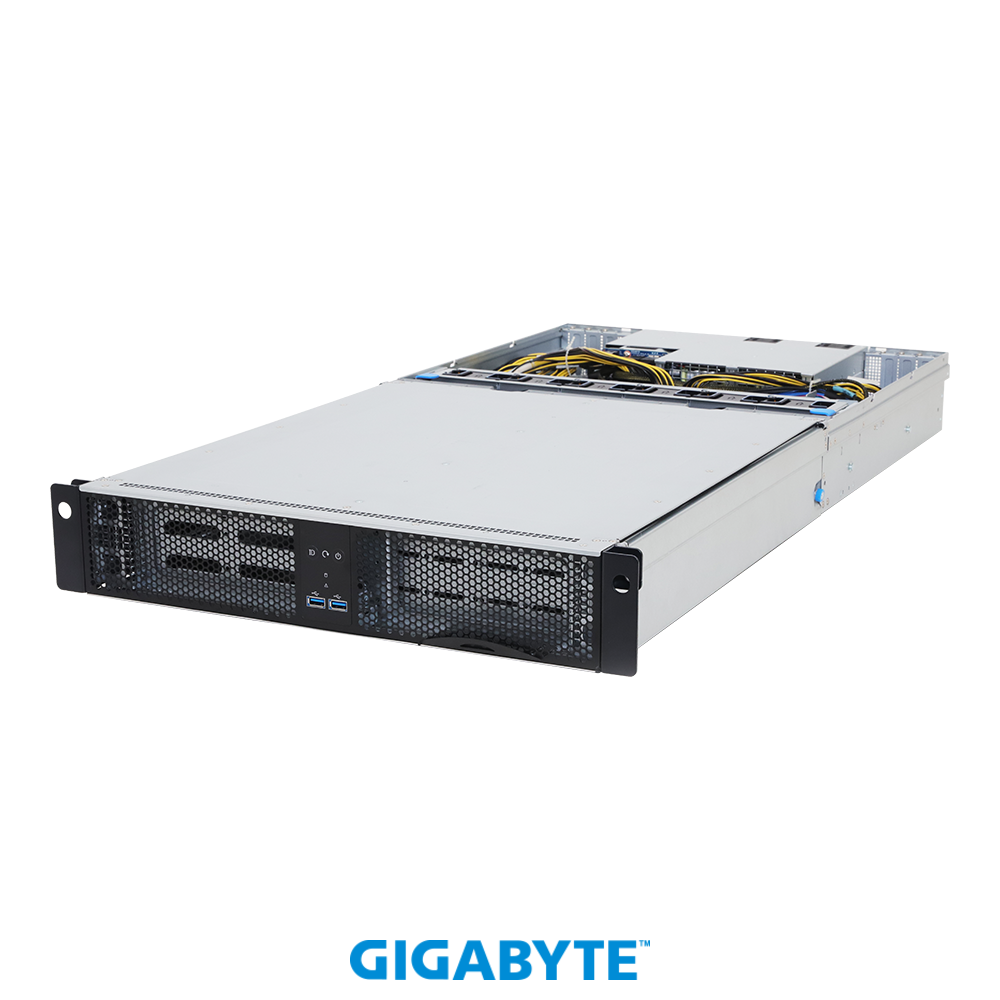

2‎U 24+2-Bay DP Storage Server (AMD MILAN/ ROME) | Application: Storage

Application:

Storage

Hardware-level root of trust support
Dual AMD EPYC™ 7003 series processor families
8-Channel RDIMM/LRDIMM DDR4 per CPU, 16 x DIMMs
1 x dedicated management port

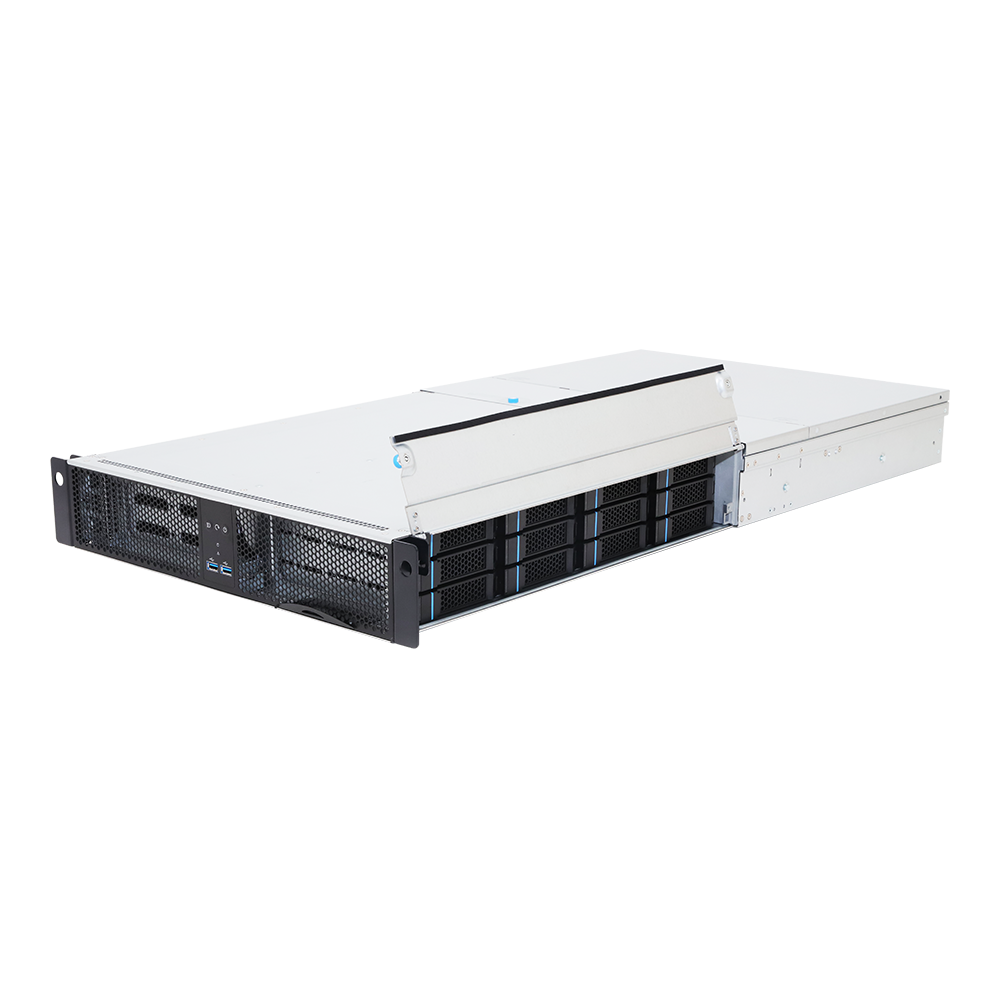

24 x 3.5" SATA/SAS hot-swappable HDD/SSD bays
2 x 2.5" SATA/SAS/Gen4 NVMe hot-swap SSD bays
Onboard 12Gb/s SAS expander
2 x SATA DOM supported
Up to 6 x PCIe Gen4 low profile slots
1+1 80 PLUS Platinum 1300W (240V) redundant PSU

Request a Quote

COMPARE

1/7

Select All

Cancel All Download

* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.

SPECIFICATIONS

Dimensions (WxHxD, mm)

2U
438 x 87 x 880

Motherboard

MZC2-CE0

CPU

AMD EPYC™ 7003 series processor family
Dual processors, 7nm, Socket SP3
Up to 64-core, 128 threads per processor
cTDP up to 200W

Compatible with AMD EPYC™ 7002 series processor family

Socket

Socket SP3

Chipset

System on Chip

Memory

Total 16 x DIMM slots
DDR4 memory supported only
8-Channel memory architecture per CPU
RDIMM modules up to 128GB supported
LRDIMM modules up to 128GB supported
3DS RDIMM/LRDIMM modules up to 256GB supported
Memory speed: Up to 3200/ 2933 MHz

LAN

1 x 10/100/1000 management LAN

Video

Integrated in Aspeed^® AST2500
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp, DDR4 SDRAM

Audio

N/A

Storage

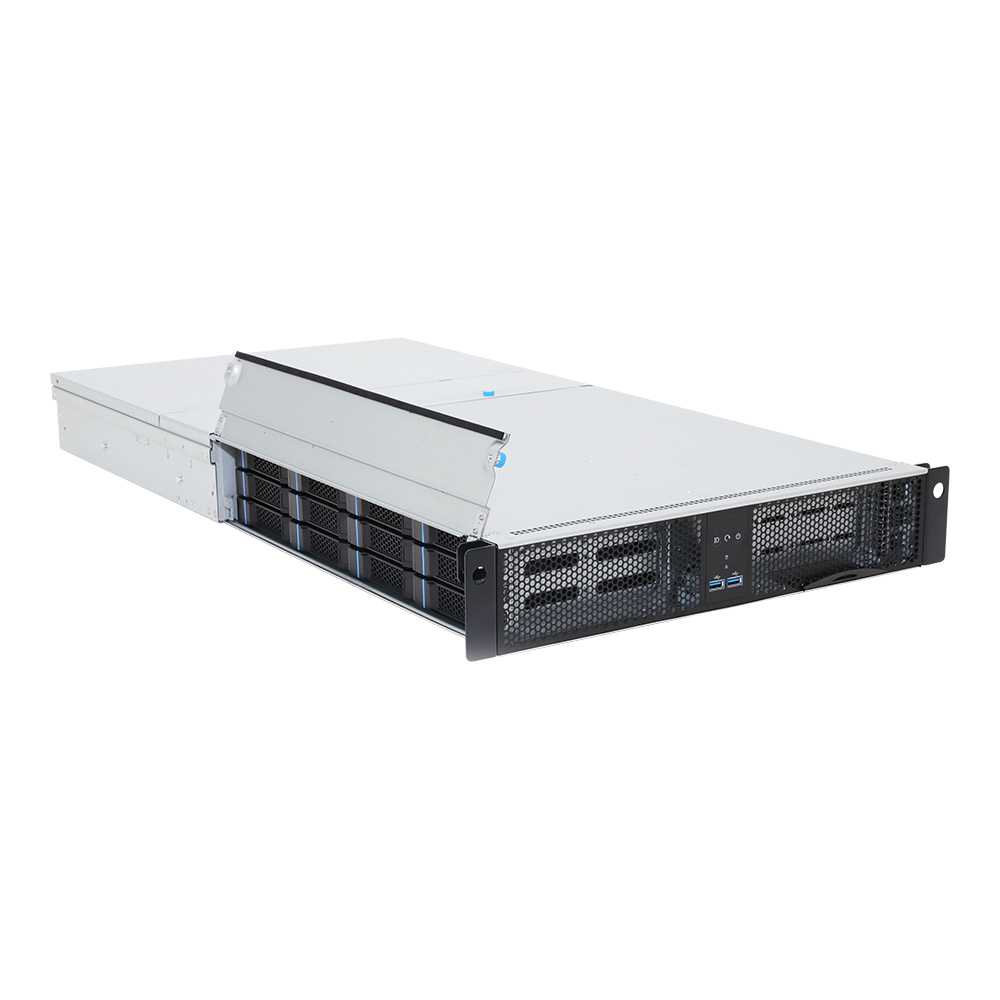

Side-accessed: 24 x 3.5" SATA/SAS hot-swappable HDD/SSD bays
LSI SAS35x36R expander
SAS card is required to enable 24 drive bays

Rear Side: 2 x 2.5" SATA/SAS/Gen4 NVMe hot-swappable HDD/SSD bays

Default configuration supports:
2 x 2.5" SATA/SAS/Gen4 NVMe drives in rear side

Recommend optional 12Gb/s SAS cards:
CRA4448 ( Hareware RAID Card)
CSA4648 (Software HBA Card)

SAS

Supported via add-on SAS Card

RAID

Depends on RAID card

Peripheral Drives

N/A

Expansion Slots

Total 6 x low profile PCIe Gen4 expansion slots

Slot_6: 1 x PCIe x16 (Gen4 x16 bus) slot
Slot_5: 1 x PCIe x16 (Gen4 x16 bus) slot
Slot_4: 1 x PCIe x16 (Gen4 x16 bus) slot
Slot_3: 1 x PCIe x16 (Gen4 x16 bus) slot
Slot_2: 1 x PCIe x16 (Gen4 x16 bus) slot
Slot_1: 1 x PCIe x16 (Gen4 x16 bus) slot

Internal I/O

1 x CPU fan header
6 x System fan headers
1 x USB 3.0 header
1 x TPM header
1 x VROC connector
1 x Front panel header
1 x Buzzer

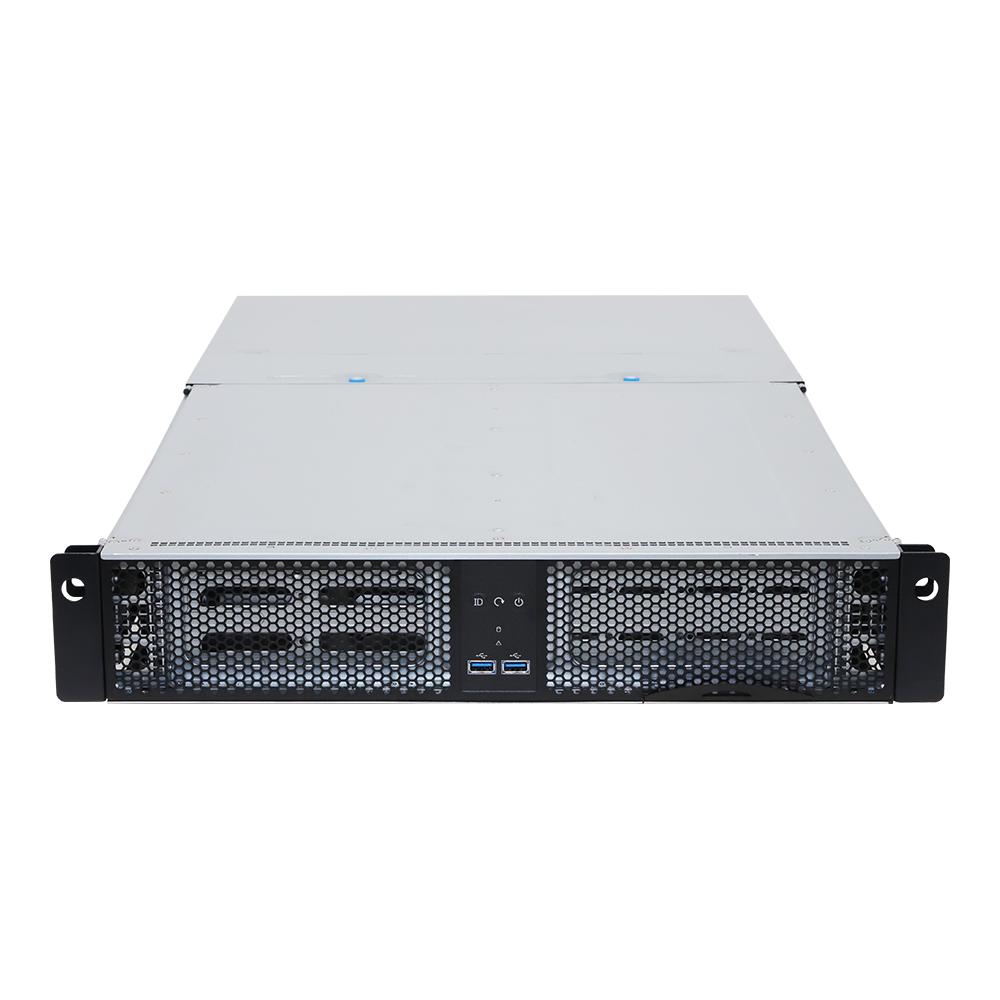

Front I/O

2 x USB 3.0
1 x Power button with LED
1 x ID button with LED
1 x Reset button
1 x System status LED
1 x HDD activity LED

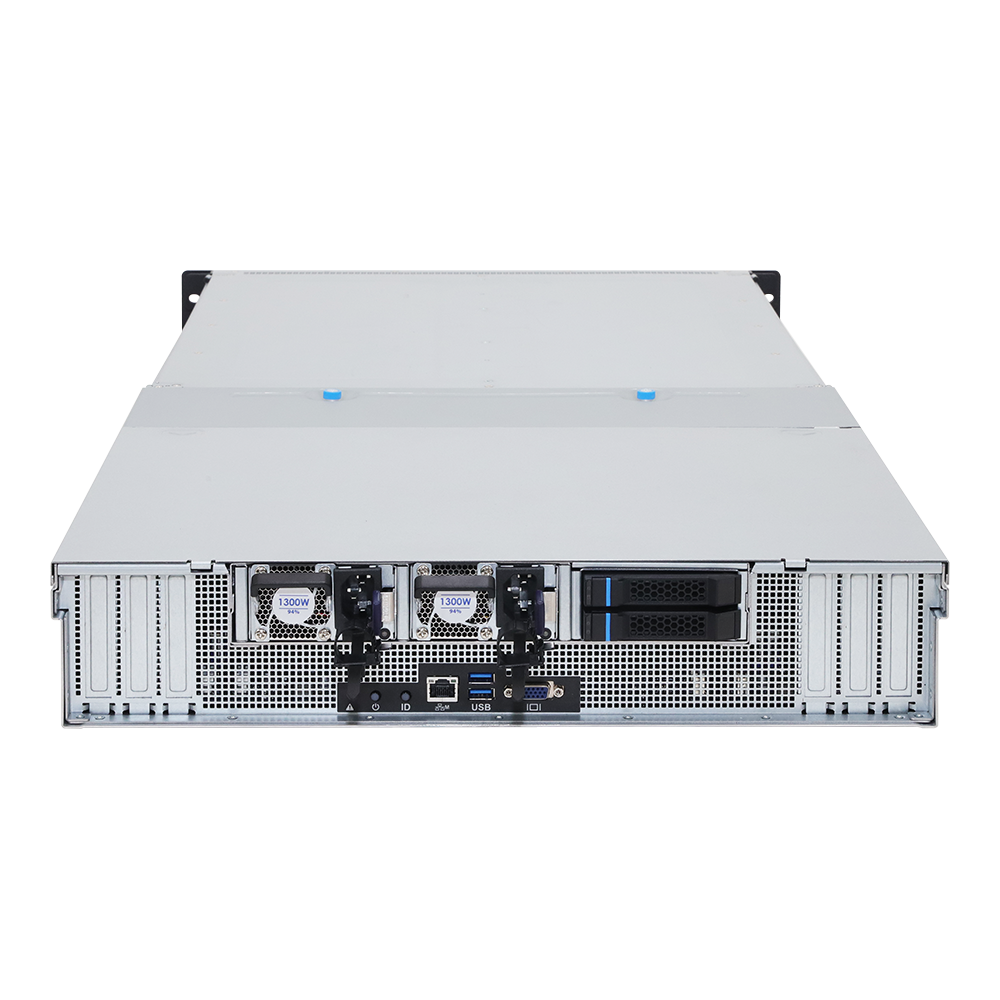

Rear I/O

2 x USB 3.0
1 x VGA
1 x MLAN
1 x Power button with LED
1 x ID button with LED
1 x System status LED

Backplane I/O

Left Side: CBPD2C0: 12 x 3.5" SATA/SAS ports with expander
Right Side: CBPD2C1: 12 x 3.5" SATA/SAS ports
Rear Side: CBPD020: 2 x 2.5" SATA/SAS/Gen4 NVMe hybrid ports

TPM

1 x TPM header with SPI interface
Optional TPM2.0 kit: CTM010

Power Supply

1+1 80 PLUS Platinum 1300W redundant PSU
80 PLUS Platinum

AC Input:
- 100-240V~/ 12-7A, 50-60Hz
- 200-240V~/ 8A, 50-60Hz

DC Input:
240Vdc/ 6.5A

DC Output:
- Max 1000W/ 100-240V~
+12V/ 80.5A
+12Vsb/ 3A
- Max 1300W/ 200-240V~ or 240Vdc Input
+12V/ 105.4A
+12Vsb/ 3A

System Management

Aspeed^® AST2500 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface

Dashboard
HTML5 KVM
Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
Sensor Reading History Data
FRU Information
SEL Log in Linear Storage / Circular Storage Policy
Hardware Inventory
Fan Profile
System Firewall
Power Consumption
Power Control
LDAP / AD / RADIUS Support
Backup & Restore Configuration
Remote BIOS/BMC/CPLD Update
Event Log Filter
User Management
Media Redirection Settings
PAM Order Settings
SSL Settings
SMTP Settings

OS Compatibility

Windows Server 2016 ( X2APIC/256T not supported)
Windows Server 2019

Red Hat Enterprise Linux 8.3 ( x64) or later

SUSE Linux Enterprise Server 12 SP5 ( x64) or later
SUSE Linux Enterprise Server 15 SP2 ( x64) or later

Ubuntu 18.04.5 LTS (x64) or later
Ubuntu 20.04 LTS (x64) or later

VMware ESXi 6.7 Update3 P03 or later
VMware ESXi 7.0 Update1 or later

Citrix Hypervisor 8.2.0 or later

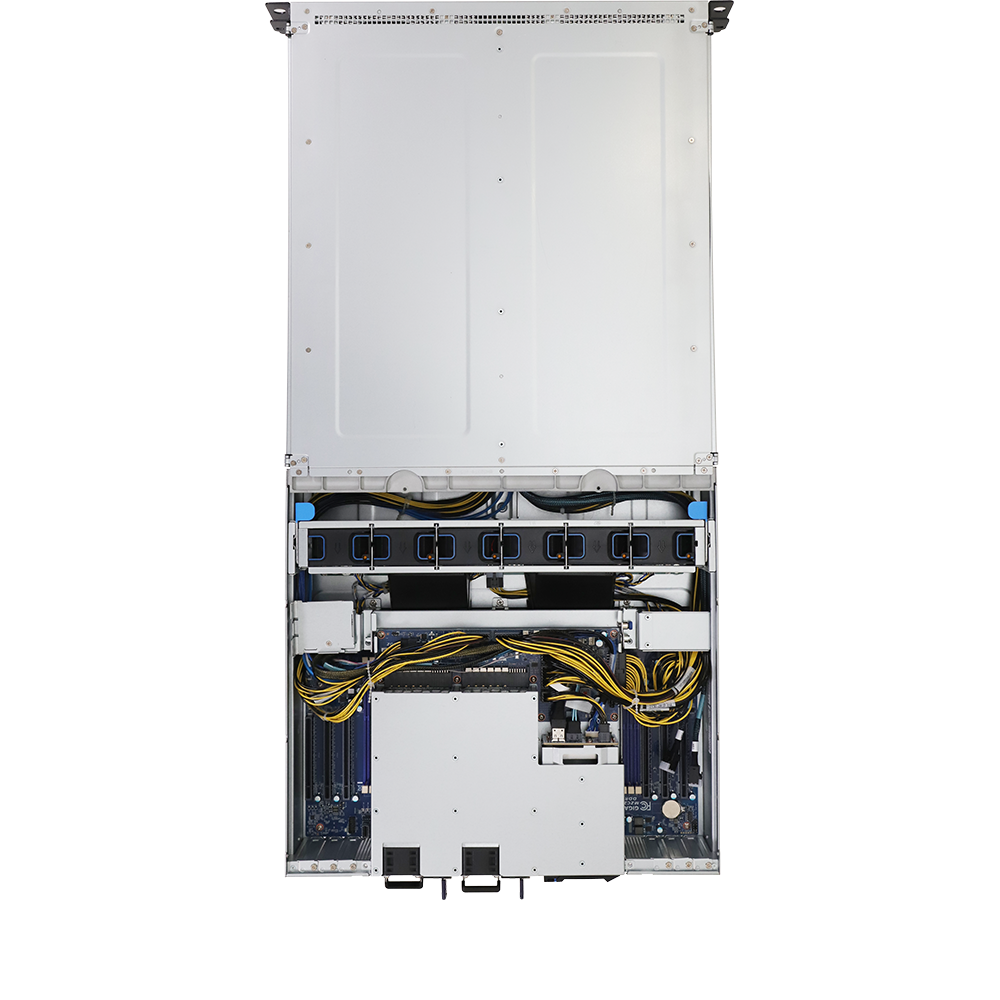

System Fans

6 x 60x60x38mm hot-swappable fan modules

Operating Properties

Operating temperature: 10°C to 35°C
Operating humidity: 8-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)

Packaging Dimensions

1168 x 697 x 341 mm

Packaging Content

1 x S252-ZC0
2 x CPU heatsinks
1 x Rail kit

Part Numbers

Barebone package: 6NS252ZC0MR-00 Rev. A00
Part Numbers:
- Motherboard: 9MZC2CE0NR-00
- Rail kit: 25HB2-A66121-C0R
- Cable ARM: 25HBZ-R18100-K0R
- CPU heatsink: 25ST1-453211-A3R
- Back plane board_12-port_L_Side: 9CBPD2C0NR-00
- Back plane board_12-port_R_Side: 9CBPD2C1NR-00
- Back plane board_2-port_rear_Side: 9CBPD020NR-00
- Power supply: 25EP0-213001-F3S
- Optional 12Gb/s SAS H/W RAID card : 9CRA4448NR-00
- Optional 12Gb/s SAS S/W RAID card : 9CSA4648NR-00
