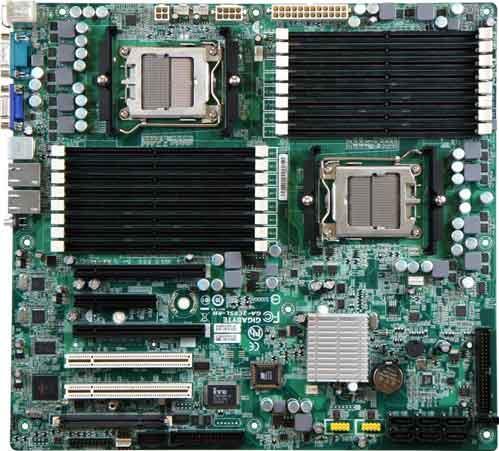

    GA-3CESL-RH (rev. 1.4)

    (rev.1.0)
    (rev.1.0)
    • Dual AMD Opteron 2000 series processor
    • Supporting AMD native quad-core Opteron “Barcelona” with enhanced virtualization, 2MB shared L3 cache, and 128-bit SSE units
    • 16 DIMM supporting up to 64GB registered DDR2 533/667 memory (DDR2-800 in 2008 Q1)
    • nVidia nForce Professional 3600 MCP chipset
    • XGI Z9s graphic with 32MB DDR2 VRAM
    • 2 PCIe x16 (one x16 bandwidth, one x8 bandwidth), 1 PCIe x8 (x4 bandwidth), and 2 PCI 32bit/33MHz
    • 6 SATA ports supporting RAID 0/1/5, and 1 ATA100.
    • Dual Marvell® 88E1116 PHY
    • IPMI 2.0 and KVM option
    • EATX form factor
    Select All
    Cancel All Download

    SPECIFICATIONS

    CPU
    • Dual AMD® Opteron™ 2000 series (socket F) processors
    • Dual-Core (Santa Rosa) Processor/Quad-Core (Barcelona) Processor
    • HyperTransport 1Gb
    Chipset
    • nVIDIA® nForce Professional 3600 MCP
    LAN
    • Dual Marvell® 88E1116 PHY
    Video
    • XGI® Z9s with 32MB DDRII VRAM
    RAID
    • Software RAID 0, 1, 5 in Windows
    • Optional HW RAID 0, 1, 5, 6 in Windows/ Linux
    Expansion Slots
    • 2 x PCI-E x16 (one x16 bandwidth, one x8 bandwidth)
    • 1 x PCI-E x8 (x4 bandwidth)
    • 2 x PCI supports 32/33MHz
    Internal I/O
    • 1 x Floppy
    • 1 x IDE
    • 6 x Serial ATA 3Gb/s connectors
    • 4 x USB 2.0
    Rear I/O
    • 2 x PS/2
    • 2 x USB 2.0
    • 1 x COM
    • 2 x LAN RJ45
    * The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
    * Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
    * All trademarks and logos are the properties of their respective holders.
    * Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.

    SUPPORT

    • Downloads
      • Driver
      • BIOS
    • Manual
    • Support List
    Online Support
    Driver
    BIOS
    • All
    • All
    • Windows XP 32bit
    • Windows Vista 32bit
    • Windows Server 2008 64bit
    • Windows Server 2008 32bit
    • Windows Server 2003 64bit
    • Windows Server 2003 32bit
    • RedHat Enterprise Linux 5 64bit
    • RedHat Enterprise Linux 5
    • RedHat Enterprise Linux 4 64bit
    • RedHat Enterprise Linux 4
    • RedHat Enterprise Linux 3 64bit
    • RedHat Enterprise Linux 3
    Default
    Default
    Version
    Size
    Date
    -
    3.17 MB
    2008/12/15
    Download
    OS: RedHat Enterprise Linux 3,RedHat Enterprise Linux 3 64bit
    Chipset
    Chipset
    Version
    Size
    Date
    nvidia driver for MCP55
    -
    54.42 MB
    2011/01/13
    Download
    OS: Windows Server 2008 64bit
    Nvidia driver for MCP55
    -
    51.6 MB
    2011/01/13
    Download
    OS: Windows Server 2008 32bit
    Nvidia driver for MCP55
    -
    28.84 MB
    2011/01/13
    Download
    OS: Windows Server 2003 64bit
    Nvidia driver for MCP55
    -
    28.81 MB
    2011/01/13
    Download
    OS: Windows Server 2003 32bit
    LAN
    LAN
    Version
    Size
    Date
    -
    24.23 MB
    2008/12/15
    Download
    OS: Windows Server 2003 32bit
    -
    23.52 MB
    2008/12/15
    Download
    OS: Windows Server 2003 32bit,Windows Server 2003 64bit
    -
    46.03 MB
    2008/12/15
    Download
    OS: Windows Server 2008 32bit
    -
    48.68 MB
    2008/12/15
    Download
    OS: Windows Server 2008 64bit
    SATA RAID/AHCI
    SATA RAID/AHCI
    Version
    Size
    Date
    -
    24.85 MB
    2008/12/15
    Download
    VGA
    VGA
    Version
    Size
    Date
    -
    7.24 MB
    2008/12/15
    Download
    OS: Windows XP 32bit,Windows Server 2003 32bit,Windows Vista 32bit
    -
    1.12 MB
    2008/12/15
    Download
    OS: RedHat Enterprise Linux 4,RedHat Enterprise Linux 4 64bit
    XGI Z9s driver for RHEL5
    Version : 2.70.08
    7.05 MB
    2009/01/12
    Download
    OS: RedHat Enterprise Linux 5,RedHat Enterprise Linux 5 64bit
    BIOS
    Description
    Version
    Size
    Date
    1. Fix: The system hangs with two HDDs after pressing F2-key when enable console redirection.2. Fix: poor performance on unganged mode3. Support A1 stepping of Z9s VGA chip.
    Version : f6
    0.54 MB
    2009/03/28
    Download
    Warning:
    Because BIOS flashing is potentially risky, if you do not encounter problems using the current version of BIOS, it is recommended that you not flash the BIOS. To flash the BIOS, do it with caution. Inadequate BIOS flashing may result in system malfunction.

    What is a BETA?
    BETA describes a new version that is reliable yet may not include all the features of the final product. During this phase we are previewing new features and gathering customer input to insure our product provides the best experience possible.
    Manual
    Description
    Version
    Size
    Date
    1. User's manual for GA-3CESL-RH
    Version : 1004
    0.99 MB
    2008/03/20
    Download
    English
    Support List
    Description
    Version
    Size
    Date
    QVL Support List
    Version : 1.5
    0.06 MB
    2008/09/02
    Download
    <ol><li>QVL for GA-3CESL-RH (PCB version 1.4)<li>Add Qimonda (RDIMM) QVL</ol>
    QVL Support List
    Version : 1.4
    0.06 MB
    2008/08/13
    Download
    <ol><li>QVL for GA-3CESL-RH (PCB version 1.4)</ol>
    OS Support List
    Version : 1.4
    0.02 MB
    2008/04/30
    Download
    <ol><li>OS Compatibility for GA-3CESL-RH (PCB version 1.4)</ol>
