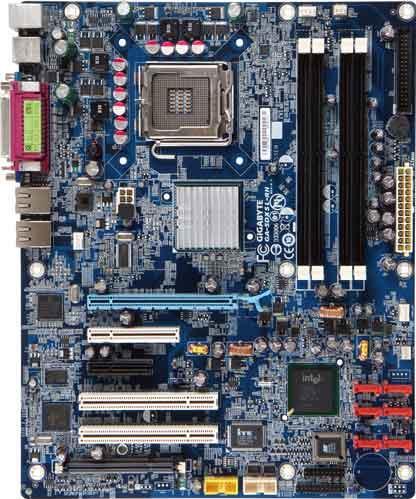

    GA-5DXSL-RH (rev. 1.0)

    • Cost-effective choice based on Intel® 3200 MCH and ICH9R for single quad-core platform
    • Support upcoming 45nm quad-core/dual-core Xeon® 3000 processor
    • Memory capacity upto 8GB unbuffered ECC DDR2-667/800 suitable for multitasking and virtualization
    • Dual GbE providing high speed network
    • Onboard SO-DIMM for optional IPMI 2.0 module (GC-MMTS/GC-MMDS-RH) and iKVM module (GC-MMTS1-RH)
    Select All
    Cancel All Download

    SPECIFICATIONS

    CPU
    • Intel®Xeon® 3000 processor
    • Socket LGA775
    • Supports 1066/1333MHz FSB
    Chipset
    • Intel® 3200
    • Intel®82801IR ICH9 RAID
    LAN
    • Intelreg; 82566DM GbE controller
    • Broadcomreg; BCM5721 GbE controller
    Video
    • XGI Z9s
    • 32MB DDR2
    SATA
    • Build-in Intel®ICH9R supports six independant SATA controllers, each controller capable up to 3.0Gb/second transfer rate
    RAID
    • Intel® SW RAID 0, 1, 10, 5(Windows only)
    • Option al LSI® SW RAID 0, 1, 10
    • Option al LSI® SW RAID 0, 1, 10
    Expansion Slots
    • 1 x PCI-E x16 (x8 bandwidth)
    • 1 x PCI-E x8 (x4bandwidth)
    • 1 x PCI-E x4 (x1 bandwidth)
    • 2 x PCI 32/33MHz
    • 1 x SO-DIMM I/F
    Internal I/O
    • 1 x Floppy
    • 6 x Serial ATA 3Gb/s connector
    • 1 x COM
    • 2 x USB 2.0
    Rear I/O
    • 2 x PS/2
    • 2 x USB 2.0
    • 1 x Parallel
    • 1 x COM
    • 1 x VGA
    • 2 x LAN RJ45
    * The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
    * Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
    * All trademarks and logos are the properties of their respective holders.
    * Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.

    SUPPORT

    • Downloads
      • Driver
    • Manual
    Online Support
    Driver
    • All
    • All
    • Windows XP 64bit
    • Windows XP 32bit
    • Windows Vista 64bit
    • Windows Vista 32bit
    • Windows Server 2008 64bit
    • Windows Server 2008 32bit
    • Windows Server 2003 32bit
    Chipset Update Patch
    Chipset Update Patch
    Version
    Size
    Date
    Intel Chipset Driver for GA-5DXSL-RH
    Version : 8.5.0.1008
    2.04 MB
    2009/10/01
    Download
    OS: Windows XP 32bit,Windows XP 64bit,Windows Server 2003 32bit,Windows Vista 32bit,Windows Vista 64bit
    VGA
    VGA
    Version
    Size
    Date
    VGA Driver For GA-5DXSL-RH
    Version : 1.09.03
    6.33 MB
    2009/10/01
    Download
    OS: Windows XP 32bit,Windows XP 64bit,Windows Server 2003 32bit,Windows Vista 32bit,Windows Vista 64bit,Windows Server 2008 32bit,Windows Server 2008 64bit
    Manual
    Description
    Version
    Size
    Date
    User Manual For GA-5DXSL-RH
    Version : 1.001
    1.23 MB
    2009/10/01
    Download
